For safe use

Insert the retaining hooks (clips) into the floor mat eyelets.

Turn the upper knob of each retaining hook (clip) to secure the floor mats in place.

*: Always align the marks.

The shape of the retaining hooks (clips) may differ from that shown in the illustration.

1-1. For safe use 25

1

26 1-1. For safe use

Adjust the angle of the seat- back so that you are sitting straight up and so that you do not have to lean forward to steer. (P. 130)

Adjust the seat so that you can depress the pedals fully and so that your arms bend slightly at the elbow when gripping the steering wheel. (P. 130)

Lock the head restraint in place with the center of the head restraint closest to the top of your ears. (P. 134)

Wear the seat belt correctly. (P. 28)

Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. (P. 28)

Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the vehicle’s seat belt.

(P. 54)

1-1. For safe use 27

1

28 1-1. For safe use

Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.

Position the lap belt as low as possible over the hips.

Adjust the position of the seat- back. Sit up straight and well back in the seat.

Do not twist the seat belt.

To fasten the seat belt, push the plate into the buckle until a click sound is heard.

To release the seat belt, press the release button.

1-1. For safe use 29

Push the seat belt shoulder anchor down while pressing the release button.

Push the seat belt shoulder

anchor up. 1

Move the height adjuster up and down as needed until you hear a click.

The pretensioners do not activate in the event of a minor frontal impact, a minor side impact or a rear impact.

30 1-1. For safe use

Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.

Automatic locking retractor (ALR)

When a passenger's shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt and then pull the belt out once more. (P. 58)

Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle’s seat belt. (P. 54)

When the child becomes large enough to properly wear the vehicle’s seat belt, follow the instructions regarding seat belt usage. (P. 28)

Replacing the belt after the pretensioner has been activated (front seats) If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent collisions.

Seat belt extender

If your seat belts cannot be fastened securely because they are not long enough, a personalized seat belt extender is available from your Toyota dealer free of charge.

1-1. For safe use 31

1

32 1-1. For safe use

WARNING

People suffering illness

Obtain medical advice and wear the seat belt in the proper way. (P. 28)

When children are in the vehicle

Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or other serious injuries that could result in death.

If this occurs and the buckle cannot be unfastened, scissors should be used to cut the belt.

Seat belt pretensioners (front seats)

Do not place anything, such as a cushion, on the front passenger's seat. Doing so will disperse the passenger's weight, which prevents the sensor from detecting the passenger's weight properly. As a result, the seat belt pretensioner for the front passenger's seat may not activate in the event of a collision.

If the pretensioner has activated, the SRS warning light will come on. In that case, the seat belt cannot be used again and must be replaced at your Toyota dealer.

Adjustable shoulder anchor (front seats)

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or accident. (P. 29)

Seat belt damage and wear

Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in the door.

Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an occupant from death or serious injury.

Ensure that the belt and plate are locked and the belt is not twisted.

If the seat belt does not function correctly, immediately contact your Toyota dealer.

Replace the seat assembly, including the belts, if your vehicle has been involved in a serious accident, even if there is no obvious damage.

Do not attempt to install, remove, modify, disassemble or dispose of the seat belts. Have any necessary repairs carried out by your Toyota dealer. Inappropriate handling may lead to incorrect operation.

1-1. For safe use 33

1

34 1-1. For safe use

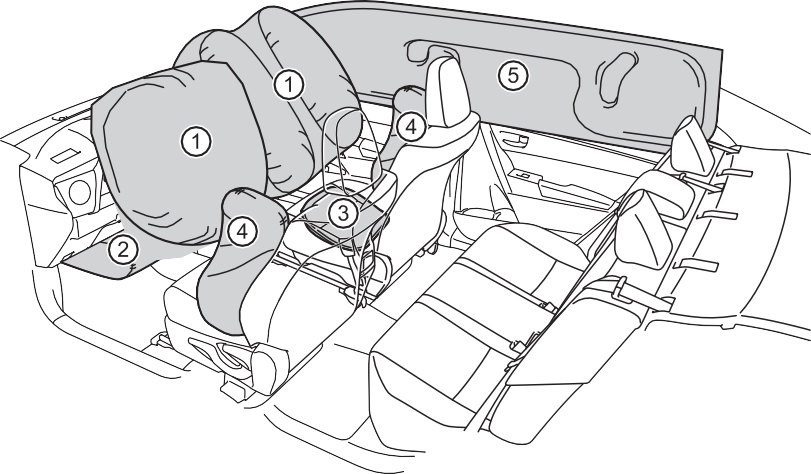

SRS front airbags

SRS driver airbag/front passenger airbag

Can help protect the head and chest of the driver and front pas- senger from impact with interior components

SRS driver’s knee airbag

Can help provide driver protection

SRS seat cushion airbag

Can help restrain the front passenger

SRS side and curtain shield airbags

1-1. For safe use 35

SRS front side airbags

Can help protect the torso of the front seat occupants

SRS curtain shield airbags

Can help protect primarily the head of occupants in the outer

seats 1

Can help prevent the occupants from being thrown from the

vehicle in the event of vehicle rollover

36 1-1. For safe use

Front impact sensors

Front passenger occupant classification system (ECU and sensors)

Seat cushion airbag

Side impact sensors (front doors)

Front passenger airbag

Side airbags

Seat belt pretensioners and force limiters

Side impact sensors (front)

“AIR BAG ON” and “AIR BAG OFF” indicator lights

Curtain shield airbags

Side impact sensors (rear)

Driver airbag

Driver’s seat belt buckle switch

Driver’s knee airbag

Airbag sensor assembly

Front passenger’s seat belt buckle switch

SRS warning light

1-1. For safe use 37

the inflators quickly fills the airbags with non-toxic gas to help restrain 1

the motion of the occupants.

38 1-1. For safe use

1-1. For safe use 39

1

40 1-1. For safe use

1-1. For safe use 41

WARNING

SRS airbag precautions

If a vinyl cover is put on the area where the SRS driver’s knee airbag will deploy, be sure to remove it.

Do not use seat accessories which cover the parts where the SRS side

airbags and SRS seat cushion airbag inflate as they may interfere with inflation of the SRS airbags. Such accessories may prevent the side air- 1

bags and seat cushion airbag from activating correctly, disable the system

or cause the side airbags and seat cushion airbag to inflate accidentally, resulting in death or serious injury.

Do not strike or apply significant levels of force to the area of the SRS air- bag components.

Doing so can cause the SRS airbags to malfunction.

Do not touch any of the component parts immediately after the SRS air- bags have deployed (inflated) as they may be hot.

If breathing becomes difficult after the SRS airbags have deployed, open a door or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any residue as soon as possible to prevent skin irritation.

If the areas where the SRS airbags are stored, such as the steering wheel pad and front and rear pillars garnishes, are damaged or cracked, have them replaced by your Toyota dealer.

Do not place anything, such as a cushion, on the front passenger's seat. Doing so will disperse the passenger's weight, which prevents the sensor from detecting the passenger's weight properly. As a result, the SRS front airbags for the front passenger may not deploy in the event of a collision.

Modification and disposal of SRS airbag system components

Do not dispose of your vehicle or perform any of the following modifications without consulting your Toyota dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury.

Installation, removal, disassembly and repair of the SRS airbags

Repairs, modifications, removal or replacement of the steering wheel, instrument panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side rails

Repairs or modifications of the front fender, front bumper, or side of the occupant compartment

Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows, winches or roof luggage carrier

Modifications to the vehicle’s suspension system

Installation of electronic devices such as mobile two-way radios and CD players

Modifications to your vehicle for a person with a physical disability

42 1-1. For safe use

If the SRS airbags deploy (inflate)

Slight abrasions, burns, bruising etc.,may be sustained from SRS airbags, due to the extremely high speed deployment (inflation) by hot gases.

A loud noise and white powder will be emitted.

Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the front seats, parts of the front and rear pillars, and roof side rails, may be hot for several minutes. The airbag itself may also be hot.

The windshield may crack.

SRS airbag deployment conditions (SRS front airbags)

The SRS front airbags will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to an approximately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or deform).

However, this threshold velocity will be considerably higher in the following situations:

If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact

If the vehicle is involved in an underride collision, such as a collision in which the front of the vehicle “underrides”, or goes under, the bed of a truck

Depending on the type of collision, it is possible that only the seat belt pre- tensioners will activate.

The SRS front airbags for the front passenger will not activate if there is no passenger sitting in the front passenger seat. However, the SRS front air- bags for the front passenger may deploy if luggage is put in the seat, even if the seat is unoccupied.

The SRS seat cushion airbag on the front seats will not operate if the occu- pant is not wearing a seat belt.

SRS airbag deployment conditions (SRS side and curtain shield airbags)

The SRS side and curtain shield airbags will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle colliding with the vehicle cabin from a direction perpendicular to the vehicle orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).

The SRS curtain shield airbags will deploy in the event of vehicle rollover.

The SRS side and curtain shield airbags will deploy in the event of a severe frontal collision.

1-1. For safe use 43

Conditions under which the SRS airbags may deploy (inflate), other than a collision

The SRS front airbags and SRS side and curtain shield airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.

Hitting a curb, edge of pavement or hard surface

Falling into or jumping over a deep hole 1

Landing hard or falling

The SRS curtain shield airbags may also deploy under the situations shown in the illustration.

The angle of vehicle tip-up is marginal.

The vehicle skids and hits a curb stone.

Types of collisions that may not deploy the SRS airbags (SRS front air- bags)

The SRS front airbags do not generally inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a collision of any type causes sufficient forward deceleration of the vehicle, deployment of the SRS front airbags may occur.

Collision from the side

Collision from the rear

Vehicle rollover

44 1-1. For safe use

Types of collisions that may not deploy the SRS airbags (SRS side and curtain shield airbags)

The SRS side and curtain shield airbags may not activate if the vehicle is subjected to a collision from the side at certain angles, or a collision to the side of the vehicle body other than the passenger compartment.

Collision from the side to the vehicle body other than the passenger compart- ment

Collision from the side at an angle

The SRS side airbags do not generally inflate if the vehicle is involved in a rear collision, if it rolls over, or if it is involved in a low-speed side or low- speed frontal collision.

Collision from the rear

Vehicle rollover

The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a rear collision, if it pitches end over end, or if it is involved in a low-speed side or low-speed frontal collision.

Collision from the rear

Pitching end over end

When to contact your Toyota dealer

1-1. For safe use 45

In the following cases, the vehicle will require inspection and/or repair. Con- tact your Toyota dealer as soon as possible.

Any of the SRS airbags have been inflated.

The front of the vehicle is damaged or deformed, or was involved in an acci- dent that was not severe enough to

cause the SRS front airbags to inflate. 1

A portion of a door or its surrounding area is damaged or deformed, or the vehicle was involved in an accident that was not severe enough to cause the SRS side airbags and curtain shield air- bags to inflate.

The pad section of the steering wheel, dashboard near the front passenger air- bag or lower portion of the instrument panel is scratched, cracked, or other- wise damaged.

The seat cushion surface is scratched, cracked, or otherwise damaged.

The surface of the seats with the side airbag is scratched, cracked, or other- wise damaged.

46 1-1. For safe use

The portion of the front pillars, rear pil- lars or roof side rail garnishes (padding) containing the curtain shield airbags inside is scratched, cracked, or other- wise damaged.

1-1. For safe use 47

1

SRS warning light

Driver’s and front passenger’s seat belt reminder light

“AIR BAG OFF” indicator light

“AIR BAG ON” indicator light

48 1-1. For safe use

Adult*1

Child*4

Child restraint system with infant*5

Unoccupied

1-1. For safe use 49

1

50 1-1. For safe use

There is a malfunction in the system

*1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may not recognize him/her as an adult depending on his/her physique and posture.

*2: In the event the front passenger is wearing a seat belt.

*3: In the event the front passenger does not wear a seat belt

*4: For some children, child in seat, child in booster seat or child in convert- ible seat, the system may not recognize him/her as a child. Factors which may affect this can be the physique or posture.

*5: Never install a rear-facing child restraint system on the front passenger seat. A forward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable. (P. 54)

*6: In case the indicator light is not illuminated, consult this manual on how to install the child restraint system properly. (P. 58)

1-1. For safe use 51

1

52 1-1. For safe use

1-1. For safe use 53

1

It is recommended that children sit in the rear seats to avoid acci- dental contact with the shift lever, wiper switch etc.

Use the rear door child-protector lock or the window lock switch to avoid children opening the door while driving or operating the power window accidentally.

Do not let small children operate equipment which may catch or pinch body parts, such as the power window, hood, trunk, seats etc.

54 1-1. For safe use

Choose a child restraint system that suits your vehicle and is appro- priate to the age and size of the child.

For installation details, follow the instructions provided with the child restraint system.

General installation instructions are provided in this manual. (P. 58)

1-1. For safe use 55

Rear facing - Infant seat/con- vertible seat

Forward facing - Convertible seat

1

Selecting an appropriate child restraint system

Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the vehicle’s seat belt.

If the child is too large for a child restraint system, sit the child on a rear seat and use the vehicle’s seat belt. (P. 28)

56 1-1. For safe use

WARNING

Child restraint precautions

For effective protection in automobile accidents and sudden stops, a child must be properly restrained, using a seat belt or child restraint system depending on the age and size of the child. Holding a child in your arms is not a substitute for a child restraint system. In an accident, the child can be crushed against the windshield, or between you and the vehicle’s interior.

Toyota strongly urges the use of a proper child restraint system that con- forms to the size of the child, installed on the rear seat. According to acci- dent statistics, the child is safer when properly restrained in the rear seat than in the front seat.

Never install a rear-facing child restraint system on the front passenger seat even if the “AIR BAG OFF” indicator light is illuminated. In the event of an accident, the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child if the rear-facing child restraint system is installed on the front passenger seat.

A forward-facing child restraint system may be installed on the front pas- senger seat only when it is unavoidable. A child restraint system that requires a top tether strap should not be used in the front passenger seat since there is no top tether strap anchor for the front passenger seat. Adjust the seatback as upright as possible and always move the seat as far back as possible even if the “AIR BAG OFF” indicator light is illumi- nated, because the front passenger airbag could inflate with considerable speed and force. Otherwise, the child may be killed or seriously injured.

Do not use the seat belt extender when installing a child restraint system on the front or rear passenger seat. If installing a child restraint system with the seat belt extender connected to the seat belt, the seat belt will not securely hold the child restraint system, which could cause death or seri- ous injury to the child or other passengers in the event of a sudden stop, sudden swerve or accident.

Do not allow the child to lean his/her head or any part of his/her body against the door or the area of the seat, front and rear pillars or roof side rails from which the SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in the child restraint system. It is dangerous if the SRS side airbags and curtain shield airbags inflate, and the impact could cause death or serious injury to the child.

Make sure you have complied with all installation instructions provided by the child restraint manufacturer and that the system is properly secured. If it is not secured properly, it may cause death or serious injury to the child in the event of a sudden stop or accident.

1-1. For safe use 57

1

58 1-1. For safe use

LATCH anchors are provided for the outer rear seats. (Buttons dis- playing the location of the anchors are attached to the seats.)

Anchor brackets (for top tether strap) (P. 63)

An anchor bracket is provided for each rear seat.

1-1. For safe use 59

Widen the gap between the seat cushion and seatback slightly.

Type A

Latch the hooks of the lower straps onto the LATCH

anchors. If the child restraint 1

has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.

For owners in Canada:

The symbol on a child restraint system indicates the presence of a lower connector system.

Type B

For owners in Canada:

The symbol on a child restraint system indicates the presence of a lower connector system.

60 1-1. For safe use

Rear-facing - Infant seat/convertible seat

Place the child restraint sys- tem on the rear seat facing the rear of the vehicle.

Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.

Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.

While pushing the child restraint system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.

After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.

Forward-facing - Convertible seat

1-1. For safe use 61

Place the child restraint sys- tem on the seat facing the front of the vehicle.

If your child restraint system interferes with a head restraint

and cannot be installed properly, 1

install the child restraint system after removing the head restraint. (P. 135)

Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.

Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.

While pushing the child restraint system into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.

After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.

If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor. (P. 63)

62 1-1. For safe use

Booster seat

Place the child restraint sys- tem on the seat facing the front of the vehicle.

Sit the child in the child restraint system. Fit the seat belt to the child restraint sys- tem according to the manu- facturer's instructions and insert the plate into the buckle. Make sure that the belt is not twisted.

Check that the shoulder belt is correctly positioned over the child's shoulder and that the lap belt is as low as possible. (P. 28)

1-1. For safe use 63

Adjust the head restraint to the downmost position. (if equipped) (P. 134)

Secure the child restraint sys- tem using the seat belt or

LATCH anchors. 1

Open the anchor bracket cover, latch the hook onto the anchor bracket and tighten the top tether strap.

Make sure the top tether strap is securely latched.

64 1-1. For safe use

Laws and regulations pertaining to anchorages

The LATCH system conforms to FMVSS225 or CMVSS210.2.

Child restraint systems conforming to FMVSS213 or CMVSS213 specifica- tions can be used.

This vehicle is designed to conform to SAE J1819.

1-1. For safe use 65

1

66 1-1. For safe use
