Opening, closing and locking the doors

Doors

Unlocking and locking the doors from the outside

Smart key system

Carry the electronic key to enable this function.

1. Grip the driver's door handle to unlock the door. Holding the driver's door handle for approximately 2 seconds unlocks all the doors. Grip the front passenger's door handle to unlock all the doors.* Make sure to touch the sensor on the back of the handle.



   The doors cannot be unlocked for 3 seconds after the doors are locked.

   *: The door unlock settings can be changed.

2. Touch the lock sensor (the indentation on the side of the door handle) to lock the doors.



   Check that the door is securely locked.

Wireless remote control

1. Locks all the doors
   Check that the door is securely locked.
2. Unlocks all the doors
   Pressing the button unlocks the driver's door. Pressing the button again within 3 seconds unlocks the other doors.



   Press and hold to open the windows* 2 and moon roof.*1, 2

*1: If equipped
*2: This setting must be customized at your Toyota dealer.

■Operation signals

Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

Windows and moon roof: A buzzer sounds to indicate that the windows and moon roof are operating.

■Security feature If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

■When the door cannot be locked by the lock sensor on the surface of the door handle When the door cannot be locked even if the lock sensor on the surface of the door handle is touched by a finger, touch the lock sensor with the palm.

When gloves are being worn, remove the gloves.

■Door lock buzzer If an attempt to lock the doors is made when a door is not fully closed, a buzzer sounds continuously. Fully close the door to stop the buzzer, and lock the vehicle once more.

■Setting the alarm Locking the doors will set the alarm system.

■If the smart key system or the wireless remote control does not operate properly Use the mechanical key to lock and unlock the doors.

Replace the key battery with a new one if it is depleted.

Unlocking and locking the doors from the inside

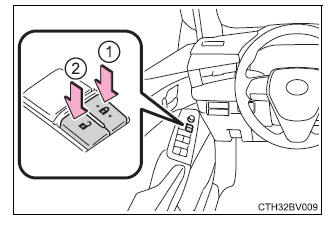

Door lock switches

1. Locks all the doors
2. Unlocks all the doors

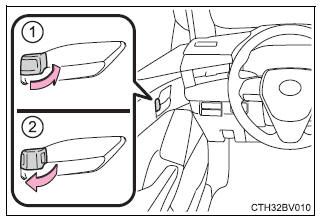

Inside lock buttons

1. Locks the door
2. Unlocks the door

The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

Locking the front doors from the outside without a key

1. Move the inside lock button to the lock position.

2. Close the door.

The door cannot be locked if the engine switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

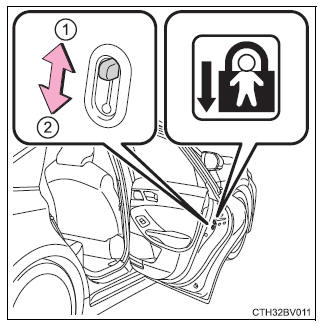

Rear door child-protector lock

The door cannot be opened from inside the vehicle when the lock is set.

1. Unlock
2. Lock

These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

Automatic door locking and unlocking systems

The following functions can be set or cancelled: For instructions on customizing.

■Switching the door unlock function It is possible to set which doors the entry function unlocks using the wireless remote control.

1. Turn the engine switch off.

2. When the indicator light on the key surface is not on, press and hold , or for approximately 5 seconds while pressing and holding .

The setting changes each time an operation is performed, as shown below.

(When changing the setting continuously, release the buttons, wait for at least 5 seconds, and repeat step 2.)

Multi-information display	Unlocking function	Beep
	Holding the driver's door handle unlocks only the driver's door	Exterior: Beeps 3 times Interior: Pings once
	Holding the front passenger's door handle unlocks all the doors.
	Holding either front door handle unlocks all the doors.	Exterior: Beeps twice Interior: Pings once

To prevent unintended triggering of the alarm, unlock the doors using the wireless remote control and open and close a door once after the settings have been changed. (If a door is not opened within 60 seconds after  is pressed, the doors will be locked again and the alarm will automatically be set.) In case that the alarm is triggered, immediately stop the alarm.

■Impact detection door lock release system In the event that the vehicle is subject to a strong impact, all the doors are unlocked. Depending on the force of the impact or the type of accident, however, the system may not operate.

■Open door warning buzzer If the vehicle reaches a speed of 3 mph (5 km/h), the master warning light flashes and a buzzer sounds to indicate that the door(s) are not yet fully closed.

The open door(s) is displayed on the multi-information display.

■Using the mechanical key The doors can also be locked and unlocked with the mechanical key.

■Customization Some functions can be customized.

Trunk

The trunk can be opened using the trunk opener switch, entry function or wireless remote control.

Opening the trunk from inside the vehicle

Press the trunk opener switch.

Opening the trunk from outside the vehicle

Smart key system

While carrying the electronic key, press the button on the trunk lid.

When all the doors are unlocked using one of the following methods, the trunk can be opened without the electronic key:

• Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key

Wireless remote control

Press and hold the switch.

A buzzer sounds.

■Trunk light The trunk light turns on when the trunk is opened.

■Function to prevent the trunk being locked with the electronic key inside

• When all doors are locked, closing the trunk lid with the electronic key left inside the trunk will sound an alarm.



  In this case, the trunk lid can be opened by pressing the trunk release button on the trunk lid.

• If the spare electronic key is put in the trunk with all the doors locked, the key confinement prevention function is activated so the trunk can be opened. In order to prevent theft, take all electronic keys with you when leaving the vehicle.
• If the electronic key is put in the trunk with all the doors locked, the key may not be detected depending on the location of the key and the surrounding radio wave conditions. In this case, the key confinement prevention function cannot be activated, causing the doors to lock when the trunk is closed.



  Make sure to check where the key is before closing the trunk.

• The key confinement prevention function cannot be activated if any one of the doors is unlocked. In this case, open the trunk using the trunk opener.

■Open trunk warning buzzer If the vehicle reaches a speed of 3 mph (5 km/h), the master warning light flashes and a buzzer sounds to indicate that the trunk is not yet fully closed.

■Internal trunk release lever The trunk lid can be opened by pulling up the glow-in-the-dark lever located on the inside of the trunk lid.

The lever will continue to glow for some time after the trunk lid is closed.

■Using the mechanical key The trunk can be also opened using the mechanical key.

■If the smart key system or the wireless remote control does not operate properly Use the mechanical key to unlock the trunk. Replace the key battery with a new one if it is depleted.

■Customization Some functions can be customized.

Smart key system

The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket.

The driver should always carry the electronic key.

• Locks and unlocks the doors
• Opens the trunk
• Starts the engine

■Antenna location

1. Antennas outside the cabin
2. Antennas inside the cabin
3. Antenna inside the trunk
4. Antenna outside the trunk

■Effective range (areas within which the electronic key is detected)

When locking or unlocking the doors

The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of either of the front outside door handles. (Only the doors detecting the key can be operated.)

When starting the engine or changing engine switch modes

The system can be operated when the electronic key is inside the vehicle.

When opening the trunk

The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of the trunk release button.

■Alarms and warning indicators A combination of exterior and interior alarms as well as warning messages shown on the multi-information display are used to prevent theft of the vehicle and accidents resulting from erroneous operation. Take appropriate measures in response to any warning message on the multi-information display.

When only an alarm sounds, circumstances and correction procedures are as follows.

■Battery-saving function The battery-saving function will be activated in order to prevent the electronic key battery and the vehicle battery from being discharged while the vehicle is not in operation for a long time.

• In the following situations, the smart key system may take some time to unlock the doors.
  • The electronic key has been left in an area of approximately 6 ft. (2 m) of the outside of the vehicle for 10 minutes or longer.
  • The smart key system has not been used for 5 days or longer.
• If the smart key system has not been used for 14 days or longer, the doors cannot be unlocked at any doors except the driver's door. In this case, take hold of the driver's door handle, or use the wireless remote control or the mechanical key, to unlock the doors.

■Electronic Key Battery-Saving Function When battery-saving mode is set, battery depletion is minimized by stopping the electronic key from receiving radio waves.

Press  twice while pressing and holding  . Confirm that the electronic key indicator flashes 4 times.

While the battery-saving mode is set, the smart key system cannot be used. To cancel the function, press any of the electronic key buttons.

■Conditions affecting operation The smart key system, wireless remote control and engine immobilizer system use weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system, wireless remote control and engine immobilizer system from operating properly.

• When the electronic key battery is depleted
• Near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that generates strong radio waves or electrical noise
• When the electronic key is in contact with, or is covered by the following metallic objects
  • Cards to which aluminum foil is attached
  • Cigarette boxes that have aluminum foil inside
  • Metallic wallets or bags
  • Coins
  • Hand warmers made of metal
  • Media such as CDs and DVDs
• When other wireless keys (that emit radio waves) are being used nearby
• When carrying the electronic key together with the following devices that emit radio waves
  • Portable radio, cellular phone, cordless phone or other wireless communication devices
  • Another vehicle's electronic key, another electronic key of your vehicle, or a wireless key that emits radio waves
  • Personal computers or personal digital assistants (PDAs)
  • Digital audio players
  • Portable game systems
• If window tint with a metallic content or metallic objects are attached to the rear window
• When the electronic key is placed near a battery charger or electronic devices
• When the vehicle is parked in a pay parking spot where radio waves are emitted.

■Note for the entry function

• Even when the electronic key is within the effective range (detection areas), the system may not operate properly in the following cases:
  • The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
  • The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is opened.
  • The electronic key is on the instrument panel, rear package tray or floor, or in the door pockets or glove box when the engine is started or engine switch modes are changed.
• Do not leave the electronic key on top of the instrument panel or near the door pockets when exiting the vehicle. Depending on the radio wave reception conditions, it may be detected by the antenna outside the cabin and the door will become lockable from the outside, possibly trapping the electronic key inside the vehicle.
• As long as the electronic key is within the effective range, the doors may be locked or unlocked by anyone. However, only the doors detecting the electronic key can be used to unlock the vehicle.
• Even if the electronic key is not inside the vehicle, it may be possible to start the engine if the electronic key is near the window.
• The doors may unlock or lock if a large amount of water splashes on the door handle, such as in the rain or in a car wash, when the electronic key is within the effective range. (The doors will automatically be locked after approximately 60 seconds if the doors are not opened and closed.)
• If the wireless remote control is used to lock the doors when the electronic key is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)
• Touching the door lock sensor while wearing gloves may delay or prevent lock operation. Remove the gloves and touch the lock sensor again.
• When the lock operation is performed using the lock sensor, recognition signals will be shown up to two consecutive times. After this, no recognition signals will be given.*
• If the door handle becomes wet while the electronic key is within the effective range, the door may lock and unlock repeatedly. In this case, follow the following correction procedures to wash the vehicle:
  • Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)
  • Set the electronic key to battery-saving mode to disable the smart key system.
• If the electronic key is inside the vehicle and a door handle becomes wet during a car wash, a message may be shown on the multi-information display and a buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.
• The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc. Clean the lock sensor and attempt to operate it again.
• A sudden approach to the effective range or door handle may prevent the doors from being unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.
• If there is another electronic key in the detection area, it may take slightly longer to unlock the doors after the door handle is gripped.
• Fingernails may scrape against the door during operation of the door handle.



  Be careful not to injure fingernails or damage the surface of the door.

*: This setting can be customized at your Toyota dealer.

■When the vehicle is not driven for extended periods

• To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the vehicle.
• The smart key system can be deactivated in advance.
• Setting the electronic key to battery-saving mode helps to reduce key battery depletion.

■To operate the system properly Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention function may not operate.)

■If the smart key system does not operate properly

• Locking and unlocking the doors and opening the trunk: Use the mechanical key.
• Starting the engine

■Customization Some functions can be customized.

■If the smart key system has been deactivated in a customized setting

• Locking and unlocking the doors and opening the trunk: Use the wireless remote control or mechanical key.
• Starting the engine and changing engine switch modes
• Stopping the engine
