Roof
If equipped, the sunroof operates when the ignition is on or in ACC/ ACCESSORY, or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) 0 213.

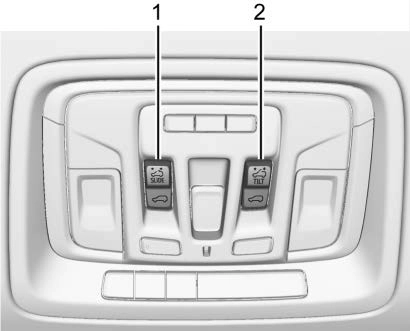

Slide Switch
Express-Open/Express-Close : To express-open the sunroof, fully press and release I (1). Press and release I (1) again to stop the movement. To express-close the sunroof, fully press and release
K (1). Press and release K (1) again to stop the movement.
Open/Close (Manual Mode) : To open the sunroof, press and hold I (1). Release I (1) to stop the movement. Press and hold K (1) to close the sunroof. Release
K (1) to stop the movement.
Tilt Switch
Vent : From the closed position, press J (2) to vent the sunroof. Press K (2) to close the vent.
When the sunroof is opened, an air deflector will automatically raise.
The air deflector will retract when the sunroof is closed.
The sunroof also has a sunshade, which can be pulled forward to block sun rays. The sunshade must be opened and closed manually.
The sunroof has an automatic reversal system that is only active when the sunroof is operated in express-close mode.
If an object is in the path while express-closing, the reversal system will detect an object, stop, and open the sunroof slightly.
If frost or other conditions prevent closing, override the feature by closing the sunroof in manual mode. To stop movement, release K (1).

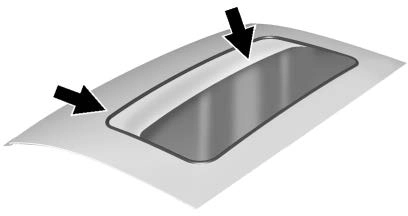

Dirt and debris may collect on the sunroof seal or in the track. This could cause an issue with sunroof operation or noise. It could also plug the water drainage system.
Periodically open the sunroof and remove any obstacles or loose debris. Wipe the sunroof seal and roof sealing area using a clean cloth, mild soap, and water. Do not remove grease from the sunroof tracks.
If water is seen dripping into the water drainage system, this is normal.
