Multi-function display (color LCD) (if equipped)

Features

The multi-function display (color LCD) has the following functions.

Also, the multi-function display (color LCD) can also be used to set and initialize the multi-function display (color LCD) itself.

When the vehicle is in motion, certain functions and selections may not be available.

You can set the language and units for both the multi-function display (color LCD) and the combination meter at the same time. For details about setting the language and units, refer to “Menu screens”  3-38.

The images displayed in this Own- er’s Manual are sample images. The actual image may vary depending on the market and vehicle specifications.

Welcome screen

When the driver’s door is opened and closed, the welcome screen will appear for a short time.

The welcome screen will disappear when the ignition switch is turned to the “ON” position while the welcome screen is displayed.

The welcome screen can be set to on or off. For details, refer to “Screen Settings”  3-38.

For a certain period of time after the welcome screen has once appeared, it may not appear again even when the driver’s door is opened and closed again. This does not indicate a mal- function.

Self-check screen NOTE

When the setting is “On”, the self-

check screen appears. For details about this setting, refer to “On/Off setting”  3-61.

When the ignition switch is turned to the “ON” position, the vehicle self-check will be performed. The screens corresponding to the following items will appear one after another for several seconds each.

Engine oil: Checks the interval of engine oil replacement.

Oil filter: Checks the interval of oil filter replacement.

Tires: Checks the interval of tire rotation.

Inspection and maintenance: Checks the interval of inspection and maintenance.

When the checks are performed, the color of the icon corresponding to the checked item will change.

If there is a notification, the message will be displayed. Take the appropriate actions based on the message indicated.

After the self-check is completed, today’s date, the stored birthday or the stored anniversary is displayed.

ing maintenance item. For details, refer to “Maintenance settings”  3-60.

The maintenance notification screen will be displayed under either of the following conditions.

The period of time remaining until the registered notification date is 15 days or less.

The total driving distance remain- ing until the registered notification distance is approximately 311 miles (500 km) or less.

The maintenance notification screen will be displayed until either of the following conditions is satisfied.

The period of time passed after the registered notification date is 15 days or more.

The total distance driven after the registered notification distance is approximately 311 miles (500 km) or more.

& Interruption screen

Example

Useful messages, such as reminder in- formation, weather information (if equipped) and traffic information (if equipped) may interrupt the current screen and appear on the display accompanied by a beep. Take proper action according to the message.

The interruption screen will return to the original screen after a few seconds. Also, you can press the INFO button to skip the interruption screen.

Control switch

tton

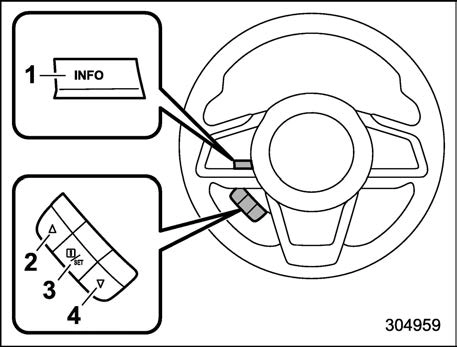

Press the INFO button on the steering wheel to switch the item displayed on the basic screen. You can operate the items on the setting screen by using the “ ”, “ ” and “ /SET” switches.

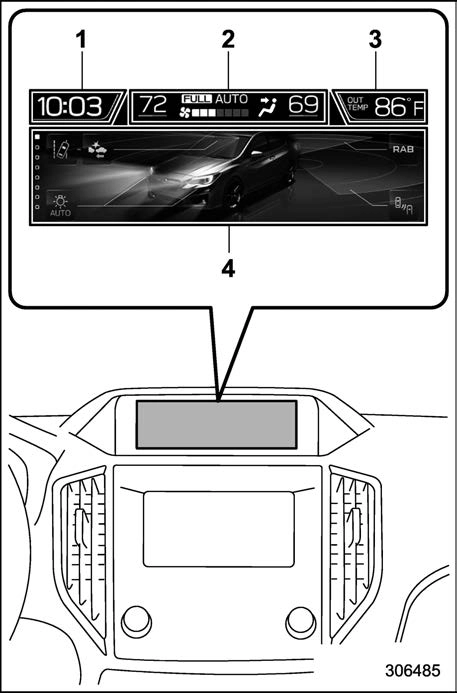

Basic screens

Clock

Climate control (if equipped)*

Outside temperature

Information screen

*: This is not displayed on the multi-function display (color LCD) when the ignition switch

is in the “ACC” position.

While the ignition switch is in the “ACC” or “ON” position, the basic screen will be displayed.

The outside temperature is displayed on the multi-function display (color LCD).

The outside temperature indicator shows the temperature around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following condi- tions.

While parking or driving at low speeds

When the outside temperature changes suddenly (example: when going in and out of an underground parking area or when passing through a tunnel)

When starting the engine after being parked for a certain period of time

The temperature unit cannot be changed.

! Climate control screen (if equipped)

The climate control status is displayed on the multi-function display (color LCD).

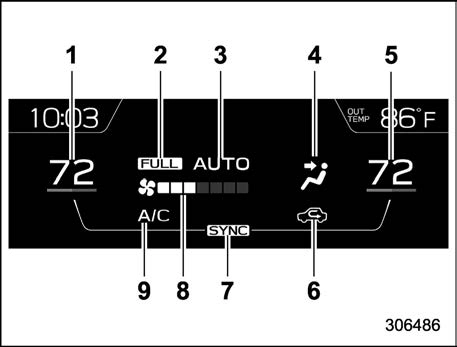

Climate control screen

Set temperature indicator (left-hand side)

FULL AUTO indicator

AUTO indicator

Airflow mode indicator

Set temperature indicator (right-hand side)*1

Air inlet selection indicator

SYNC indicator*1

Fan speed indicator

Air conditioner ON indicator

*1: Models with the SYNC function only

When operating the climate control sys- tem, the basic screen switches to the climate control screen. For details about climate control operation, refer to “Climate control panel”  4-2.

! Clock

The clock can be displayed in either 12- hour display or 24-hour display. For details about the setting, refer to “Clock”  3-62.

Press the INFO button on the steering wheel to switch the item displayed on the information screen.

*1: Models with the EyeSight system

*2: Models with SiriusXM Satellite Radio

*3: Models with navigation system

Lane Departure Warning indicator*1

Pre-Collision Braking System indicator*1

Stop lights

Reverse Automatic Braking (RAB)*1

BSD/RCTA*1

Headlights*2

Front fog lights*2

Turn signals

Auto on/off headlights*1

*1: If equipped

*2: The daytime running lights are not dis- played.

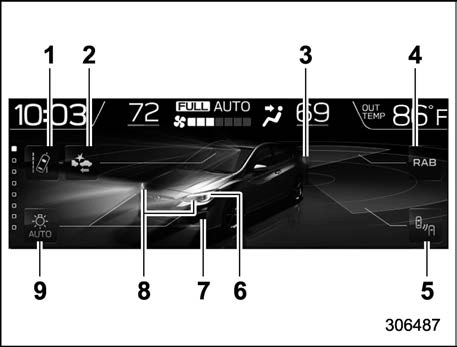

This screen displays the electric compo- nents operation status of the vehicle.

Indicators do not display for func- tions that are not equipped to the vehicle.

The indicators of functions that are not operating are displayed in gray.

For models with auto on/off head- lights; If the multi-function display (color LCD) unit, battery, or fuse is removed, the Auto on/off headlights indicator turns off on the multi-function display (color LCD). After reinstalling the removed multi-function display (color LCD) unit, battery, or fuse to the vehicle, the Auto on/off headlights indicator will appear once more if the light control switch is turned to the “AUTO” position.

The exterior lights indicators on the screen still illuminate even when the bulbs are burned out. The indicators do not notify the driver that the bulbs are burned out.

! Prevention safety screen

Telltale screen

Steering angle

Vehicle posture

Running condition

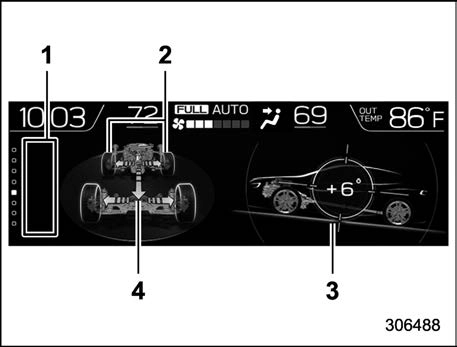

This screen displays the driving status of the vehicle and the operation status func- tions. For functions that are operating, the indicator will illuminate or flash.

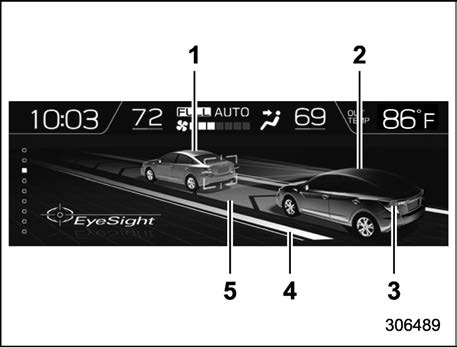

! EyeSight screen (models with the EyeSight system)

Lead vehicle indicator

Your own vehicle indicator

Stop lights

Road line indicator

Lane indicator

This screen displays the status of the EyeSight system. The lead vehicle indica- tor moves forward and backward depend- ing on the distance with the vehicle in front. For details, refer to the Owner’s Manual supplement for the EyeSight system.

Favorite screen (display example)

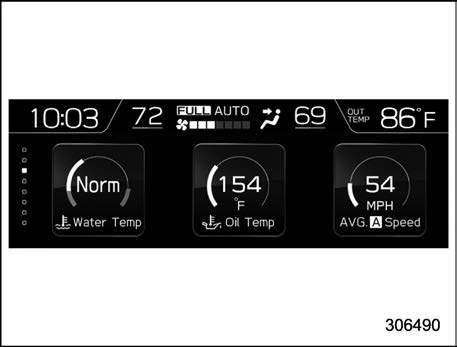

This screen displays up to three optional pieces of information that can be selected from the following items.

*1: If equipped

*2: Models with SiriusXM Satellite Radio

The items shown in the favorite screen can be changed. For details, refer to “Favorite setting”  3-59.

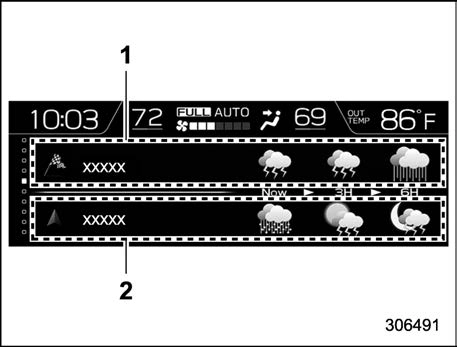

Weather information for the destination.*

Weather information for the current loca- tion.

*: Only when a destination is set in the navigation system

The weather information is displayed on the screen.

When all of the following conditions are satisfied, weather information is displayed.

The vehicle is equipped with an audio and navigation system for SiriusXM satellite radio.

You have a current SiriusXM satellite radio subscription.

The weather forecast for the set destination remains displayed until a new destination is set or until you reach the destination.

Depending on the reception timing of XM, the display of weather informa- tion may be delayed.

! Navigation screen (models with navigation system)

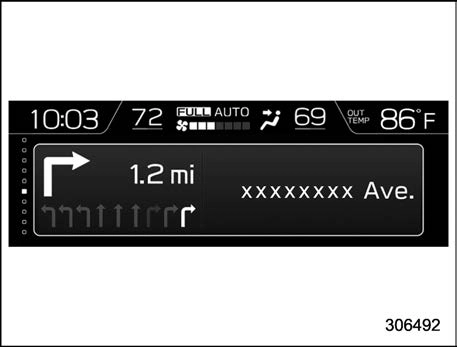

The navigation system information to the destination is displayed on the screen.

! Audio screen

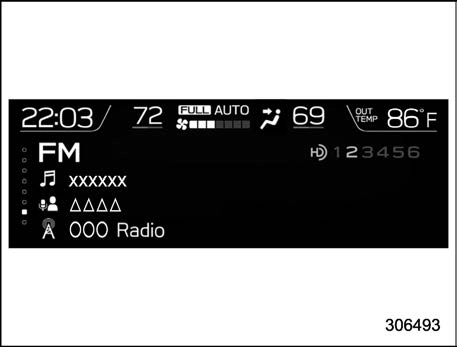

The screen of the currently selected audio source is displayed.

For details about how to use the audio set, refer to the separate navigation/audio Owner’s Manual.

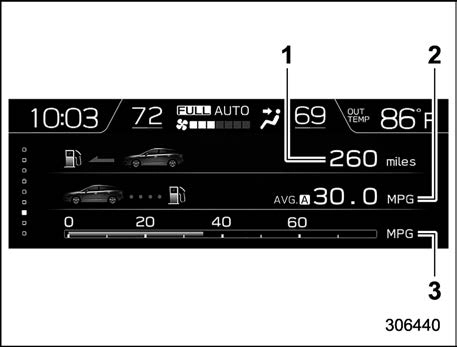

Driving range on remaining fuel

Average fuel consumption corresponding to the driving distance of each trip meter

Current fuel consumption

The fuel consumption information is dis- played on the screen.

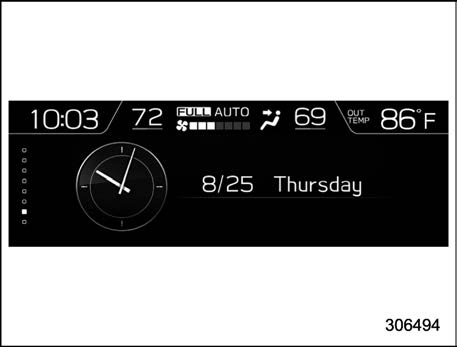

! Clock/date screen

The time and date are displayed.

You can adjust the time and date. For details, refer to “Clock”  3-62.

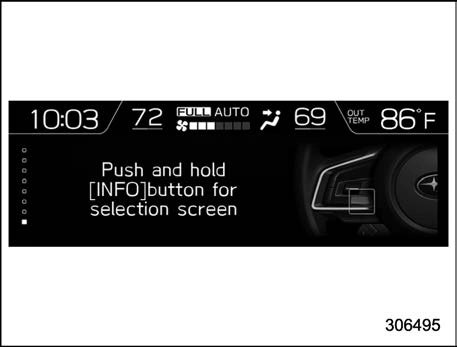

When the INFO button on the steering wheel is pressed and held on this screen, the setting screen can be displayed.

For details, refer to “Setting screen”  3- 55.

& Setting screen

Press and hold the INFO button on the guidance screen. The top menu is dis- played.

Operate the “ ” or “ ” switch to select the preferred menu from the top menu.

Pull the “ /SET” switch to enter the selected menu.

Operate the “ ” or “ ” switch to select the preferred menu from the 2nd menu.

Pull the “ /SET” switch to enter the selected menu.

The menu lists are as follows.

Items that can be set when stopped:

Items that can be set while driving:

For safety reasons, we recommend stopping the vehicle in a safe location while setting.

You can set the date, time and 12h or 24h format settings.

For details about clock setting, refer to “Clock”  3-62.

If a birthday or anniversary is approaching, a message will be displayed when the ignition switch is turned to the “ON” position. This function can be set to on or off. For details, refer to “Bypass screen setting”  3-59.

Select “Birthday” from the 2nd menu in the setting screen. Refer to “Setting screen”  3-55.

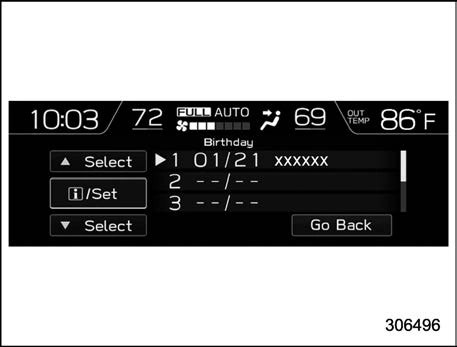

Select from the list the number that you want to register.

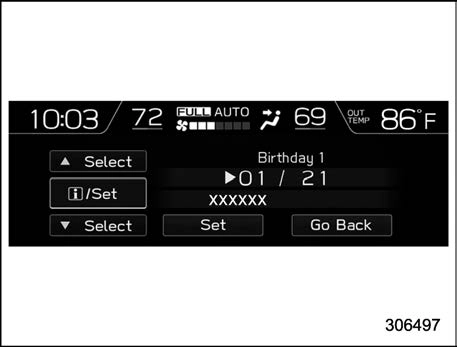

Enter the date and the text by using the control switches.

Select “Set” to exit settings. Select “Go Back” to return to the previous screen

without applying the setting changes.

! Anniversary setting

1. The procedure for setting an anniver- sary is the same as “Birthday setting”  3- 58, except that in step 1 “Anniversary” is selected.

! Display/Beep settings

You can set the display settings and volume settings.

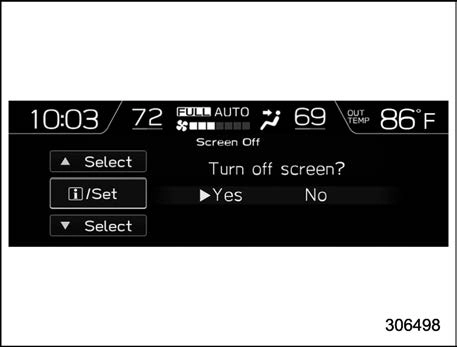

Select “Screen Off” from the 2nd menu in setting screen. Refer to “Setting screen”

 3-55.

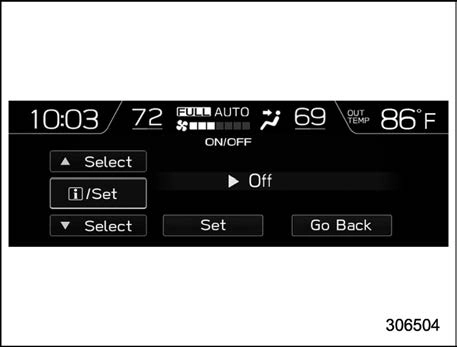

Select “Yes” to turn off the screen. Select “No” to return to the previous screen.

When the INFO button is operated after the ignition switch is turned to the “ON” or “ACC” position, the screen will be restored. The screen will be restored with the basic screen that was displayed when the screen was turned off.

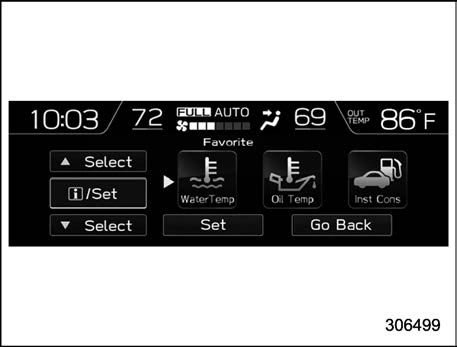

! Favorite setting

Select the “Favorite” from the 2nd menu in setting screen. Refer to “Setting screen”  3-55.

Set the desired items by using the control switches. For details about items, refer to “Favorite screen”  3-52.

Select “Set” to exit settings. Select “Go Back” to return to the previous screen without applying the setting changes.

You can display a maximum of the 3 items.

The same item cannot be selected for the left, center or right location.

Weather information for 3 hours later or 6 hours later can be displayed.

! Bypass screen setting

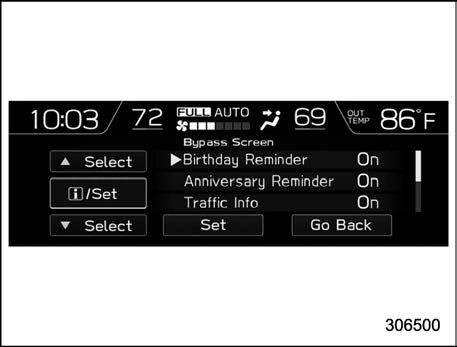

Select “Bypass Screen” from the 2nd menu in the setting screen. Refer to “Setting screen”  3-55.

Select “On” or “Off” to turn the display of items on or off by using the control switches.

Select “Set” to exit settings. Select “Go Back” to return to the previous screen without applying the setting changes.

! Beep setting

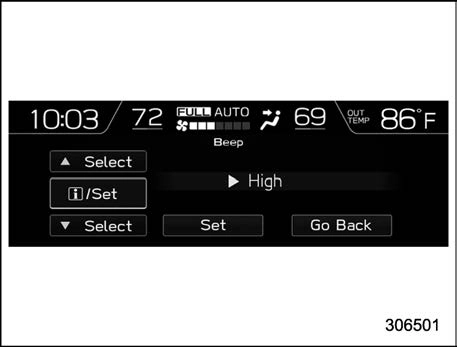

Select “Beep” from the 2nd menu in the setting screen. Refer to “Setting screen”

 3-55.

Set the beep volume by using the control switches.

Select “Set” to exit settings. Select “Go Back” to return to the previous screen without applying the setting changes.

You can set maintenance reminders.

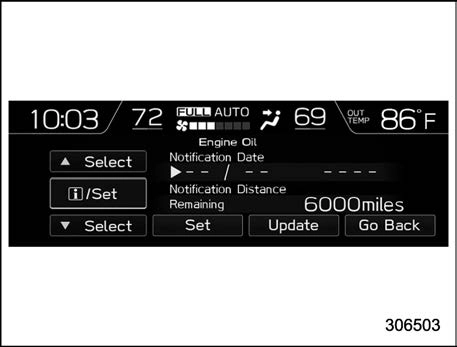

Select “Engine Oil” from the 2nd menu in the setting screen. Refer to “Setting screen”  3-55.

Set the date and distance of the reminder by using the control switches.

Select “Set” to exit settings. Select “Update” to change the notification dis- tance to the default value. Select “Go Back” to return to the previous screen without applying the setting changes.

The reminder will be displayed by either date or distance in accordance with the setting.

Even when either “Day” or “Dis- tance” are displayed as “_ _” a pop-up screen will appear.

The reminder will be displayed until either of the following conditions is satisfied.

The period of time passed after the registered notification date is 15 days or more.

The total distance driven after the registered notification distance is approximately 311 miles (500 km) or more.

! Oil filter setting

The setting procedure is the same as “Engine oil setting”  3-60, but select the “Oil Filter” item in step 1.

The setting procedure is the same as “Engine oil setting”  3-60, but select the “Tires” item in step 1.

The setting procedure is the same as “Engine oil setting”  3-60, but select the “Maintenance Schedule” item in step 1.

Select “On/Off” from the 2nd menu on the setting screen. Refer to “Setting screen”  3-55.

Select “On” or “Off” to turn the opening screen on or off by using the control switches.

Select “Set” to exit settings. Select “Go Back” to return to the previous screen without applying the setting changes.

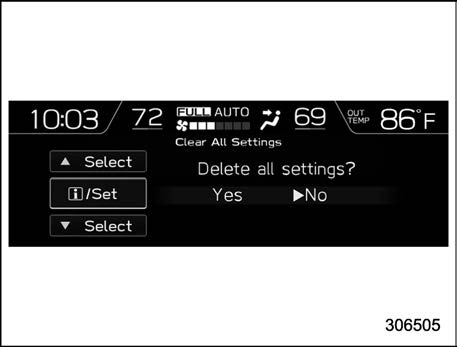

Select “Clear All Settings” from the 2nd menu on the setting screen. Refer to “Setting screen”  3-55.

Select “Yes” or “No” by using the control switches.

You can initialize the items that have been set to your preference.

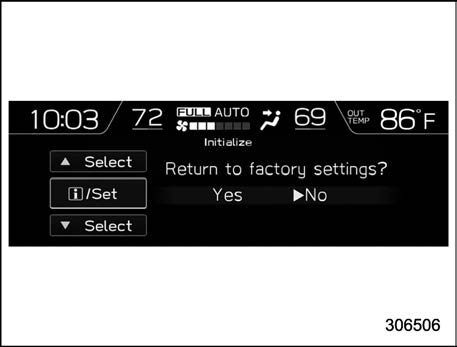

Select “Initialize” from the 2nd menu on the setting screen. Refer to “Setting screen”  3-55.

Select “Yes” or “No” by using the control switches.

Free/Open Source Software Information

This product contains Free/Open Source Software (FOSS).

The license information and/or the source code of such FOSS can be found at the following URL.

http://www.globaldenso.com/en/open- source/ivi/subaru/
