Cargo area cover (5-door models – if equipped)
The cargo area cover is provided for covering the cargo area and to protect its contents from direct sunlight. This cover is detachable to make room for additional cargo.
Using the cover

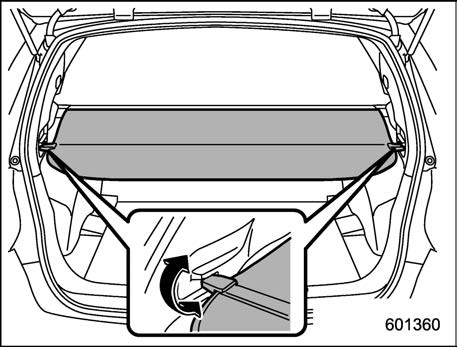

To extend the cover, pull the end of the cover out of the housing, then insert its hooks into the catches as shown. To rewind it, unhook it from the catches and it will rewind automatically. You should hold on to the cover and guide it back into the cover housing while it is rewinding.
To remove the cover housing
Rewind the cover.

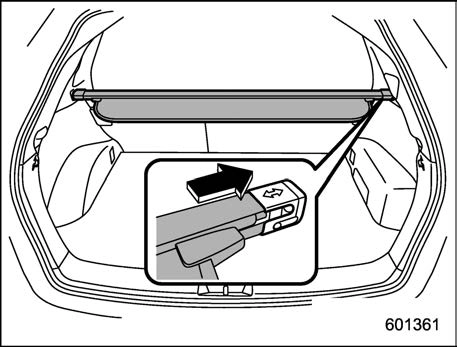

Push the cover housing to the right side and shorten it.

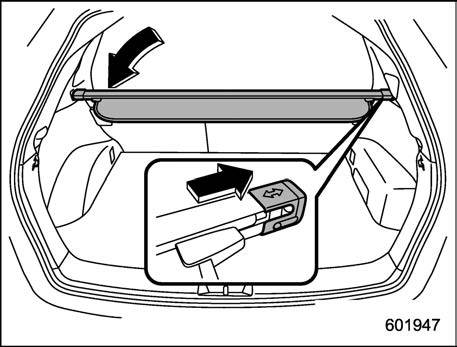

Take it off the retainer.
Interior equipment/Cargo area cover (5-door models – if equipped) 6-15
The cargo area cover can be stowed in under the cargo floor.

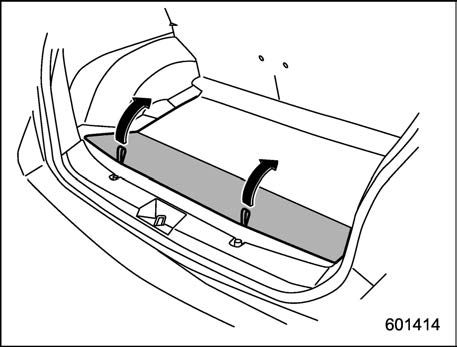

Raise and fold the rear end of the cargo floor board.

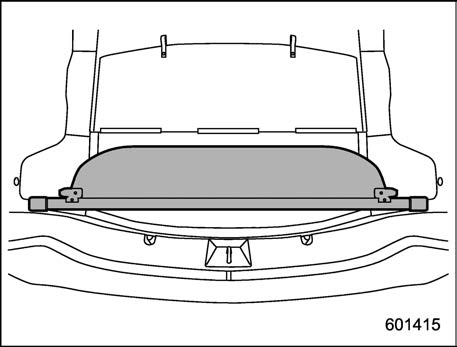

Stow the cover housing in the cargo area end.

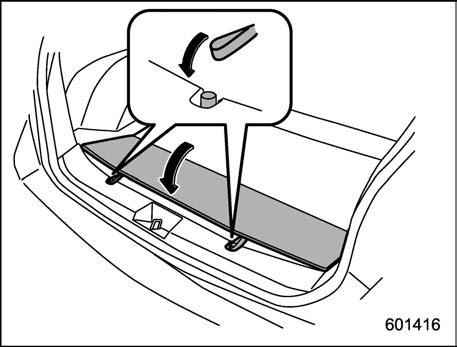

Put the cargo floor board back while hanging two retaining straps on the hooks that are located on the rear wall of cargo area.
The right end of the cargo area cover is a sliding structure.
Insert the right end of the cover into the recessed portion with the arrow mark facing upward.
Hold the cover housing securely and insert the left end of the cover into the recessed portion.
Interior equipment/Cargo tie-down hooks (5-door models – if equipped)
