2021 Subaru Impreza Owners Manual - Climate control panel

Climate control panel

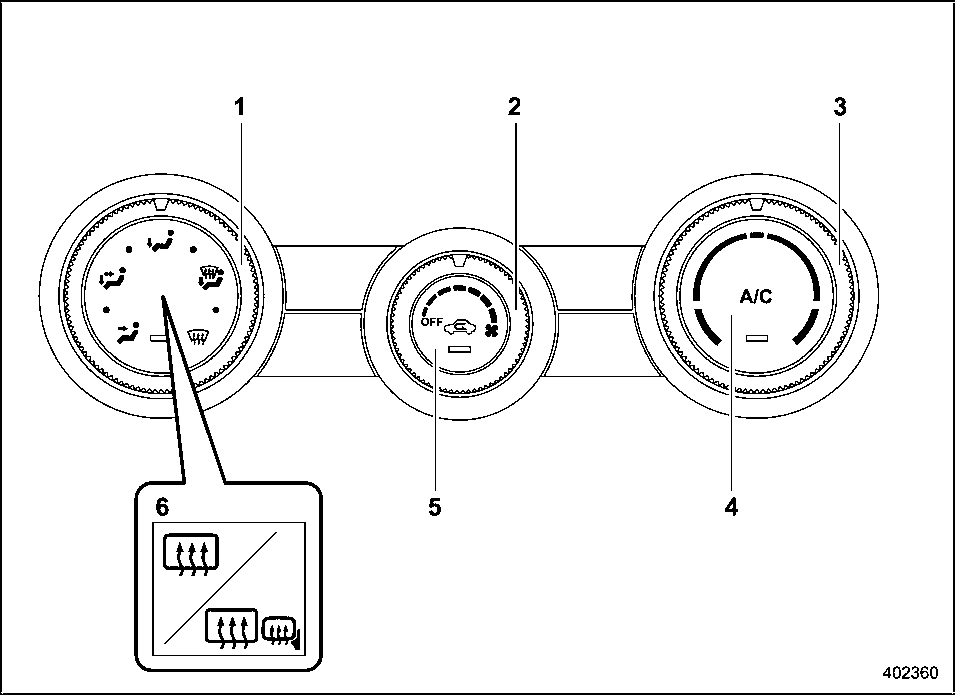

Airflow mode selection dial (Refer to “Airflow mode selection”  4-7.)

Fan speed control dial (Refer to “Fan speed control”  4-9.)

Temperature control dial (Refer to “Tem- perature control”  4-8.)

Air conditioner button (Refer to “Air conditioner control”  4-9.)

Air inlet selection button (Refer to “Air inlet selection”  4-9.)

Rear window defogger button and mirror heater button (if equipped) (Refer to “Defogger and deicer”  3-87.)

– CONTINUED –

4-4 Climate control/Climate control panel

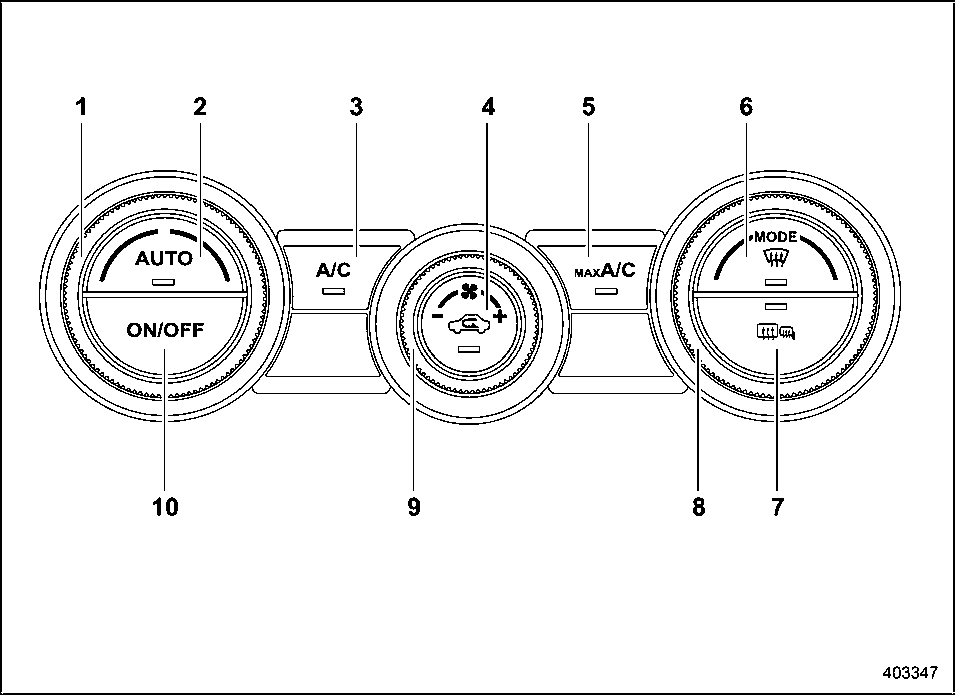

Type B

Air inlet selection button (Refer to “Air inlet selection”  4-9.)

MAX A/C button (Refer to “MAX A/C mode (for type B and C)”  4-8.)

Defroster button (Refer to “Defrosting”

 4-10.)

Rear window defogger button and mirror heater button (Refer to “Defogger and deicer”  3-87.)

Airflow mode selection dial (Refer to “Airflow mode selection”  4-7.)

Fan speed control dial (Refer to “Fan speed control”  4-9.)

ON/OFF button (Refer to “Automatic climate control operation (type B and C)”  4-6.)

 3-49.

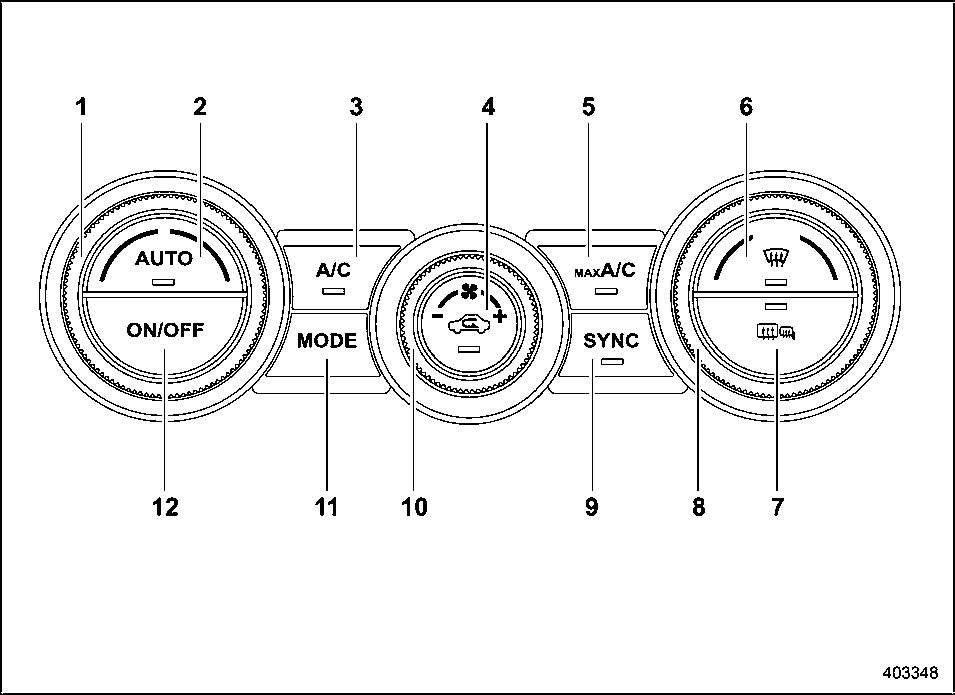

& Type C

Air inlet selection button (Refer to “Air inlet selection”  4-9.)

MAX A/C button (Refer to “MAX A/C mode (for type B and C)”  4-8.)

Defroster button (Refer to “Defrosting”

 4-10.)

Rear window defogger button and mirror heater button (Refer to “Defogger and deicer”  3-87.)

Passenger’s side temperature control dial (Refer to “Temperature control”  4- 8.)

SYNC button (Refer to “SYNC mode (type C)”  4-8.)

Fan speed control dial (Refer to “Fan speed control”  4-9.)

Airflow mode selection button (Refer to “Airflow mode selection”  4-7.)

ON/OFF button (Refer to “Automatic climate control operation (type B and C)”  4-6.)

 3-49.
