Moonroof (if equipped)
The moonroof has both tilting and sliding functions.
The moonroof operates only when the ignition switch is in the “ON” position.
– CONTINUED –

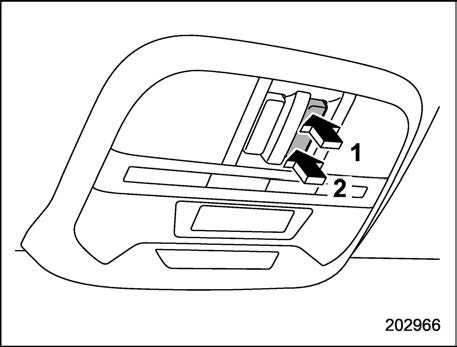

To raise the moonroof, press and hold the switch in the up side and release. To lower the moonroof, press and hold the switch in the down side.
! Sliding moonroof

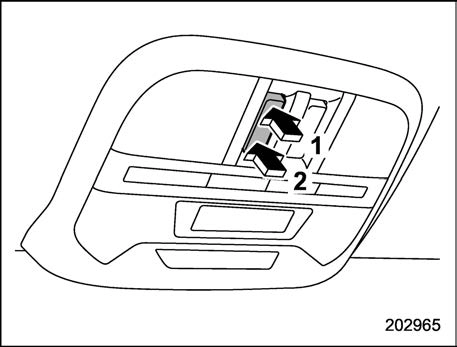

To open or close the moonroof using the automatic function, press and hold the switch toward the open/close side and release.
To stop the moonroof halfway, press a switch on the moonroof switch.
! Anti-entrapment function
When the moonroof senses a substantial enough object trapped between its glass and the vehicle’s roof during closure, it automatically moves back to the fully open position and stops there. The anti-entrap- ment function may also be activated by a strong shock on the moonroof even when there is nothing trapped.
& Sunshade

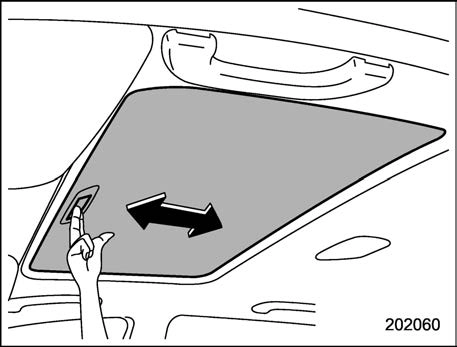

The sunshade can be slid forward or backward by hand while the moonroof is closed.
If the moonroof is opened, the sunshade also moves back.
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Instruments and controls
Ignition switch (models without “keyless access with push-button start system”) 3-4
3
Push-button ignition switch (models with “keyless access with push-button start
system”) 3-6
Operating range for push-button start system 3-6
Switching power status 3-7
When access key fob does not operate properly 3-8
Hazard warning flasher 3-8
Meters and gauges 3-9
Speedometer 3-9
Tachometer 3-9
Odometer 3-9
Double trip meter 3-9
Fuel gauge 3-10
ECO gauge 3-11
Combination meter settings 3-11
Illumination brightness control 3-12
Auto dimmer cancel function (if equipped) 3-12
Warning and indicator 3-13
Initial illumination for system check 3-13
Seatbelt warning light and chime 3-13
SRS airbag system warning light 3-15
Front passenger’s frontal airbag ON and OFF indicators 3-15
CHECK ENGINE warning light/Malfunction
indicator light 3-16
Instruments and controls
Combination meter display (color LCD)
(if equipped) 3-33
Multi-function display (black and white) 3-40
Multi-function display (color LCD)
(if equipped) 3-46
Clock 3-62
Light control switch 3-64
Steering Responsive Headlight (SRH)
(if equipped) 3-71
Headlight beam leveler (models with LED headlights) 3-72
Fog light switch (if equipped) 3-73
Turn signal lever 3-74
Wiper and washer 3-74
Mirrors 3-78
Instruments and controls
Defogger and deicer (if equipped) 3-87
Tilt/telescopic steering wheel 3-89
Horn 3-91
3-4 Instruments and controls/Ignition switch (models without “keyless access with push-button start system”)
