Bulb Sizes

Maintenance

Have your vehicle serviced regularly to help maintain its roadworthiness and resale value. There is a large network of authorized dealers that are there to help you with their professional servicing expertise. We believe that their specially trained technicians are best qualified to service your vehicle properly and expertly. They are supported by a wide range of highly specialized tools developed specifically for servicing your vehicle.

If your vehicle requires professional service, an authorized dealer can provide the necessary parts and service. Check your warranty information to find out which parts and services are covered.

Use only recommended fuels, lubricants, fluids and service parts conforming to specifications. Motorcraft® parts are designed and built to provide the best performance in your vehicle.

• Do not work on a hot engine.

• Make sure that nothing gets caught in moving parts.

• Do not work on a vehicle with the engine running in an enclosed space, unless you are sure you have enough ventilation.

• Keep all open flames and other burning material (such as cigarettes) away from the battery and all fuel related parts.

Set the parking brake and shift the transmission to park (P).

Switch off the engine.

Block the wheels.

WARNING: To reduce the risk of vehicle damage and personal burn injuries, do not start your engine with the air cleaner removed and do not remove it while the engine is running. WARNING: Switch the ignition off and apply the parking brake. WARNING: Do not touch the electronic ignition system parts after you have switched the ignition on or when the engine is running. The system operates at high voltage. Failure to adhere to this warning could result in serious personal injury or death. WARNING: Keep your hands and clothing clear of the engine cooling fan.

Set the parking brake and shift the transmission to park (P).

Block the wheels.

262

Slightly lift the hood.

Move the catch to the left for vehicles with left hand drive. Move the catch to the right for vehicle with right hand drive.

Open the hood.

E206129

1. Pull the hood release lever.

E201861

5. The hood strut automatically supports the hood.

For vehicles with a prop rod, ensure you fully stow it prior to lowering the hood.

Lower the hood and ensure you fully latch it.

Note: Make sure that you correctly close the hood.

263

A Engine coolant reservoir. See Engine Coolant Check (page 268). B Engine oil dipstick. See Engine Oil Dipstick (page 265).

C Engine oil filler cap. See Engine Oil Check (page 265). D Brake fluid reservoir. See Brake Fluid Check (page 272).

E Engine compartment fuse box. See Changing a Fuse (page 260). F Battery. See Changing the 12V Battery (page 274).

G Windshield washer fluid reservoir. See Washer Fluid Check (page 276). H Air filter assembly. See Changing the Engine Air Filter (page 266).

264

E161560

Make sure that the oil level is between the maximum and minimum marks. If the oil level is at the minimum mark, add oil immediately. See Capacities and Specifications (page 328).

If the oil level is correct, replace the dipstick and make sure it is fully seated.

Note: Do not remove the dipstick when the engine is running.

Note: If the oil level is between the maximum and minimum marks, the oil level is acceptable. Do not add oil.

Note: The oil consumption of new engines reaches its normal level after approximately

Minimum.

Maximum.

3,000 mi (5,000 km).

ENGINE OIL CHECK

To check the engine oil level consistently and accurately, do the following:

Make sure the parking brake is on. Make sure the transmission is in park (P) or neutral (N).

Run the engine until it reaches normal operating temperature.

Make sure that your vehicle is on level ground.

Switch the engine off and wait 15 minutes for the oil to drain into the oil pan. Checking the engine oil level too soon after you switch the engine off may result in an inaccurate reading.

Open the hood. See Opening and Closing the Hood (page 263).

Remove the dipstick and wipe it with a clean, lint-free cloth. See Under Hood Overview (page 264).

Reinstall the dipstick and remove it again to check the oil level. See Engine Oil Dipstick (page 265).

WARNING: Do not add engine oil when the engine is hot. Failure to follow this instruction could result in personal injury. WARNING: Do not remove the filler cap when the engine is running.

Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by the vehicle Warranty.

E142732

265

Only use oils certified for gasoline engines by the American Petroleum Institute (API). An oil with this trademark symbol conforms to the current engine and emission system protection standards and fuel economy requirements of the International Lubricants Specification Advisory Committee (ILSAC).

To top up the engine oil level do the following:

Clean the area surrounding the engine oil filler cap before you remove it.

Remove the engine oil filler cap. See Under Hood Overview (page 264). Turn it counterclockwise and remove it.

Add engine oil that meets our specifications. See Capacities and Specifications (page 328). You may have to use a funnel to pour the engine oil into the opening.

Recheck the oil level.

If the oil level is correct, replace the dipstick and make sure it is fully seated.

Replace the engine oil filler cap. Turn it clockwise until you feel a strong resistance.

Note: Do not add oil further than the maximum mark. Oil levels above the maximum mark may cause engine damage.

Note: Make sure you install the oil filler cap correctly.

Note: Soak up any spillage with an absorbent cloth immediately.

WARNING: To reduce the risk of vehicle damage and personal burn injuries, do not start your engine with the air cleaner removed and do not remove it while the engine is running.

When changing the engine air filter, do not allow debris or foreign material to enter the air induction system. Engine components are susceptible to damage not covered by the vehicle Warranty.

Change the air filter element at the correct interval. See Scheduled Maintenance (page 416).

Incorrect component use can cause damage not covered by the vehicle Warranty. See Motorcraft Parts (page 325).

To replace the air filter element do the following:

266

Remove the clips that secure the air filter housing cover.

Carefully lift the air filter housing cover.

Remove the air filter element from the air filter housing.

Wipe any dirt or debris from the air filter housing and cover to make sure no dirt gets in the engine and that you have a good seal.

Install a new air filter element. Be careful not to crimp the filter element edges between the air filter housing and cover. This could cause filter damage and allow unfiltered air to enter the engine if it is not properly seated.

Install the air filter housing cover.

Engage the clips to secure the air filter housing cover to the air filter housing.

Use the information display controls on the steering wheel to reset the oil change indicator.

Message	Action and description
Settings	Press the right arrow button, then from this menu scroll to the following message.
Vehicle	Press the right arrow button, then from this menu scroll to the following message.
Oil Life	Press the right arrow button, then from this menu scroll to the following message.
Hold OK to Reset	Press and hold the OK button until the instrument cluster displays the following message. Reset Successful
	When the oil change indic- ator resets the instrument cluster displays 100%. Remaining Life {00}%
	If the instrument cluster displays one of the following messages, repeat the process. Not Reset Reset Cancelled

267

WARNING: Do not remove the coolant reservoir cap when the engine is on or the cooling system is hot. Wait 10 minutes for the cooling system to cool down. Cover the coolant reservoir cap with a thick cloth to prevent the possibility of scalding and slowly remove the cap. Failure to follow this instruction could result in personal injury. WARNING: Do not dispose of coolant in the household refuse or the public sewage system. Use an authorized waste disposal facility. WARNING: Do not put coolant in the windshield washer reservoir. If sprayed on the windshield, coolant could make it difficult to see through the windshield. WARNING: To reduce the risk of personal injury, make sure the engine is cool before unscrewing the coolant pressure relief cap. The cooling system is under pressure. Steam and hot liquid can come out forcefully when you loosen the cap slightly. WARNING: Do not add coolant further than the MAX mark.

When the engine is cold, check the concentration and level of the coolant at the intervals listed in the scheduled maintenance information. See Scheduled Maintenance (page 416).

Note: Make sure that the coolant level is between the MIN and MAX marks on the coolant reservoir.

Note: Coolant expands when it is hot. The level may extend beyond the MAX mark.

Maintain coolant concentration within 48% to 50%, which equates to a freeze point between -29°F (-34°C) and -35°F (-37°C). Coolant concentration should be checked using a refractometer. We do not recommend the use of hydrometers or coolant test strips for measuring coolant concentration.

WARNING: Do not remove the coolant reservoir cap when the engine is on or the cooling system is hot. Wait 10 minutes for the cooling system to cool down. Cover the coolant reservoir cap with a thick cloth to prevent the possibility of scalding and slowly remove the cap. Failure to follow this instruction could result in personal injury. WARNING: Do not allow the fluid to touch your skin or eyes. If this happens, rinse the affected areas immediately with plenty of water and contact your physician. WARNING: Undiluted coolant is flammable and may ignite if spilled on a hot exhaust.

Note: Automotive fluids are not interchangeable. Take care not to put engine coolant in the windshield washer fluid reservoir or windshield washer fluid in the engine coolant reservoir.

Note: Do not use stop leak pellets, cooling system sealants, or non-specified additives as they can cause damage to the engine cooling or heating systems. Resulting component damage may not be covered by the vehicle Warranty.

268

It is very important to use prediluted coolant approved to the correct specification in order to avoid plugging the small passageways in the engine cooling system. See Capacities and Specifications (page 328). Do not mix different colors or types of coolant in your vehicle. Mixing of engine coolants or using an incorrect coolant may harm the engine or cooling system components and may not be covered by the vehicle Warranty.

Note: If prediluted coolant is not available, use the approved concentrated coolant diluting it to 50/50 with distilled water. See Capacities and Specifications (page 328). Using water that has not been deionised may contribute to deposit formation, corrosion and plugging of the small cooling system passageways.

Note: Coolants marketed for all makes and models may not be approved to our specifications and may cause damage to the cooling system. Resulting component damage may not be covered by the vehicle Warranty.

If the coolant level is at or below the minimum mark, add prediluted coolant immediately.

To top up the coolant level do the following:

Unscrew the cap slowly. Any pressure escapes as you unscrew the cap.

Add prediluted coolant approved to the correct specification. See Capacities and Specifications (page 328).

Add enough prediluted coolant to reach the correct level.

Replace the coolant reservoir cap. Turn the cap clockwise until it contacts the hard stop.

Check the coolant level in the coolant reservoir the next few times you drive your vehicle. If necessary, add enough prediluted engine coolant to bring the coolant level to the correct level.

If you have to add more than 1.1 qt (1 L) of engine coolant per month, have your vehicle checked as soon as possible.

Operating an engine with a low level of coolant can result in engine overheating and possible engine damage.

In case of emergency, you can add a large amount of water without engine coolant in order to reach a vehicle service location. In this instance, qualified personnel:

Must drain the cooling system.

Chemically clean the coolant system.

Refill with engine coolant as soon as possible.

Water alone, without engine coolant, can cause engine damage from corrosion, overheating or freezing.

Do not use the following as a coolant substitute:

Alcohol.

Methanol.

Brine.

Any coolant mixed with alcohol or methanol antifreeze.

Alcohol and other liquids can cause engine damage from overheating or freezing.

Do not add extra inhibitors or additives to the coolant. These can be harmful and compromise the corrosion protection of the coolant.

We do not recommend the use of recycled coolant as an approved recycling process is not yet available.

269

Dispose of used engine coolant in an appropriate manner. Follow your community's regulations and standards for recycling and disposing of automotive fluids.

If you drive in extremely cold climates:

• It may be necessary to increase the coolant concentration above 50%.

• A coolant concentration of 60% provides improved freeze point protection. Coolant concentrations above 60% decrease the overheat protection characteristics of the coolant and may cause engine damage.

If you drive in extremely hot climates:

• You can decrease the coolant concentration to 40%.

• Coolant concentrations below 40% decrease the freeze and corrosion protection characteristics of the coolant and may cause engine damage.

Vehicles driven year-round in non-extreme climates should use prediluted coolant for optimum cooling system and engine protection.

At specific mileage intervals, as listed in the scheduled maintenance information, the coolant should be changed. Add prediluted coolant approved to the correct specification. See Capacities and Specifications (page 328).

Fail-safe cooling allows you to temporarily drive your vehicle before any incremental component damage occurs. The fail-safe distance depends on ambient temperature, vehicle load and terrain.

If the engine begins to overheat, the coolant temperature gauge moves toward the red zone:

A warning lamp illuminates and a message may appear in the information display.

If the engine reaches a preset

over-temperature condition, the engine automatically switches to alternating cylinder operation. Each disabled cylinder acts as an air pump and cools the engine.

When this occurs, your vehicle still operates, however:

• Engine power is limited.

• The air conditioning system turns off.

Continued operation increases the engine temperature, causing the engine to completely shut down. Your steering and braking effort increases in this situation.

When the engine temperature cools, you can re-start the engine. Have your vehicle checked as soon as possible to minimize engine damage.

270

WARNING: Do not remove the coolant reservoir cap when the engine is on or the cooling system is hot. Wait 10 minutes for the cooling system to cool down. Cover the coolant reservoir cap with a thick cloth to prevent the possibility of scalding and slowly remove the cap. Failure to follow this instruction could result in personal injury.

Your vehicle has limited engine power when in the fail-safe mode, drive your vehicle with caution. Your vehicle does not maintain high-speed operation and the engine may operate poorly.

Remember that the engine is capable of automatically shutting down to prevent engine damage. In this situation:

Pull off the road as soon as safely possible and switch the engine off.

If you are a member of a roadside assistance program, we recommend that you contact your roadside assistance service provider.

If this is not possible, wait a short period for the engine to cool.

Check the coolant level. If the coolant level is at or below the minimum mark, add prediluted coolant immediately.

When the engine temperature cools, you can re-start the engine. Have your vehicle checked as soon as possible to minimize engine damage.

Note: Driving your vehicle without repair increases the chance of engine damage.

Engine Coolant Temperature Management (If Equipped)

WARNING: To reduce the risk of crash and injury, be prepared that the vehicle speed may reduce and the vehicle may not be able to accelerate with full power until the coolant temperature reduces.

If you tow a trailer with your vehicle, the engine may temporarily reach a higher temperature during severe operating conditions, for example ascending a long or steep grade in high ambient temperatures.

At this time, you may notice the coolant temperature gauge moves toward the red zone and a message may appear in the information display.

You may notice a reduction in vehicle speed caused by reduced engine power in order to manage the engine coolant temperature. Your vehicle may enter this mode if certain high-temperature and high-load conditions take place. The amount of speed reduction depends on vehicle loading, grade and ambient temperature. If this occurs, there is no need to stop your vehicle. You can continue to drive.

The air conditioning may automatically turn on and off during severe operating conditions to protect the engine from overheating. When the coolant temperature decreases to the normal operating temperature, the air conditioning turns on.

If the coolant temperature gauge moves fully into the red zone, or if the coolant temperature warning or service engine soon messages appear in your information display, do the following:

271

Stop your vehicle as soon as it is safe to do so. Fully apply the parking brake, shift into park (P) or neutral (N).

Leave the engine running until the coolant temperature gauge needle returns to the normal position. If the temperature does not drop after several minutes, follow the remaining steps.

Switch the engine off and wait for it to cool. Check the coolant level.

If the coolant level is at or below the minimum mark, add prediluted coolant immediately.

If the coolant level is normal, restart the engine and continue.

Note: Transmission fluid should be checked by an authorized dealer. If required, fluid should be added by an authorized dealer.

Have an authorized dealer check and change the transmission fluid at the correct service interval. See Maintenance (page 262). Your transmission does not consume fluid. However, the fluid level should be checked if the transmission is not working properly, (i.e., if the transmission slips or shifts slowly) or if you notice some sign of fluid leakage.

Do not use supplemental transmission fluid additives, treatments or cleaning agents. The use of these materials may affect transmission operation and result in damage to internal transmission components.

WARNING: Do not use any fluid other than the recommended brake fluid as this will reduce brake efficiency. Use of incorrect fluid could result in the loss of vehicle control, serious personal injury or death. WARNING: Only use brake fluid from a sealed container. Contamination with dirt, water, petroleum products or other materials may result in brake system damage or failure. Failure to adhere to this warning could result in the loss of vehicle control, serious personal injury or death. WARNING: Do not allow the fluid to touch your skin or eyes. If this happens, rinse the affected areas immediately with plenty of water and contact your physician. WARNING: The brake system could be affected if the brake fluid level is below the MIN mark or above the MAX mark on the brake fluid reservoir.

272

E170684

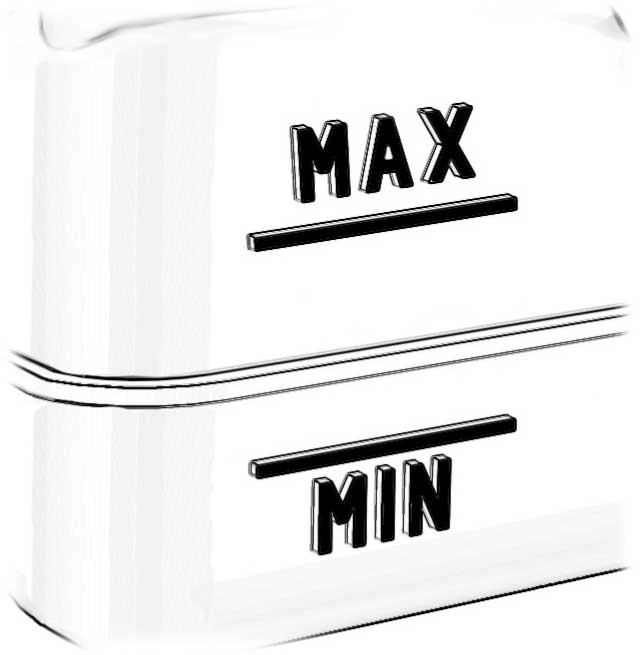

Park your vehicle on a level surface.

Look at the brake fluid reservoir to see where the brake fluid level is relative to the MIN and the MAX marks on the reservoir.

Note: If the brake fluid level is between the MIN and the MAX marks on the reservoir, it is acceptable.

Note: If the brake fluid level is below the MIN mark or above the MAX mark, have your vehicle checked as soon as possible.

Note: To avoid fluid contamination, the reservoir cap must remain in place and fully tight, unless you are adding fluid.

Only use fluid that meets our specifications. See Capacities and Specifications (page 328).

Brake fluid absorbs water over time which degrades the effectiveness of the brake fluid. Change the brake fluid at the specified intervals to prevent degraded braking performance.

For detailed interval information, see Scheduled Maintenance in your Owner's Manual or your local maintenance guide.

Your vehicle is equipped with an electric power steering (EPS) system. There is no fluid reservoir to check or fill.

Your vehicle is equipped with a lifetime fuel filter that is integrated with the fuel tank. Regular maintenance or replacement is not needed.

Battery Management System (If Equipped)

The battery management system monitors battery conditions and takes actions to extend battery life. If excessive battery drain is detected, the system may temporarily disable certain electrical features to protect the battery. Those electrical accessories affected include the rear defrost, heated/cooled seats, climate control fan, heated steering wheel, audio and navigation system. A message may be shown in the information displays to alert the driver that battery protection actions are active. These messages are only for notification that an action is taking place, and not intended to indicate an electrical problem or that the battery requires replacement.

273

Note: Charging and replacing the battery requires the driver power window to be

re-initialized. See Windows and Mirrors

(page 83).

To ensure proper operation of the Battery Management System, any electrical devices that are added to your vehicle should not have their ground connection made directly at the negative battery post.

A connection at the negative battery terminal can cause inaccurate measurements of the battery condition and potential incorrect system operation.

When a battery replacement is required, you must use a recommended replacement battery that matches the electrical requirements of the vehicle.

After battery replacement, or in some cases after charging the battery with the external charger, the Battery Management System requires eight hours of vehicle sleep time (key off with doors closed) to relearn the new battery state of charge.

Prior to relearning the state of charge, the Battery Management System may disable electrical features (to protect the battery) earlier than normal.

WARNING: When lifting a plastic-cased battery, excessive pressure on the end walls could cause acid to flow through the vent caps, resulting in personal injury and damage to the vehicle or battery. Lift the battery with a battery carrier or with your hands on opposite corners. WARNING: Keep batteries out of reach of children. Batteries contain sulfuric acid. Avoid contact with skin, eyes or clothing. Shield your eyes when working near the battery to protect against possible splashing of acid solution. In case of acid contact with skin or eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical attention. If acid is swallowed, call a physician immediately. WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. Wash hands after handling. WARNING: This vehicle may have more than one battery. Removing the battery cables from only one battery does not disconnect your vehicle electrical system. Make sure you disconnect the battery cables from all batteries when disconnecting power. Failure to do so may cause serious personal injury or property damage. WARNING: For vehicles with Auto-Start-Stop the battery requirement is different. You must replace the battery with one of exactly the same specification.

The battery is located in the engine compartment. See Under Hood Overview (page 264).

274

Your vehicle has a maintenance-free battery. It does not require additional water during service.

If your vehicle battery has a cover, make sure you correctly install it after cleaning or replacing the battery.

For longer, trouble-free operation, keep the top of the battery clean and dry and the battery cables tightly fastened to the battery terminals. If any corrosion is present on the battery or terminals, remove the cables from the terminals and clean with a wire brush. You can neutralize the acid with a solution of baking soda and water.

We recommend that you disconnect the negative battery cable terminal from the battery if you plan to store your vehicle for an extended period.

To maintain correct operation of the battery management system, if you add any electrical devices to your vehicle, do not connect the ground connection directly to the negative battery terminal. A connection at the negative battery terminal can cause inaccurate measurements of the battery condition and potential incorrect system operation.

Note: Electrical accessories or components added to your vehicle by you or an authorized dealer, may adversely affect battery performance, durability and the performance of other electrical systems on your vehicle.

If a replacement battery is required, we recommend you use a Ford replacement battery that matches the electrical requirements of your vehicle.

If you disconnect or replace the battery and your vehicle has an automatic transmission, transmission must relearn its adaptive strategy. Because of this, the transmission may shift firmly when first driven. This is normal operation while the transmission fully updates its operation to optimum shift feel.

To disconnect or remove the battery, do the following:

Apply the parking brake and switch the ignition off.

Switch all electrical equipment off, for example lights and radio.

Wait a minimum of two minutes before disconnecting the battery.

Note: The engine management system has a power hold function and remains powered for a period after you switch the ignition off. This is to allow diagnostic and adaptive tables to be stored. Disconnecting the battery without waiting can cause damage not covered by the vehicle Warranty.

Disconnect the negative (-) battery cable terminal first.

Disconnect the positive (+) battery cable terminal last.

Remove the battery securing clamp.

Remove the battery.

Install in the reverse order.

Note: Before reconnecting the battery, make sure the ignition remains switched off.

Note: If you only disconnect the negative battery cable terminal, make sure it is isolated or placed away from the battery terminal to avoid un-intended connection or arcing.

Note: Make sure the battery cable terminals are fully tightened.

275

Note: If you disconnect or replace the battery, you must reset the clock and the pre-set radio stations once the battery is reconnected.

Make sure that you dispose of old batteries in an environmentally friendly way.

Seek advice from your local authority about recycling old batteries.

WARNING: If you operate your vehicle in temperatures below 40°F (5°C), use washer fluid with antifreeze protection. Failure to use washer fluid with antifreeze protection in cold weather could result in impaired windshield vision and increase the risk of injury or accident.

Add fluid to fill the reservoir if the level is low. Only use a washer fluid that meets Ford specifications. See Capacities and Specifications (page 328).

State or local regulations on volatile organic compounds may restrict the use of methanol, a common windshield washer antifreeze additive. Washer fluids containing non-methanol antifreeze agents should be used only if they provide cold weather protection without damaging the vehicle’s paint finish, wiper blades or washer system.

E222238

Run the tip of your fingers over the edge of the blade to check for roughness.

Clean the wiper blades with isopropyl alcohol or windscreen washer concentrate.

Note: The windshield wiper blades are different in length.

Note: If you install wiper blades of the wrong length, the wiper blades can clash damaging the wiper system.

276

Pull the wiper blade and arm away from the glass.

E279825

Squeeze the blade's lock pin and tab on the bottom of the arm to release the wiper blade.

Slide the blade out to remove it from the arm hook.

Install in the reverse order.

Note: Make sure that the wiper blade locks into place.

If your vehicle has been involved in a crash, have the aim of the headlamp beam checked by an authorized dealer.

A 8 ft (2.4 m)

B Ground to the center of the headlamp high beam bulb

C 25 ft (7.6 m)

D Horizontal reference line

Park your vehicle on level ground approximately 25 ft (7.6 m) from a wall or screen.

Measure the distance from the ground to the center of the headlamp high beam bulb and mark an 8 ft (2.4 m) long horizontal reference line on the wall or screen at this height.

Note: There may be an identifying mark on the lens to help you locate the center line of the headlamp high beam bulb. Refer to the graphic below step 4.

Note: To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

Switch on the low beam headlamps and open the hood.

277

E142465

On the wall or screen you will observe a flat zone of high intensity light located at the top of the beam pattern. If the top edge of the flat zone of high intensity light is not on the horizontal reference line, adjust the aim of the headlamp beam.

E284602

Use a suitable tool, for example a screwdriver or socket wrench, to turn the adjuster clockwise or counterclockwise to adjust the vertical aim of the headlamp. The horizontal edge of the brighter light should touch the horizontal reference line.

Close the hood and switch off the lamps.

Contact an authorized dealer.

Note: Do not touch the bulb glass.

E284568

Headlamp assembly:

High beam bulb.

Low beam bulb.

Front park and direction indicator bulb.

278

E284569

Make sure the lamps are off.

With the hood open, locate and carefully remove the cover.

Disconnect the electrical connector.

Turn the bulb counterclockwise and remove it.

Install the new bulb in reverse order.

E284581

Make sure the lamps are off.

With the hood open, locate and carefully remove the cover.

Disconnect the electrical connector.

Turn the bulb counterclockwise and remove it.

Install the new bulb in reverse order.

Make sure the lamps are off.

Turn the bulb holder counterclockwise and remove it.

Remove the bulb by pulling it straight out.

Install the new bulb in reverse order.

All bulbs in this assembly except for the direction indicator bulb are LED. If an LED fails have your vehicle checked as soon as possible. Contact an authorized dealer.

Make sure the lamps are off.

Remove the lamp from the wheel lip molding by releasing the clip.

Turn the bulb holder counterclockwise and remove it.

Remove the bulb by pulling it straight out.

Install the new bulb in reverse order.

279

Approach Lamp and Side Direction Indicator (If Equipped)

Replacing LED Fog Lamp Bulbs (If Equipped)

If an LED fails have your vehicle checked as soon as possible. Contact an authorized dealer.

Tail, Brake, Reversing, and Direction Indicator

A Side direction indicator. B Approach lamp.

If an LED fails have your vehicle checked as soon as possible. Contact an authorized dealer.

Make sure the lamps are off.

To access the bulb, reach behind the bumper.

Disconnect the electrical connector.

Turn the bulb counterclockwise and remove it.

Install the new bulb in reverse order.

Note: You cannot separate the bulb from the bulb holder.

280

If an LED fails have your vehicle checked as soon as possible. Contact an authorized dealer.

Type 2

Tail, Brake, Reversing Lamp and Direction Indicator

Brake and rear park bulb.

Rear direction indicator bulb. C Reverse lamp bulb.

Make sure the lamps are off.

Undo the screws to remove the outer lens and access the bulbs.

Remove the bulb by pulling it straight

Make sure the lamps are off.

Open the tailgate to access the rear lamp assemblies.

Remove the two bolts from the tail lamp assembly. Then, carefully pull the lamp assembly from the tailgate pillar by releasing the two retaining tabs.

Turn the bulb holder counterclockwise and remove it.

Remove the bulb by pulling it straight out.

Install the new bulb in reverse order.

out.

4. Install the new bulb in reverse order.

281

Remove the bulb socket by rotating it counterclockwise and pulling it out of the lamp assembly.

Pull the bulb straight out of the socket.

Install the new bulb in reverse order.

If an LED fails have your vehicle checked as soon as possible. Contact an authorized dealer.

Make sure the lamps are off.

Use a screwdriver to carefully remove the lamp from the rear bumper.

Turn the bulb holder counterclockwise and remove it.

Remove the bulb by pulling it straight out.

Install the new bulb in reverse order.

E187290

Make sure the lamps are off.

Remove the four screws and move the lamp assembly away from the vehicle to expose the bulb sockets.

282

Download Manual
