Unique Driving Characteristics

The system helps reduce fuel consumption by automatically stopping and restarting the engine when your vehicle has stopped. The engine restarts automatically when you release the brake pedal.

In some situations, your vehicle may restart automatically, for example:

To maintain interior comfort.

To recharge the battery.

Note: Power assist steering turns off when the engine is off.

Note: If your vehicle is flex fuel capable, Auto-Start-Stop will be inhibited for a short time after a refuel event while the system is verifying the fuel type being used.

181

The Auto-Start-Stop system status is available at a glance within the information display. See Information Displays (page 113).

The system automatically enables every time you start your vehicle if:

You do not press the Auto-Start-Stop button (not illuminated).

Your vehicle exceeds an initial speed of 3 mph (5 km/h) after you have initially started your vehicle.

You have stopped your vehicle.

Your foot is on the brake pedal.

The driver door is closed.

There is adequate brake vacuum.

The interior compartment has cooled or warmed to an acceptable level.

The front windshield defroster is off.

You have not turned the steering wheel rapidly or you do not have it at a sharp angle.

The vehicle is not on a steep road grade.

The battery is within optimal operating conditions (battery state of charge and temperature in range).

The engine coolant is at operating temperature.

Elevation is below about 11,000 ft (3,350 m).

Ambient temperature is moderate.

The trailer is not connected.

If you select Normal, Eco, Snow/Wet or Grass/Gravel/Snow modes. (if equipped).

You are not in 4H or 4L.

You have not selected Manual shift mode.

Trail control is not active.

You have not selected Tow haul, Sport, Sand, Mud/Rut or Baja modes. (if equipped).

Note: Note when in Sport mode it can be enabled by pressing the Auto-Start-Stop button.

The green Auto-Start-Stop indicator light on the instrument cluster will illuminate to indicate

when the automatic engine stop occurs.

If the instrument cluster is equipped with a grey

Auto-Start-Stop indicator light, it illuminates when automatic engine stop is not available due to one of the above noted conditions not being met.

Any of the following conditions will result in an automatic restart of the engine:

You have removed your foot from the brake pedal.

You press the accelerator pedal.

You press the accelerator and the brake pedal at the same time.

The driver safety belt becomes unfastened or the driver door is ajar.

Your vehicle is moving.

The interior compartment does not meet customer comfort when air conditioning or heat is on.

Fogging of the windows could occur and the air conditioning is on.

The battery is not within optimal operating conditions.

You have exceeded the maximum engine off time.

When you press the Auto-Start-Stop button with the engine automatically stopped.

The front defroster is turned to the Max setting.

Any of the following conditions may result in an automatic restart of the engine:

You have increased the blower fan speed or changed the climate control temperature.

You have an electrical accessory turned on or plugged in.

Note: You may notice that the climate seat fan fluctuates during an automatic restart.

E181352

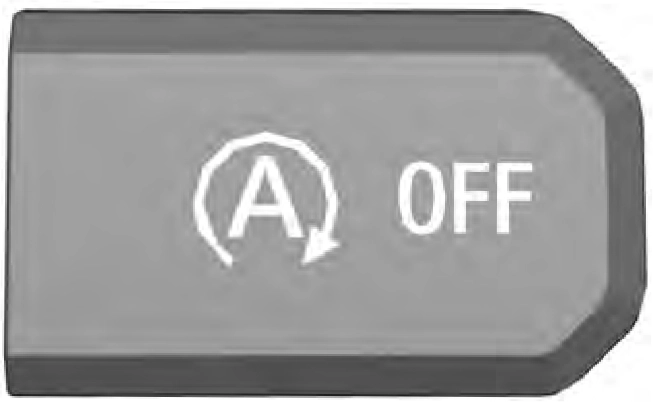

Press the Auto-Start-Stop button located on the center console to switch the system off. The button will illuminate. Deactivating using the button lasts only 1 key cycle.

Press the button again to restore Auto-Start-Stop function.

Note: If the Shift to P, Restart Engine message appears and the amber

Auto-Start-Stop indicator light is flashing, automatic restart is not available. You must restart the vehicle manually. See Information Displays (page 113).

182

If your vehicle is in an engine off

Auto-Start-Stop, shifting from drive (D) to reverse (R) will not cause a restart if you do not have the brake pedal pressed. The message Auto-Start-Stop Press Brake to Start Engine will appear. You must press the brake pedal within 60 seconds or a shift to park (P) and a manual restart will be required.
