Capacities and Specifications

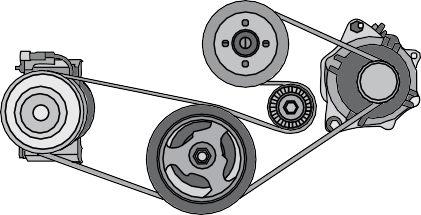

E249449
|
Measurement |
Specification |
|
Cubic inches |
201 |
|
Firing order |
1-4-2-5-3-6 |
|
Ignition system |
Coil on plug |
|
Spark plug gap |
.049-.053 in. (1.25 - 1.35 mm) |
|
Compression ratio |
12:1 |
E167467
416
|
Measurement |
Specification |
|
Cubic inches |
213 |
|
Firing order |
1-4-2-5-3-6 |
|
Ignition system |
Coil on plug |
|
Spark plug gap |
.030-.033 in. (0.75 - 0.85 mm) |
|
Compression ratio |
10.5:1 |
ENGINE SPECIFICATIONS - 5.0L MODULAR - V8
|
Measurement |
Specification |
|
Cubic inches |
307 |
|
Firing order |
1-3-7-2-6-5-4-8 |
|
Ignition system |
Coil on plug, coil near plug |
|
Spark plug gap |
.049-.053 in. (1.25 - 1.35 mm) |
|
Compression ratio |
12:1 |
417
E249450
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-2062 |
|
Transmission oil filter. |
FT-188 |
|
Battery. |
BAGM-48H6-760 |
|
BAGM-94RH7-800 |
|
|
Spark plugs. |
SP-542 |
|
Windshield wiper blade. |
WW-2247 |
|
Cabin air filter. |
FP-79 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 561).
418
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-2081 |
|
Battery. |
BAGM-49H8-850 |
|
Glow plugs. |
ZD-22 |
|
Windshield wiper blade. |
WW-2247 |
|
Cabin air filter. |
FP-79 |
|
Fuel filter kit |
FD-4627 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For glow plug replacement, contact an authorized dealer. See Scheduled Maintenance (page 561).
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-500-S |
|
Battery. |
BAGM-48H6-760 |
|
BAGM-94RH7-800 |
|
|
Spark plugs. |
SP-520 |
|
Windshield wiper blade. |
WW-2247 |
|
Cabin air filter. |
FP-79 |
419
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other
parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 561).
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-500-S |
|
Transmission oil filter. |
FT-188 |
|
Battery. |
BAGM-48H6-760 |
|
BAGM-94RH7-800 |
|
|
Spark plugs. |
SP-534 |
|
Windshield wiper blade. |
WW-2247 |
|
Cabin air filter. |
FP-79 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 561).
420
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-500-S |
|
Transmission oil filter. |
FT-188 |
|
Battery. |
BAGM-48H6-760 |
|
BAGM-94RH7-800 |
|
|
Spark plugs. |
SP-551 |
|
Windshield wiper blade. |
WW-2247 |
|
Cabin air filter. |
FP-79 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 561).
The vehicle identification number is located on the left-hand side of the instrument panel.
Please note that in the graphic, XXXX is representative of your vehicle identification number.
The Vehicle Identification Number contains the following information:
421
E142477
A B
C
D E F G H
World manufacturer identifier
Brake system, Gross Vehicle Weight Rating, Restraint Devices and their locations
Make, vehicle line, series, body type
Engine type Check digit Model year Assembly plant
Production sequence number
E167469
The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label shall be affixed to either the door hinge pillar, the door latch post, or the edge of the door near the door latch, next to the driver's seating position.
422
The transmission code is on the Safety Compliance Certification Label. The following table shows the transmission code along with the transmission description.
E167814
|
Description |
Code |
|
Six-speed automatic transmission 6R80 |
6 |
|
Ten-speed automatic transmission 10R80 |
G |
423
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.|
Item |
Capacity |
|
Engine oil (with oil filter) |
6.0 qt (5.7 L) |
|
Engine coolant |
15.1 qt (14.3 L) |
|
Brake fluid |
Between MIN/MAX on brake fluid reservoir |
|
Front axle fluid (Four-wheel drive) |
3.5 pt (1.7 L) |
|
Rear axle fluid |
5.5 pt (2.6 L) |
|
Automatic transmission fluid |
13.1 qt (12.4 L) 1 |
|
Transfer case fluid Four-wheel drive (Electronic Shift-on-the- Fly) |
1.5 qt (1.4 L) |
|
Transfer case fluid Automatic four-wheel drive (Torque on demand) |
1.5 qt (1.4 L) |
|
Windshield washer fluid |
Fill as required |
|
Fuel tank (Regular Cab and SuperCab) |
23.0 gal (87.1 L) |
|
Fuel tank (SuperCrew Cab) |
26.0 gal (98.4 L) |
|
Fuel tank (Optional) |
36.0 gal (136.3 L) |
|
A/C Refrigerant (U.S. and Canada) |
29 oz (0.82 kg) |
|
A/C Refrigerant (Mexico) |
31 oz (0.88 kg) |
|
A/C Refrigerant Compressor Oil |
2.7 fl oz (80 ml) |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
424
Specifications
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil XO-5W30-QSP |
WSS-M2C946-B1 |
|
Recommended Motor oil (Canada): Motorcraft® SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 |
WSS-M2C946-B1 |
|
Recommended motor oil (Mexico): Motorcraft® SAE 5W-30 Synthetic Motor Oil MXO-5W30-B |
WSS-M2C946-B1 |
|
Engine coolant (U.S. and Mexico): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Front axle fluid: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Rear axle fluid: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Automatic transmission fluid: Motorcraft MERCON® ULV Automatic Transmission Fluid XT-12-QULV |
WSS-M2C949-A MERCON® ULV |
|
Automatic transmission fluid (U.S. and Mexico): Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON® LV |
|
Automatic transmission fluid (Canada): Motorcraft® MERCON® LV Automatic Transmission Fluid |
WSS-M2C938-A MERCON® LV |
425
|
Name |
Specification |
|
CXT-10-LV12 |
|
|
Transfer case fluid (U.S. and Mexico): Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON® LV |
|
Transfer case fluid (Canada): Motorcraft® MERCON® LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON® LV |
|
Windshield washer fluid (U.S. and Mexico): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): R-1234yf Refrigerant YN-33-A |
WSS-M17B21-A |
|
A/C refrigerant (Canada): R-1234yf Refrigerant HS7Z-19B519-BA |
WSS-M17B21-A |
|
A/C refrigerant (Mexico): Motorcraft® R-134a Refrigerant MYN-19 |
WSH-M17B19-A |
|
A/C refrigerant compressor oil (U.S. and Canada): Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 |
WSS-M2C300-A2 |
|
A/C refrigerant compressor oil (Mexico): Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |
|
Transmission, parking brake linkage and pivots and brake pedal shift grease: Motorcraft® Premium Long-Life Grease XG-1-E1 |
ESA-M1C75-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
426
|
Name |
Specification |
|
Lock cylinders (U.S.): Motorcraft® Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Motorcraft® Penetrating Fluid CXC-51-A |
- |
|
Lock cylinders (Mexico): Motorcraft® Penetrating and Lock Lubricant MXL-1 |
- |
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
Note: Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
427
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid may cause transmission damage.

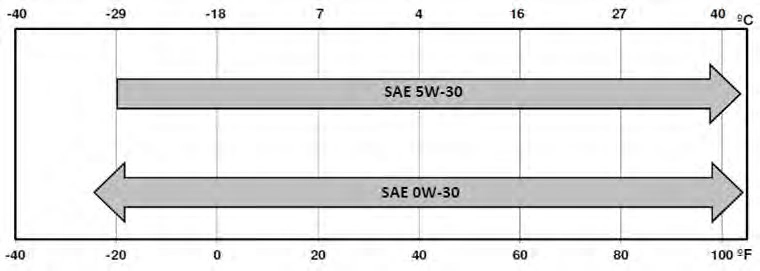

To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil: Engine oil - SAE 0W-30 XO-0W30-QSP |
WSS-M2C953-A1 |
E240523
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.428
|
Item |
Capacity |
|
Engine oil (with oil filter). |
6.5 qt (6.15 L) |
|
Engine coolant. |
13.7 qt (13 L) |
|
Brake fluid. |
Between MIN/MAX on brake fluid reservoir |
|
Automatic transmission fluid. |
13.1 qt (12.4 L) 1 |
|
Front axle fluid (Four-wheel drive). |
3.5 pt (1.7 L) |
|
Rear axle fluid. |
5.5 pt (2.6 L) |
|
Transfer case fluid. Four-wheel drive (Electronic Shift-on-the- Fly). |
1.5 qt (1.4 L) |
|
Transfer case fluid. Automatic four-wheel drive (Torque on demand). |
1.5 qt (1.4 L) |
|
Windshield washer fluid. |
Fill as required |
|
Fuel tank. |
26 gal (98.4 L) |
|
Diesel Exhaust Fluid (DEF). |
22.5 qt (21.3 L) |
|
A/C refrigerant. |
29 oz (0.82 kg) |
|
A/C refrigerant compressor oil. |
2.7 fl oz (80 ml) |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-30 Diesel Motor Oil XO-5W30-QFA |
WSS-M2C214-B1 |
|
Recommended motor oil (Canada): Motorcraft® SAE 5W-30 Diesel Motor Oil CXO-5W30-LFA |
WSS-M2C214-B1 |
|
Engine coolant (U.S.): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
429
|
Name |
Specification |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Diesel Exhaust Fluid (DEF) (U.S.): Motorcraft® Diesel Exhaust Fluid PM-27-GAL / PM-27-JUG |
WSS-M99C130-A |
|
Diesel Exhaust Fluid (DEF) (Canada): Motorcraft® Diesel Exhaust Fluid CPM-27-J |
WSS-M99C130-A |
|
Brake fluid: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Front axle fluid: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Rear axle fluid: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Automatic transmission fluid: Motorcraft® MERCON® ULV Automatic Transmission Fluid XT-12-QULV |
WSS-M2C949-A MERCON® ULV |
|
Transfer case fluid (U.S.): Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON® LV |
|
Transfer case fluid (Canada): Motorcraft® MERCON® LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON® LV |
|
Windshield washer fluid (U.S.): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
430
|
Name |
Specification |
|
A/C refrigerant (U.S.): R-1234yf Refrigerant YN-33-A |
WSS-M17B21-A |
|
A/C refrigerant (Canada): R-1234yf Refrigerant HS7Z-19B519-BA |
WSS-M17B21-A |
|
A/C refrigerant compressor oil (U.S. and Canada): Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 |
WSS-M2C300-A2 |
|
Transmission, parking brake linkage and pivots and brake pedal shift grease: Motorcraft® Premium Long-Life Grease XG-1-E1 |
ESA-M1C75-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Motorcraft® Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Motorcraft® Penetrating Fluid CXC-51-A |
- |
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
The use of correct oil viscosities for diesel engines is important for satisfactory operation. Determine which oil viscosity best suits the temperature range you expect to encounter for the next service interval from the following SAE viscosity grade chart.
431
E258300
The American Petroleum Institute (API) service symbol is used to identify the proper engine oil for your engine. The API service symbol will be displayed on the oil container you purchase. The API symbol displays the oil performance category in the top half of symbol and the viscosity grade in the center of the symbol.
Note: An engine block heater is recommended at temperatures below -9°F (-23°C).
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note: Automatic transmissions that require MERCON® ULV transmission fluid should only use MERCON® ULV transmission fluid. The use of any other fluid may cause transmission damage.
E276509
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.432
|
Item |
Capacity |
|
Engine oil (with oil filter) |
6.0 qt (5.7 L) |
|
Engine coolant |
13.6 qt (12.86 L) |
|
Brake fluid |
Between MIN/MAX on brake fluid reservoir |
|
Front axle fluid (Four-wheel drive) |
3.5 pt (1.7 L) |
|
Rear axle fluid |
5.5 pt (2.6 L) |
|
Automatic transmission fluid |
13.1 qt (12.4 L) 1 |
|
Transfer case fluid Four-wheel drive (Electronic Shift-on-the- Fly) |
1.5 qt (1.4 L) |
|
Transfer case fluid Automatic four-wheel drive (Torque on demand) |
1.5 qt (1.4 L) |
|
Windshield washer fluid |
Fill as required |
|
Fuel tank (Regular Cab and SuperCab) |
23.0 gal (87.1 L) |
|
Fuel tank (SuperCrew Cab) |
26.0 gal (98.4 L) |
|
Fuel tank (Optional) |
36.0 gal (136.3 L) |
|
A/C Refrigerant (U.S. and Canada) |
29 oz (0.82 kg) |
|
A/C Refrigerant (Mexico) |
31 oz (0.88 kg) |
|
A/C Refrigerant Compressor Oil |
4.1 fl oz (120 ml) |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
433
Specifications
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil XO-5W20-QSP |
WSS-M2C945-B1 |
|
Recommended Motor oil (Canada): Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 |
WSS-M2C945-B1 |
|
Recommended motor oil (Mexico): Motorcraft® SAE 5W-20 Synthetic Motor Oil MXO-5W20-QSP |
WSS-M2C945-B1 |
|
Engine coolant (U.S. and Mexico): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Front axle fluid: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Rear axle fluid: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Automatic transmission fluid: Motorcraft® MERCON® ULV Automatic Transmission Fluid XT-12-QULV |
WSS-M2C949-A MERCON® ULV |
|
Transfer case fluid (U.S. and Mexico): Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON® LV |
|
Transfer case fluid (Canada): |
WSS-M2C938-A |
434
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid CXT-10-LV12 |
MERCON® LV |
|
Windshield washer fluid (U.S. and Mexico): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): R-1234yf Refrigerant YN-33-A |
WSS-M17B21-A |
|
A/C refrigerant (Canada): R-1234yf Refrigerant HS7Z-19B519-BA |
WSS-M17B21-A |
|
A/C refrigerant (Mexico): Motorcraft® R-134a Refrigerant MYN-19 |
WSH-M17B19-A |
|
A/C refrigerant compressor oil (U.S. and Canada): Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 |
WSS-M2C300-A2 |
|
A/C refrigerant compressor oil (Mexico): Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |
|
Transmission, parking brake linkage and pivots and brake pedal shift grease: Motorcraft® Premium Long-Life Grease XG-1-E1 |
ESA-M1C75-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
435
|
Name |
Specification |
|
Lock cylinders (U.S.): Motorcraft® Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Motorcraft® Penetrating Fluid CXC-51-A |
- |
|
Lock cylinders (Mexico): Motorcraft® Penetrating and Lock Lubricant MXL-1 |
- |
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
Component damage which may not be covered by the vehicle Warranty.
Longer engine cranking periods.
Increased emission levels.
Reduced engine performance.
Reduced fuel economy.
Reduced brake performance.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
436
Note: Automatic transmissions that require MERCON® ULV transmission fluid should only use MERCON® ULV transmission fluid. The use of any other fluid may cause transmission damage.

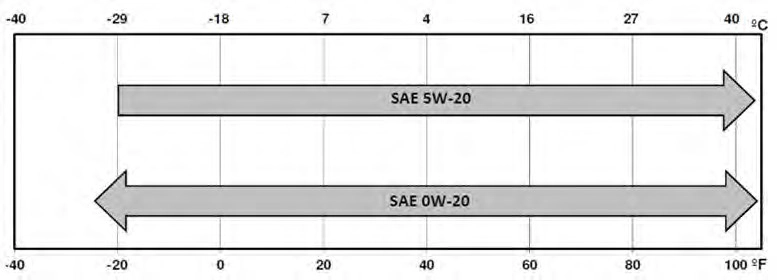

To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Motorcraft® SAE 0W-20 Premium Synthetic Blend Motor Oil: Engine oil - SAE 0W-20 XO-0W20-QSP |
WSS-M2C947-B1 |
E240522
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.437
|
Item |
Capacity |
|
Engine oil (with oil filter) |
6.0 qt (5.7 L) |
|
Engine coolant |
15.2 qt (14.35 L) |
|
Brake fluid |
Between MIN/MAX on brake fluid reservoir |
|
Front axle fluid (Four-wheel drive) |
3.5 pt (1.7 L) |
|
Rear axle fluid |
5.5 pt (2.6 L) |
|
Automatic transmission fluid |
13.1 qt (12.4 L) 1 |
|
Transfer case fluid Four-wheel drive (Electronic Shift-on-the- Fly) |
1.5 qt (1.4 L) |
|
Transfer case fluid Automatic four-wheel drive (Torque on demand) |
1.5 qt (1.4 L) |
|
Windshield washer fluid |
Fill as required |
|
Fuel tank (Regular Cab and SuperCab) |
23.0 gal (87.1 L) |
|
Fuel tank (SuperCrew Cab) |
26.0 gal (98.4 L) |
|
Fuel tank (Optional) |
36.0 gal (136.3 L) |
|
A/C Refrigerant (U.S. and Canada) |
29 oz (0.82 kg) |
|
A/C Refrigerant (Mexico) |
31 oz (0.88 kg) |
|
A/C Refrigerant Compressor Oil |
2.7 fl oz (80 ml) |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
438
Specifications
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil XO-5W30-QSP |
WSS-M2C946-B1 |
|
Recommended Motor oil (Canada): Motorcraft® SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 |
WSS-M2C946-B1 |
|
Recommended motor oil (Mexico): Motorcraft® SAE 5W-30 Synthetic Motor Oil MXO-5W30-B |
WSS-M2C946-B1 |
|
Engine coolant (U.S. and Mexico): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Front axle fluid: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Rear axle fluid: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Automatic transmission fluid: Motorcraft MERCON® ULV Automatic Transmission Fluid XT-12-QULV |
WSS-M2C949-A MERCON® ULV |
|
Transfer case fluid (U.S. and Mexico): Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON® LV |
|
Transfer case fluid (Canada): Motorcraft® MERCON® LV Automatic Transmission Fluid |
WSS-M2C938-A MERCON® LV |
439
|
Name |
Specification |
|
CXT-10-LV12 |
|
|
Windshield washer fluid (U.S. and Mexico): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): R-1234yf Refrigerant YN-33-A |
WSS-M17B21-A |
|
A/C refrigerant (Canada): R-1234yf Refrigerant HS7Z-19B519-BA |
WSS-M17B21-A |
|
A/C refrigerant (Mexico): Motorcraft® R-134a Refrigerant MYN-19 |
WSH-M17B19-A |
|
A/C refrigerant compressor oil (U.S. and Canada): Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 |
WSS-M2C300-A2 |
|
A/C refrigerant compressor oil (Mexico): Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |
|
Transmission, parking brake linkage and pivots and brake pedal shift grease: Motorcraft® Premium Long-Life Grease XG-1-E1 |
ESA-M1C75-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Motorcraft® Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Motorcraft® Penetrating Fluid CXC-51-A |
- |
|
Lock cylinders (Mexico): |
- |
440
|
Name |
Specification |
|
Motorcraft® Penetrating and Lock Lubricant MXL-1 |
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note: Automatic transmissions that require MERCON® ULV transmission fluid should only use MERCON® ULV transmission fluid. The use of any other fluid may cause transmission damage.
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
E142732
|
Name |
Specification |
|
Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil: Engine oil - SAE 0W-30 XO-0W30-QSP |
WSS-M2C953-A1 |
441
E240523
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.|
Item |
Capacity |
|
Engine oil (with oil filter) |
8.8 qt (8.3 L) |
|
Engine coolant |
13.9 qt (13.2 L) |
|
Brake fluid |
Between MIN/MAX on brake fluid reservoir |
|
Front axle fluid (Four-wheel drive) |
3.5 pt (1.7 L) |
|
Rear axle fluid |
5.5 pt (2.6 L) |
|
Automatic transmission fluid |
13.1 qt (12.4 L) |
|
Transfer case fluid Four-wheel drive (Electronic Shift-on-the- Fly) |
1.5 qt (1.4 L) |
|
Transfer case fluid Automatic four-wheel drive (Torque on demand) |
1.5 qt (1.4 L) |
442
|
Item |
Capacity |
|
Windshield washer fluid |
Fill as required |
|
Fuel tank (Regular Cab and SuperCab) |
23.0 gal (87.1 L) |
|
Fuel tank (SuperCrew Cab) |
26.0 gal (98.4 L) |
|
Fuel tank (Optional) |
36.0 gal (136.3 L) |
|
A/C Refrigerant (U.S. and Canada) |
29 oz (0.82 kg) |
|
A/C Refrigerant (Mexico) |
31 oz (0.88 kg) |
|
A/C Refrigerant Compressor Oil |
2.7 fl oz (80 ml) |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil XO-5W20-QSP |
WSS-M2C945-B1 |
|
Recommended motor oil (Canada): Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 |
WSS-M2C945-B1 |
|
Recommended motor oil (Mexico): Motorcraft® SAE 5W-20 Synthetic Motor Oil MXO-5W20-QSP |
WSS-M2C945-B1 |
|
Engine coolant (U.S. and Mexico): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Front axle fluid: |
WSS-M2C942-A |
443
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
|
|
Rear axle fluid: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Automatic transmission fluid: Motorcraft MERCON® ULV Automatic Transmission Fluid XT-12-QULV |
WSS-M2C949-A MERCON® ULV |
|
Automatic transmission fluid (U.S. and Mexico): Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON® LV |
|
Automatic transmission fluid (Canada): Motorcraft® MERCON® LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON® LV |
|
Transfer case fluid (U.S. and Mexico): Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON® LV |
|
Transfer case fluid (Canada): Motorcraft® MERCON® LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON® LV |
|
Windshield washer fluid (U.S. and Mexico): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): R-1234yf Refrigerant YN-33-A |
WSS-M17B21-A |
|
A/C refrigerant (Canada): R-1234yf Refrigerant HS7Z-19B519-BA |
WSS-M17B21-A |
|
A/C refrigerant (Mexico): Motorcraft® R-134a Refrigerant MYN-19 |
WSH-M17B19-A |
444
|
Name |
Specification |
|
A/C refrigerant compressor oil (U.S. and Canada): Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 |
WSS-M2C300-A2 |
|
A/C refrigerant compressor oil (Mexico): Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |
|
Transmission, parking brake linkage and pivots and brake pedal shift grease: Motorcraft® Premium Long-Life Grease XG-1-E1 |
ESA-M1C75-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Motorcraft® Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Motorcraft® Penetrating Fluid CXC-51-A |
- |
|
Lock cylinders (Mexico): Motorcraft® Penetrating and Lock Lubricant MXL-1 |
- |
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
445
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
Note: Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid may cause transmission damage.
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Motorcraft® SAE 0W-20 Premium Synthetic Blend Motor Oil: Engine oil - SAE 0W-20 XO-0W20-QSP |
WSS-M2C947-B1 |
446
E240522
447
Download Manual
