Instrument Cluster Display

Your vehicle is equipped with an instrument cluster display, which offers useful information to the driver. With the ignition in the OFF mode, opening/closing of a door will activate the display for viewing, and display the total miles, or kilometers, in the odometer. Your instrument cluster display is designed to display important information about your vehicle’s systems and features. Using a driver interactive display located on the instrument panel, your instrument cluster display can show how systems are working and give you warnings when they are not. The steering wheel mounted controls allow you to scroll through the main menus and submenus. You can access the specific information you want and make selections and adjustments.

LOCATION AND CONTROLS

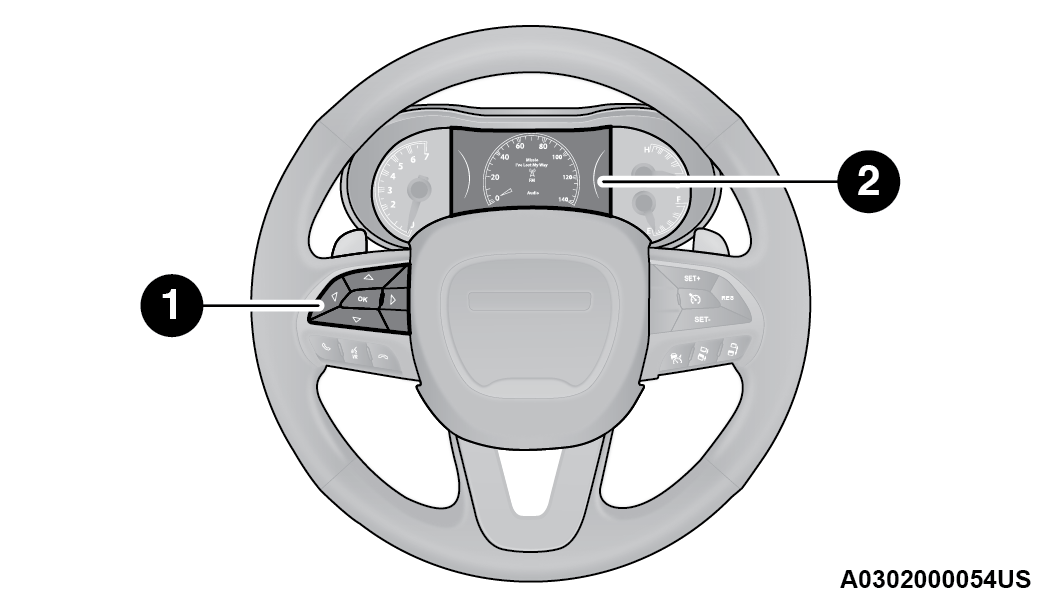

The instrument cluster display is located in the center of the instrument cluster.

Instrument Cluster Display/Controls Location

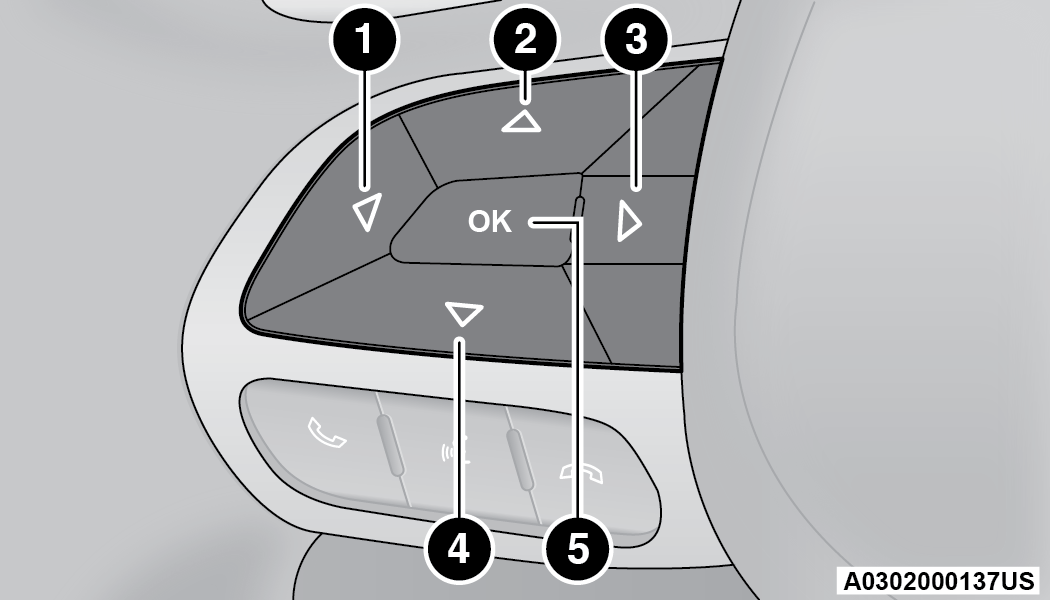

The system allows the driver to select information by pushing the following buttons mounted on the steering wheel:

Instrument Cluster Display Control Buttons

• Left Arrow Button

  Push the leftarrow button to return to the main menu from an info screen or submenu item.

• Up Arrow Button

  Push and release the uparrow button to scroll upward through the main menu.

• Right Arrow Button

  Push and release the rightarrow button to access the information screens or submenu screens of a main menu item.

• Down Arrow Button

  Push and release the downarrow button to scroll downward through the main menu.

• OK Button

  Push the OK button to access/select the information screens or submenu screens of a main menu item. Push and hold the OK button for one second to reset displayed/selected features that can be reset.

The instrument cluster display is located in the center portion of the cluster and consist of multiple sections:

• Main Screen — The inner ring of the display will illuminate in gray under normal conditions, yellow for non critical warnings, red for critical warnings, and white for on demand information.

• Submenu Dots — Whenever there are submenus available, the position within the submenus is shown here.

• Reconfigurable Telltales/Information

• Gear Selector Status (PRND)

• Driver Interactive Display (Compass, Temp, Range to Empty, Trip A, Trip B, Average Fuel Economy, Current Fuel Economy, Time, Trailer Trip and Gain)

• All Wheel Drive (AWD) Status — If Equipped

The instrument cluster display will normally display the main menu or the screens of a selected feature of the main menu. The main display area also displays pop-up messages that consist of possible warning or information messages. These pop-up messages fall into several categories:

• Five Second Stored Messages

  When the appropriate conditions occur, this type of message takes control of the main display area for five seconds and then returns to the previous screen. Most of the messages of this type are then stored (as long as the condition that activated it remains active) and can be reviewed from the “Messages” main menu item. Examples of this message type are “Right Front Turn Signal Lamp Out” and “Low Tire Pressure.”

• Unstored Messages

  This message type is displayed indefinitely or until the condition that activated the message is cleared. Examples of this message type are “Turn Signal On” (if a turn signal is left on) and “Lights On” (if driver leaves the vehicle with the lights on).

• Unstored Messages Until RUN

  These messages deal primarily with the Remote Start feature. This message type is displayed until the ignition is in the RUN state. Examples of this message type are “Remote Start Canceled - Door Ajar” and “Press Brake Pedal and Push Button to Start.”

• Five Second Unstored Messages

  When the appropriate conditions occur, this type of message takes control of the main display area for five seconds and then returns to the previous screen. An example of this message type is “Automatic High Beams On.”

ENGINE OIL LIFE RESET

Oil Change Required

Your vehicle is equipped with an engine oil change indicator system. The “Oil Change Required” message will display in the instrument cluster display for five seconds after a single chime has sounded, to indicate the next scheduled oil change interval. The engine oil change indicator system is duty cycle based, which means the engine oil change interval may fluctuate, dependent upon your personal driving style.

Unless reset, this message will continue to display each time the ignition is placed in the ON/RUN position. To turn off the message temporarily, push and release the OK or arrow buttons. To reset the oil change indicator system (after performing the scheduled maintenance), refer to the following procedure.

Vehicles Equipped With Keyless Enter ‘n Go™ — Ignition

Use the steering wheel instrument cluster display controls for the following procedure(s):

1. Without pressing the brake pedal, push the ENGINE START/STOP button and place the ignition in the ON/RUN position (do not start the engine).

2. Push and release the downarrow button to scroll downward through the main menu to “Vehicle Info.”

3. Push and release the rightarrow button to access the ”Oil Life” screen.

4. Push and hold the OK button to reset oil life. If conditions are met, the gauge and numeric display will update to show 100%. If conditions are not met a pop-up message of “To reset oil life engine must be off with ignition in run” will be displayed (for five seconds), and the user will remain at the Oil Life screen.

5. Push and release the upor downarrow button to exit the submenu screen.

Note:

If the indicator message illuminates when you start the vehicle, the oil change indicator system did not reset. If necessary, repeat this procedure.

Secondary Method Of Resetting Engine Oil Life

1. Without pressing the brake pedal, push the ENGINE START/STOP button and place the ignition to the ON/RUN position (do not start the engine).

2. Fully press the accelerator pedal, slowly, three times within 10 seconds.

3. Without pushing the brake pedal, push the ENGINE START/STOP button once to return the ignition to the OFF position.

Note:

If the indicator message illuminates when you start the vehicle, the oil change indicator system did not reset. If necessary, repeat this procedure.

DISPLAY AND MESSAGES

Includes the following, but not limited to:

The Reconfigurable Telltales section is divided into the white or yellow telltales area on the left, and the green or red telltales area on the right.

INSTRUMENT CLUSTER DISPLAY MENU ITEMS

The instrument cluster display can be used to view the main menu items for several features. Use the upand downarrow buttons to scroll through the driver interactive display menu options until the desired menu is reached.

Note:

Depending on the vehicle’s options, feature settings may vary.

MAIN MENU

Speedometer

Push and release the upor downarrow button until the main gauge menu icon is displayed in the instrument cluster display. Push and release the leftor rightarrow button to select the analog or digital type speedometer display. Push and release the OK button to toggle units (mph or km/h) of the speedometer.

VEHICLE INFO

Push and release the upor downarrow button until the Vehicle Info icon/title is highlighted in the instrument cluster display. Push the leftor rightarrow button to scroll through the information submenus.

Tire Pressure Monitor System

• If tire pressure is OK for all tires a vehicle icon is displayed with tire pressure values in each corner of the icon.

• If one or more tires have low pressure, “Inflate Tire To XX” is displayed with the vehicle icon and the tire pressure values in each corner of the icon with the pressure value of the low tire are displayed in a different color than the other tire pressure value.

• If the Tire Pressure system requires service, “Service Tire Pressure System” is displayed.

Tire Pressure is an information only function, and cannot be reset "⇨Tire Pressure Monitoring System (TPMS)".

Coolant Temperature — If Equipped

• Displays the current temperature of the coolant.

Transmission Temperature

• Displays the actual transmission temperature.

Oil Temperature

• Displays the actual oil temperature.

Oil Pressure

• Displays the actual oil pressure.

Oil Life

• Displays the current oil life of the vehicle.

Battery Voltage

• Displays the current voltage level of the battery.

DRIVER ASSIST — IF EQUIPPED

Push and release the upor downarrow button until the Driver Assist display icon/title is highlighted in the instrument cluster display "⇨Adaptive Cruise Control (ACC)".

FUEL ECONOMY

Push and release the upor downarrow button until the Fuel Economy Menu icon/title is highlighted. Push the leftor rightarrow button to scroll the submenus, one with current fuel economy display and one without it.

• Range

• Current MPG, L/100 km, or km/L

• Average MPG, L/100 km, or km/L

• Press the OK button to reset the average fuel economy

Note:

The Range feature is not able to be reset through the instrument cluster display controls.

TRIP

Push and release the upor downarrow button until the Trip icon/title is highlighted in the instrument cluster display, then push and release the leftor rightarrow button to select Trip A or Trip B.

The Trip A and Trip B information will display the following:

• Distance

• Average Fuel Economy

• Elapsed Time

Hold the OK button to reset all the information.

TRAILER TOW — IF EQUIPPED

Push and release the upor downarrow button until the Trailer Tow Menu icon/title is highlighted in the instrument cluster display. Push and release the leftor rightarrow button to select Trailer Trip or Trailer Brake.

Trailer Trip will display the following:

• Distance

Note:

Press and hold the OK button to reset all the information.

Trailer Brake will display the following:

• Output

• Type

• Gain

STOP/START – IF EQUIPPED

Push and release the upor downarrow button on the steering wheel to scroll to the Stop/Start menu in the driver interactive display "⇨STOP/START SYSTEM — IF EQUIPPED".

AUDIO

Push and release the upor downarrow button until the Audio Menu icon/title is highlighted in the instrument cluster display. This menu will display the audio source information, including the Song name, Artist name, and audio source with an accompanying graphic.

MESSAGES

Push and release the upor downarrow button until the Messages Menu item is highlighted. This feature shows the number of stored warning messages. Pushing the leftor rightarrow button will allow you to see what the stored messages are.

When no messages are present, main menu icon will be a closed envelope.

SCREEN SETUP

Push and release the upor downarrow button until the Screen Setup Menu icon/title is highlighted in the instrument cluster display. Push and release the OK button to enter the submenus and follow the prompts on the screen as needed. The Screen Setup feature allows you to change what information is displayed in the instrument cluster as well as the location that information is displayed.

Note:

Depending on your vehicles trim level, some of these options may not be available.

Current Gear

• On

• Off

Gear Display

• Full

• Single

Note:

Menus with (show/hide) can push the OK button to choose whether to show or hide this menu on the instrument cluster display.

Defaults (Restores All Settings To Default Settings)

• Restore

• Cancel

BATTERY SAVER ON/BATTERY SAVER MODE MESSAGE — ELECTRICAL LOAD REDUCTION ACTIONS — IF EQUIPPED

This vehicle is equipped with an Intelligent Battery Sensor (IBS) to perform additional monitoring of the electrical system and status of the vehicle battery.

In cases when the IBS detects charging system failure, or the vehicle battery conditions are deteriorating, electrical load reduction actions will take place to extend the driving time and distance of the vehicle. This is done by reducing power to or turning off non-essential electrical loads.

Load reduction is only active when the engine is running. It will display a message if there is a risk of battery depletion to the point where the vehicle may stall due to lack of electrical supply, or will not restart after the current drive cycle.

When load reduction is activated, the message “Battery Saver On” or “Battery Saver Mode” will appear in the instrument cluster.

These messages indicate the vehicle battery has a low state of charge and continues to lose electrical charge at a rate that the charging system cannot sustain.

Note:

• The charging system is independent from load reduction. The charging system performs a diagnostic on the charging system continuously.

• If the Battery Charge Warning Light is on it may indicate a problem with the charging system "⇨Battery Charge Warning Light".

The electrical loads that may be switched off (if equipped), and vehicle functions which can be affected by load reduction:

• Heated Seat/Vented Seats/Heated Wheel

• Rear Defroster And Heated Mirrors

• HVAC System

• 115 Volt AC Power Inverter System

• Audio and Telematics System

Loss of the battery charge may indicate one or more of the following conditions:

• The charging system cannot deliver enough electrical power to the vehicle system because the electrical loads are larger than the capability of the charging system. The charging system is still functioning properly.

• Turning on all possible vehicle electrical loads (e.g. HVAC to max settings, exterior and interior lights, overloaded power outlets +12 Volt, 115 Volt AC, USB ports) during certain driving conditions (city driving, towing, frequent stopping, etc.).

• Installing options like additional lights, upfitter electrical accessories, audio systems, alarms and similar devices.

• Unusual driving cycles (short trips separated by long parking periods).

• The vehicle was parked for an extended period of time (weeks, months).

• The battery was recently replaced and was not charged completely.

• The battery was discharged by an electrical load left on when the vehicle was parked.

• The battery was used for an extended period with the engine not running to supply radio, lights, chargers, +12 Volt portable appliances like vacuum cleaners, game consoles and similar devices.

What to do when an electrical load reduction action message is present (“Battery Saver On” or “Battery Saver Mode”)

During a trip:

• Reduce power to unnecessary loads if possible:

  • Turn off redundant lights (interior or exterior)

  • Check what may be plugged in to power outlets +12 Volt, 115 Volt AC, USB ports

  • Check HVAC settings (blower, temperature)

  • Check the audio settings (volume)

After a trip:

• Check if any aftermarket equipment was installed (additional lights, upfitter electrical accessories, audio systems, alarms) and review specifications if any (load and Ignition Off Draw currents).

• Evaluate the latest driving cycles (distance, driving time and parking time).

• The vehicle should have service performed if the message is still present during consecutive trips, and if the evaluation and driving pattern of the vehicle did not help to identify the cause.
