Climate Control System
The automatic climate control system maintains the interior temperature you select. The system also selects the proper mix of heated or cooled air that raises or lowers the interior temperature to your preference as quickly as possible.
Use the system when the engine is running.
Models without SYNC button
Models with SYNC button
(on/off) button to cancel.uuClimate Control SystemuUsing Automatic Climate Control
Press the (recirculation) or (fresh air) button to switch the mode depending on environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior through the system.
Fresh air mode (indicator on): Maintains outside ventilation. Keep the system in fresh air mode in normal situations.

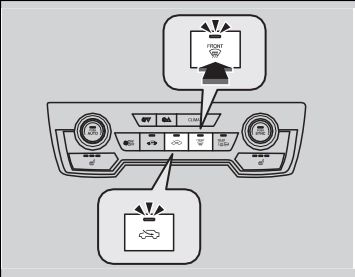

Defrosting the Windshield and Windows
Pressing the
(windshield defroster) button turns the air conditioning system on and automatically switches the system to fresh air mode.
Press the
button again to turn off, the system returns to the previous settings.
Continued 229
uuClimate Control SystemuUsing Automatic Climate Control
230
uuClimate Control SystemuSynchronization Mode *
You can set the temperature synchronously for the driver’s side and the passenger’s side in synchronization mode.
u The system switches to synchronization mode.
Press the SYNC button to return to dual mode.
uuClimate Control SystemuAutomatic Climate Control Sensors
The automatic climate control system is equipped with sensors. Do not cover or spill any liquid on them.
Features
This chapter describes how to operate technology features.
Audio System
About Your Audio System 234
USB Port(s) 235
Audio System Theft Protection 236
Audio Remote Controls 237
Audio System Basic Operation 240, 261
Audio Error Messages 331
General Information on the Audio System 336
Customized Features 353, 360
HomeLink® Universal Transceiver * 387
Bluetooth® HandsFreeLink® 390, 414
Compass* 448
* Not available on all models
233
