Capacities and Specifications
|
Measurement |
Specification |
|
Cubic inches |
92 |
|
Firing order |
1-3-4-2 |
|
Compression ratio |
10.0:1 |
|
Spark plug gap |
0.026–0.030 in (0.65–0.75 mm) |
|
Ignition system |
Coil on plug |
E270108
|
Measurement |
Specification |
|
Cubic inches |
122 |
|
Firing order |
1-3-4-2 |
|
Compression ratio |
9.3:1 |
|
Spark plug gap |
0.027-0.031 in. (0.70-0.80 mm) |
|
Ignition system |
Coil on plug |
313
E161383
|
Measurement |
Specification |
|
Cubic inches |
152 |
|
Firing order |
1-3-4-2 |
|
Compression ratio |
9.7:1 |
|
Spark plug gap |
0.049-0.053 in. (1.25-1.35 mm) |
|
Ignition system |
Coil on plug |
E161383
314
|
Measurement |
Specification |
|
Cubic inches |
164 |
|
Firing order |
1-4-2-5-3-6 |
|
Compression ratio |
10.0:1 |
|
Spark plug gap |
0.028–0.031 in (0.7–0.8 mm) |
|
Ignition system |
Coil in plug |
E268019
|
Component |
Motorcraft Part number |
|
Air filter element |
FA-1912 |
|
Oil filter |
FL-910S |
|
Battery |
BAGM-48H6-760 |
|
Spark plugs |
SP-539 |
|
Cabin air filter |
FP-71 |
|
Windshield wiper blade |
WW-2601 (driver side) |
315
|
Component |
Motorcraft Part number |
|
WW-2700 (passenger side) |
We recommend Motorcraft replacement parts available at your Ford dealer or at fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 475).
316
|
Component |
Motorcraft Part number |
|
Air filter element |
FA-1912 |
|
Oil filter |
FL-910S |
|
Battery |
BXT-90T5-590* BAGM-48H6-760** |
|
Spark plugs |
SP-537 |
|
Cabin air filter |
FP-71 |
|
Windshield wiper blade |
WW-2601 (driver side) WW-2700 (passenger side) |
*This part is designed for vehicles with Intelligent Access.
**This part is designed for vehicles with Automatic-Start-Stop.
We recommend Motorcraft replacement parts available at your Ford dealer or at fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 475).
317
|
Component |
Motorcraft Part number |
|
Air filter element |
FA-1912 |
|
Oil filter |
FL-910S |
|
Battery |
BXT-90T5-590 |
|
Spark plugs |
SP-530 |
|
Cabin air filter |
FP-71 |
|
Windshield wiper blade |
WW-2601 (driver side) WW-2700 (passenger side) |
We recommend Motorcraft replacement parts available at your Ford dealer or at fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 475).
318
|
Component |
Motorcraft Part number |
|
Air filter element. |
FA-1912 |
|
Oil filter. |
FL-2062 |
|
Battery. |
BXT-90T5-590 |
|
Spark plugs. |
SP-542 |
|
Cabin air filter. |
FP-71 |
|
Windshield wiper blade. |
WW-2601 (driver side) WW-2700 (passenger side) |
We recommend Motorcraft® replacement parts available at your Ford dealer or at fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 475).
The vehicle identification number is located on the left-hand side of the instrument panel.
Please note that in the graphic, XXXX is representative of your vehicle identification number.
The Vehicle Identification Number contains the following information:
319
E142477
A B
C
D E F G H
World manufacturer identifier
Brake system, Gross Vehicle Weight Rating, Restraint Devices and their locations
Make, vehicle line, series, body type
Engine type Check digit Model year Assembly plant
Production sequence number
E167469
The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label shall be affixed to either the door hinge pillar, the door latch post, or the edge of the door near the door latch, next to the driver's seating position.
320
The transmission code is on the Safety Compliance Certification Label. The following table shows the transmission code along with the transmission description.
E167814
|
Description |
Code |
|
Six-speed automatic transmission (6F35). |
W |
|
Six-speed automatic transmission (6F55). |
C |
321
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.
|
Item |
Capacity |
|
Engine oil (with oil filter). |
4.3 qt (4.05 L) |
|
Engine coolant. |
10.9 qt (10.3 L) |
|
Brake fluid. |
Between MIN/MAX on brake fluid reservoir |
|
Automatic transmission fluid. |
9.0 qt (8.5 L) * |
|
Windshield washer fluid. |
Fill as required |
|
Fuel tank. |
16.5 gal (62.5 L) |
|
A/C refrigerant. |
18 oz (0.51 kg) |
|
A/C refrigerant compressor oil. |
5.24 fl oz (155 ml) |
*Approximate dry fill capacity. Actual amount may vary during fluid changes.
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP |
WSS-M2C945-A |
|
Recommended motor oil (Canada): Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 |
WSS-M2C945-A |
|
Recommended motor oil (Mexico): Motorcraft® SAE 5W-20 Synthetic Motor Oil MXO-5W20-QSP |
WSS-M2C945-A |
322
|
Name |
Specification |
|
Optional motor oil (U.S. and Mexico): Motorcraft® SAE 5W-20 Full Synthetic Motor Oil XO-5W20-QFS |
WSS-M2C945-A |
|
Optional motor oil (Canada): Motorcraft® SAE 5W-20 Synthetic Motor Oil CXO-5W20-LFS12 |
WSS-M2C945-A |
|
Engine coolant (U.S. and Mexico): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Automatic transmission fluid (U.S. and Mexico): Motorcraft® MERCON LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Automatic transmission fluid (Canada): Motorcraft® MERCON LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON LV |
|
Windshield washer fluid (U.S. and Mexico): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): R-1234yf Refrigerant YN-33-A |
WSS-M17B21-A |
|
A/C refrigerant (Canada): R-1234yf Refrigerant HS7Z-19B519-BA |
WSS-M17B21-A |
|
A/C refrigerant (Mexico): Motorcraft® R-134a Refrigerant MYN-19 |
WSH-M17B19-A |
323
|
Name |
Specification |
|
A/C refrigerant compressor oil (U.S. and Canada): Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 |
WSS-M2C300-A2 |
|
A/C refrigerant compressor oil (Mexico): Motorcraft® R-134a Refrigerant PAG Oil YN-12-D |
WSH-M1C231-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Penetrating Fluid CXC-51-A |
- |
|
Lock cylinders (Mexico): Penetrating and Lock Lubricant MXL-1 |
- |
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
Component damage which is not covered by the vehicle warranty.
Longer engine cranking periods.
Increased emission levels.
Reduced engine performance.
Reduced fuel economy.
Degraded brake performance.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
324
Note: Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid may cause transmission damage.

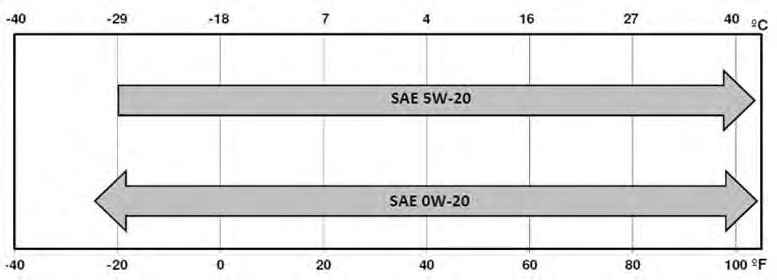

To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Motorcraft® SAE 0W-20 Premium Synthetic Blend Motor Oil: Engine Oil - SAE 0W-20 XO-0W20-QSP |
WSS-M2C947-A |
E240522
325
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.
|
Item |
Capacity |
|
Engine oil (with oil filter). |
5.7 qt (5.4 L) |
|
Engine coolant. |
8.5 qt (8 L) |
|
Brake fluid. |
Between MIN/MAX on brake fluid reservoir |
|
Rear differential fluid (All Wheel Drive). |
2.4 pt (1.15 L) |
|
Power Transfer Unit (PTU) fluid (All Wheel Drive). |
11.8 fl oz (0.35 L) |
|
Automatic transmission fluid. |
9.0 qt (8.5 L) * |
|
Windshield washer fluid. |
Fill as required |
|
Fuel tank (Front Wheel Drive). |
16.5 gal (62.5 L) |
|
Fuel tank (All Wheel Drive). |
18 gal (68.1 L) |
|
A/C refrigerant. |
22 oz (0.62 kg) |
|
A/C refrigerant compressor oil. |
5.24 fl oz (155 ml) |
*Approximate dry fill capacity. Actual amount may vary during fluid changes.
326
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP |
WSS-M2C946-A |
|
Recommended motor oil (Canada): Motorcraft® SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 |
WSS-M2C946-A |
|
Recommended motor oil (Mexico): Motorcraft® SAE 5W-30 Synthetic Motor Oil MXO-5W30-QSP |
WSS-M2C946-A |
|
Optional motor oil (U.S. and Mexico): Motorcraft® SAE 5W-30 Full Synthetic Motor Oil XO-5W30-QFS |
WSS-M2C946-A |
|
Optional motor oil (Canada): Motorcraft® SAE 5W-30 Synthetic Motor Oil CXO-5W30-LFS12 |
WSS-M2C946-A |
|
Engine coolant (U.S. and Mexico): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Rear differential (All Wheel Drive) fluid: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL |
WSP-M2C197-A |
|
Power Transfer Unit (PTU) fluid (All Wheel Drive): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL |
WSL-M2C192-A |
|
Automatic transmission fluid (U.S. and Mexico): Motorcraft® MERCON LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
327
|
Name |
Specification |
|
Automatic transmission fluid (Canada): Motorcraft® MERCON LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON LV |
|
Windshield washer fluid (U.S. and Mexico): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): R-1234yf Refrigerant YN-33-A |
WSS-M17B21-A |
|
A/C refrigerant (Canada): R-1234yf Refrigerant HS7Z-19B519-BA |
WSS-M17B21-A |
|
A/C refrigerant (Mexico): Motorcraft® R-134a Refrigerant MYN-19 |
WSH-M17B19-A |
|
A/C refrigerant compressor oil (U.S. and Canada): Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 |
WSS-M2C300-A2 |
|
A/C refrigerant compressor oil (Mexico): Motorcraft® R-134a Refrigerant PAG Oil YN-12-D |
WSH-M1C231-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Penetrating Fluid CXC-51-A |
- |
|
Lock cylinders (Mexico): Penetrating and Lock Lubricant MXL-1 |
- |
328
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
Note: Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid may cause transmission damage.

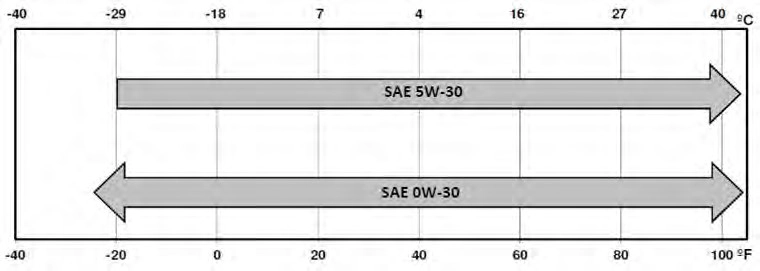

To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil: Engine Oil - SAE 0W-30 XO-0W30-QSP |
WSS-M2C953-A1 |
329
E240523
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.
|
Item |
Capacity |
|
Engine oil (with oil filter). |
5.7 qt (5.4 L) |
|
Engine coolant. |
7.8 qt (7.4 L) |
|
Brake fluid. |
Between MIN/MAX on brake fluid reservoir |
|
Automatic transmission fluid. |
9.0 qt (8.5 L) * |
|
Windshield washer fluid. |
Fill as required |
|
Fuel tank. |
16.5 gal (62.5 L) |
|
A/C refrigerant. |
22 oz (0.62 kg) |
|
A/C refrigerant compressor oil. |
5.24 fl oz (155 ml) |
*Approximate dry fill capacity. Actual amount may vary during fluid changes.
330
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP |
WSS-M2C945-A |
|
Recommended motor oil (Canada): Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 |
WSS-M2C945-A |
|
Recommended motor oil (Mexico): Motorcraft® SAE 5W-20 Synthetic Motor Oil MXO-5W20-QSP |
WSS-M2C945-A |
|
Optional motor oil (U.S. and Mexico): Motorcraft® SAE 5W-20 Full Synthetic Motor Oil XO-5W20-QFS |
WSS-M2C945-A |
|
Optional motor oil (Canada): Motorcraft® SAE 5W-20 Synthetic Motor Oil CXO-5W20-LFS12 |
WSS-M2C945-A |
|
Engine coolant (U.S. and Mexico): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Rear differential (All Wheel Drive) fluid: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL |
WSP-M2C197-A |
|
Power Transfer Unit (PTU) fluid (All Wheel Drive): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL |
WSL-M2C192-A |
|
Automatic transmission fluid (U.S. and Mexico): Motorcraft® MERCON LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
331
|
Name |
Specification |
|
Automatic transmission fluid (Canada): Motorcraft® MERCON LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON LV |
|
Windshield washer fluid (U.S. and Mexico): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): R-1234yf Refrigerant YN-33-A |
WSS-M17B21-A |
|
A/C refrigerant (Canada): R-1234yf Refrigerant HS7Z-19B519-BA |
WSS-M17B21-A |
|
A/C refrigerant (Mexico): Motorcraft® R-134a Refrigerant MYN-19 |
WSH-M17B19-A |
|
A/C refrigerant compressor oil (U.S. and Canada): Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 |
WSS-M2C300-A2 |
|
A/C refrigerant compressor oil (Mexico): Motorcraft® R-134a Refrigerant PAG Oil YN-12-D |
WSH-M1C231-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Penetrating Fluid CXC-51-A |
- |
|
Lock cylinders (Mexico): Penetrating and Lock Lubricant MXL-1 |
- |
332
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
Note: Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid may cause transmission damage.
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Motorcraft® SAE 0W-20 Premium Synthetic Blend Motor Oil: Engine Oil - SAE 0W-20 XO-0W20-QSP |
WSS-M2C947-A |
333
E240522
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.
|
Item |
Capacity |
|
Engine oil (with oil filter). |
6.0 qt (5.7 L) |
|
Engine coolant. |
11.8 qt (11.2 L) |
|
Brake fluid. |
Between MIN/MAX on brake fluid reservoir |
|
Rear differential fluid (All Wheel Drive). |
16.0–20.8 fl oz (473–615 ml) |
|
Power Transfer Unit fluid (All Wheel Drive). |
15.2 fl oz (450 ml)* |
|
Automatic transmission fluid. |
11.6 qt (11 L)** |
|
Windshield washer fluid. |
Fill as required |
|
Fuel tank. |
18 gal (68.1 L) |
334
|
Item |
Capacity |
|
A/C refrigerant. |
18 oz (0.51 kg) |
|
A/C refrigerant compressor oil. |
5.24 fl oz (155 ml) |
*Contact an authorized dealer for fluid level checking and filling.
**Approximate dry fill capacity. Actual amount may vary during fluid changes.
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP |
WSS-M2C946-A |
|
Recommended Motor oil (Canada): Motorcraft® SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 |
WSS-M2C946-A |
|
Recommended motor oil (Mexico): Motorcraft® SAE 5W-30 Synthetic Motor Oil MXO-5W30-QSP |
WSS-M2C946-A |
|
Optional motor oil (U.S. and Mexico): Motorcraft® SAE 5W-30 Full Synthetic Motor Oil XO-5W30-QFS |
WSS-M2C946-A |
|
Optional Motor oil (Canada): Motorcraft® SAE 5W-30 Synthetic Motor Oil CXO-5W30-LFS12 |
WSS-M2C946-A |
|
Engine coolant (U.S. and Mexico): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Rear differential fluid (All Wheel Drive) (U.S. and Mexico): |
WSP-M2C197-A |
335
|
Name |
Specification |
|
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL |
|
|
Rear differential fluid (All Wheel Drive) (Canada): Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant CXY-80W90-1L |
WSP-M2C197-A |
|
Power Transfer Unit fluid (All Wheel Drive) (U.S. and Mexico) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL |
WSL-M2C192-A |
|
Power Transfer Unit fluid (All Wheel Drive) (Canada) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant CXY-75W140-1L |
WSL-M2C192-A |
|
Automatic transmission fluid (U.S. and Mexico): Motorcraft® MERCON LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Automatic transmission fluid (Canada): Motorcraft® MERCON LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON LV |
|
Windshield washer fluid (U.S. and Mexico): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): R-1234yf Refrigerant YN-33-A |
WSS-M17B21-A |
|
A/C refrigerant (Canada): R-1234yf Refrigerant HS7Z-19B519-BA |
WSS-M17B21-A |
|
A/C refrigerant (Mexico): Motorcraft® R-134a Refrigerant MYN-19 |
WSH-M17B19-A |
|
A/C refrigerant compressor oil (U.S. and Canada): Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 |
WSS-M2C300-A2 |
336
|
Name |
Specification |
|
A/C refrigerant compressor oil (Mexico): Motorcraft® R-134a Refrigerant PAG Oil YN-12-D |
WSH-M1C231-B |
|
Transmission, parking brake linkage and pivots and brake pedal shift grease: Premium Long-Life Grease XG-1-E1 |
ESA-M1C75-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Penetrating Fluid CXC-51-A |
- |
|
Lock cylinders (Mexico): Penetrating and Lock Lubricant MXL-1 |
- |
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
337
Note: Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid.
Note: The use of any other fluid may cause transmission damage.
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil: Engine Oil - SAE 0W-30 XO-0W30-QSP |
WSS-M2C953-A1 |
E240523
338
Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for
North America to make sure they have the proper lamp performance, light brightness, light pattern, and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb illumination time.
|
Function |
Trade name |
|
Headlamp high beam (Halogen)1 |
H9 |
|
Headlamp low beam (Halogen)1 |
H11LL |
|
Side marker lamp - front1 |
LED |
|
Turn lamp - front1 |
PWY24W |
|
Fog lamp - front1 |
H8 |
|
Tail and brake lamp - high series1 |
LED |
|
Tail and brake lamp - low series1 |
LED |
|
Reverse lamp |
921 |
|
Turn lamp - rear - high series1 |
LED |
|
Turn lamp - rear - low series1 |
LED |
|
Side marker lamp - rear1 |
LED |
|
License plate lamp |
W5W |
|
Trunk lamp1 |
W5W or LED2 |
|
High-mount brake lamp1 |
LED |
|
Side repeater lamp1 |
LED |
|
Interior lamp1 |
LED |
1 To replace these bulbs, see your authorized dealer.
2 If equipped.
To replace all instrument panel bulbs, see your authorized dealer.
339
Download Manual
