Exterior Zone Lighting (If Equipped)

WHAT IS EXTERIOR ZONE LIGHTING

Exterior zone lighting divides the exterior lighting into zones and allows you to switch them on and off to provide lighting around the perimeter of your vehicle.

USING THE EXTERIOR ZONE LIGHTING

1. Press Features on the touchscreen.

1. Press Zone Lighting.

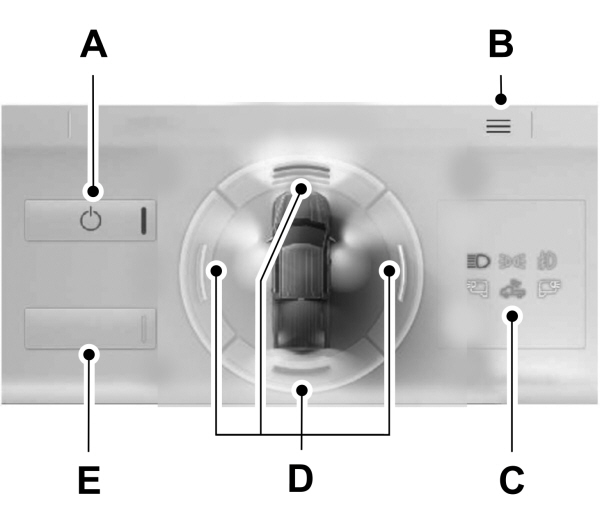

AOn and off button. BSettings menu. CExterior lamp indicators. DIndividual zones on and off. EAll zones on and off.

You can use zone lighting when your vehicle is on or off. When it is off, the lighting turns off after a certain period of time.

You can also use individual zone controls to switch on each zone.

Note:   Make sure to remove exterior lighting covers when using zone lighting.

Note:   When your vehicle is off and the timer has one minute remaining, the direction indicators flash six times.

Note:   Indicators on the touchscreen illuminate when the lights outside of the zone lighting control are on.

Note:   You can remotely control the zone lighting using the FordPass app.

Note:   Vehicles without spot lamps only have two zones.

EXTERIOR ZONE LIGHTING SETTINGS

1. Press Features on the touchscreen.
2. Press Zone Lighting.
3. Press the settings menu in the upper right-hand corner.
4. Press a setting.

Enable Autolamp Override

This setting allows your vehicle to override the autolamps when using zone lighting.

When you access zone lighting for the first time, you can choose this setting. You can change this setting at any time.

Include Reverse Lamps

This setting turns the reverse lamps on when you switch the rear lighting zone on.

Switch this setting off if you have a backup alarm installed to prevent the reverse lamps from turning on and sounding the alarm when using zone lighting.
