1999 Toyota Celica Fuse Box Diagrams & Locations

Toyota Celica (1993 – 1999) – fuse box diagram

Shop From Amazon

Toyota Celica (1993 – 1999) – fuse box diagram

Year of production: 1993, 1994, 1995, 1996, 1997, 1998, 1999

Engine compartment (left)-U.S.A.

Toyota Celica - fuse box - engine compartment (left) - USA — Toyota Celica – fuse box – engine compartment (left) – USA

Engine compartment (left)-Canada

Toyota Celica - fuse box - engine compartment (left) - Canada — Toyota Celica – fuse box – engine compartment (left) – Canada

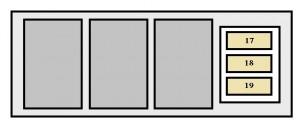

Engine compartment (front)-Canada

Toyota Celica - fuse box - engine compartment (front) Canada — Toyota Celica – fuse box – engine compartment (front) Canada

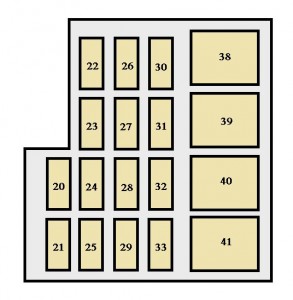

Instrument panel

Toyota Celica - fuse box - instrument panel — Toyota Celica – fuse box – instrument panel

Passenger’s side kick panel

Toyota Celica - fuse box - passenger's side kick panel` class=`size-medium wp-image-8605` height=`130` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/c84/7d0/817/c847d0817ccd0e31bd478ee925fcfd5f.jpg` srcset=`/uploads/c84/7d0/817/c847d0817ccd0e31bd478ee925fcfd5f.jpg 300w, 734w` width=`300` />

<figcaption class=`wp-caption-text` id=`caption-attachment-8605`>Toyota Celica – fuse box – passenger’s side kick panel</figcaption>
</figure>

<h3>Fuses (type A)</h3>

<table class=`table table-hover table-bordered`>
<tbody>
<tr>
<td colspan=`2`>Fuse</td>
<td>Ampere rating [A]</td>
<td>Description</td>
</tr>
<tr>
<td>1</td>
<td>AM2</td>
<td>30</td>
<td>Starting system</td>
</tr>
<tr>
<td>2</td>
<td>HAZARD</td>
<td>10</td>
<td>Emergency flashers</td>
</tr>
<tr>
<td>3</td>
<td>HORN</td>
<td>7,5</td>
<td>Horns</td>
</tr>
<tr>
<td>4</td>
<td>Radio NO.1</td>
<td>20</td>
<td>Car audio system</td>
</tr>
<tr>
<td>5</td>
<td>ECU-B</td>
<td>15</td>
<td>Anti-lock brake system, cruise control system</td>
</tr>
<tr>
<td>6</td>
<td>DOME</td>
<td>10</td>
<td>Interior lights, personal lights, luggage compartment light, trunk light, door courtesy lights, clock</td>
</tr>
<tr>
<td>7</td>
<td>HEAD (LH)</td>
<td>15</td>
<td>Left-hand headlight</td>
</tr>
<tr>
<td>8</td>
<td>HEAD (RH)</td>
<td>15</td>
<td>Right-hand headlight</td>
</tr>
<tr>
<td>9</td>
<td>SPARE:</td>
<td>—</td>
<td>Spare fuse</td>
</tr>
<tr>
<td>10</td>
<td>SPARE:</td>
<td>—</td>
<td>Spare fuse</td>
</tr>
<tr>
<td>11</td>
<td>SPARE:</td>
<td>—</td>
<td>Spare fuse</td>
</tr>
<tr>
<td>12</td>
<td>ALT-S</td>
<td>7,5</td>
<td>Charging system</td>
</tr>
<tr>
<td>13</td>
<td>SRS WRN</td>
<td>7,5</td>
<td>SRS airbag warning light</td>
</tr>
<tr>
<td>14</td>
<td>EFI</td>
<td>15</td>
<td>Multiport fuel injection system/sequential multiport fuel injection system</td>
</tr>
<tr>
<td>15</td>
<td>HEAD (LH) LO</td>
<td>15</td>
<td>Left-hand headlight (low beam)</td>
</tr>
<tr>
<td>16</td>
<td>HEAD (RH) LO</td>
<td>15</td>
<td>Right-hand headlight (low beam)</td>
</tr>
<tr>
<td>17</td>
<td>HEAD-HI (RH)</td>
<td>15</td>
<td>Right-hand headlight (high beam)</td>
</tr>
<tr>
<td>18</td>
<td>HEAD-HI (LH)</td>
<td>15</td>
<td>Left-hand headlight (high beam)</td>
</tr>
<tr>
<td>19</td>
<td>DRL</td>
<td>7,5</td>
<td>Daytime running light system</td>
</tr>
<tr>
<td>20</td>
<td>ECU-IG</td>
<td>15</td>
<td>Electronically controlled automatic transmission system, anti-lock brake system</td>
</tr>
<tr>
<td>21</td>
<td>SEAT-HTR</td>
<td>20</td>
<td>No circuit</td>
</tr>
<tr>
<td>22</td>
<td>PANEL</td>
<td>7,5</td>
<td>Instrument panel lights</td>
</tr>
<tr>
<td>23</td>
<td>STOP</td>
<td>15</td>
<td>Stop lights, high mounted stoplight, multiport fuel injection system/ sequential multiport fuel injection system, cruise control system cancel device, electronically controlled automatic transmission system, anti-lock brake system</td>
</tr>
<tr>
<td>24</td>
<td>FOG</td>
<td>20</td>
<td>Front fog lights</td>
</tr>
<tr>
<td>25</td>
<td>CIG & RAD</td>
<td>15</td>
<td>Cigarette lighter, digital clock display, car audio system</td>
</tr>
<tr>
<td>26</td>
<td>IGN</td>
<td>7,5</td>
<td>Charging system, discharge warning light, multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system</td>
</tr>
<tr>
<td>27</td>
<td>WIPER</td>
<td>20</td>
<td>Windshield wipers and washer, rear window wiper and washer</td>
</tr>
<tr>
<td>28</td>
<td>MIR-HTR</td>
<td>10</td>
<td>Multiport fuel injection system/sequential multiport fuel injection system</td>
</tr>
<tr>
<td>29</td>
<td>TURN</td>
<td>10</td>
<td>Turn signal lights, emergency flashers</td>
</tr>
<tr>
<td>30</td>
<td>TAIL</td>
<td>15</td>
<td>Tail lights, parking lights, front side marker lights, rear side marker lights, license plate lights</td>
</tr>
<tr>
<td>31</td>
<td>HTR</td>
<td>10</td>
<td>Air conditioning system, rear window defogger</td>
</tr>
<tr>
<td>32</td>
<td>GAUGE</td>
<td>10</td>
<td>Gauges and meters, power door lock system</td>
</tr>
<tr>
<td>33</td>
<td>ST</td>
<td>7,5</td>
<td>Starting system, multiport fuel injection system/sequential multiport fuel injection system</td>
</tr>
<tr>
<td>34</td>
<td>A/C</td>
<td>10</td>
<td>Air conditioning system</td>
</tr>
<tr>
<td>35</td>
<td>OBD II</td>
<td>7,5</td>
<td>On-board diagnosis system</td>
</tr>
</tbody>
</table>

<h3>Fuses (type B)</h3>

<table class=`table table-hover table-bordered`>
<tbody>
<tr>
<td colspan=`2`>Fuse</td>
<td>Ampere rating [A]</td>
<td>Description</td>
</tr>
<tr>
<td>36</td>
<td>RDI</td>
<td>30</td>
<td>Electric cooling fan</td>
</tr>
<tr>
<td>37</td>
<td>CDS</td>
<td>30</td>
<td>Electric cooling fan</td>
</tr>
<tr>
<td>38</td>
<td>AM1</td>
<td>40</td>
<td>Electronic ignition system/distributor ignition system</td>
</tr>
<tr>
<td>39</td>
<td>DOOR</td>
<td>30</td>
<td>Power door lock system, convertible top control system</td>
</tr>
<tr>
<td>40</td>
<td>DEF</td>
<td>30</td>
<td>Rear window defogger</td>
</tr>
<tr>
<td>41</td>
<td>POWER</td>
<td>30</td>
<td>Power windows, electric moon roof</td>
</tr>
</tbody>
</table>

<h3>Fuses (type C)</h3>

<table class=`table table-hover table-bordered`>
<tbody>
<tr>
<td colspan=`2
