Tesla Model S (2014) – fuse box diagram (Europe version)
Shop From Amazon
Tesla Model S (2014) – fuse box diagram (Europe version)
Year of production: 2014

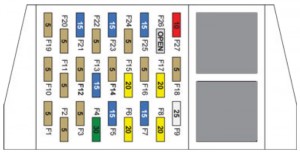

Fuse box 1
Tesla Model S (2012) – fuse-box 1 (Europe version)
| Fuse |
Ampere rating |
Circuit protected |
| F1 |
5 |
Accessory sensor, radio, USB hub |
| F2 |
5 |
Headlight leveling system (EU/China Coil Suspension vehicles only) |
| F3 |
5 |
Vanity lights, rear view mirror |
| F4 |
30 |
Outboard rear seat heaters (cold weather option) |
| F5 |
15 |
Seat heater (driver’s seat) |
| F6 |
20 |
Base audio amplifier |
| F7 |
15 |
Seat heater (front passenger seat) |
| F8 |
20 |
Premium audio amplifier |
| F9 |
25 |
Sunroof |
| F10 |
5 |
Passive safety restraints |
| F11 |
5 |
Steering wheel switches |
| F12 |
5 |
Sensor for Drive mode and Yaw Rate (Stability/Traction Control) |
| F13 |
15 |
Wiper park |
| F14 |
5 |
Drive inverter |
| F15 |
20 |
Electric parking brake |
| F16 |
5 |
Parking/blind spot sensors |
| F17 |
20 |
Electric parking brake |
| F18 |
5 |
Not used |
| F19 |
5 |
In-vehicle HVAC sensor |
| F20 |
5 |
Cabin air heater logic |
| F21 |
15 |
Battery coolant pump 1 |
| F22 |
5 |
Inlet actuators |
| F23 |
15 |
Powertrain coolant pump |
| F24 |
5 |
Cabin climate control |
| F25 |
15 |
Battery coolant pump 2 |
| F26 |
— |
Not used |
| F27 |
10 |
Thermal controller |

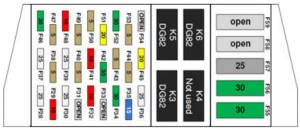

Fuse box 2
Tesla Model S (2012) – fuse-box 2 (Europe version)
| Fuse |
Ampere rating [A] |
Circuit protected |
| F28 |
25 |
Window lift motor (right rear) |
| F29 |
10 |
Contactor power |
| F30 |
25 |
Window lift motor (right front) |
| F31 |
— |
Not used |
| F32 |
10 |
Door controls (right side) |
| F33 |
— |
Not used |
| F34 |
30 |
Rear center seat heaters, washer/wiper de-ice (cold weather option) |
| F35 |
15 |
12V power socket |
| F36 |
25 |
Air suspension |
| F37 |
25 |
Window lift motor (left rear) |
| F38 |
5 |
Driver’s seat memory |
| F39 |
25 |
Window lift motor (left front) |
| F40 |
5 |
Rear door handles |
| F41 |
10 |
Door controls (left side) |
| F42 |
30 |
Powered liftgate |
| F43 |
5 |
Perm. power sensor, brake switch |
| F44 |
5 |
Charger (charge port) |
| F45 |
20 |
Passive entry (horns) |
| F46 |
30 |
Body controls (group 2) |
| F47 |
5 |
Glove box light |
| F48 |
10 |
Body controls (group 1) |
| F49 |
5 |
Instrument panel |
| F50 |
5 |
Siren, intrusion/tilt sensor (Europe only) |
| F51 |
20 |
Touchscreen |
| F52 |
30 |
Heated rear window |
| F53 |
5 |
Battery management system |
| F54 |
— |
Not used |
| F55 |
30 |
Left front electric seat |
| F56 |
30 |
Right front electric seat |
| F57 |
25 |
Cabin fan |
| F58 |
— |
Not used |
| F59 |
— |
Not used |

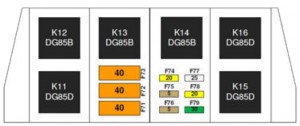

Fuse Box 3
Tesla Model S (2012) – fuse-box 3 (Europe version)
| Fuse |
Ampere rating [A] |
Circuit protected |
| F71 |
40 |
Condenser fan (left) |
| F72 |
40 |
Condenser fan (right) |
| F73 |
40 |
Vacuum pump |
| F74 |
20 |
12V drive rail (cabin) |
| F75 |
5 |
Power steering |
| F76 |
5 |
ABS |
| F77 |
25 |
Stability control |
| F78 |
20 |
Headlights – high/low beam |
| F79 |
30 |
Light – exterior/interior |
Fuse Box 4
Tesla Model S (2012) – fuse-box 4 (Europe version)
| Fuse |
Ampere rating [A] |
Circuit protected |
| F101 |
15 |
Left rear seat heater |
| F102 |
15 |
Right rear seat heater |
| F103 |
5 |
Middle rear seat heater control |
| F104 |
15 |
Middle rear seat heater |
| F105 |
15 |
Wiper de-icer |
| F106 |
— |
Not used |
Fuse Box 4 If Model S is equipped with the cold weather option, an additional fuse box (4) is located under the driver’s side trim panel
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
