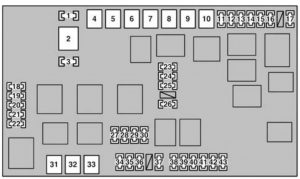

Charging system and all components in “AM1”, “HEATER”, “CDS FAN”, “FR FOG”, “DEFOG”, “AIR SUS”, “AC115V INV”, “SEAT HEATER”, “BATT CHG”, “BRAKE CTRL” and “TOWING” fuses
3
SPARE
15
Spare fuse
4
HEATER
50
Air conditioning system
5
AIR SUS
50
Rear height control air suspension
6
AM1
50
All components in “ACC”, “CIG”, “IG1”, “FR WIP−WSH”, “RR WIP”, “RR WSH”, “DIFF”, “TEMS” and “STA” fuses
7
BRAKE CTRL
30
Trailer brake controller
8
J/B
50
All components in “P FR P/W”, “P RR P/W”, “D RR P/W”, “D P/SEAT”, “P P/SEAT”, “TAIL”, “PANEL” and “POWER OR TI&TE” fuses
9
BATT CHG
30
Trailer sub battery
10
TOWING
40
Trailer lights
11
CDS FAN
20
Electric cooling fan
12
RR A/C
30
Rear air conditioning system
13
MIR HEATER
10
Outside rear view mirror defogger
14
STOP
10
Stop lights, high mounted stoplight, shift lock control system, vehicle skid control system, electronic modulated suspension, rear height control air suspension, multiport fuel injection system/sequential
multiport fuel injection system
15
AC115V INV
15
Power outlet (115 VAC)
16
FR FOG
15
Front fog lights
17
OBD
7,5
On−board diagnosis system
18
HEAD (LO RH)
10
Right−hand headlight (low beam)
19
HEAD (LO LH)
10
Left−hand headlight (low beam)
20
HEAD (HI RH)
10
Right−hand headlight (high beam)
21
HEAD (HI LH)
10
Left−hand headlight (high beam)
22
EFI NO.2
10
Multiport fuel injection system/sequential multiport fuel injection system
23
HEATER NO.2
7,5
Air conditioning system
24
DEFOG
30
Rear window defogger
25
AIRSUS NO.2
10
Rear height control air suspension
26
SEAT HEATER
20
Seat heaters
27
DOME
10
Ignition switch light, interior lights, personal lights, foot lights, running board lights, door courtesy lights, inside door handle lights, multi−information display
28
RADIO NO.1
20
Car audio system, navigation system
29
ECU−B
10
Multiplex communication system, vehicle skid control system, wireless remote control system, inside rear view mirror, air conditioning system, electronic modulated suspension, driving position memory system, power windows, moon roof
30
ECU−B NO.2
10
Theft deterrent system
31
ABS MTR
40
Anti−lock brake system, vehicle skid control system, active traction control system, brake assist system
32
AM2
30
Starting system, all components in “IGN”, “SRS”, “GAUGE” and “ST2” fuses
33
ABS SOL
50
Anti−lock brake system, vehicle skid control system, active traction control system, brake assist system
34
ALT−S
7,5
Charging system
35
MAYDAY
7,5
Lexus link system
36
HORN
10
Horns
37
TRN−HAZ
15
Turn signal lights
38
ETCS
10
Electronic throttle control system
39
EFI
20
Multiport fuel injection system/sequential multiport fuel injection system
40
D FR P/W
20
Power window
41
DR/LCK
25
Power door lock
42
TOWING
30
Towing converter
43
RADIO NO.2
30
Car audio system, navigation system
44
IGN
10
Multiport fuel injection system/sequential multiport fuel injection system, vehicle skid control system
45
SRS
10
SRS airbag system
46
GAUGE
7,5
Gauges and meters
47
ST2
7,5
Multiport fuel injection system/sequential multiport fuel injection system
48
FR WIP−WSH
30
Windshield wipers, windshield washer
49
TEMS
20
Electronic modulated suspension
50
DIFF
20
Four−wheel drive system
51
RR WIP
15
Rear window wiper
52
D P/SEAT
30
Driver’s power seats
53
P P/SEAT
30
Front passenger’s power seats
54
PWR OUTLET
15
Power outlet (12 VDC)
55
IG1 NO.2
10
Rear air conditioning system, inside rear view mirror
56
RR WSH
15
Rear window washer
57
ECU−IG
10
Shift lock control system, power windows, outside rear view mirror defogger, anti−lock brake system, active traction control system, vehicle skid control system, air conditioning system, navigation system, power windows, moon roof, Lexus link system, tilt and telescopic steering, multi−information display, driving position memory system
58
IG1
10
Air conditioning system, back−up lights, rear window defogger, seat heaters, vehicle skid control system
59
STA
7,5
Multiport fuel injection system/sequential multiport fuel injection system
60
P FR P/W
20
Front passenger’s power window
61
P RR P/W
20
Rear right side power window
62
D RR P/W
20
Rear left side power window
63
PANEL
10
Instrument panel lights
64
TAIL
10
Parking lights, tail lights, license plate lights, front fog lights
65
ACC
7,5
Shift lock control system, power outlets, outside rear view mirrors, car audio system, navigation system, power rear view mirrors, multi−information display
66
CIG
10
Cigarette lighter
67
POWER OR TI&TE
30
Power windows, moon roof, tilt and telescopic steering
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
