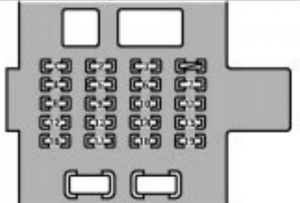

![Lexus GS300 - fuse box - passenger's side kick panel` class=`size-medium wp-image-13281` height=`202` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/4f8/b81/7bd/4f8b817bd26f9525f4aa6f058f12a199.jpg` srcset=`/uploads/4f8/b81/7bd/4f8b817bd26f9525f4aa6f058f12a199.jpg 300w, 434w` width=`300` />
<figcaption class=`wp-caption-text` id=`caption-attachment-13281`>Lexus GS300 – fuse box –<br />
passenger’s side kick panel</figcaption>
</figure>
<h3>Engine compartment</h3>
<figure aria-describedby=`caption-attachment-13282` class=`wp-caption alignnone` id=`attachment_13282` style=`width: 300px`><img alt=`Lexus GS300 - fuse box - engine compartment` class=`size-medium wp-image-13282` height=`85` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/919/09f/601/91909f601a306238df4802ea8f9f6605.jpg` srcset=`/uploads/919/09f/601/91909f601a306238df4802ea8f9f6605.jpg 300w, 768w, 1024w, 1320w` width=`300` />
<figcaption class=`wp-caption-text` id=`caption-attachment-13282`>Lexus GS300 – fuse box –<br />
engine compartment</figcaption>
</figure>
<figure aria-describedby=`caption-attachment-13283` class=`wp-caption alignnone` id=`attachment_13283` style=`width: 300px`><img alt=`Lexus GS300 - fuse box - engine compartment` class=`size-medium wp-image-13283` height=`215` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/b94/92e/b3e/b9492eb3e979c8ec899a73f81470a21a.jpg` srcset=`/uploads/b94/92e/b3e/b9492eb3e979c8ec899a73f81470a21a.jpg 300w, 397w` width=`300` />
<figcaption class=`wp-caption-text` id=`caption-attachment-13283`>Lexus GS300 – fuse box –<br />
engine compartment</figcaption>
</figure>
<table class=`table table-hover table-bordered`>
<tbody>
<tr>
<td colspan=`2]()
Fuse
Ampere rating [A] |
Circuit protected |
| 1 |
WASHER |
20 |
Windshield washer |
| 2 |
FR FOG |
15 |
Fog lights |
| 3 |
TAIL |
10 |
Tail lights, Side marker lights, License plate lights, Parking light |
| 4 |
GAUGE |
10 |
Back–up lights, Gauges and meters, service reminder indicators and buzzers |
| 5 |
FUEL OPN |
10 |
Fuel filler door opener |
| 6 |
D FR DOOR |
20 |
Power window system, Door lock system, Wireless remote control |
| 7 |
PANEL |
7,5 |
Emergency flashers, Headlight cleaner |
| 8 |
HEATER |
10 |
Air conditioning |
| 9 |
SRS–B |
5 |
Gauges and meters, service reminder indicators and warning buzzers |
| 10 |
D P/SEAT |
30 |
Power seat system |
| 11 |
RADIO NO.2 |
15 |
Audio, Shift lock system |
| 12 |
WIPER |
25 |
Windshield wipers |
| 13 |
OBD |
7,5 |
On–board diagnosis |
| 14 |
STOP |
15 |
Stop lights, Anti–lock brake system, Traction control system |
| 15 |
CIG |
15 |
Cigarette lighter, Power outlet |
| 16 |
ECU–IG |
15 |
Power window, Door lock system, Wireless remote control, Theft deterrent system |
| 17 |
STARTER |
5 |
Starting system |
| 18 |
IGN |
5 |
Multiport fuel injection system/sequential multiport fuel injection system, SRS, Anti–lock
brake system, Vehicle skid control system, Cruise control system |
| 19 |
D RR DOOR |
20 |
Power window system, Door lock system, Wireless remote control |
| 20 |
RR FOG |
10 |
No circuit |
| 21 |
M/R HTR |
10 |
Outside rear view mirror |
| 22 |
S/ROOF |
25 |
Electronic moon roof |
| 23 |
P FR DOOR |
20 |
Power window system, Door lock system, Wireless remote control |
| 24 |
P P/SEAT |
30 |
Power seat system, Tilt and telescopic steering |
| 25 |
DOME |
10 |
Interior lights, Personal lights, Vanity lights, Trunk light, Clock |
| 26 |
SEAT HTR |
20 |
Seat heater |
| 27 |
4WS |
25 |
No circuit |
| 28 |
TV |
15 |
No circuit |
| 29 |
ECU–B2 |
5 |
Power seat system |
| 30 |
P RR DDOR |
20 |
Power window system, Door lock system, Wireless remote control |
| 31 |
ECU–B1 |
20 |
Power window system, Door lock system, Wireless remote control, Theft deterrent system, Trunk lid opener, Interior lights, Personal lights, Clock, Headlight cleaner |
| 32 |
MPX–B |
10 |
Power window system, Door lock system, Wireless remote control, Theft deterrent system, Trunk lid opener |
| 33 |
HORN |
10 |
Horn |
| 34 |
ETCS |
15 |
Electronic throttle control system |
| 35 |
AM2 |
15 |
Starting system, Multiport fuel injection system/sequential multiport fuel injection system |
| 36 |
TEL |
15 |
No circuit |
| 37 |
TURN–HAZ |
10 |
Turn signal lights |
| 38 |
EFI |
25 |
Multiport fuel injection system/sequential multiport fuel injection system, Emission control system |
| 39 |
ALT–S |
5 |
Charging system |
| 40 |
RADIO NO.1 |
20 |
Audio |
| 41 |
DRL NO.2 |
30 |
Daytime running light system |
| 42 |
DRL NO.1 |
30 |
Daytime running light system |
| 43 |
H–LP L UPR |
10 |
Left–hand headlight (low beam) |
| 44 |
H–LP R UPR |
10 |
Right–hand headlight (low beam) |
| 45 |
H–LP L LWR |
15 |
Left–hand headlight (low beam) |
| 46 |
H–LP R LWR |
15 |
Right–hand headlight (low beam) |
| * |
SPARE |
|
Spare fuse |
