Capacities and Specifications
|
Measurement |
Specification |
|
Cubic inches |
164 |
|
Firing order |
1-4-2-5-3-6 |
|
Ignition system |
Coil on plug |
|
Spark plug gap |
.028-.031 in. (0.7 - 0.8 mm) |
|
Compression ratio |
10.3:1 |

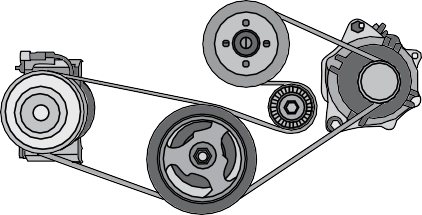

E176088
|
Measurement |
Specification |
|
Cubic inches |
183 |
|
Required Fuel |
Ultra Low Sulfur Diesel |
|
Firing order |
1-4-2-5-3-6 |
|
Compression ratio |
16:1 |
424
ENGINE SPECIFICATIONS - 3.3L

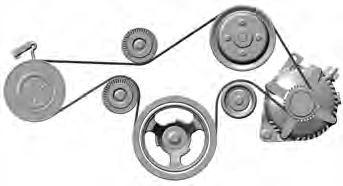

E249449
|
Measurement |
Specification |
|
Cubic inches |
201 |
|
Firing order |
1-4-2-5-3-6 |
|
Ignition system |
Coil on plug |
|
Spark plug gap |
.049-.053 in. (1.25 - 1.35 mm) |
|
Compression ratio |
12:1 |

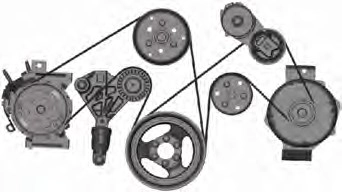

E167467
425
|
Measurement |
Specification |
|
Cubic inches |
213 |
|
Firing order |
1-4-2-5-3-6 |
|
Ignition system |
Coil on plug |
|
Spark plug gap |
0.028–0.031 in (0.7–0.8 mm) |
|
Compression ratio |
10.5:1 |
ENGINE SPECIFICATIONS - 5.0L
|
Measurement |
Specification |
|
Cubic inches |
307 |
|
Firing order |
1-3-7-2-6-5-4-8 |
|
Ignition system |
Coil on plug, coil near plug |
|
Spark plug gap |
.049-.053 in. (1.25 - 1.35 mm) |
|
Compression ratio |
12:1 |
426
E249450
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-2062 |
|
Transmission oil filter. |
FT-202 |
|
Battery. |
BAGM-48H6-760 |
|
BAGM-94RH7-800 |
|
|
Spark plugs. |
SP-578 |
|
Windshield wiper blade. |
WW-2248 |
|
Cabin air filter. |
FP-79 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty could be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 553).
427
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-2081 |
|
Transmission oil filter. |
FT-202 |
|
Battery. |
BAGM-49H8 |
|
Glow plugs. |
ZD-22 |
|
Windshield wiper blade. |
WW-2248 |
|
Cabin air filter. |
FP-79 |
|
Fuel filter kit |
FD-4627 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For glow plug replacement, contact an authorized dealer. See Scheduled Maintenance (page 553).
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-500-S |
|
Transmission oil filter |
FT-196 |
|
Battery. |
BAGM-48H6-760 |
|
BAGM-94RH7-800 |
|
|
Spark plugs. |
SP-520 |
|
Windshield wiper blade. |
WW-2248 |
|
Cabin air filter. |
FP-79 |
428
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty could be void for any damage related to use of other
parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
Replace the spark plugs at the appropriate intervals. Replace the spark plugs at the appropriate intervals.
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-500-S |
|
Transmission oil filter. |
FT-202 |
|
Battery. |
BAGM-48H6-760 |
|
BAGM-94RH7-800 |
|
|
Spark plugs. |
SP-578 |
|
Windshield wiper blade. |
WW-2248 |
|
Cabin air filter. |
FP-79 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals.
429
|
Component |
Part Number |
|
Air filter element. |
FA-1883 |
|
Oil filter. |
FL-500-S |
|
Transmission oil filter. |
FT-202 |
|
Battery. |
BAGM-48H6-760 |
|
BAGM-94RH7-800 |
|
|
Spark plugs. |
SP-551 |
|
Windshield wiper blade. |
WW-2248 |
|
Cabin air filter. |
FP-79 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com. The parts engineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification
SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals.
The vehicle identification number is located on the left-hand side of the instrument panel.
Please note that in the graphic, XXXX is representative of your vehicle identification number.
The Vehicle Identification Number contains the following information:
430
E142477
A B
C
D E F G H
World manufacturer identifier
Brake system, Gross Vehicle Weight Rating, Restraint Devices and their locations
Make, vehicle line, series, body type
Engine type Check digit Model year Assembly plant
Production sequence number
E167469
The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label shall be affixed to either the door hinge pillar, the door latch post, or the edge of the door near the door latch, next to the driver's seating position.
431
The transmission code is on the Safety Compliance Certification Label. The following table shows the transmission code along with the transmission description.
E167814
|
Description |
Code |
|
Six-speed automatic transmission 6R80 |
6 |
|
Ten-speed automatic transmission 10R80 |
G |
432
Use oil and fluid that meets the defined specification and viscosity grade.
If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:
Air Conditioning System
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.|
Variant |
Refrigerant |
Refrigerant Oil |
|
All. |
26 oz (0.74 kg) |
2.71 fl oz (80 ml) |
|
Name |
Specification |
|
R-1234yf Refrigerant(U.S.) R-1234yf Refrigerant / Frigorigène R-1234yf(Canada) YN-33-A(U.S.) HS7Z-19B519-BA(Canada) |
WSS-M17B21-A |
|
Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.) Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf Motorcraft®(Canada) YN-35(U.S. & Canada) |
WSS-M2C300-A2 |
Automatic Transmission
Note: Automatic transmissions that require MERCON® ULV transmission fluid should only use MERCON® ULV transmission fluid. The use of any other fluid may cause transmission damage.
433
|
Variant |
Quantity |
|
All. |
13.2 qt (12.5 L) 1 |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
|
Name |
Specification |
|
Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid(U.S.) Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid / MERCON® ULV huile pour boí®tes auto- matique Motorcraft®(Canada) XT-12-QULV(U.S. & Canada) |
WSS-M2C949-A, MERCON® ULV |
Engine Coolant
Capacities
|
Variant |
Quantity |
|
All. |
15.1 qt (14.3 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
434
E142732
E276075
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN PLUS requirements and display the API Certification Mark for gasoline engines.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
|
Variant |
Including the Oil Filter |
|
All. |
6.0 qt (5.7 L) |
|
Name |
Specification |
|
Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil(U.S.) Engine Oil - SAE 5W-30 - Super Premium Motor Oil / Huile moteur de très haute qualití© SAE 5W-30 Motorcraft®(Canada) XO-5W30-Q1SP(U.S.) CXO-5W30-LSP6(Canada) |
WSS-M2C946-B1 |
435
To improve engine cold start performance,
we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-30 |
WSS-M2C953-B1 |
|
Variant |
Quantity |
|
Regular Cab and SuperCab. |
23.0 gal (87.1 L) |
|
SuperCrew Cab. |
26.0 gal (98.4 L) |
|
Optional. |
36.0 gal (136.3 L) |
Grease
436
|
Name |
Specification |
|
Motorcraft® Premium Long-Life Grease(U.S.) Motorcraft® Premium Long-Life Grease / Graisse longue durí©e de qualití© première Motor- craft®(Canada) XG-1-E1(U.S. & Canada) |
ESA-M1C75-B |
|
Motorcraft® Multi-Purpose Grease Spray(U.S.) Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aí©rosol Motorcraft®(Canada) XL-5-A(U.S. & Canada) |
ESB-M1C93-B |
Hydraulic Brake System
Materials
|
Name |
Specification |
|
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV Motorcraft®(Canada) PM-20(U.S. & Canada) |
WSS-M6C65-A2 |
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.
437
|
Name |
Specification |
|
Motorcraft® Penetrating and Lock Lubricant(U.S.) Motorcraft® Penetrating Fluid / Liquide dí©grippant Motorcraft®(Canada) XL-1(U.S.) CXC-51-A(Canada) |
- |
Transfer Case
Capacities
|
Variant |
Quantity |
|
Four-wheel drive (Electronic Shift-on-the- Fly). |
1.5 qt (1.4 L) |
|
Automatic four-wheel drive (Torque on demand). |
1.5 qt (1.4 L) |
Materials
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Front Axle
Capacities
|
Variant |
Quantity |
|
Four wheel drive. |
1.8 qt (1.7 L) |
438
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Rear Axle
Capacities
|
Variant |
Quantity |
|
All. |
2.7 qt (2.6 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Washer Reservoir
Capacities
|
Variant |
Quantity |
|
All. |
Fill as required. |
439
|
Name |
Specification |
|
Motorcraft® Premium Windshield Wash Concen- trate with Bitterant(U.S.) Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualití© Motor- craft®(Canada) ZC-32-B2(U.S.) CXC-37-A/B/D/F(Canada) |
WSS-M14P19-A |
CAPACITIES AND SPECIFICATIONS - 3.0L DIESEL
Use oil and fluid that meets the defined specification and viscosity grade.
If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:
Component damage not covered by the vehicle warranty.
Longer engine cranking periods.
Increased emission levels.
Reduced engine performance.
Reduced fuel economy.
Reduced brake performance.
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.|
Variant |
Refrigerant |
Refrigerant Oil |
|
All. |
26 oz (0.74 kg) |
2.71 fl oz (80 ml) |
440
|
Name |
Specification |
|
R-1234yf Refrigerant(U.S.) R-1234yf Refrigerant / Frigorigène R-1234yf(Canada) YN-33-A(U.S.) HS7Z-19B519-BA(Canada) |
WSS-M17B21-A |
|
Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.) Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf Motorcraft®(Canada) YN-35(U.S. & Canada) |
WSS-M2C300-A2 |
Automatic Transmission
Note: Automatic transmissions that require MERCON® ULV transmission fluid should only use MERCON® ULV transmission fluid. The use of any other fluid may cause transmission damage.
|
Variant |
Quantity |
|
All. |
13.3 qt (12.6 L) 1 |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
|
Name |
Specification |
|
Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid(U.S.) Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid / MERCON® ULV huile pour boí®tes auto- matique Motorcraft®(Canada) XT-12-QULV(U.S. & Canada) |
WSS-M2C949-A, MERCON® ULV |
441
|
Variant |
Quantity |
|
All. |
13.7 qt (13 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
Engine Oil
E258300
442
The American Petroleum Institute (API) service symbol is used to identify the proper engine oil for your engine. The API service symbol will be displayed on the oil container you purchase. The API symbol displays the oil performance category in the top half of symbol and the viscosity grade in the center of the symbol.
The use of correct oil viscosities for diesel engines is important for satisfactory operation. Determine which oil viscosity best suits the temperature range you expect to encounter for the next service interval from the following SAE viscosity grade chart.
Note: For severe duty service, use SAE 5W-40 API CK-4.
Note: For bio-diesel fuel blends (B20 max), use SAE 5W-40 API CK-4.
Note: An engine block heater is recommended at temperatures below -9°F (-23°C).
Note: Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
|
Variant |
Including the Oil Filter |
|
All. |
6.5 qt (6.15 L) |
|
Name |
Specification |
|
Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil(U.S.) Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / Huile moteur diesel F-150 SAE 5W-30 Motor- craft®(Canada) XO-5W30-QFA(U.S. & Canada) |
WSS-M2C214-B1 |
443
|
Variant |
Quantity |
|
All. |
26.0 gal (98.4 L) |
Diesel Exhaust Fluid Tank
Capacities
|
Variant |
Quantity |
|
All. |
5.6 gal (21.3 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Diesel Exhaust Fluid(U.S.) Motorcraft® Diesel Exhaust Fluid / Fluide pour í©chappement diesel Motorcraft®(Canada) PM-27-GAL,PM-27-JUG(U.S.) CPM-27-J(Canada) |
WSS-M99C130-A |
Grease
Materials
|
Name |
Specification |
|
Motorcraft® Premium Long-Life Grease(U.S.) Motorcraft® Premium Long-Life Grease / Graisse longue durí©e de qualití© première Motor- craft®(Canada) XG-1-E1(U.S. & Canada) |
ESA-M1C75-B |
|
Motorcraft® Multi-Purpose Grease Spray(U.S.) Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aí©rosol Motorcraft®(Canada) XL-5-A(U.S. & Canada) |
ESB-M1C93-B |
Hydraulic Brake System
444
|
Name |
Specification |
|
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV Motorcraft®(Canada) PM-20(U.S. & Canada) |
WSS-M6C65-A2 |
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.
Locks
|
Name |
Specification |
|
Motorcraft® Penetrating and Lock Lubricant(U.S.) Motorcraft® Penetrating Fluid / Liquide dí©grippant Motorcraft®(Canada) XL-1(U.S.) CXC-51-A(Canada) |
- |
Transfer Case
Capacities
|
Variant |
Quantity |
|
Four-wheel drive (Electronic Shift-on-the- Fly). |
1.5 qt (1.4 L) |
|
Automatic four-wheel drive (Torque on demand). |
1.5 qt (1.4 L) |
|
Two-speed automatic four-wheel drive (Mechanical Lock). |
1.9 qt (1.8 L) |
445
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Front Axle
Capacities
|
Variant |
Quantity |
|
Four wheel drive. |
1.8 qt (1.7 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Rear Axle
Capacities
|
Variant |
Quantity |
|
All. |
2.7 qt (2.6 L) |
446
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Washer Reservoir
Capacities
|
Variant |
Quantity |
|
All. |
Fill as required. |
Materials
|
Name |
Specification |
|
Motorcraft® Premium Windshield Wash Concen- trate with Bitterant(U.S.) Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualití© Motor- craft®(Canada) ZC-32-B2(U.S.) CXC-37-A/B/D/F(Canada) |
WSS-M14P19-A |
CAPACITIES AND SPECIFICATIONS - 3.3L
Use oil and fluid that meets the defined specification and viscosity grade.
If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:
447
|
Variant |
Refrigerant |
Refrigerant Oil |
|
All. |
26 oz (0.74 kg) |
4.06 fl oz (120 ml) |
Materials
|
Name |
Specification |
|
R-1234yf Refrigerant(U.S.) R-1234yf Refrigerant / Frigorigène R-1234yf(Canada) YN-33-A(U.S.) HS7Z-19B519-BA(Canada) |
WSS-M17B21-A |
|
Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.) Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf Motorcraft®(Canada) YN-35(U.S. & Canada) |
WSS-M2C300-A2 |
Automatic Transmission
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid may cause transmission damage.
|
Variant |
Quantity |
|
All. |
13.6 qt (12.9 L) 1 |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
448
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Engine Coolant
Capacities
|
Variant |
Quantity |
|
All. |
13.6 qt (12.86 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
449
E142732
E275759
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN PLUS requirements and display the API Certification Mark for gasoline engines.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
|
Variant |
Including the Oil Filter |
|
All. |
6.0 qt (5.7 L) |
|
Name |
Specification |
|
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil(U.S.) Engine Oil - SAE 5W-20 - Super Premium Motor Oil / Huile moteur de très haute qualití© SAE 5W-20 Motorcraft®(Canada) XO-5W20-Q1SP(U.S.) CXO-5W20-LSP6(Canada) |
WSS-M2C945-B1 |
450
To improve engine cold start performance,
we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-20 - Synthetic Blend Motor Oil(U.S.) (Canada) XO-0W20-Q1SP(U.S.) |
WSS-M2C947-B1 |
|
Variant |
Quantity |
|
Regular Cab and SuperCab. |
23.0 gal (87.1 L) |
|
SuperCrew Cab. |
26.0 gal (98.4 L) |
|
Optional. |
36.0 gal (136.3 L) |
Grease
451
|
Name |
Specification |
|
Motorcraft® Premium Long-Life Grease(U.S.) Motorcraft® Premium Long-Life Grease / Graisse longue durí©e de qualití© première Motor- craft®(Canada) XG-1-E1(U.S. & Canada) |
ESA-M1C75-B |
|
Motorcraft® Multi-Purpose Grease Spray(U.S.) Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aí©rosol Motorcraft®(Canada) XL-5-A(U.S. & Canada) |
ESB-M1C93-B |
Hydraulic Brake System
Materials
|
Name |
Specification |
|
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV Motorcraft®(Canada) PM-20(U.S. & Canada) |
WSS-M6C65-A2 |
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.
452
|
Name |
Specification |
|
Motorcraft® Penetrating and Lock Lubricant(U.S.) Motorcraft® Penetrating Fluid / Liquide dí©grippant Motorcraft®(Canada) XL-1(U.S.) CXC-51-A(Canada) |
- |
Transfer Case
Capacities
|
Variant |
Quantity |
|
Four-wheel drive (Electronic Shift-on-the- Fly). |
1.5 qt (1.4 L) |
|
Automatic four-wheel drive (Torque on demand). |
1.5 qt (1.4 L) |
Materials
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Front Axle
Capacities
|
Variant |
Quantity |
|
Four wheel drive. |
1.8 qt (1.7 L) |
453
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Rear Axle
Capacities
|
Variant |
Quantity |
|
All. |
2.7 qt (2.6 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Washer Reservoir
Capacities
|
Variant |
Quantity |
|
All. |
Fill as required. |
454
|
Name |
Specification |
|
Motorcraft® Premium Windshield Wash Concen- trate with Bitterant(U.S.) Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualití© Motor- craft®(Canada) ZC-32-B2(U.S.) CXC-37-A/B/D/F(Canada) |
WSS-M14P19-A |
CAPACITIES AND SPECIFICATIONS - 3.5L ECOBOOST™
Use oil and fluid that meets the defined specification and viscosity grade.
If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.|
Variant |
Refrigerant |
Refrigerant Oil |
|
All. |
26 oz (0.74 kg) |
2.71 fl oz (80 ml) |
455
|
Name |
Specification |
|
R-1234yf Refrigerant(U.S.) R-1234yf Refrigerant / Frigorigène R-1234yf(Canada) YN-33-A(U.S.) HS7Z-19B519-BA(Canada) |
WSS-M17B21-A |
|
Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.) Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf Motorcraft®(Canada) YN-35(U.S. & Canada) |
WSS-M2C300-A2 |
Automatic Transmission
Note: Automatic transmissions that require MERCON® ULV transmission fluid should only use MERCON® ULV transmission fluid. The use of any other fluid may cause transmission damage.
|
Variant |
Quantity |
|
All. |
13.2 qt (12.5 L) 1 |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
|
Name |
Specification |
|
Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid(U.S.) Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid / MERCON® ULV huile pour boí®tes auto- matique Motorcraft®(Canada) XT-12-QULV(U.S. & Canada) |
WSS-M2C949-A, MERCON® ULV |
456
|
Variant |
Quantity |
|
All. |
15.2 qt (14.35 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
Engine Oil
E142732
E276075
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN PLUS requirements and display the API Certification Mark for gasoline engines.
457
Do not use supplemental engine oil additives because they are unnecessary
and could lead to engine damage that your vehicle warranty does not cover.
|
Variant |
Including the Oil Filter |
|
All. |
6.0 qt (5.7 L) |
|
Name |
Specification |
|
Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil(U.S.) Engine Oil - SAE 5W-30 - Super Premium Motor Oil / Huile moteur de très haute qualití© SAE 5W-30 Motorcraft®(Canada) XO-5W30-Q1SP(U.S.) CXO-5W30-LSP6(Canada) |
WSS-M2C946-B1 |
Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-30 |
WSS-M2C953-B1 |
458
|
Variant |
Quantity |
|
Regular Cab and SuperCab. |
23.0 gal (87.1 L) |
|
SuperCrew Cab. |
26.0 gal (98.4 L) |
|
Optional. |
36.0 gal (136.3 L) |
Grease
Materials
|
Name |
Specification |
|
Motorcraft® Premium Long-Life Grease(U.S.) Motorcraft® Premium Long-Life Grease / Graisse longue durí©e de qualití© première Motor- craft®(Canada) XG-1-E1(U.S. & Canada) |
ESA-M1C75-B |
|
Motorcraft® Multi-Purpose Grease Spray(U.S.) Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aí©rosol Motorcraft®(Canada) XL-5-A(U.S. & Canada) |
ESB-M1C93-B |
Hydraulic Brake System
459
|
Name |
Specification |
|
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV Motorcraft®(Canada) PM-20(U.S. & Canada) |
WSS-M6C65-A2 |
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.
Locks
|
Name |
Specification |
|
Motorcraft® Penetrating and Lock Lubricant(U.S.) Motorcraft® Penetrating Fluid / Liquide dí©grippant Motorcraft®(Canada) XL-1(U.S.) CXC-51-A(Canada) |
- |
Transfer Case
Capacities
|
Variant |
Quantity |
|
Four-wheel drive (Electronic Shift-on-the- Fly). |
1.5 qt (1.4 L) |
|
Automatic four-wheel drive (Torque on demand). |
1.5 qt (1.4 L) |
|
Two-speed automatic four-wheel drive (Mechanical Lock). |
1.9 qt (1.8 L) |
460
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Front Axle
Capacities
|
Variant |
Quantity |
|
Four wheel drive. |
1.8 qt (1.7 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Rear Axle
Capacities
|
Variant |
Quantity |
|
All. |
2.7 qt (2.6 L) |
461
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Washer Reservoir
Capacities
|
Variant |
Quantity |
|
All. |
Fill as required. |
Materials
|
Name |
Specification |
|
Motorcraft® Premium Windshield Wash Concen- trate with Bitterant(U.S.) Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualití© Motor- craft®(Canada) ZC-32-B2(U.S.) CXC-37-A/B/D/F(Canada) |
WSS-M14P19-A |
CAPACITIES AND SPECIFICATIONS - 5.0L
Use oil and fluid that meets the defined specification and viscosity grade.
If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:
Component damage not covered by the vehicle warranty.
Longer engine cranking periods.
Increased emission levels.
Reduced engine performance.
Reduced fuel economy.
Reduced brake performance.
462
|
Variant |
Refrigerant |
Refrigerant Oil |
|
All. |
26 oz (0.74 kg) |
2.71 fl oz (80 ml) |
Materials
|
Name |
Specification |
|
R-1234yf Refrigerant(U.S.) R-1234yf Refrigerant / Frigorigène R-1234yf(Canada) YN-33-A(U.S.) HS7Z-19B519-BA(Canada) |
WSS-M17B21-A |
|
Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.) Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf Motorcraft®(Canada) YN-35(U.S. & Canada) |
WSS-M2C300-A2 |
Automatic Transmission
Note: Automatic transmissions that require MERCON® ULV transmission fluid should only use MERCON® ULV transmission fluid. The use of any other fluid may cause transmission damage.
|
Variant |
Quantity |
|
All. |
13.2 qt (12.5 L) 1 |
1 Approximate dry fill capacity. Actual amount may vary during fluid changes.
463
|
Name |
Specification |
|
Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid(U.S.) Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid / MERCON® ULV huile pour boí®tes auto- matique Motorcraft®(Canada) XT-12-QULV(U.S. & Canada) |
WSS-M2C949-A, MERCON® ULV |
Engine Coolant
Capacities
|
Variant |
Quantity |
|
All. |
13.9 qt (13.2 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
Engine Oil
E275759
E142732
464
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN PLUS requirements and display the API Certification Mark for gasoline engines.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
|
Variant |
Including the Oil Filter |
|
All. |
8.8 qt (8.3 L) |
|
Name |
Specification |
|
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil(U.S.) Engine Oil - SAE 5W-20 - Super Premium Motor Oil / Huile moteur de très haute qualití© SAE 5W-20 Motorcraft®(Canada) XO-5W20-Q1SP(U.S.) CXO-5W20-LSP6(Canada) |
WSS-M2C945-B1 |
Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-20 - Synthetic Blend Motor Oil(U.S.) (Canada) XO-0W20-Q1SP(U.S.) |
WSS-M2C947-B1 |
465
|
Variant |
Quantity |
|
Regular Cab and SuperCab. |
23.0 gal (87.1 L) |
|
SuperCrew Cab. |
26.0 gal (98.4 L) |
|
Optional. |
36.0 gal (136.3 L) |
Grease
Materials
|
Name |
Specification |
|
Motorcraft® Premium Long-Life Grease(U.S.) Motorcraft® Premium Long-Life Grease / Graisse longue durí©e de qualití© première Motor- craft®(Canada) XG-1-E1(U.S. & Canada) |
ESA-M1C75-B |
|
Motorcraft® Multi-Purpose Grease Spray(U.S.) Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aí©rosol Motorcraft®(Canada) XL-5-A(U.S. & Canada) |
ESB-M1C93-B |
Hydraulic Brake System
466
|
Name |
Specification |
|
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV Motorcraft®(Canada) PM-20(U.S. & Canada) |
WSS-M6C65-A2 |
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.
Locks
|
Name |
Specification |
|
Motorcraft® Penetrating and Lock Lubricant(U.S.) Motorcraft® Penetrating Fluid / Liquide dí©grippant Motorcraft®(Canada) XL-1(U.S.) CXC-51-A(Canada) |
- |
Transfer Case
Capacities
|
Variant |
Quantity |
|
Four-wheel drive (Electronic Shift-on-the- Fly). |
1.5 qt (1.4 L) |
|
Automatic four-wheel drive (Torque on demand). |
1.5 qt (1.4 L) |
467
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Front Axle
Capacities
|
Variant |
Quantity |
|
Four wheel drive. |
1.8 qt (1.7 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Rear Axle
Capacities
|
Variant |
Quantity |
|
All. |
2.7 qt (2.6 L) |
468
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Washer Reservoir
Capacities
|
Variant |
Quantity |
|
All. |
Fill as required. |
Materials
|
Name |
Specification |
|
Motorcraft® Premium Windshield Wash Concen- trate with Bitterant(U.S.) Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualití© Motor- craft®(Canada) ZC-32-B2(U.S.) CXC-37-A/B/D/F(Canada) |
WSS-M14P19-A |
BULB SPECIFICATION CHART
The chart that follows specifies the replacement bulbs. Use headlamp bulbs marked with an authorized D.O.T. marking for North America to make sure they have the proper lamp performance, light brightness, light pattern and safe visibility. The correct bulbs do not damage the lamp assembly or void the lamp assembly warranty and provide quality bulb illumination time.
469
|
Lamp |
Specification |
Power (Watt) |
|
Front direction indicator and parking lamps. |
4257NA |
21/5W |
|
Daytime running lamps. |
LED. |
LED. |
|
Headlamp high beam. |
9005 |
65W |
|
Headlamp low beam. |
H11 |
55W |
|
Headlamps. |
LED. |
LED. |
|
Front fog lamps.1 |
9140 |
55W |
|
Front side marker lamps. |
W5W |
5W |
|
Side direction indicator. |
LED. |
LED. |
|
Puddle lamp. |
LED. |
LED. |
|
Rear lamps, brake lamps, rear direction indicator and rear side marker lamps.1 |
3157 |
27/8W |
|
Central high mount brake lamp, cargo box lamp.1 |
912 |
12.8W |
|
Reversing lamps. |
W21W |
21W |
|
License plate lamp. |
168 |
5W |
1 May have optional LED lamps.
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
|
Lamp |
Specification |
Power (Watt) |
|
Glove compartment lamp. |
LED. |
LED. |
|
Map lamp. |
LED. |
LED. |
|
Rear dome and courtesy lamps. |
LED. |
LED. |
|
Rear cargo box lamps. |
LED. |
LED. |
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
470
Download Manual
