Exterior Zone Lighting

WHAT IS EXTERIOR ZONE LIGHTING

Exterior zone lighting divides the exterior lighting into zones and allows you to switch them on and off to provide lighting around the perimeter of your vehicle.

USING THE EXTERIOR ZONE LIGHTING - VEHICLES WITH: 12 INCH SCREEN

1. Press Features on the touchscreen.
2. Press Zone Lighting.

AOn and off button. BSettings menu. CExterior lamp indicators. DIndividual zones on and off. EAll zones on and off.

You can use zone lighting when your vehicle is on or off. When it is off, the lighting turns off after a certain period of time.

You can also use individual zone controls to switch on each zone.

Note:   Make sure to remove exterior lighting covers when using zone lighting.

Note:   When your vehicle is off and the timer has one minute remaining, the turn signals flash six times.

Note:   Indicators on the touchscreen illuminate when the lights outside of the zone lighting control are on.

Note:   You can remotely control the zone lighting using the FordPass app.

USING THE EXTERIOR ZONE LIGHTING - VEHICLES WITH: 15 INCH SCREEN

1. Access the vehicle drawer on the touchscreen.
2. Press CONTROLS.
3. Press Zone Lighting.

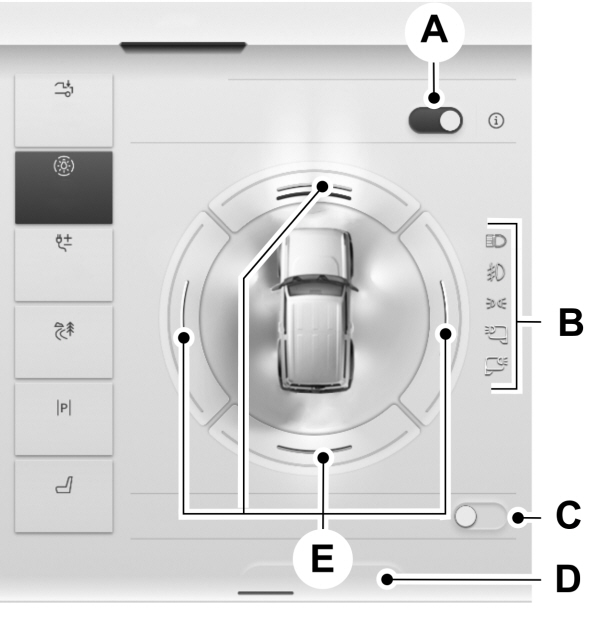

AOn and off button. BExterior lamp indicators. CAll zones on and off. DSettings menu. EIndividual zones on and off.

You can use zone lighting when your vehicle is on or off. When it is off, the lighting turns off after a certain period of time.

EXTERIOR ZONE LIGHTING SETTINGS - VEHICLES WITH: 12 INCH SCREEN

1. Press Features on the touchscreen.
2. Press Zone Lighting.
3. Press the settings menu in the upper right-hand corner.
4. Press a setting.

Enable Autolamp Override

This setting allows your vehicle to override the autolamps when using zone lighting.

When you access zone lighting for the first time, you can choose this setting. You can change this setting at any time.

EXTERIOR ZONE LIGHTING SETTINGS - VEHICLES WITH: 15 INCH SCREEN

1. Access the vehicle drawer on the touchscreen.
2. Press CONTROLS.
3. Press Zone Lighting.
4. Press Settings.
5. Press a setting.

Enable Autolamp Override

This settings allows the vehicle to override the autolamps when zone lighting is on.

When you access zone lighting for the first time, you can choose this setting. You can change this setting at any time.
