Adjusting a Roof Rack Crossbar

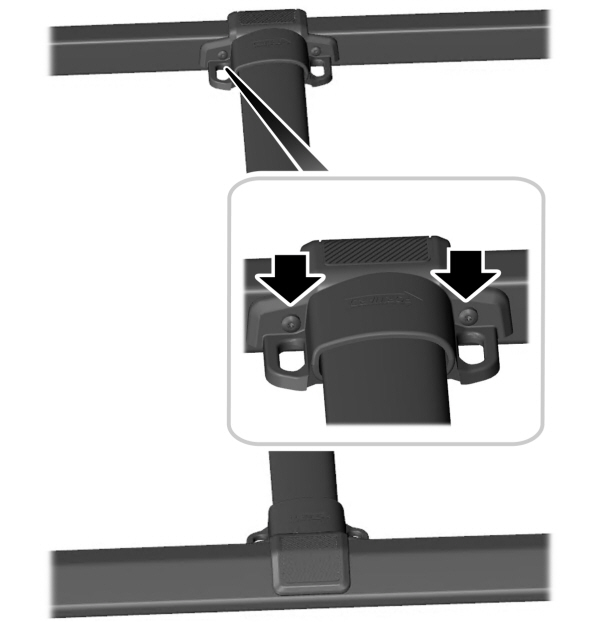

Adjusting the Crossbar
- Using the provided T30 tool, remove the crossbar bolts.
- Move the crossbar to the new position.
- Using the provided T30 tool, install the crossbar bolts.
Note: Torque bolts to 8 Nm (5.9 lb.ft).
Note: Moving the crossbars forward may increase wind noise. To limit wind noise return the crossbars to the rearward position.
ROOF RACK LOAD CAPACITIES
 WARNING: Do not remove or modify the B-Pillar brace or trim. Doing so could affect safety system performance, including safety canopy and front seat mounted side airbags, during a crash or rollover. |
Do not remove or modify the C-Pillar brace.
Maximum Recommended Load Amounts
| Description | Maximum Recommended Load |
|---|---|
| When in motion | 50 kg (110 lb) |
| When stationary | 204 kg (450 lb) |
| Vehicles with 37x12.50/50R17 Tires | 0 kg (0 lb) |
Note: The maximum recommended load is based on the load being evenly distributed on the crossbars.

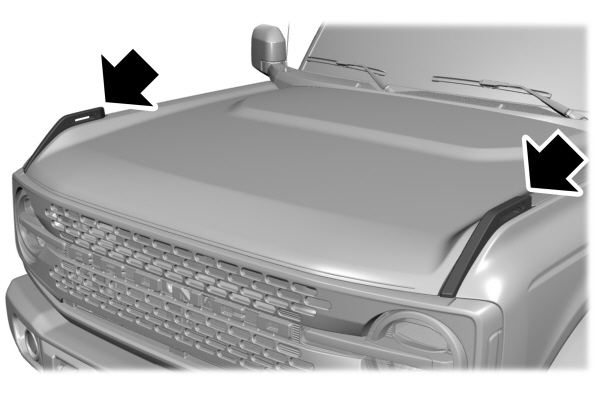

LOCATING THE FENDER ANCHOR POINTS
FENDER ANCHOR POINT LOAD CAPACITIES
The maximum recommended load is 68 kg (150 lb).
