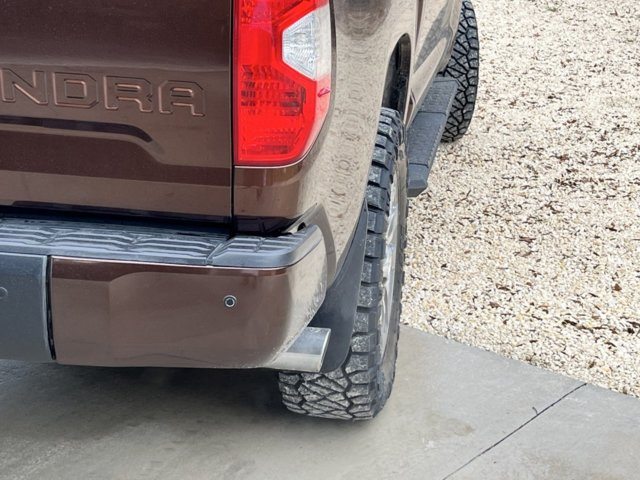

2017 Toyota Tundra with OEM Limited Stock

Nitto Ridge Grapplers 35/11.5/R20

OEM Limited Stock wheels +60mm Offset

Rough County 3/1 leveling lift

Installed a Rough County 3/1 leveling lift and utilized the stock limited wheels (60mm Offset) as well as 1 inch spacers. The tires I used were Nitto Ridge Grapplers 35/11.5/20r

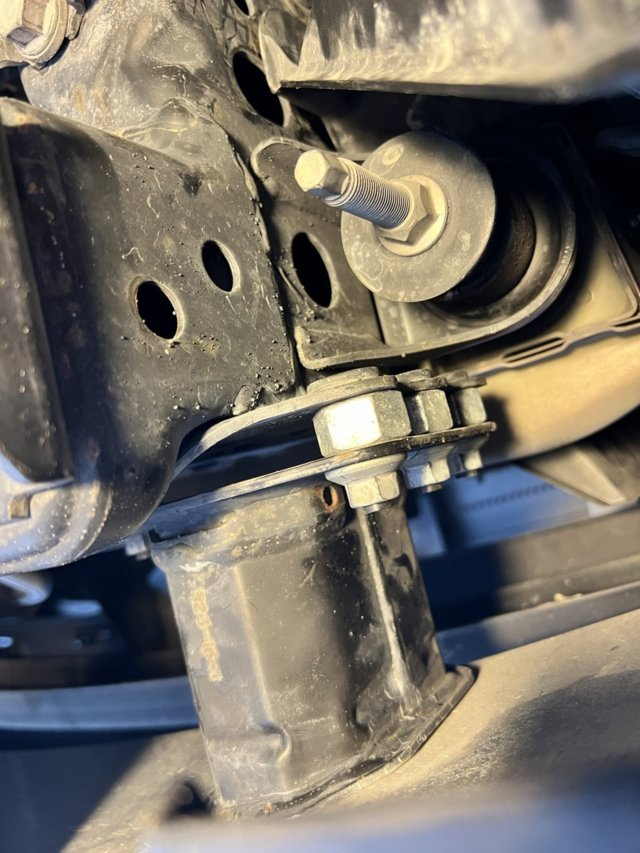

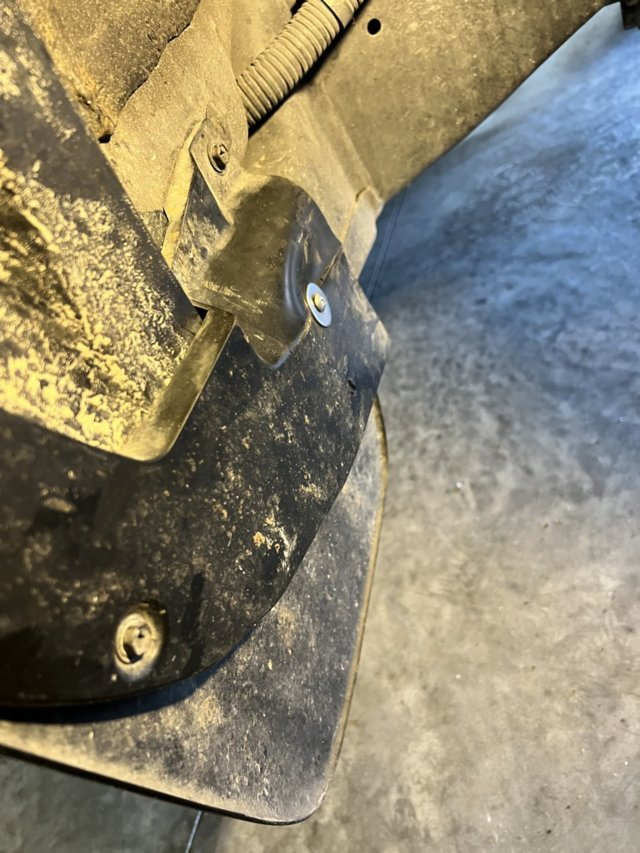

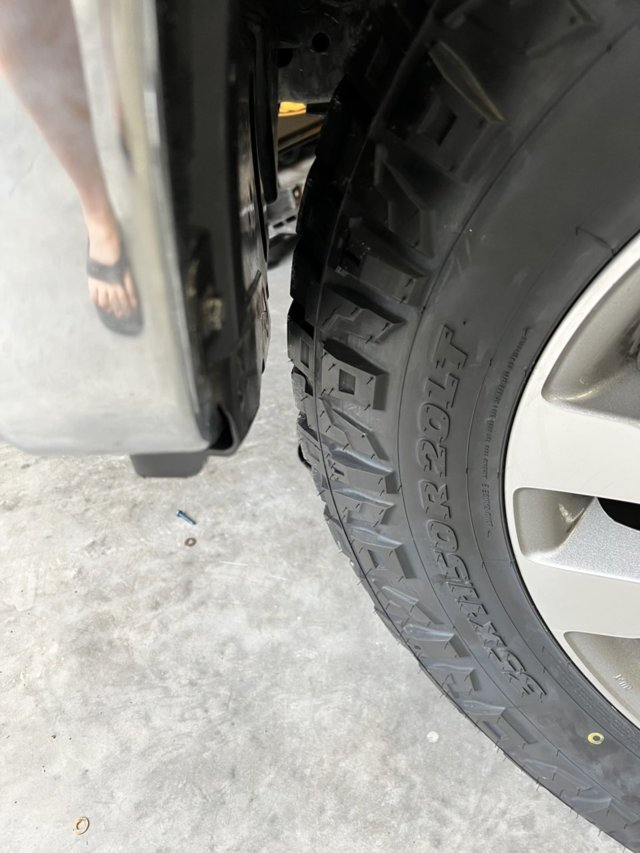

Did remove the front mudguards prior to tire installation but was able to reinstall them after running a self drilling screw and washer thru the guard into the body mount. The only required plastic removal was the short plastic flap in front of the front wheel. Also the Limited stock wheels have relief areas on the back that allow the installation of 1” spacers without the need to modifying the studs. The only other mod needed was to shim the front bumper out 1/2” which was easy and cheap.

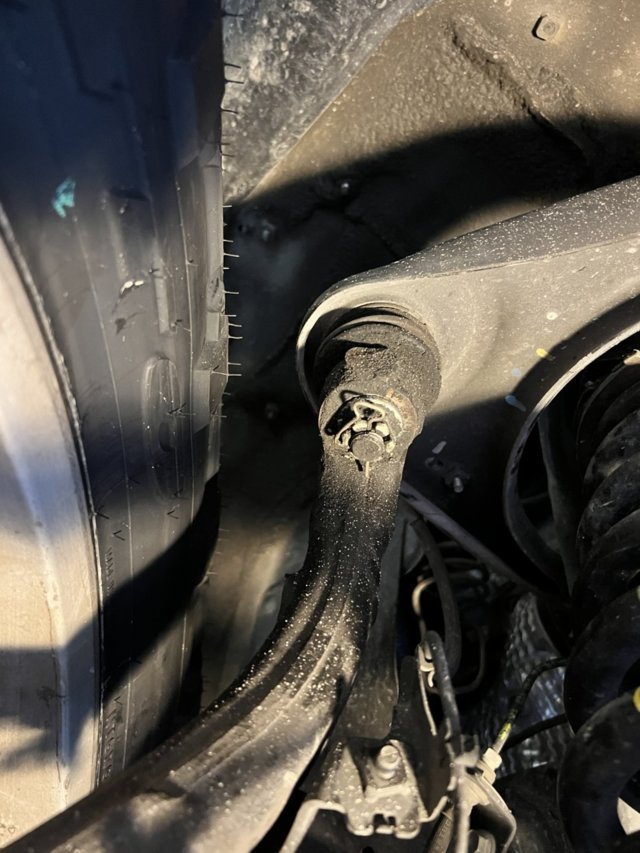

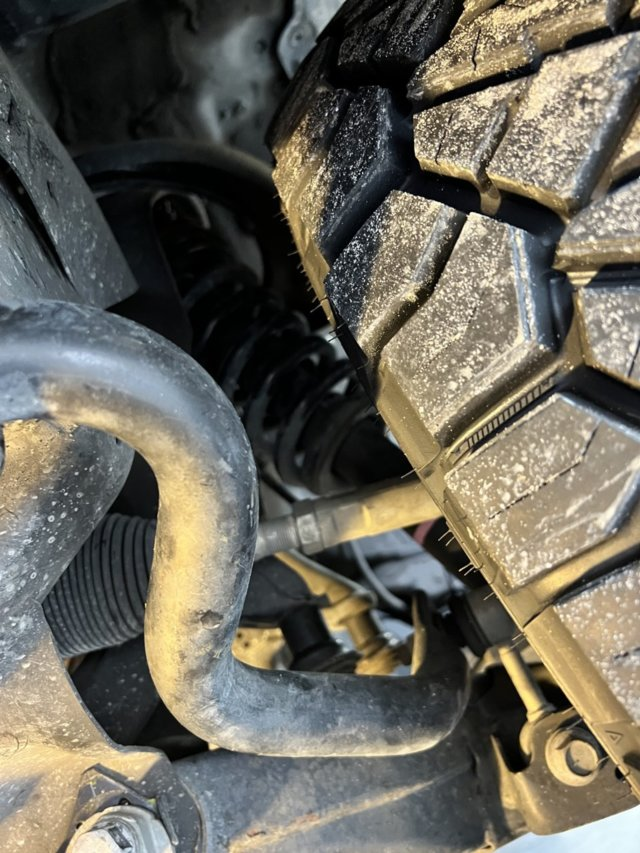

In the end there was plenty of clearance on the UCA, BM and sway bar with Zero rubbing. I even ditch tested the set up driving diagonally in forward and reverse with no rub. All this said I feel the ending wheel offset was where the magic combo is and the limited wheels seem to be slightly different offset wise than other stock Tundra wheels so take note.
