Operating the lights and wipers

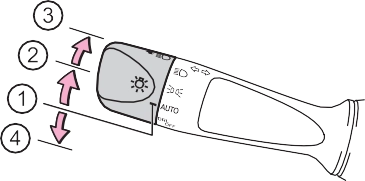

Type A

195) and all the lights listed below turn on and off automatically. (Vehicles without a smart key system:

When the engine switch is in the“ON” position)

(Vehicles with a smart key system: When the engine switch is in IGNITION ON mode)

The side marker, park- ing, tail, license plate, instrument panel lights, and daytime running lights (P. 195) turn on.

The headlights and all the lights listed above (except day- time running lights) turn on.

The daytime running lights turn off.

194 4-3. Operating the lights and wipers

Type B

195) and all the lights listed below turn on and off automatically. (Vehicles without a smart key system:

When the engine switch is in the“ON” position)

(Vehicles with a smart key system: When the engine switch is in IGNITION ON mode)

The side marker, park- ing, tail, license plate, instrument panel lights, and daytime running lights (P. 195) turn on.

The headlights and all the lights listed above (except day- time running lights) turn on.

The daytime running lights turn on. (P. 195)

4-3. Operating the lights and wipers

195

the lever away from you to turn on the high beams.

Pull the lever toward you to the center position to turn the high beams off.

You can flash the high beams with the headlights on or off.

Daytime running light system

Vehicles with daytime running lights that are integrated into the headlights: The daytime running lights illuminate using the same lights as the headlight low beams and illuminate darker than the headlight low beams.

To make your vehicle more visible to other drivers during daytime driving, the daytime running lights turn on automatically when all of the following conditions are met. (The daytime running lights are not designed for use at night.)

The engine is running

The parking brake is released

The headlight switch is in the (type B only), or“AUTO”*

position

*: When the surroundings are bright

The daytime running lights remain on after they illuminate, even if the park- ing brake is set again.

For the U.S.A.: Daytime running lights can be turned off by operating the switch.

Compared to turning on the headlights, the daytime running light system offers greater durability and consumes less electricity, so it can help improve fuel economy.

Headlight control sensor

The sensor may not function properly if an object is placed on the sensor, or anything that blocks the sensor is affixed to the windshield.

Doing so interferes with the sensor detecting the level of ambient light and may cause the automatic headlight sys- tem to malfunction.

196 4-3. Operating the lights and wipers

Automatic light off system

Vehicles without a smart key system

When the headlights are on: The headlights and tail lights turn off 30 sec- onds after the engine switch is turned to the“ACC” or“LOCK” position and a door is opened and closed. (Vehicles with a wireless remote control: The

lights turn off immediately if on the key is pressed after all the doors are locked.)

When only the tail lights are on: The tail lights turn off automatically if the engine switch is turned to the“ACC” or“LOCK” position and the driver’s door is opened.

To turn the lights on again, turn the engine switch to“ON” position, or turn the light switch off once and then back to the or position.

If any of the doors or trunk lid is kept open, the lights automatically turn off after 20 minutes.

Vehicles with a smart key system

When the headlights are on: The headlights and tail lights turn off 30 sec- onds after the engine switch is turned to ACCESSORY mode or turned off

and a door is opened and closed. (The lights turn off immediately if on the key is pressed after all the doors are locked.)

When only the tail lights are on: The tail lights turn off automatically if the engine switch is turned to ACCESSORY mode or turned off and the driver’s door is opened.

To turn the lights on again, turn the engine switch to IGNITION ON mode, or turn the light switch off once and then back to the or position.

If any of the doors or trunk lid is kept open, the lights automatically turn off after 20 minutes.

Light reminder buzzer

Vehicles without a smart key system

A buzzer sounds when the engine switch is turned to“LOCK” position and the driver's door is opened while the lights are turned on.

Vehicles with a smart key system

A buzzer sounds when the engine switch is turned off or turned to ACCES- SORY mode and the driver's door is opened while the lights are turned on.

Battery-saving function

4-3. Operating the lights and wipers

197

In the following conditions, the headlights and the other remaining lights will go off automatically after 20 minutes in order to prevent the vehicle battery from being discharged:

The headlights and/or tail lights are on.

Vehicles without a smart key system: The engine switch is in the“ACC” or“LOCK” position.

Vehicles with a smart key system: The engine switch is turned to ACCES- SORY mode or turned off.

This function will be canceled in any of the following situations:

Vehicles without a smart key system: When the engine switch is turned to the“ON” position.

Vehicles with a smart key system: When the engine switch is turned to IGNI- TION ON mode.

When the light switch is operated

When the door or trunk is opened or closed

Customization

Settings (e.g. light sensor sensitivity) can be changed. (Customizable features: P. 564)

198 4-3. Operating the lights and wipers

the headlight switch in the position.

The Automatic High Beam indica- tor will come on when the system is operating.

4-3. Operating the lights and wipers

199

Switching to the low beams

The Automatic High Beam indi- cator will turn off.

Push the lever away from you to activate the Automatic High Beam system again.

Switching to the high beams

The Automatic High Beam indi- cator will turn off and the high beam indicator will turn on.

Conditions to turn the high beams on/off automatically

When all of the following conditions are met, the high beams will be turned on automatically (after approximately 1 second):

The vehicle speed is approximately 21 mph (34 km/h) or more.

The area ahead of the vehicle is dark.

There are no vehicles ahead with headlights or tail lights turned on.

There are few streetlights on the road ahead.

If any of the following conditions is met, the high beams will turn off automat- ically:

The vehicle speed is below approximately 17 mph (27 km/h).

The area ahead of the vehicle is not dark.

Vehicles ahead have their headlights or tail lights turned on.

There are many streetlights on the road ahead.

200 4-3. Operating the lights and wipers

Camera sensor detection information

The high beams may not be automatically turned off in the following situa- tions:

When a vehicle suddenly appears from around a curve

When the vehicle is cut in front of by another vehicle

When vehicles ahead cannot be detected due to repeated curves, road dividers or roadside trees

When vehicles ahead appear in a faraway lane on a wide road

When the lights of vehicles ahead are not on

The high beams may be turned off if a vehicle ahead that is using fog lights without its headlights turned on is detected.

House lights, street lights, traffic signals, and illuminated billboards or signs and other reflective objects may cause the high beams to change to the low beams, or the low beams to remain on.

The following factors may affect the amount of time taken for the high beams to turn on or off:

The brightness of the headlights, fog lights, and tail lights of vehicles ahead

The movement and direction of vehicles ahead

When a vehicle ahead only has operational lights on one side

When a vehicle ahead is a two-wheeled vehicle

The condition of the road (gradient, curve, condition of the road surface, etc.)

The number of passengers and amount of luggage in the vehicle

The high beams may turn on or off unexpectedly.

Bicycles or similar vehicles may not be detected.

In the following situations the system may not be able to correctly detect the surrounding brightness level. This may cause the low beams to remain on or the high beams to flash or dazzle pedestrians or vehicles ahead. In such a case, it is necessary to manually switch between the high and low beams.

When driving in inclement weather (heavy rain, snow, fog, sandstorms, etc.)

When the windshield is obscured by fog, mist, ice, dirt, etc.

When the windshield is cracked or damaged

When the camera sensor is deformed or dirty

When the temperature of the camera sensor is extremely high

When the surrounding brightness level is equal to that of headlights, tail lights or fog lights

When headlights or tail lights of vehicles ahead are turned off, dirty, changing color, or not aimed properly

When the vehicle is hit by water, snow, dust, etc. from a preceding vehi- cle

4-3. Operating the lights and wipers

201

When driving through an area of intermittently changing brightness and darkness

When frequently and repeatedly driving ascending/descending roads, or roads with rough, bumpy or uneven surfaces (such as stone-paved roads, gravel roads, etc.)

When frequently and repeatedly taking curves or driving on a winding road

When there is a highly reflective object ahead of the vehicle, such as a sign or mirror

When the back of a preceding vehicle is highly reflective, such as a con- tainer on a truck

When the vehicle's headlights are damaged or dirty, or are not aimed properly

When the vehicle is listing or titling due to a flat tire, a trailer being towed, etc.

When the headlights are changed between the high beams and low beams repeatedly in an abnormal manner

When the driver believes that the high beams may be flashing or dazzling pedestrians or other drivers

Temporarily lowering sensor sensitivity

The sensitivity of the sensor can be temporarily lowered.

Turn the engine switch off while the following conditions are met.

The headlight switch is in .

The headlight switch lever is in the high beam position.

Turn the engine switch to the“ON” position (vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart key system).

Within 30 seconds after , repeat pulling the headlight switch lever to the original position then pushing it to the high beam position quickly 10 times, then leave the lever in the high beam position.

If the sensitivity is changed, the Automatic High Beam indicator will turn on and off 3 times.

Automatic High Beam (headlights) may turn on even the vehicle is stopped.

202 4-3. Operating the lights and wipers

*1 or *2

*1 or *2

*1 or *2

*1 or *2

*1: For the U.S.A.

*2: For Canada

Increases the intermittent wind- shield wiper frequency*3

Decreases the intermittent windshield wiper frequency*3

*3: The interval adjuster may not be equipped depending on the grade.

4-3. Operating the lights and wipers

Wipers will automatically operate a couple of times after the washer squirts.

203

The windshield wiper and washer can be operated when

Vehicles without a smart key system The engine switch is in the“ON” position.

Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

If no windshield washer fluid sprays

Check that the washer nozzles are not blocked if there is washer fluid in the windshield washer fluid reservoir.
