2018 Toyota Corolla Owners Manual - Key information

Key information

Vehicles without a smart key system (type A) Keys

Key number plate

Vehicles without a smart key system (type B) Keys

Operating the wireless remote con-

trol function

Vehicles with a smart key system Electronic keys

Operating the smart key system (P. 122)

Operating the wireless remote control function

3-1. Key information

103

Pressing the button unlocks the driver’s door. Pressing the button again within 5 seconds unlocks the other doors.

Vehicles with a smart key system Locks all the doors (P. 109) Unlocks all the doors (P. 109)

Pressing the button unlocks the driver’s door. Pressing the button again within 5 seconds unlocks the other doors.

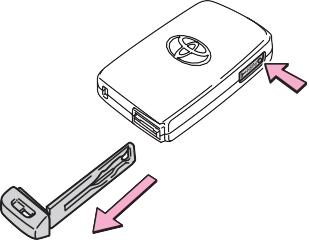

To take out the mechanical key, push the release button and take the key out.

The mechanical key can only be inserted in one direction, as the key only has grooves on one side. If the key cannot be inserted in a lock cylinder, turn it over and re- attempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the mechanical key together with the electronic key. If the electronic key bat- tery is depleted or the entry function does not operate properly, you will need the mechanical key. (P. 523)

104 3-1. Key information

Panic mode (with a wireless remote control function)

Vehicles without a smart key system

When is pressed for longer than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle.

To stop the alarm, press any button on the wireless remote control.

Vehicles with a smart key system

When is pressed for longer than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle.

To stop the alarm, press any button on the electronic key.

If you lose your keys

New genuine keys can be made by your Toyota dealer using the other key (vehicles without a smart key system) or mechanical key (vehicles with a smart key system) and the key number stamped on your key number plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft, make sure you do not press any button on the key while inside the aircraft cabin. If you are carrying the key in your bag etc., ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the key to emit radio waves that could interfere with the operation of the aircraft.

3-1. Key information

105

Key battery depletion (vehicles with a wireless remote control function)

Vehicles without a smart key system

If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (P. 455)

Vehicles with a smart key system

The standard battery life is 1 to 2 years.

If the battery becomes low, an alarm will sound in the cabin when the engine stops. (P. 503)

As the electronic key always receives radio waves, the battery will become depleted even if the electronic key is not used. The following symptoms indi- cate that the electronic key battery may be depleted. Replace the battery when necessary. (P. 455)

The smart key system or the wireless remote control does not operate.

The detection area becomes smaller.

The LED indicator on the key surface does not turn on.

To avoid serious deterioration, do not leave the electronic key within 3 ft. (1

m) of the following electrical appliances that produce a magnetic field:

TVs

Personal computers

Cellular phones, cordless phones and battery chargers

Recharging cellular phones or cordless phones

Table lamps

Induction cookers

Replacing the battery

P. 455

Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask your Toyota dealer for details.

If a wrong key is used (vehicles with a smart key system)

The key cylinder rotates freely to isolate inside mechanism.

106 3-1. Key information

Certification for the wireless remote control

For the U.S.A.

FCC ID: HYQ23AAH FCC ID: HYQ12BEL NOTE:

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For 12BEL

The FCC ID/IC Certification number is affixed inside the equipment. You can find the ID/number when replacing the battery.

For Canada NOTE:

This device complies with Industry Canada’s licence-exempt RSSs. Opera-

tion is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

For 12BEL/12BDP

The FCC ID/IC Certification number is affixed inside the equipment. You can find the ID/number when replacing the battery.

NOTE:

Le présent appareil est conforme aux CNR d'lndustrie Canada appli- cables aux appareils radio exempts de licence. L'exploitation est autori- sée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage; (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compro- mettre le fonctionnement.

Pour 12BEL/12BDP

L’identification FCC/le numéro d’accréditation IC est apposé(e) à  l’intérieur de l’appareil. Cette identification/ce numéro est visible au remplacement de la pile.

Customization

Settings (e.g. wireless remote control system) can be changed. (Customizable features: P. 564)

3-1. Key information

107
