2018 Toyota Corolla Owners Manual - Adjusting the seats

Adjusting the seats

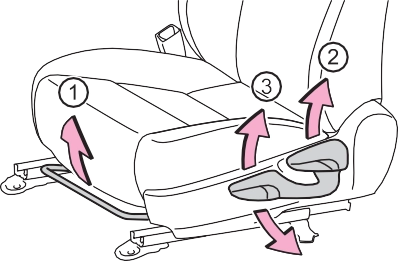

Seat position adjustment lever

Seatback angle adjustment lever

Power seat (driver’s side only)

Vertical height adjustment lever (driver’s side only)

Seat position adjustment switch

Seatback angle adjustment switch

Seat cushion (front) angle adjustment switch

Vertical height adjustment switch

3-3. Adjusting the seats

131

132 3-3. Adjusting the seats

Pull the seatback lock release knob and fold the seatback down.

3-3. Adjusting the seats

133

134 3-3. Adjusting the seats

Pull the head restraints up.

Push the head restraint down while pressing the lock release button.

Pull the head restraints up.

Push the head restraint down while pressing the lock release button.

Pull the head restraints up.

Push the head restraint down while pressing the lock release button.

3-3. Adjusting the seats

135

Removing the head restraints (except for fixed rear head restraints)

Pull the head restraint up while pressing the lock release button.

Installing the head restraints (except for fixed rear head restraints)

Front seats and rear outside seats

Align the head restraint with the installa- tion holes and push it down to the lock position.

Press and hold the lock release button when lowering the head restraint.

Rear center seat

Align the head restraint with the installa- tion holes and push it down to the lowest lock position while pressing the lock release button.

Adjusting the height of the head restraints (except for fixed rear head restraints)

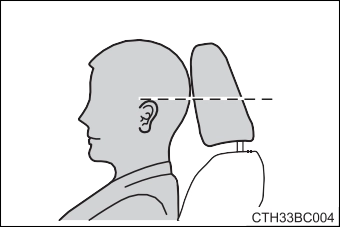

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

Adjusting the rear center seat head restraint

Always raise the head restraint one level from the stowed position when using.
