WHEEL AND TIRE TORQUE SPECIFICATIONS
Proper lug nut/bolt torque is very important to ensure that the wheel is properly mounted to the vehicle. Any time a wheel has been removed and reinstalled on the vehicle, the lug nuts/ bolts should be torqued using a properly cali- brated torque wrench using a high quality six sided (hex) deep wall socket.
|
Lug Nut/ Bolt Torque |
Lug Nut/ Bolt Type |
**Lug Nut/Bolt Size |
Lug Nut/ Bolt Socket Size |
|
130 Ft-Lbs (176 N·m) |
Cone |
M14 x 1.50 |
22 mm |
|
140 Ft-Lbs (190 N·m) |
Flanged |
**Use only authorized dealer recommended lug nuts/ bolts and clean or remove any dirt or oil before tight- ening.
Dual wheels are flat mounted, center piloted. The lug nuts are a two-piece assembly. When the tires are being rotated or replaced, clean these lug nuts and add two drops of oil at the interface between the lug nut/bolt and the washer. Do not oil wheel studs.

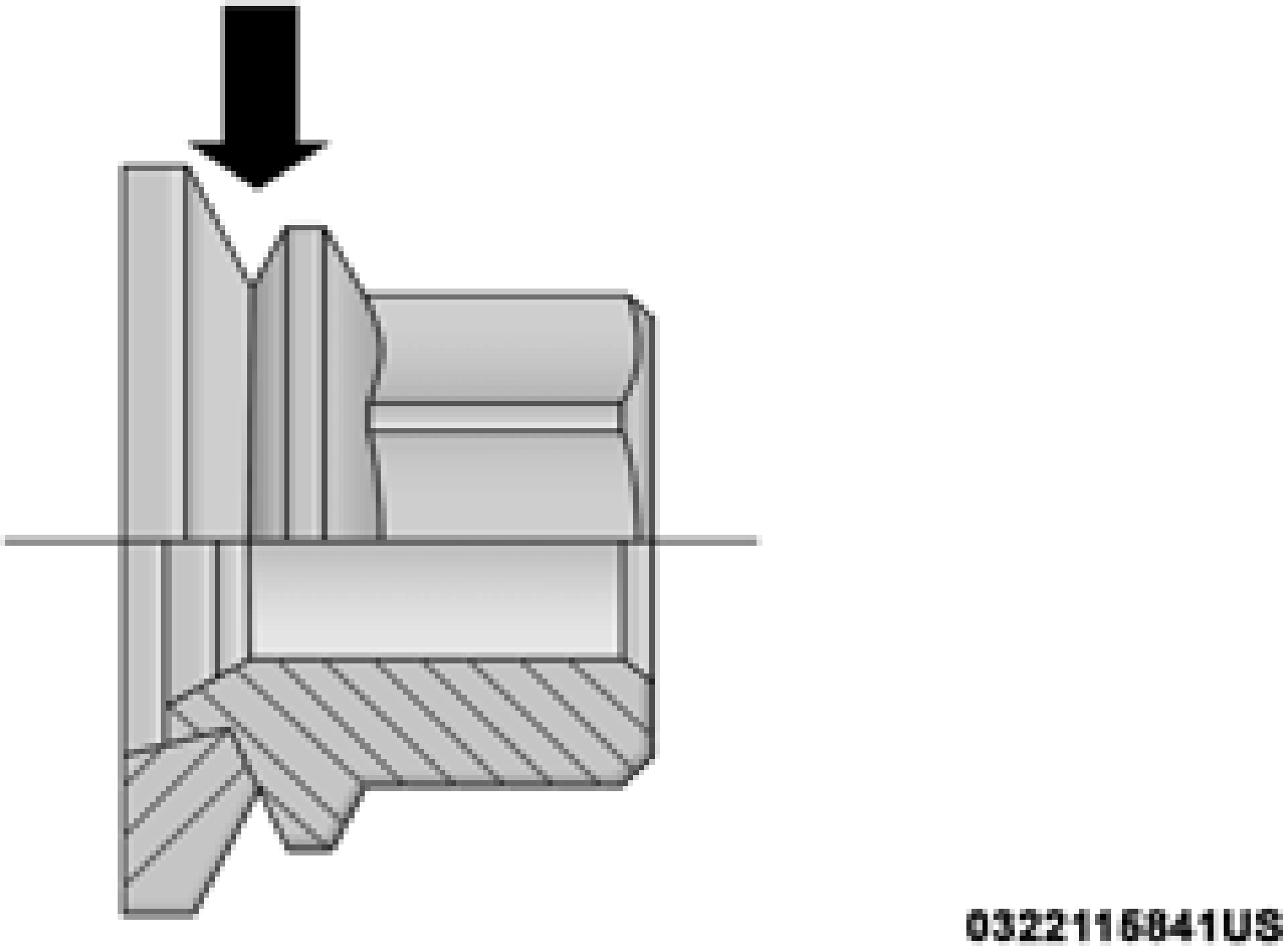

Two-Piece Lug Nut
Inspect the wheel mounting surface prior to mounting the tire and remove any corrosion or loose particles.
Wheel Mounting Surface
Tighten the lug nuts/bolts in a star pattern until each nut/bolt has been tightened twice. Ensure that the socket is fully engaged on the lug nut/ bolt (do not insert it halfway).
After 25 miles (40 km), check the lug nut/bolt torque to be sure that all the lug nuts/bolts are properly seated against the wheel.
Four And Five Lug Nuts/Bolts Torque Pattern
|
WARNING! |
|
To avoid the risk of forcing the vehicle off the jack, do not tighten the lug nuts/bolts fully until the vehicle has been lowered. Failure to follow this warning may result in personal injury. |
