TRI-FOLD TONNEAU COVER — IF EQUIPPED
Your vehicle may be equipped with a Tri-Fold

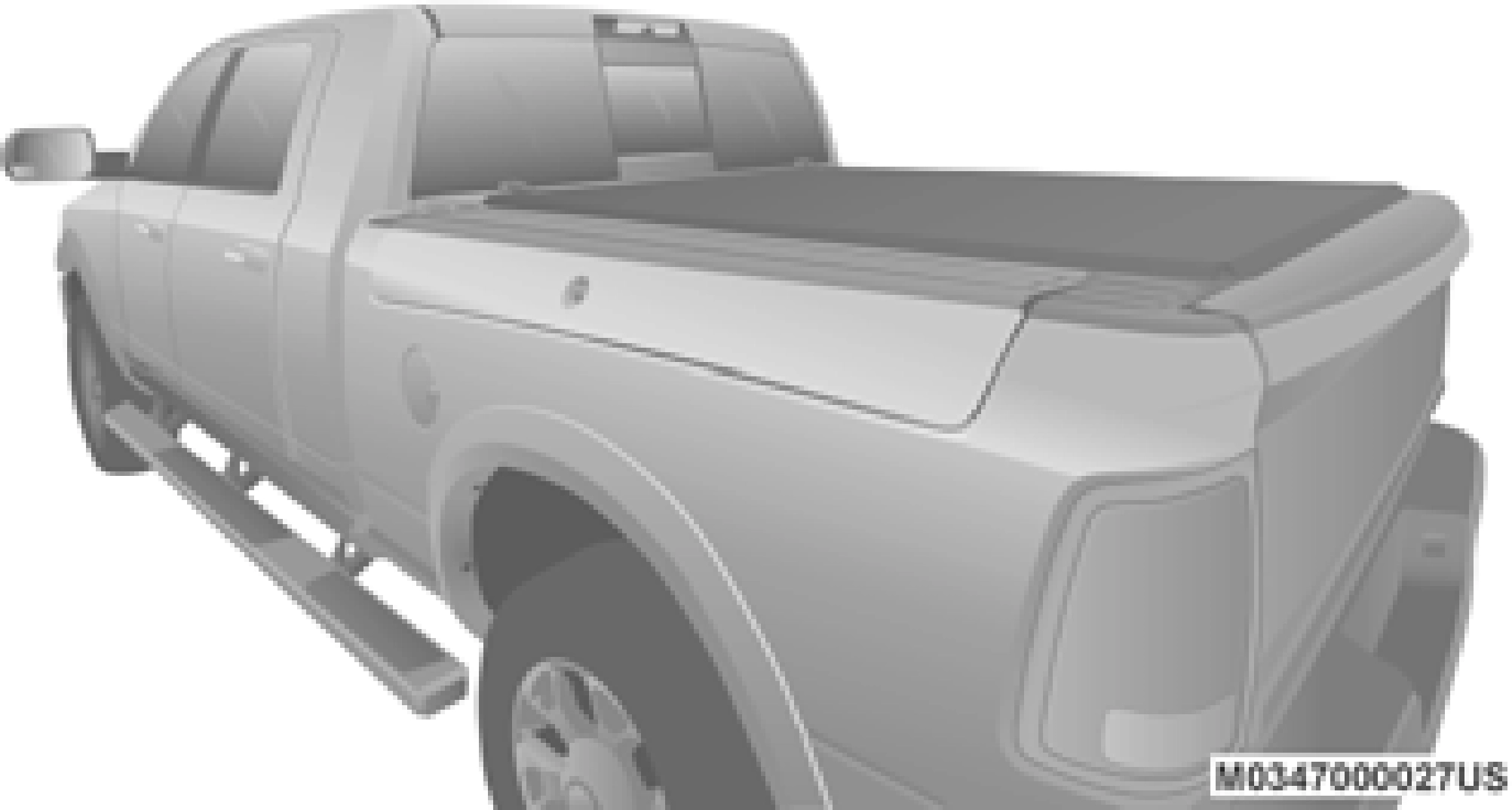

Tonneau Cover which consists of different features:
Easy Tri-Fold cover
Tonneau fore aft locator
Crossbar inside bed locator
Front and rear clamps
Stowage strap
The Tonneau Cover can be folded up and secured at the front of the box without removing it completely.
To remove the Tonneau Cover, follow the next steps:
1. Open the tailgate to gain access to the rear pair of Tonneau Cover clamps located on the underside of the cover (left and right side).

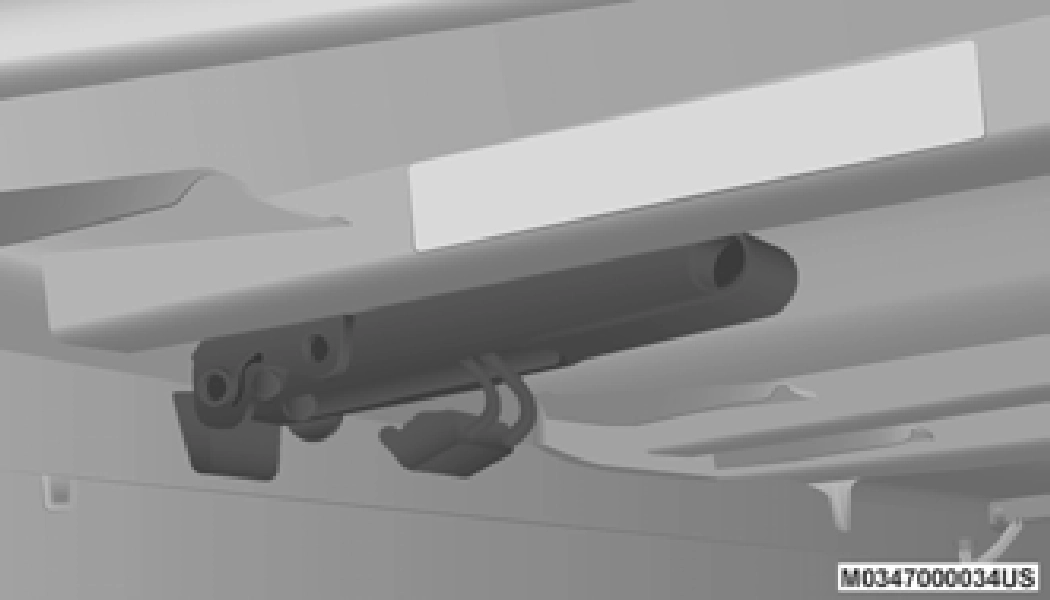

Released Position
|
CAUTION! |
|
Make sure the Tonneau Cover clamp and clamp wire are in the proper stowed position. If the clamp and clamp wire are not properly stowed, damage to the Tonneau Cover material will result. |

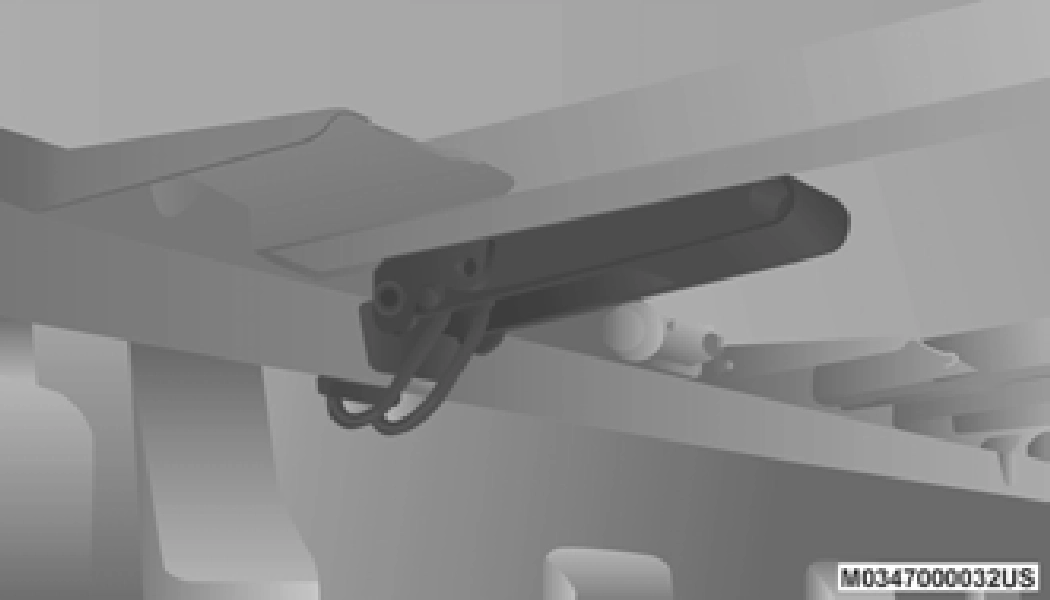

Clamped Position
Folded Rear Panel (Intermediate Position)
If clamp wire is damaged replace immediately.

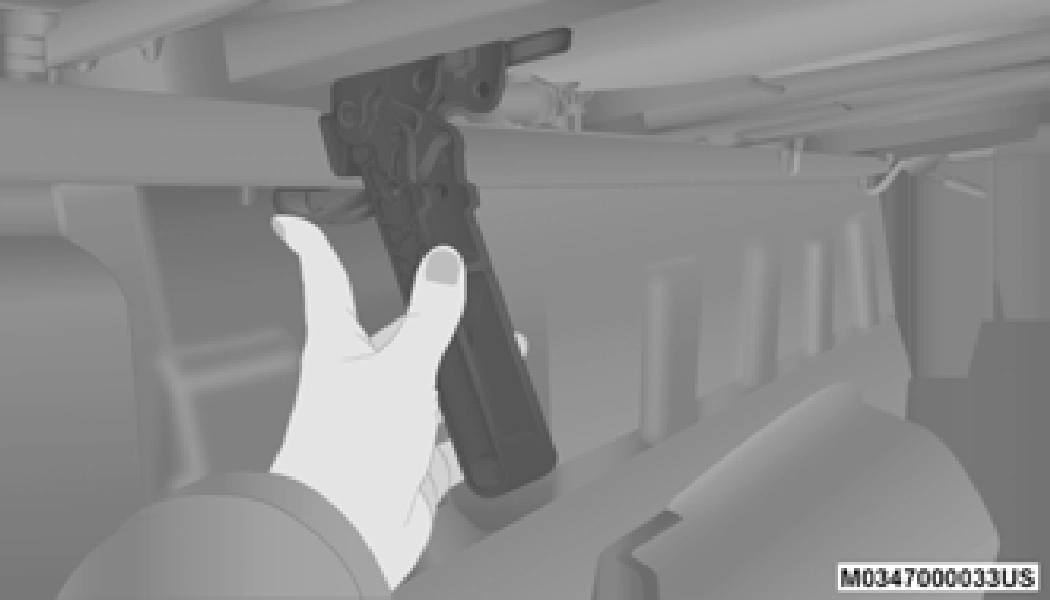

2. Pull both clamp handles down to release the Tonneau Cover’s rear panel.

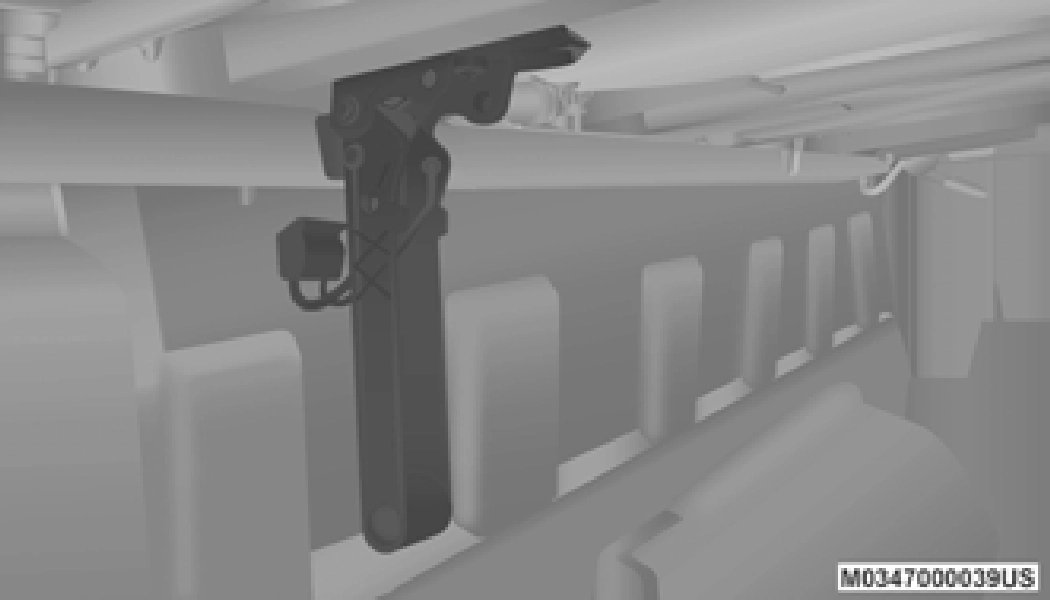

Stowed Position
The vehicle cannot be driven when the Tonneau Cover is in this position.
5. Fold the rear and center panels up onto the front panel (Tri-Folded position).

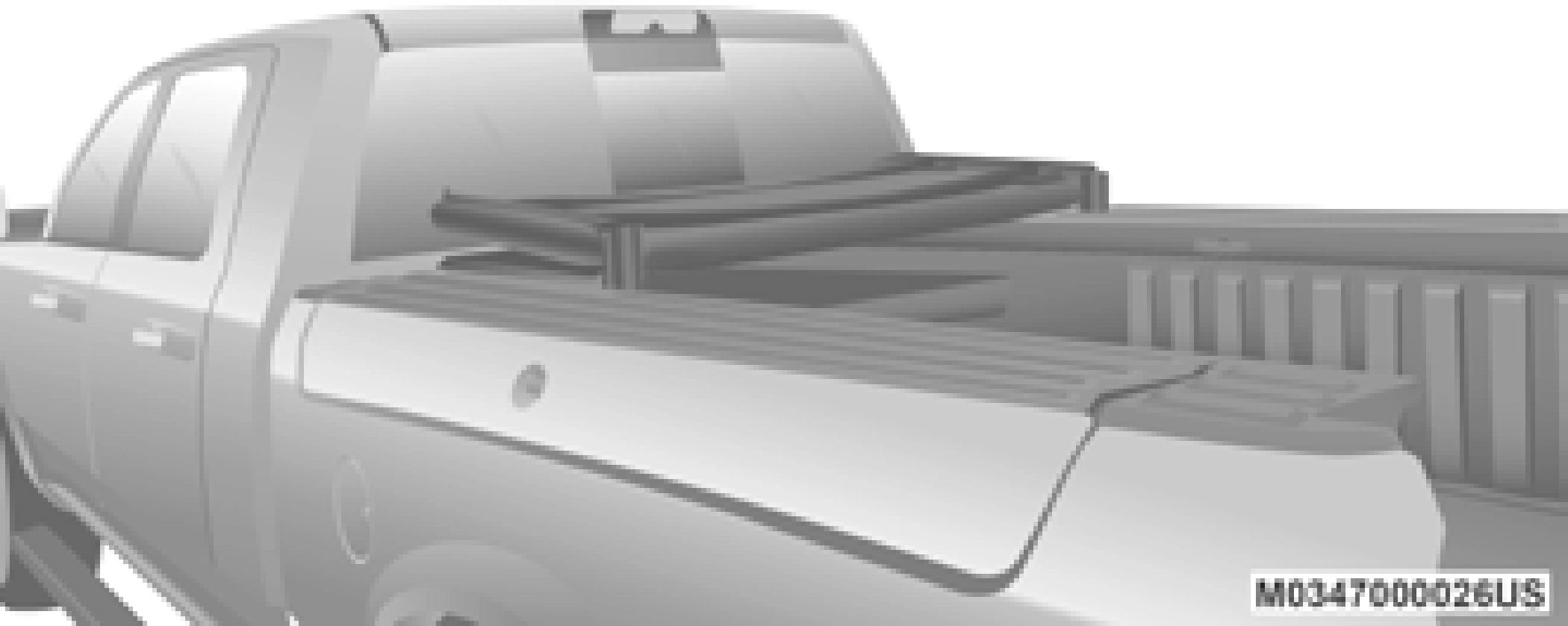

Tri-Folded Position

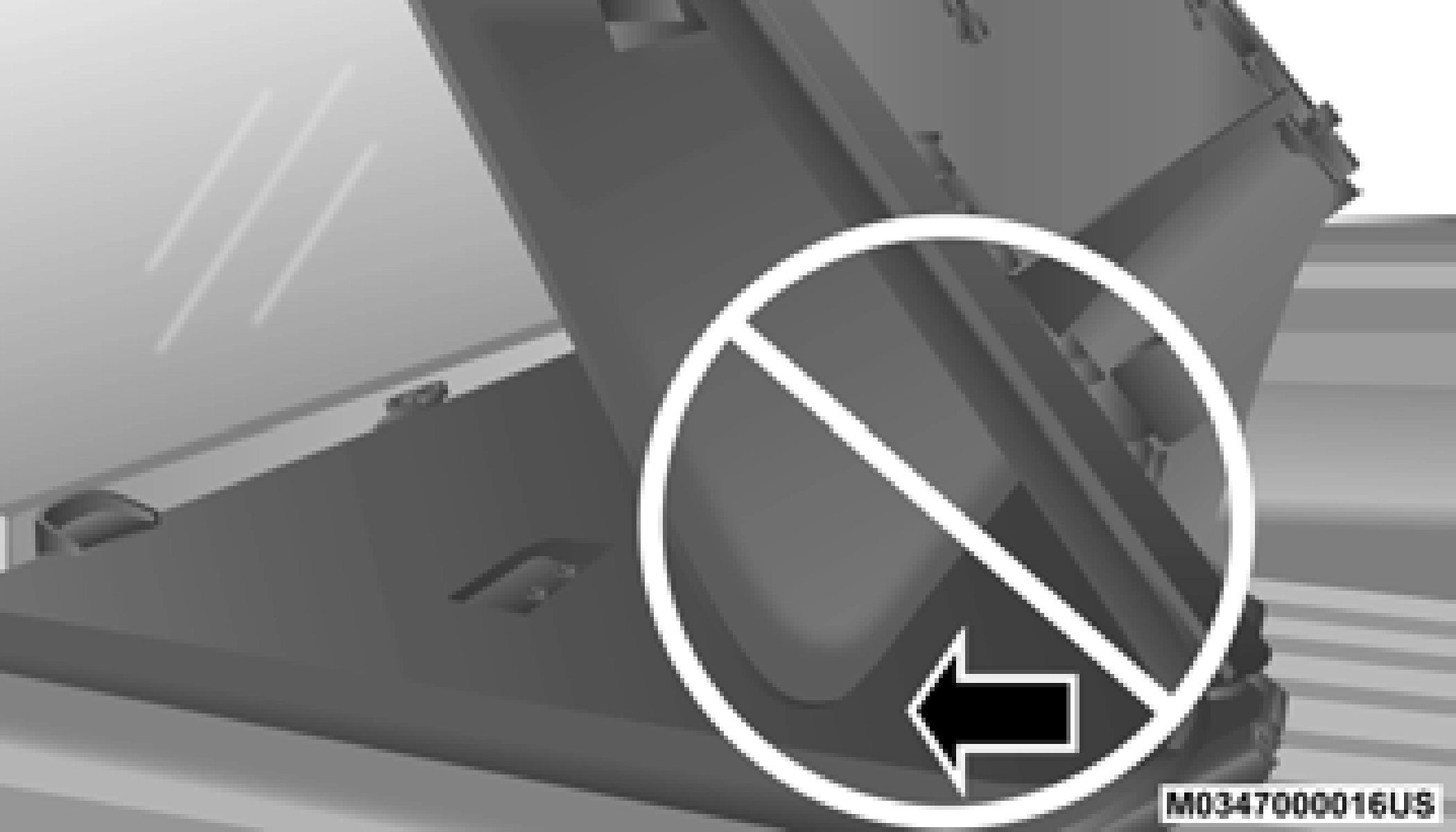

Incorrect Folding — Will Cause Damage
Released Position

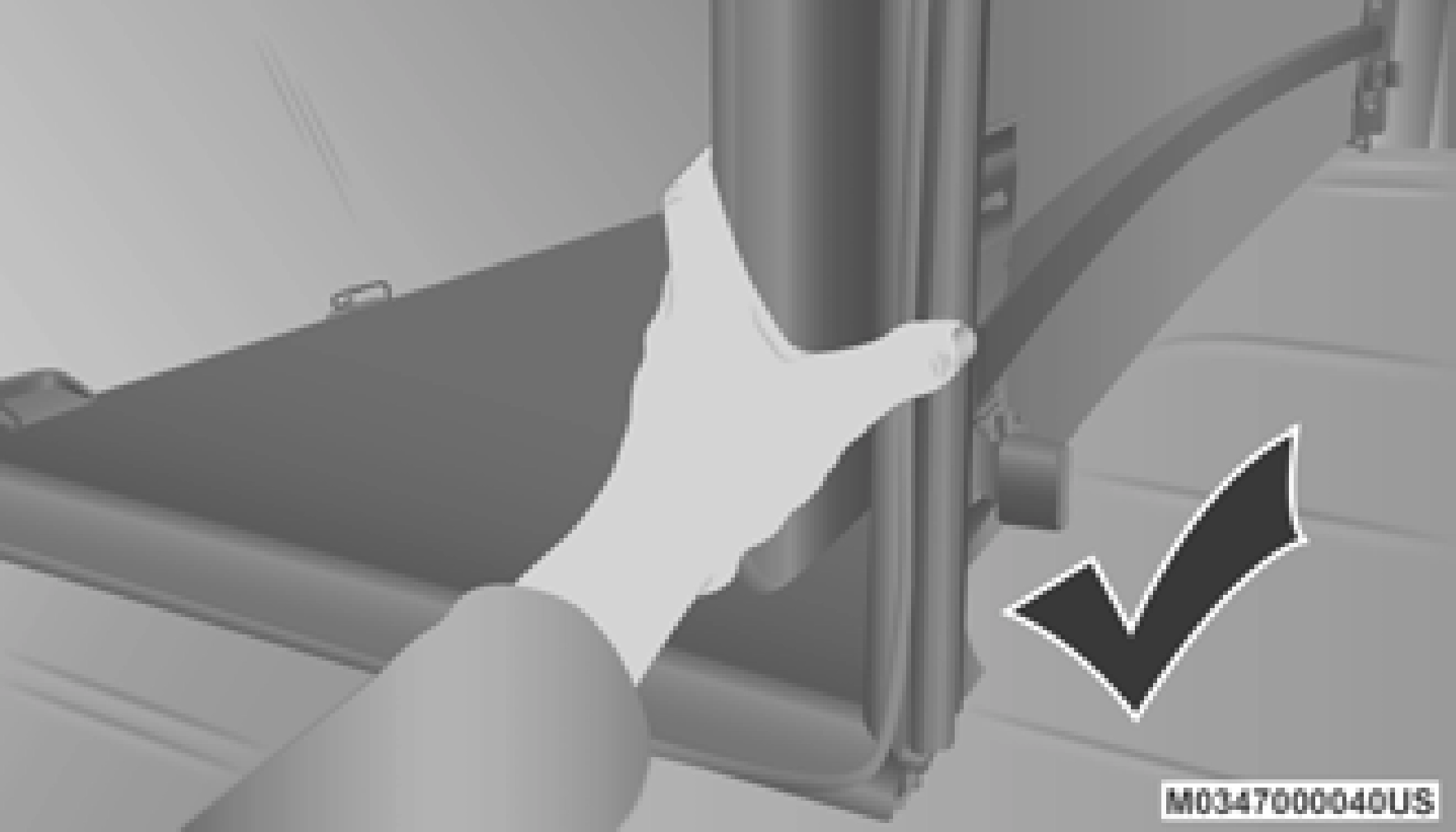

Correct Folding — Hold Panels Together
been properly stowed.
Fold the panels gently. It is not recommended to allow the panels to drop under their own weight.
6. Once in the Tri-Folded position, pull both front clamp handles down to the Released Position.
Stowed Position

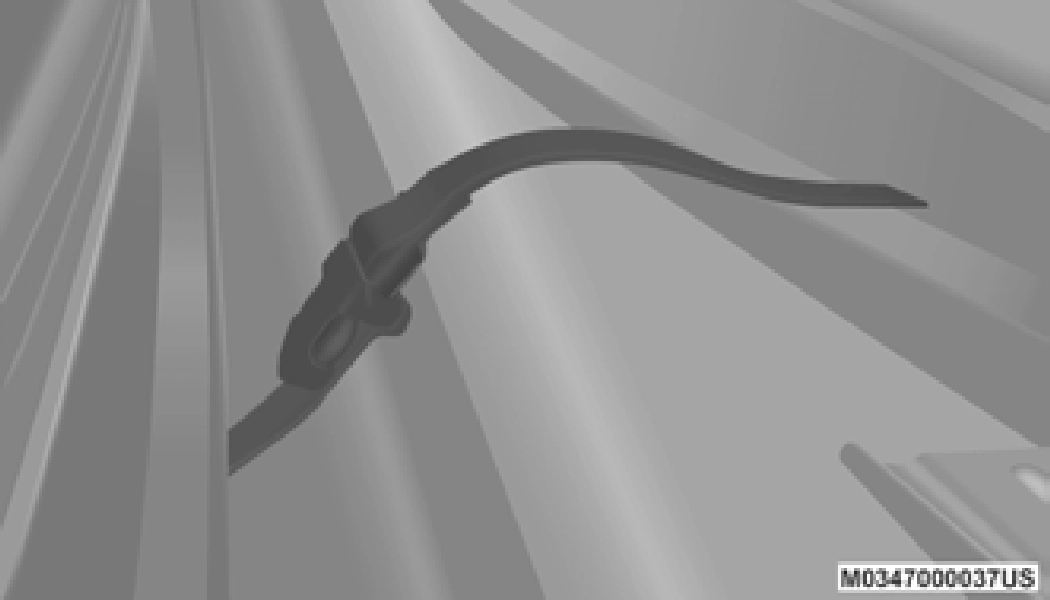

Stowage Strap
Be sure the Tonneau Cover has been folded completely before removing.
To install the Tonneau Cover follow the following steps:
Make sure to always push the Tonneau Cover all the way forward on the truck bed. Failure to do so might prevent proper clamp engagement, or interfere with the tailgate auto drop function (if equipped).
Stowed Position
Semi Clamped Position
Incorrect Folding — Will Cause Damage
Clamped Position
Intermediate Position (Vehicle Cannot Be Driven)
Once clamped, be sure the clamps are not improperly attached to the truck bed flange.
Improper Clamp Position
When folding the center and rear panels, the sections MUST be held together to avoid damage to the cover material.
Correct Folding — Hold Panels Together
9. Push clamp wires up and under the flange of box (or flange of Ram Box rail, if equipped) to the semi clamped position.

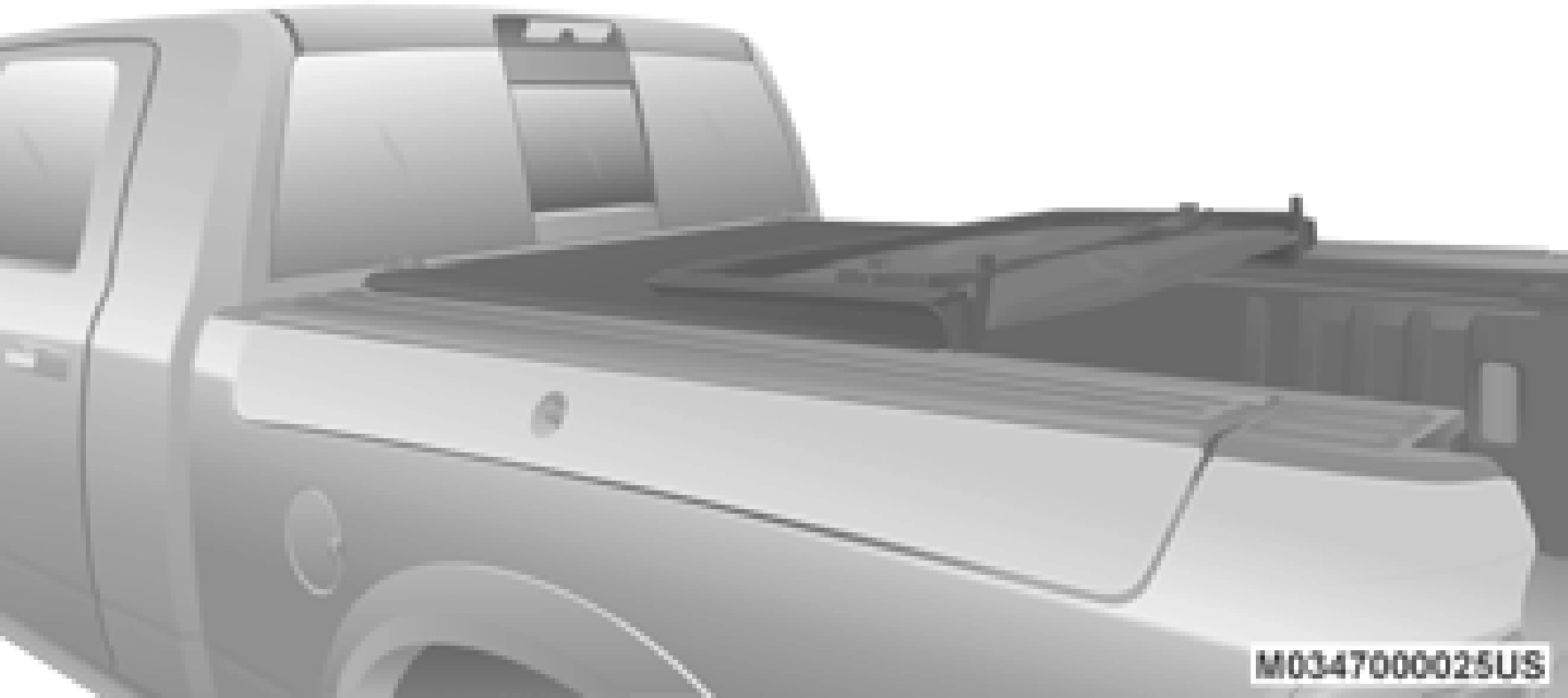

Fully Unfolded Position

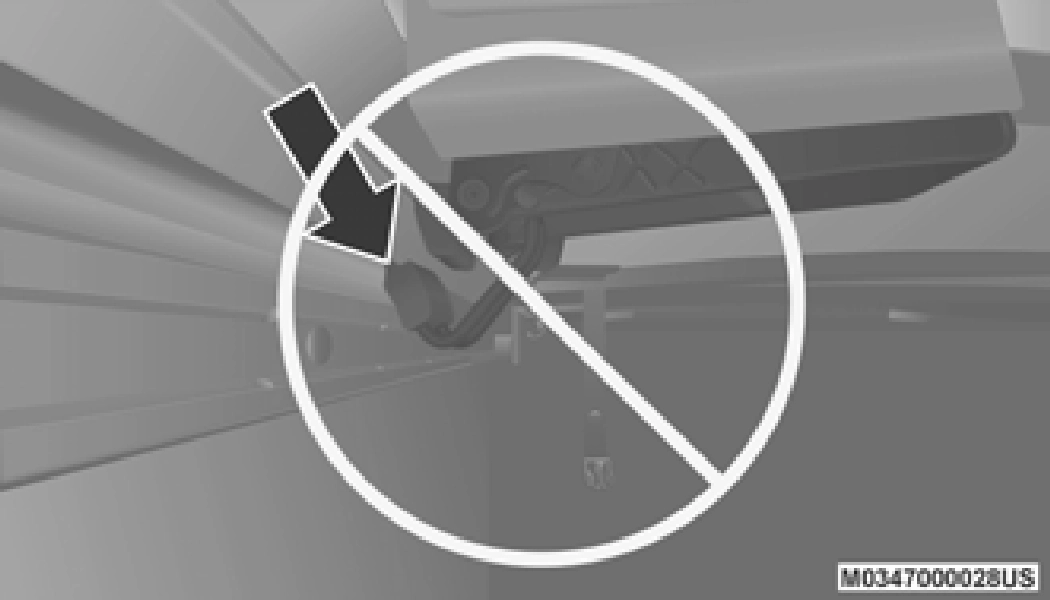

Improper Clamp Position
8. Pull the rear clamp handles down into the released position.
Stowed Position
Semi Clamped Position

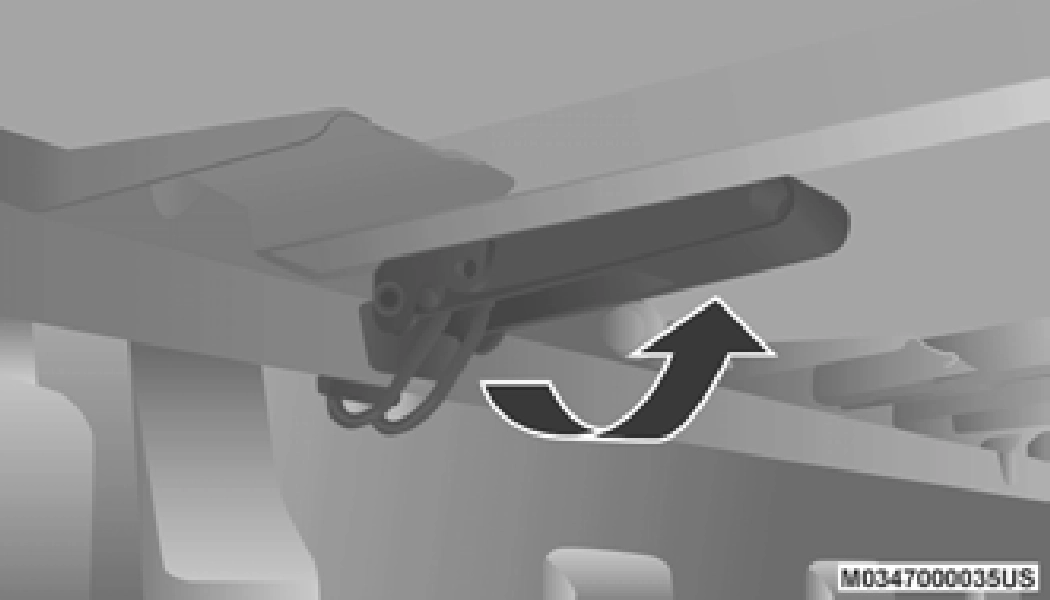

10. Push clamp handles upward to the clamped position to properly engage the clamps.
Clamped Position
Once clamped, be sure the clamps are not partially clamped to the truck bed flange.
|
CAUTION! |
|
It is the driver’s responsibility to ensure the Tonneau Cover is properly installed on the vehicle. Failure to follow this procedure can result in detachment of the Tonneau Cover from the vehicle and/or damage to the vehicle/Tonneau Cover. |
The Tonneau Cover clamps can be locked when in the clamped position by placing a lock through the locking hole.

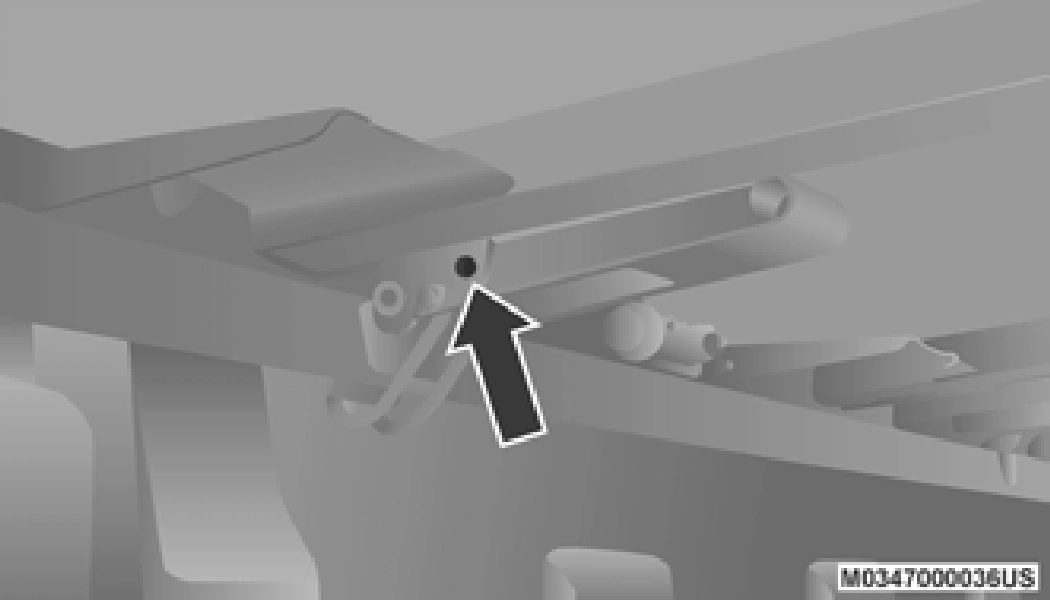

Locking Hole
For proper cleaning of the Tonneau Cover, use Mopar Whitewall & Vinyl Top Cleaner and Mopar Leather & Vinyl Conditioner/Protectant.
