IPOD®/USB/MP3 CONTROL — IF EQUIPPED
Located on the center stack, just below the instrument panel, is the main media hub. There are four total USB Ports: Two Mini-USBs (Type C) and two Standard USBs (Type A). There is also an AUX Port located in the middle of the USB Ports.
Plugging in a smartphone device to a USB Port may activate Android Auto™ or Apple CarPlay® features, if equipped. For further information, refer to “Android Auto™” or “Apple CarPlay®” in the Owner’s Manual Supplement.
Two devices can be plugged in at the same time and both ports will provide charging capabili- ties. Only one port can transfer data to the system at a time. A pop-up will appear and allow you to select the device transferring data.
For example, if a device is plugged into the Type A USB port and another device is plugged into the Type C USB port, a message will appear and allow you to select which device to use.

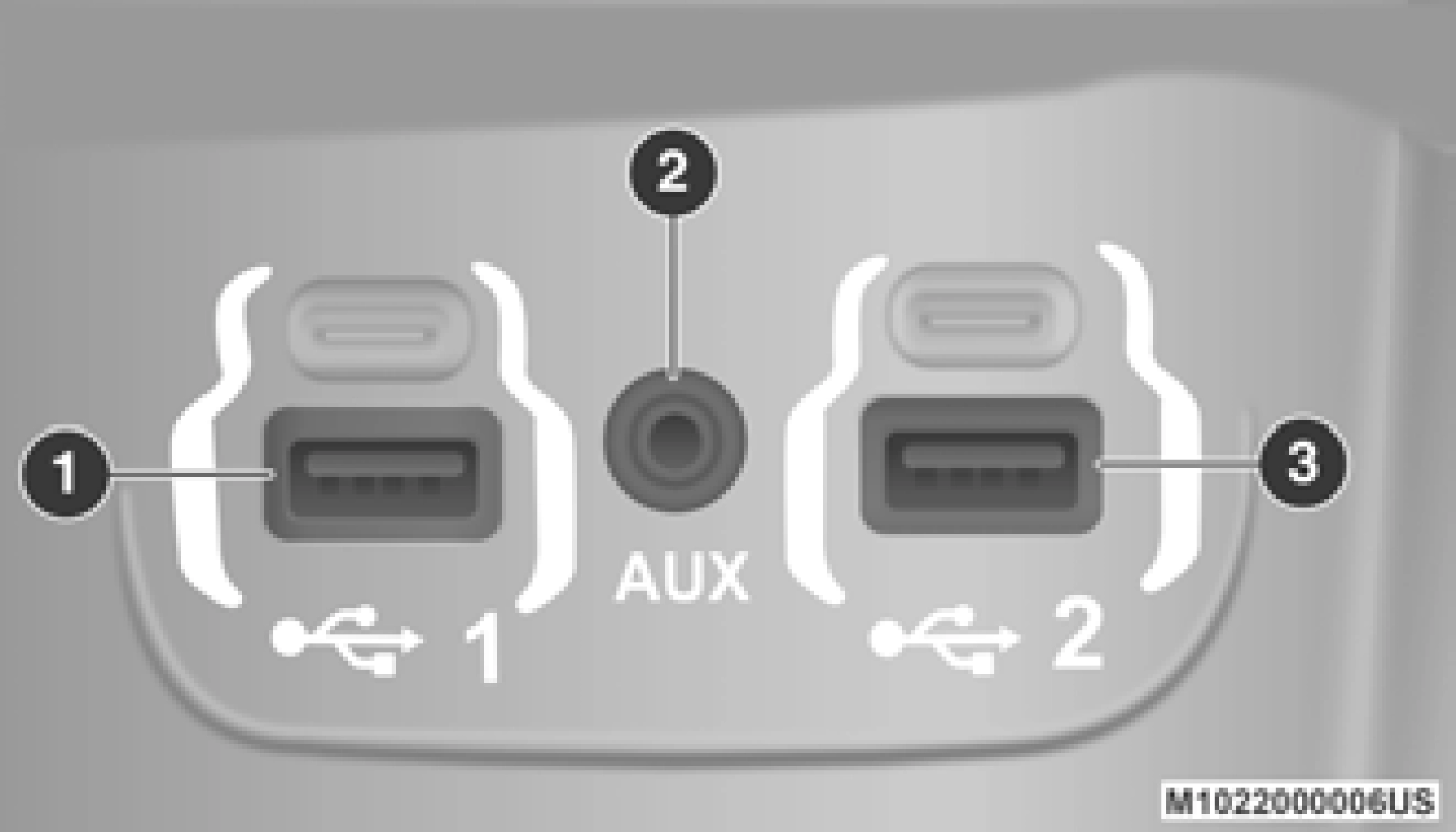

Center Stack USB/AUX Media Hub
1 — Standard USB Type A Port #1 2 — AUX Port
3 — Standard USB Type A Port #2
A third and fourth USB Ports are located behind the center console, above the power inverter. One is a charge only port, and can only charge USB devices. The other USB Port allows you to play music from iPod®/MP3 players or USB devices through your vehicle’s sound system.

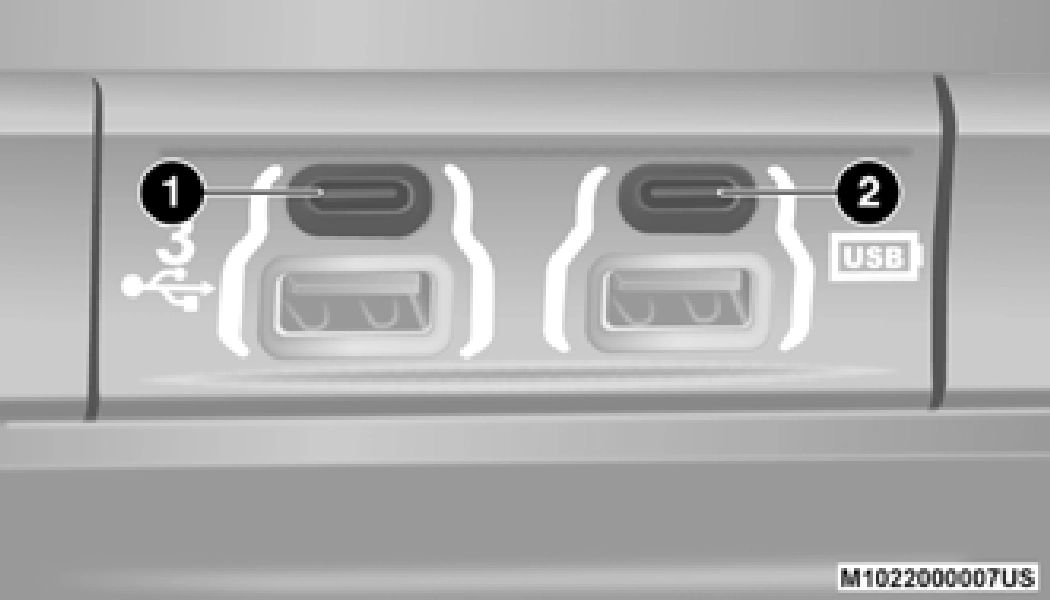

Rear Center Console Mini-USB (Type C) USB Ports
1 — Mini-USB Type C Port #1 2 — Mini-USB Type C Port #2

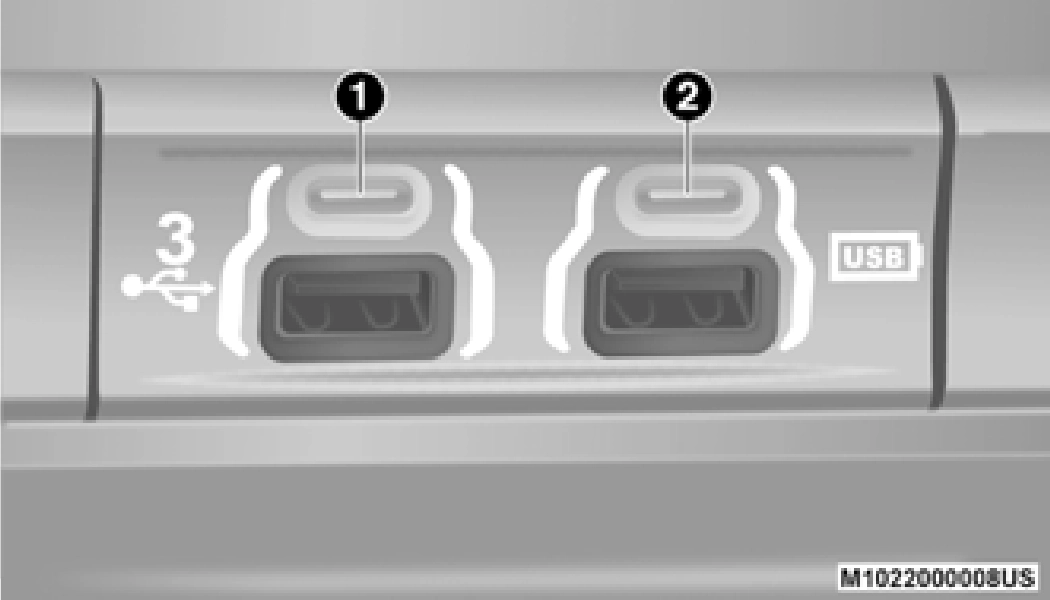

Rear Center Console Standard (Type A) USB Ports
1 — Standard USB Type A Port #1 2 — Standard USB Type A Port #2
Applicable to only Uconnect 4C/4C NAV With 8.4-inch Display, and Uconnect 4C NAV With 12-inch Display radios, different scenarios are listed below when a non-phone device is plugged into the smaller and larger USB Ports, and when a phone device is plugged into the smaller and larger USB Ports:
Plugging in a phone or another USB device may cause the connection to a previous device to be lost.
If equipped, your vehicle may also contain a USB Port located on the top tray of the vehicles center console.

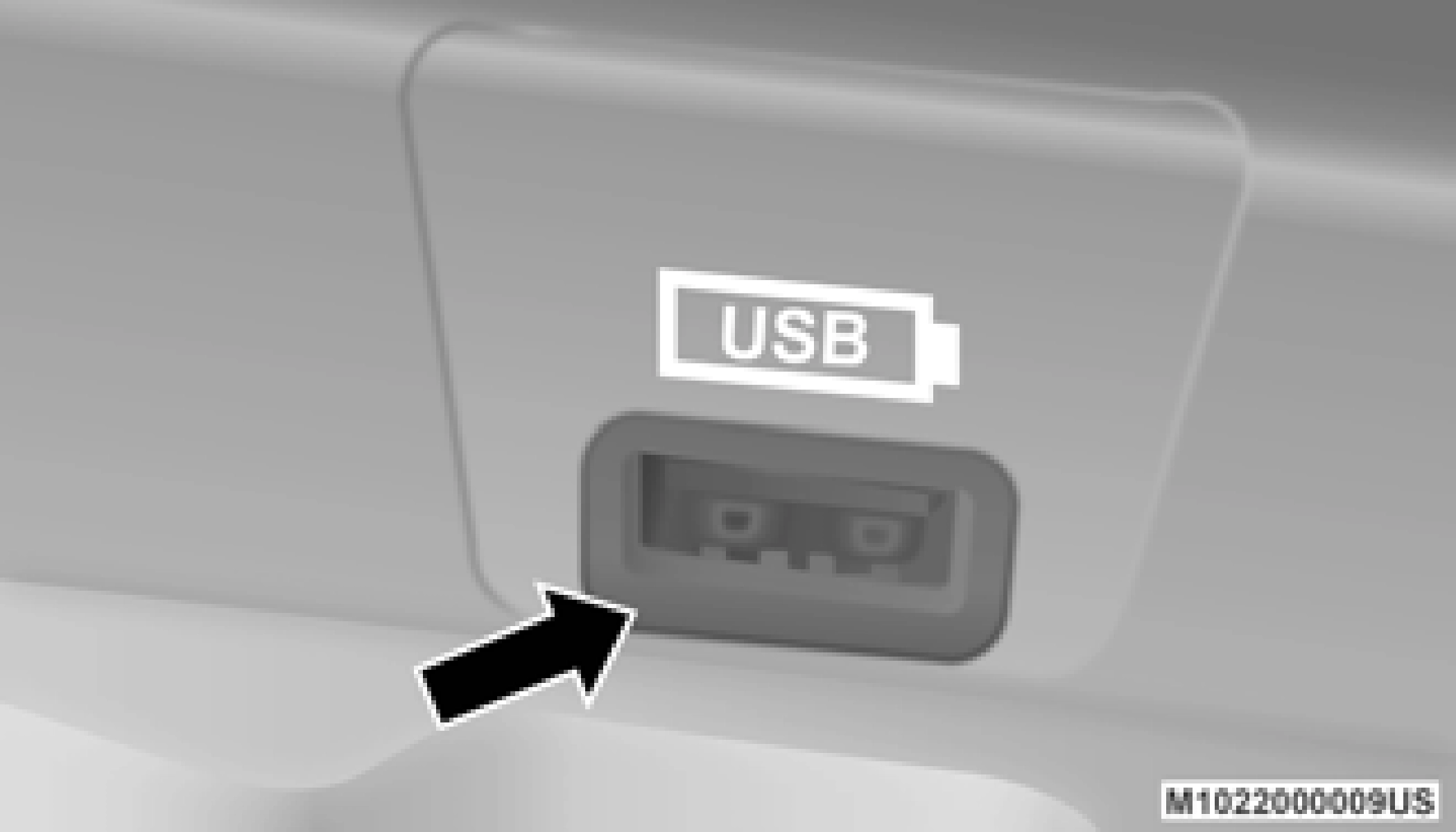

Center Console Charge Only USB Port
If equipped, two Mini-USB Ports (Type C), two Standard USB Ports (Type A), and one AUX Port may be located to the left of the center stack, just below the climate controls.

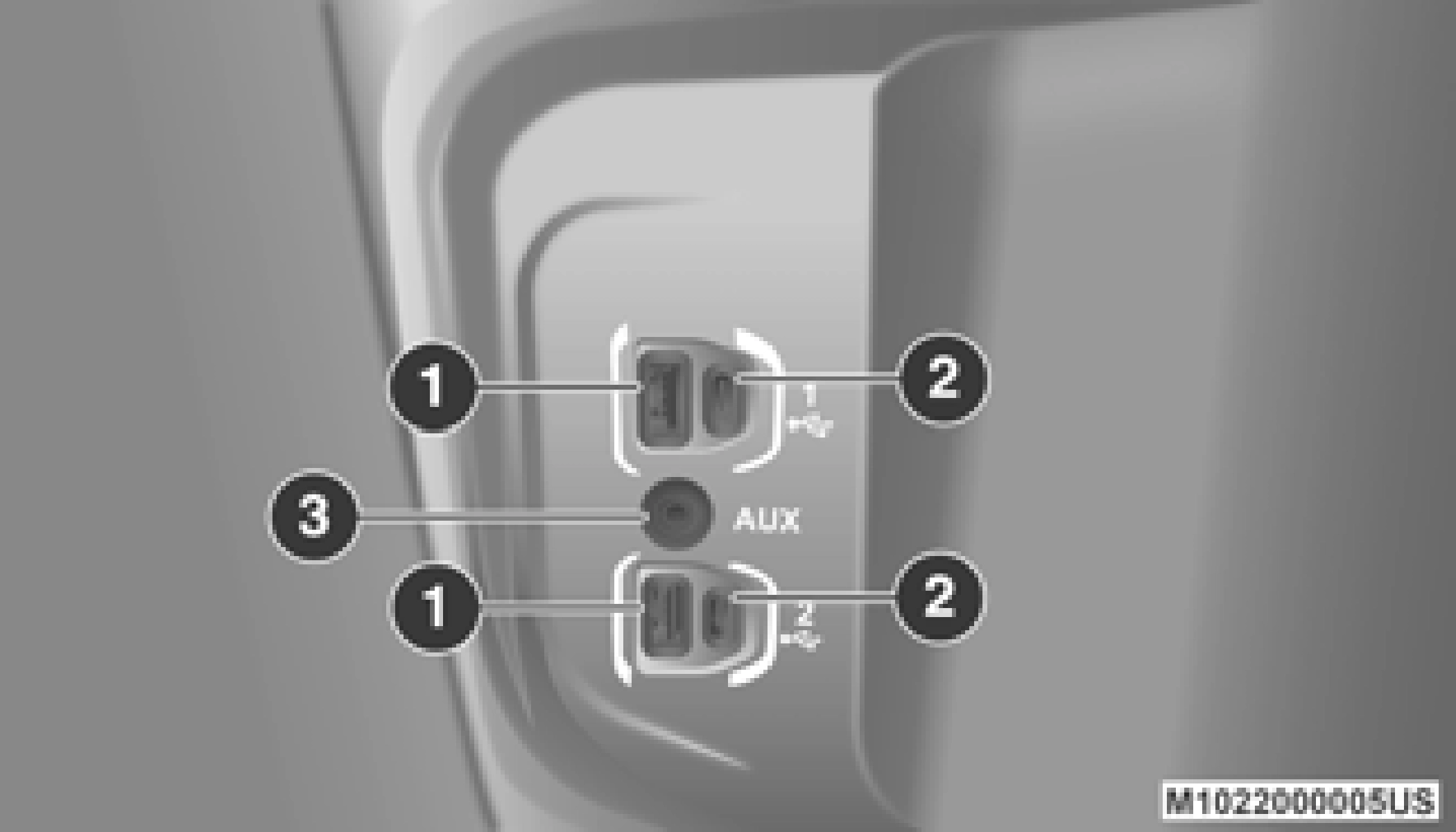

Center Console USB/AUX Media Hub
1 — Standard USB Type A Ports 2 — Mini-USB Type C Ports
3 — AUX Port
Some USB ports support media and charging. You can use features, such as Apple CarPlay®, Android Auto™, Pandora® and others while charging your phone.
Plugging in a phone or another USB device may cause the connection to a previous device to be lost.
For further information, refer to the Uconnect Owner’s Manual Supplement or visit Uconnect- Phone.com.
