EXTERIOR LIGHTS
The multifunction lever is located on the left side of the steering column.
Multifunction Lever
The headlight switch is located on the left side of the instrument panel. This switch controls the operation of the headlights, parking lights, auto- matic headlights (if equipped), instrument panel light dimming, cargo light/trailer spotter lights (if equipped), and fog lights (if equipped).

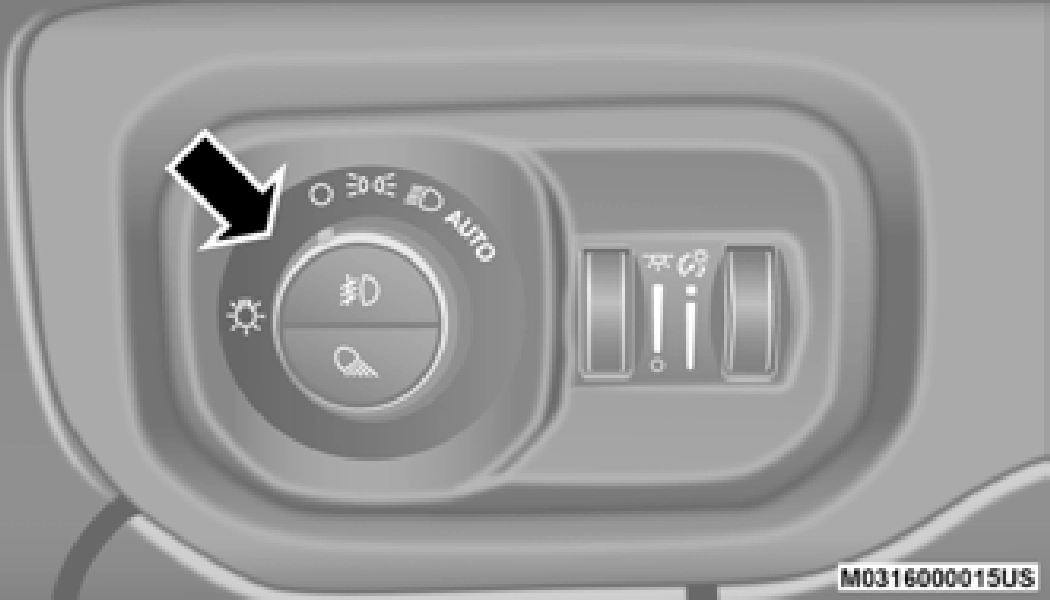

Headlight Switch
Rotate the headlight switch clockwise to the first detent for parking light and instrument panel light operation. Rotate the headlight switch to the second detent for headlight, parking light, and instrument panel light opera- tion.
The headlights on your vehicle will illuminate when the engine is started and the transmis- sion is in any gear except PARK. This provides a constant "lights on" condition until the ignition is placed in the OFF position. The lights illuminate at less than half of normal intensity. If the parking brake is applied, the Daytime Running
Lights (DRLs) will turn off. Also, if a turn signal is activated, the DRL lamp on the same side of the vehicle may turn off for the duration of the turn signal activation. Once the turn signal is no longer active, the DRL lamp will illuminate.
If allowed by law in the country in which the vehicle was purchased, the Daytime Running Lights can be turned on and off using the Ucon- nect System, refer to “Uconnect Settings” in “Multimedia” for further information.
Push the multifunction lever toward the instru- ment panel to switch the headlights to high beam. Pulling the multifunction lever back toward the steering wheel will turn the low beams back on, or shut the high beams off.
The Automatic High Beam Headlamp Control system provides increased forward lighting at night by automating high beam control through the use of a digital camera mounted on the inside rearview mirror or forward facing camera. This camera detects vehicle specific light and
automatically switches from high beams to low beams until the approaching vehicle is out of view.
10 seconds of placing the ignition in the ON position. The system will return to the default setting when the ignition is OFF.
If the windshield or Automatic High Beam Head- lamp Control mirror is replaced, the mirror must be re-aimed to ensure proper performance. See a local authorized dealer.
The Automatic High Beams will not activate until the vehicle is at or above 12 mph (20 km/h).
The Automatic High Beams can also be deacti- vated through the Uconnect system. Refer to “Uconnect Settings” in “Multimedia” for further information.
You can signal another vehicle with your head- lights by lightly pulling the multifunction lever toward you. This will cause the high beam head- lights to turn on, and remain on, until the lever is released.
This system automatically turns your headlights on or off based on ambient light levels. To turn the system on, turn the headlight switch to the extreme clockwise position aligning the indi- cator with the AUTO on the headlight switch. When the system is on, the Headlight Time Delay feature is also on. This means your head-
lights will stay on for up to 90 seconds after the ignition is placed in the OFF position. To turn the Automatic System off, turn the headlight switch counterclockwise to the O (off) position.
The engine must be running before the head- lights will come on in the Automatic mode.
This is a system consisting of LED (low/high beam) headlights that incorporate dynamic cornering with 5-degree inboard/15-degree outboard swivel. The headlights continuously and automatically adapt to the driving condi- tions around bends or when cornering based on steering wheel angle.
The system directs the headlights to light up the road in the best way, taking into account the speed of the vehicle and the bend or corner angle, as well as the speed of the vehicle while the steering wheel is being turned.
The adaptive lights are automatically activated when the vehicle is traveling above approxi- mately 5 mph (8 km/h).
This system can be turned on/off through the Uconnect settings under “Steering Directed
Lights”. Refer to Uconnect Settings in “Multi- media” for further information.
To turn on the parking lights and instrument
panel lights, from the O (off) position, rotate the 2
headlight switch clockwise to the first detent. To turn off the parking lights, rotate the headlight switch back to the O (off) position.
When this feature is active, the headlights will turn on approximately 10 seconds after the wipers are turned on if the headlight switch is placed in the AUTO position. In addition, the headlights will turn off when the wipers are turned off, if they were turned on by this feature.
This feature can be programmed through the Uconnect system. Refer to “Uconnect Settings” in “Multimedia” for further information.
To aid in your exit, your vehicle is equipped with a headlight delay that will leave the headlights on for up to 90 seconds. This delay is initiated when the ignition is turned off while the head-
light switch is on, and then the headlight switch is cycled off. Headlight delay can be canceled by either turning the headlight switch on then off, or by placing the ignition in the ON/RUN posi- tion.
This feature can be programmed through the Uconnect system. Refer to “Uconnect Settings” in “Multimedia” for further information.
Turn Signals

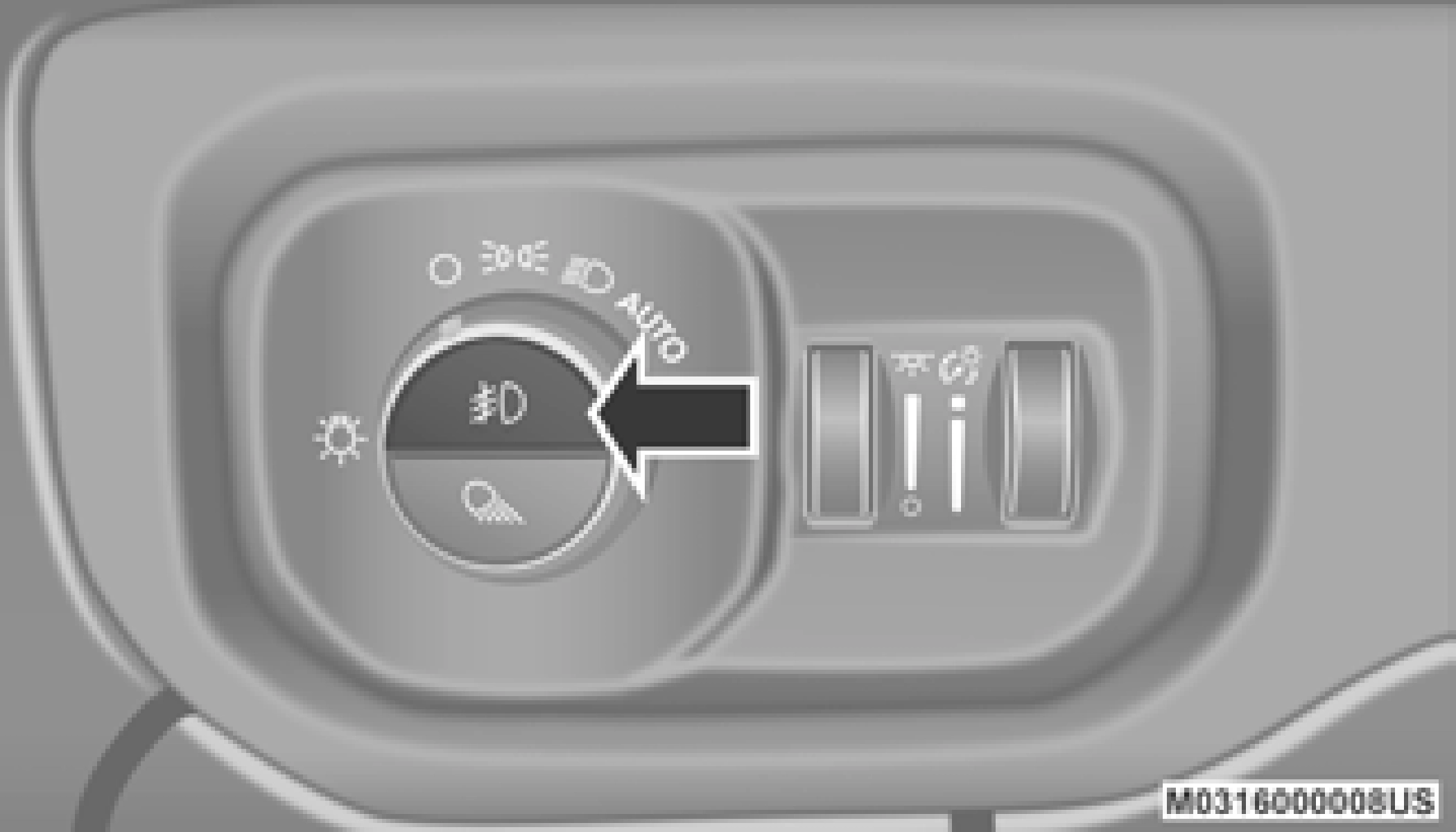

Front Fog Light Switch
signal (right or left) will flash three times then automatically turn off.
The cargo light and bed lights (if equipped) and trailer spotter lights (if equipped) are turned on by pushing the cargo lights button located on the lower half of the headlight switch.
If the headlights, parking lights, or cargo lights are left on after the ignition is placed in the OFF position, a chime will sound and a message will appear in the instrument cluster display when the driver’s door is opened.
To activate the front fog lights, turn on the parking lights or low beam headlights and push in the center of the headlight switch control knob. Pushing the headlight switch control knob a second time will turn the front fog lights off.
Move the multifunction lever up or down and the arrows on each side of the instrument cluster display will flash to show proper opera- tion of the front and rear turn signal lights.
If either light remains on and does not flash, or there is a very fast flash rate, check for a defec- tive outside light bulb. If an indicator fails to light when the lever is moved, it would suggest that the indicator bulb is defective.

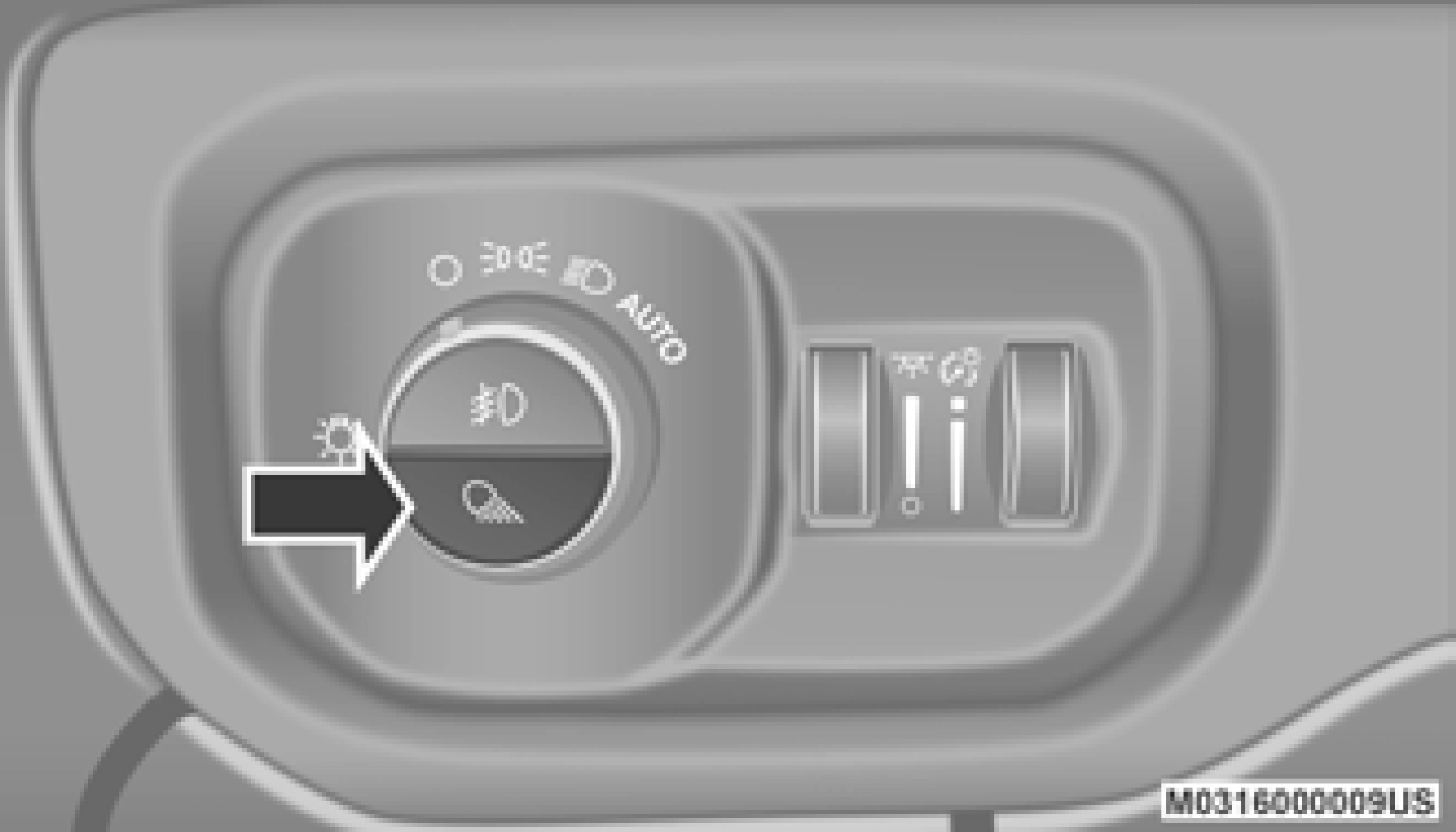

Tap the multifunction lever up or down once, without moving beyond the detent, and the turn Cargo/Bed Lights Button On Headlight Switch
If the vehicle’s speed is 0 mph (0 km/h), these lights can also be turned on using the switch located just inside the pickup box, on the lower part of the bed light lens. A telltale will illumi- nate in the instrument cluster display when these lights are on. Pushing the switch a second time will turn the lights off.

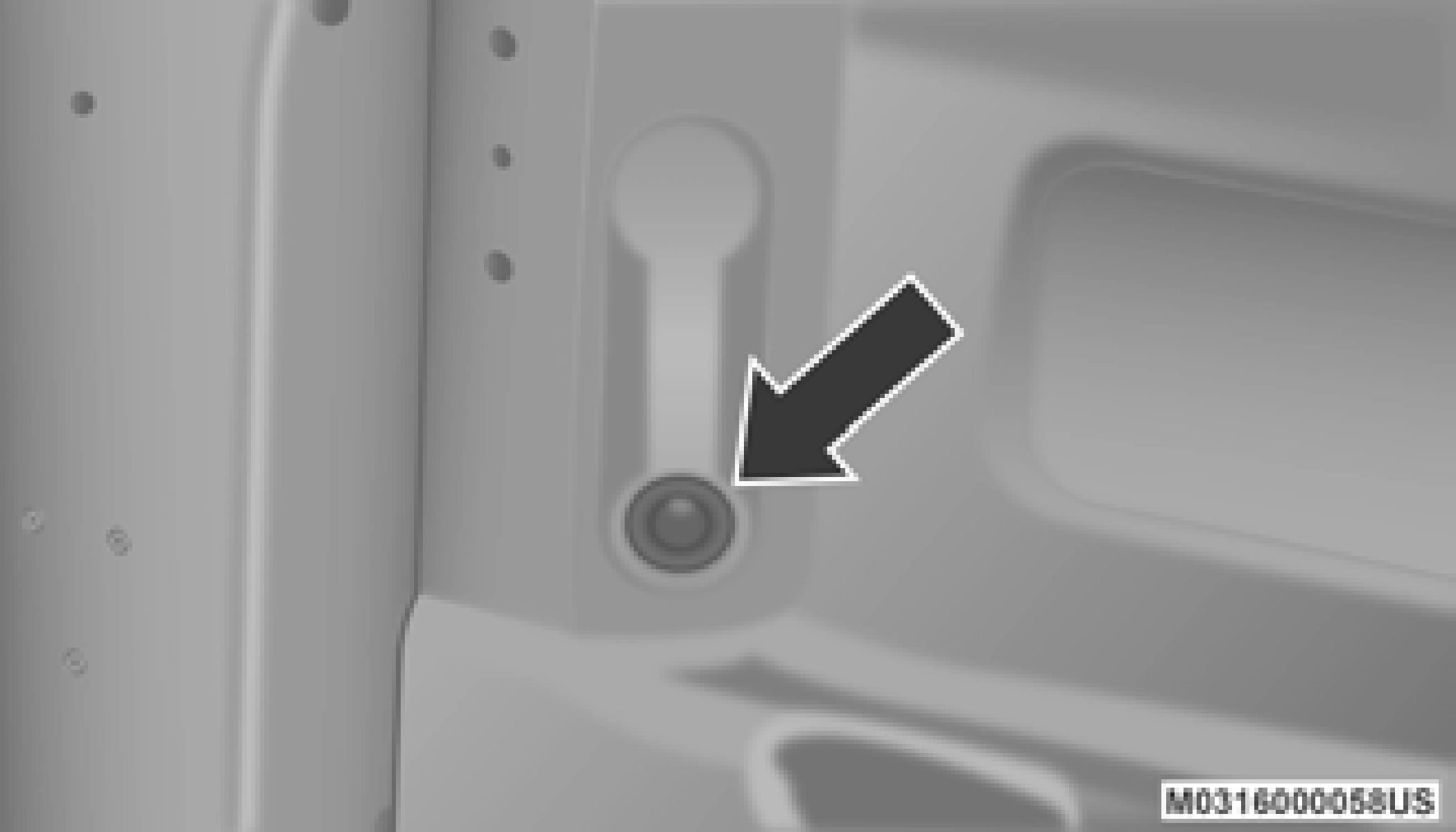

Bed Light Switch Without RamBox

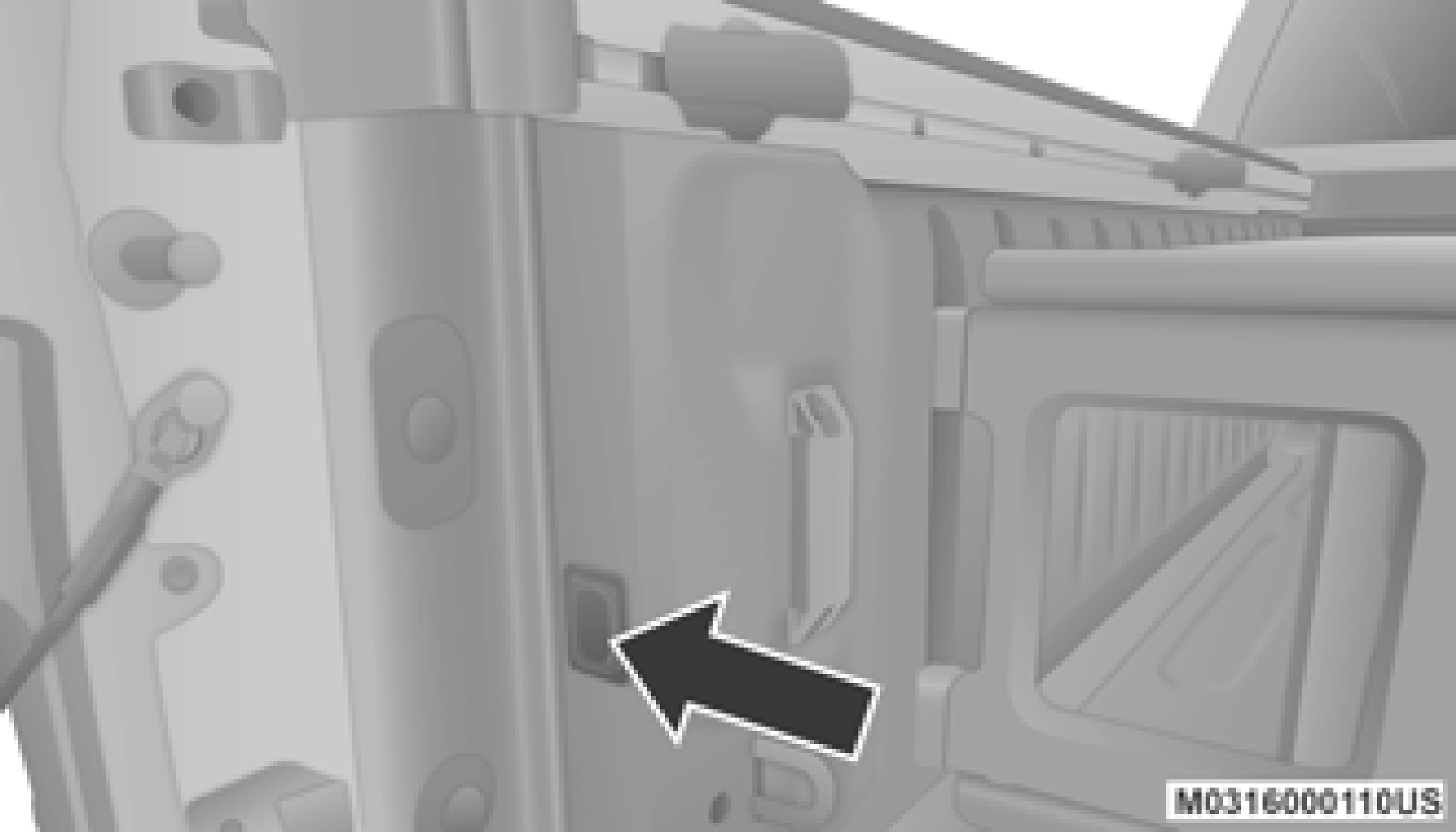

Bed Light Switch With RamBox
The cargo light and bed lights (if equipped) will turn on for approximately 30 seconds when a key fob unlock button is pushed, as part of the Illuminated Entry feature.
When these lights are activated using the button on the headlight switch, the trailer spotter lights will remain illuminated when the vehicle transmission is in PARK, NEUTRAL, or REVERSE. The trailer spotter lights will turn off when the vehicle transmission is placed in DRIVE.
For vehicles shipped to or sold in the states of California or Mississippi, the cargo, bed, and mirror spotter lights will not work while the vehicle is in motion. In every other state, the cargo and mirror spotter lights will turn off when the vehicle is in motion, but the bed light will remain on. In all states, including California and Mississippi, if a bed camera is deactivated, the bed lights will turn back on.
To protect the life of your vehicle’s battery, load shedding is provided for both the interior and exterior lights.
If the ignition is OFF, the interior lights will auto- matically turn off when:
Battery saver mode is canceled if the ignition is 2
ON.
If the headlights remain on while the ignition is placed in the OFF position, the exterior lights will automatically turn off after eight minutes. If the headlights are turned on and left on for eight minutes while the ignition is OFF, the exterior lights will automatically turn off.
