WHEEL AND TIRE TORQUE SPECIFICATIONS
Proper lug nut/bolt torque is very important to ensure that the wheel is properly mounted to the vehicle. Any time a wheel has been removed and reinstalled on the vehicle, the lug nuts/bolts should be torqued using a properly calibrated torque wrench using a high quality six sided (hex) deep wall socket.
The brake system power assist is provided by a hydro-boost 8
unit which shares fluid with the power steering system. You may experience some clicking or hissing noises from the hydro-boost system during hard braking conditions.
NOTE:
Under cold temperatures, pedal effort will be higher than normal until the power steering fluid reaches operating temperature.
**Use only your authorized dealer recommended lug nuts/ bolts and clean or remove any dirt or oil before tightening.
NOTE:
Dual wheels are flat mounted, center piloted. The lug nuts are a two-piece assembly. When the tires are being rotated or replaced, clean these lug nuts and add two drops of oil at the
interface between the lug nut/bolt and the washer. Do not
oil wheel studs.

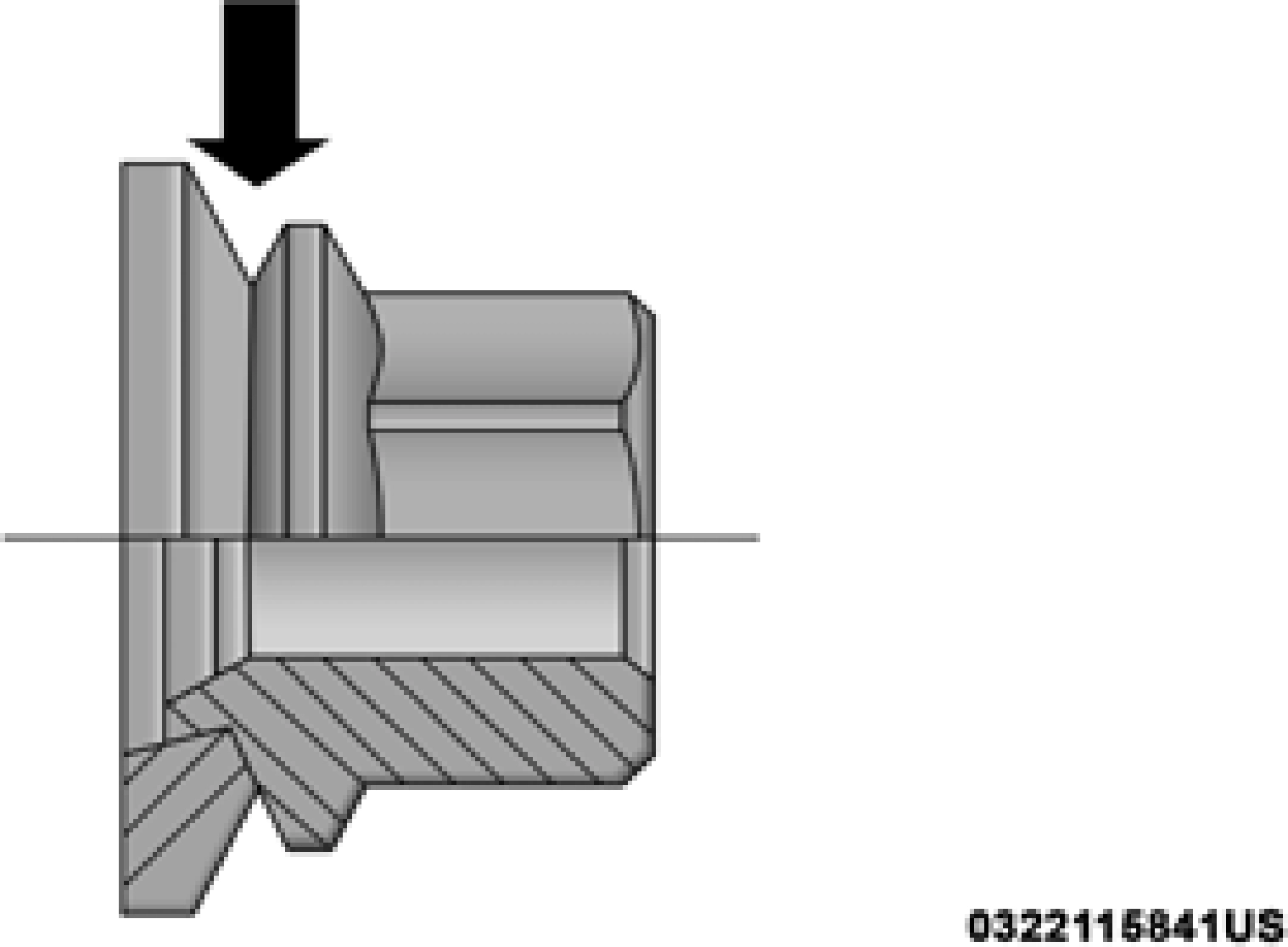

Two-Piece Lug Nut
Inspect the wheel mounting surface prior to mounting the tire and remove any corrosion or loose particles.

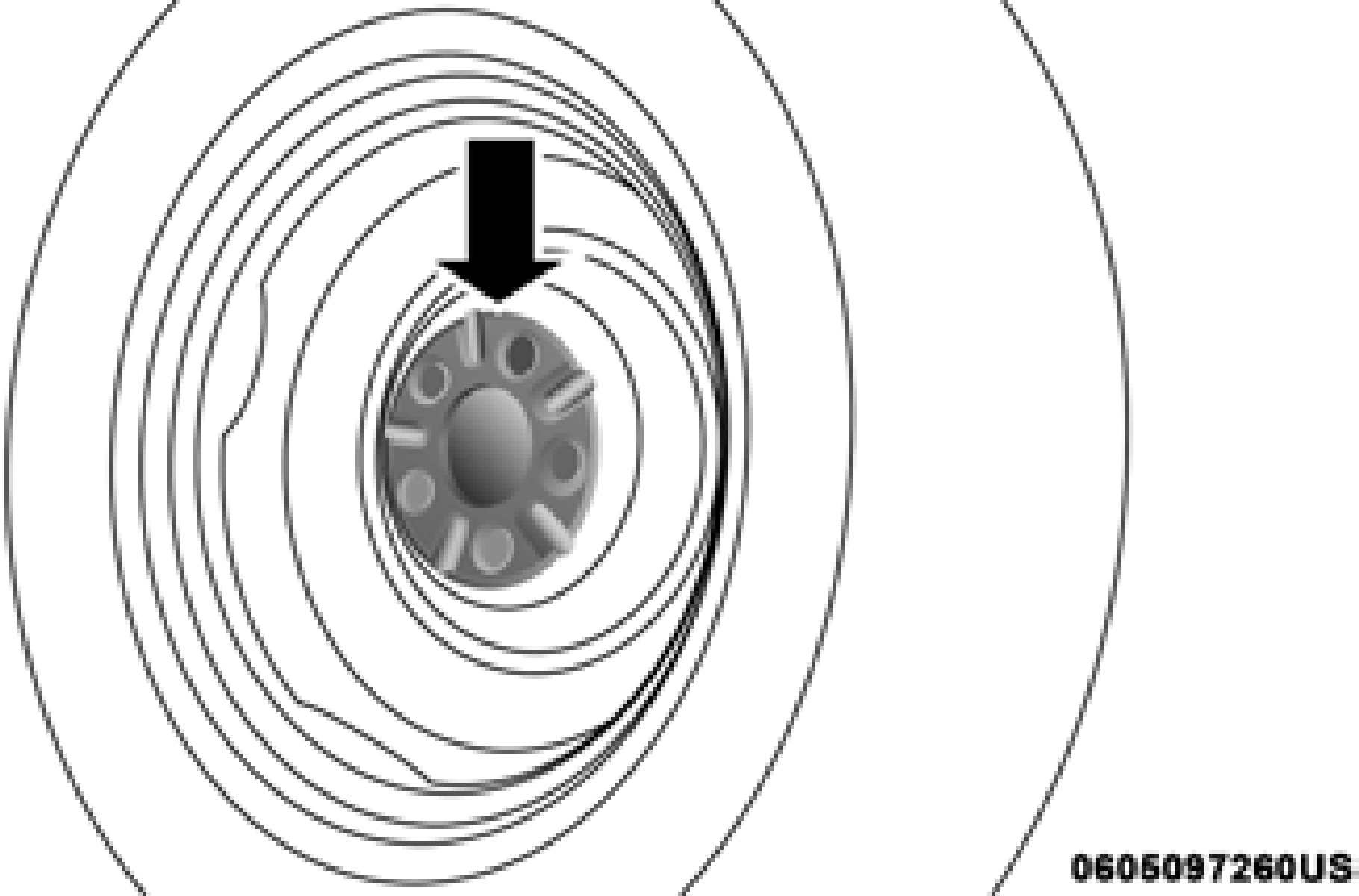

Wheel Mounting Surface
Tighten the lug nuts/bolts in a star pattern until each nut/ bolt has been tightened twice. Ensure that the socket is fully engaged on the lug nut/bolt (do not insert it halfway).
After 25 miles (40 km), check the lug nut/bolt torque to be sure that all the lug nuts/bolts are properly seated against the wheel.

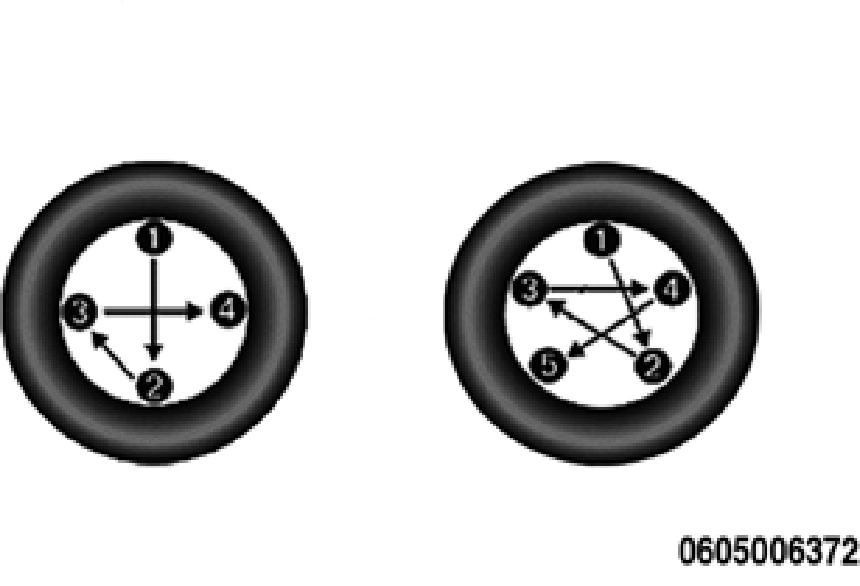

Four And Five Lug Nuts/Bolts Torque Pattern
