2019 RAM 2500 Owners Manual - SEATS

SEATS

Seats are a part of the Occupant Restraint System of the vehicle.

While sitting in the seat, pull up on the handle and slide the seat forward or rearward. Release the bar once you have reached the desired position. Then, using body pressure, move forward and rearward on the seat to be sure that the

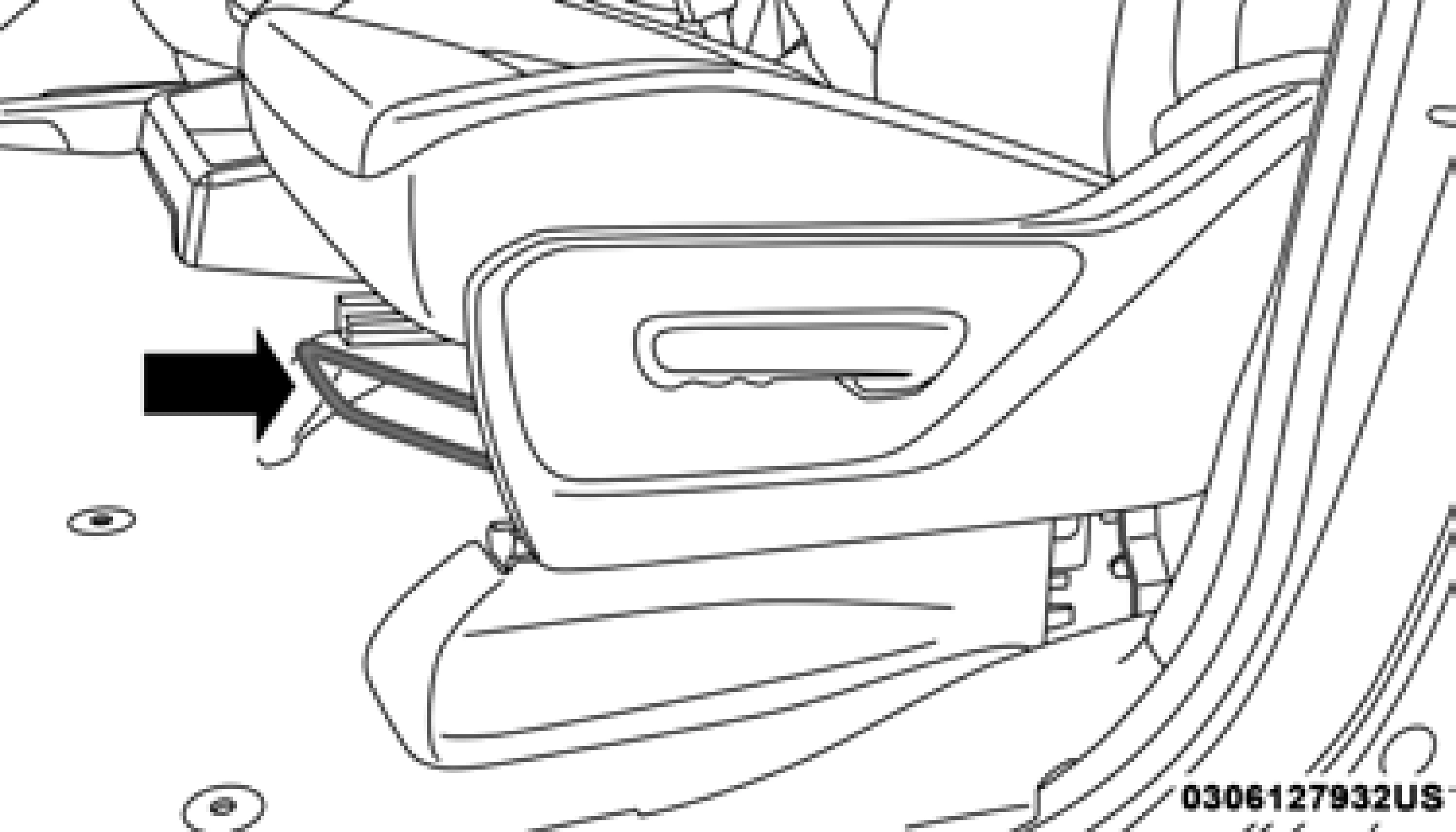

Both front seats are adjustable forward or rearward. The

seat adjusters have latched. 2

manual seat adjustment handle is located under the seat cushion at the front edge of each seat.

Manual Seat Adjustment Bar

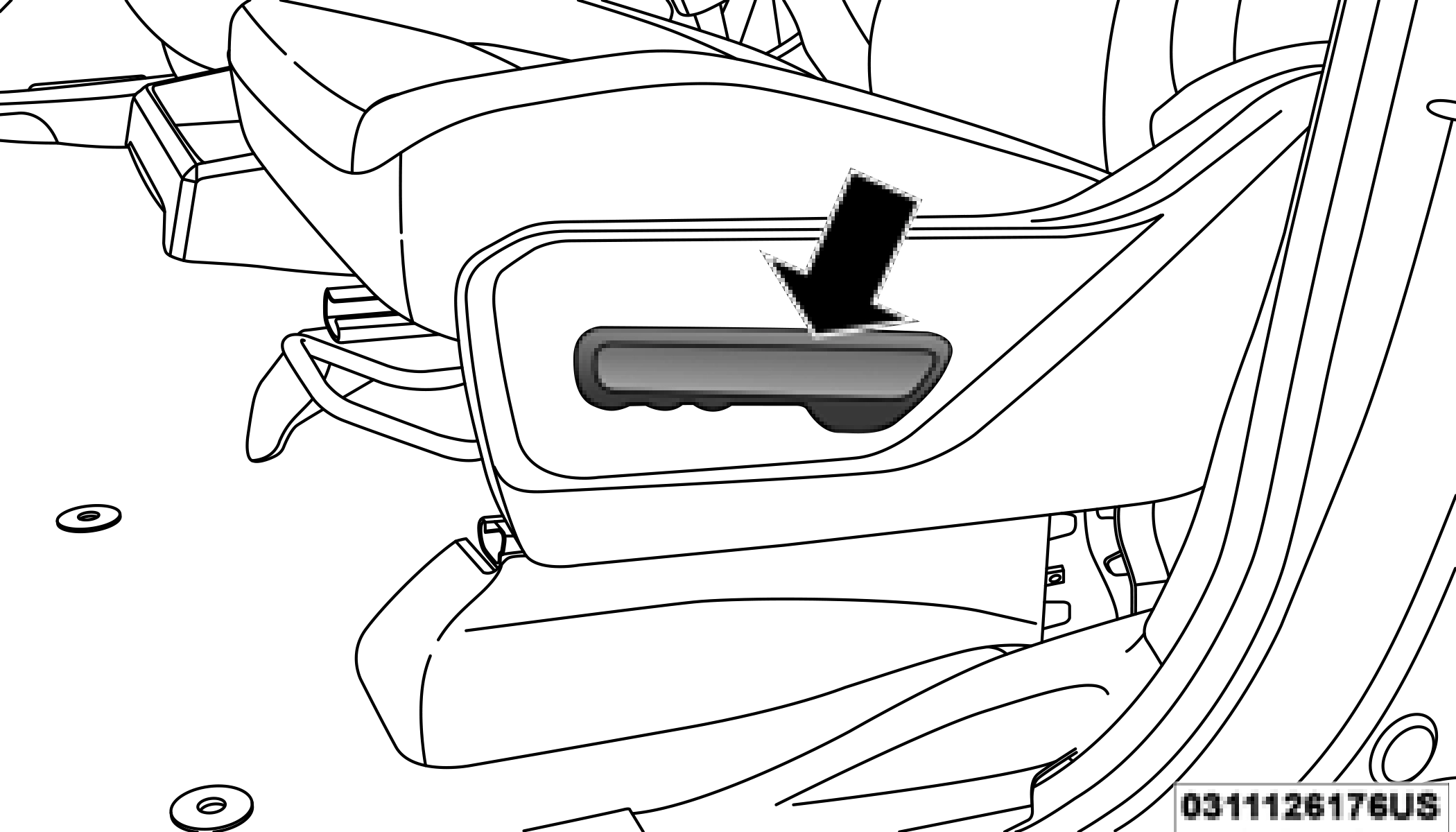

The recline lever is located on the outboard side of the seat. To recline the seat, lean forward slightly, lift the lever, lean back to the desired position and release the lever. To return the seatback to its normal upright position, lean forward and lift the lever. Release the lever once the seat back is in the upright position.

Manual Recline Lever

The seat is divided into three segments. The outboard seat portions are each 40% of the total width of the seat. On some models, the back of the center portion (20%) easily folds down to provide an armrest/center storage compartment.

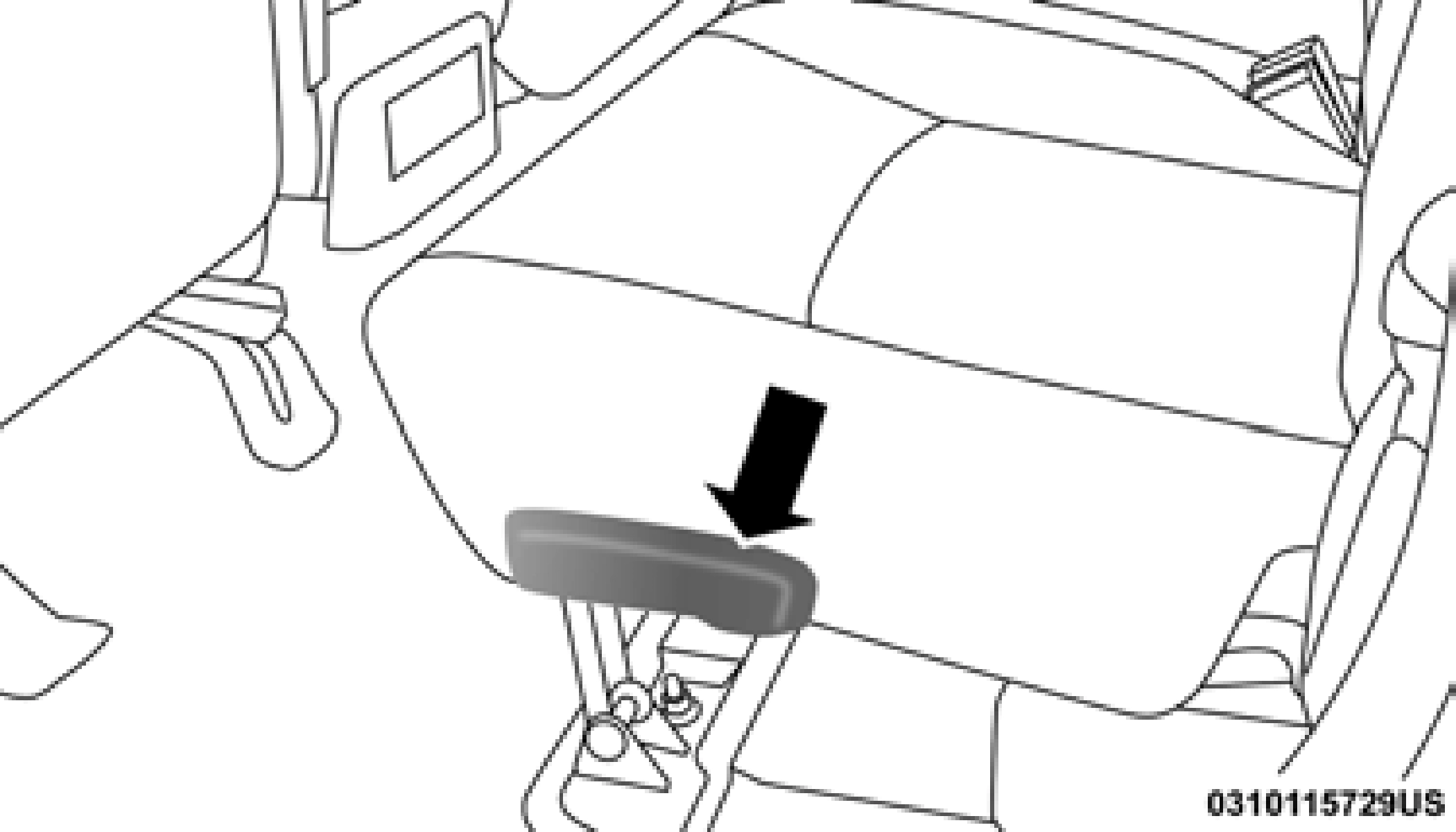

The recliner handle is located on the outside of the seat cushion. To adjust the seatback, lift upward on the handle,

Some models may be equipped with an eight-way power driver's seat. The power seat switches are located on the

lean back on the seatback and when you reach the desired

outboard side of the driver's seat cushion. There are two 2

position, release the handle.

Rear Seat Recliner Handle

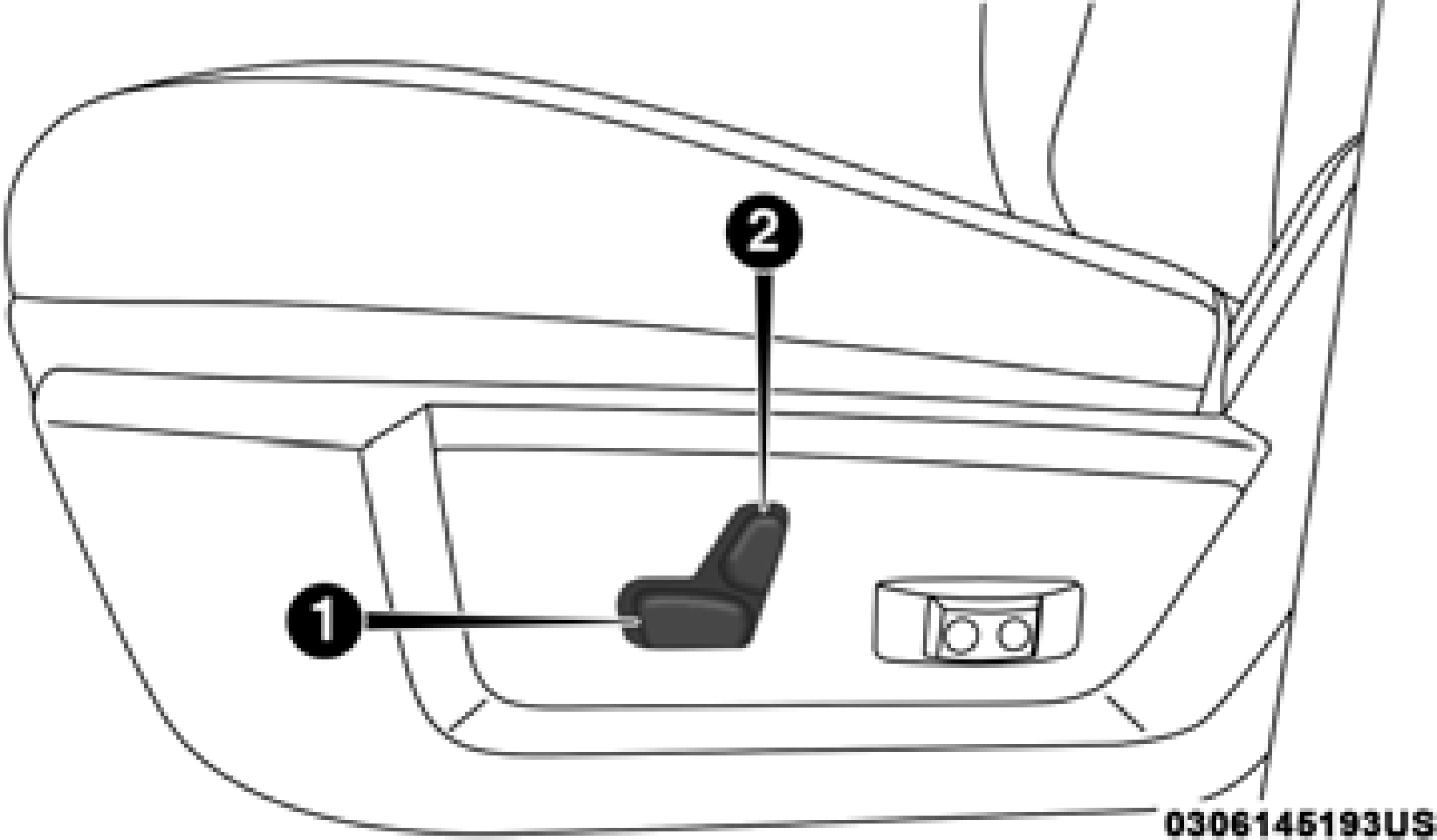

power seat switches that are used to control the movement of the seat cushion and the seatback.

Power Seat Switches

— Power Seat Switch

— Power Seatback Switch

The seat can be adjusted both forward and rearward. Push the seat switch forward or rearward. The seat will move in the direction of the switch. Release the switch when the desired position has been reached.

The height of the seats can be adjusted up or down. Pull upward or push downward on the rear of seat switch, the seat will move in the direction of the switch. Release the switch when the desired position has been reached.

The angle of the seat cushion can be adjusted in four direc- tions. Pull upward or push downward on the front or rear of the seat switch, the front or rear of the seat cushion will move in the direction of the switch. Release the switch when the desired position is reached.

The angle of the seatback can be adjusted forward or rear- ward. Push the seatback switch forward or rearward, the seat will move in the direction of the switch. Release the switch when the desired position is reached.

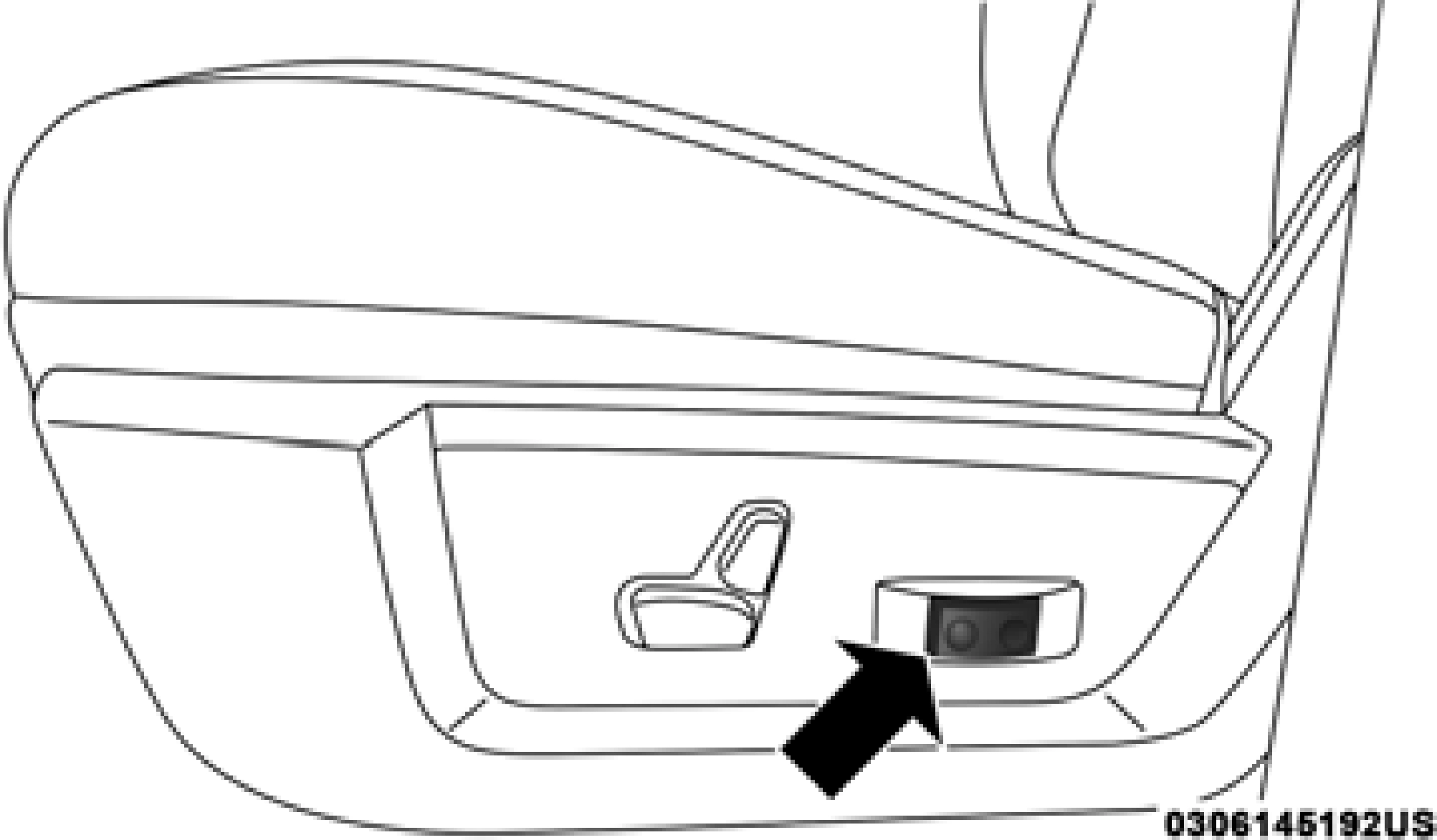

Vehicles equipped with power driver or passenger seats may be also be equipped with power lumbar. The power lumbar

This feature allows the driver to store up to two different memory profiles for easy recall through memory buttons.

switch is located on the outboard side of the power seat.

Each memory profile contains desired position settings for 2

Push the switch forward to increase the lumbar support. Push the switch rearward to decrease the lumbar support.

Lumbar Control Switch

the driver’s seat, side mirrors, adjustable pedals (if equipped), and a set of desired radio station presets. Your remote keyless entry key fob can also be programmed to recall the same positions when the unlock button is pushed.

NOTE:

Your vehicle is equipped with two key fobs, one key fob can be linked to memory position 1 and the other key fob can be linked to memory position 2.

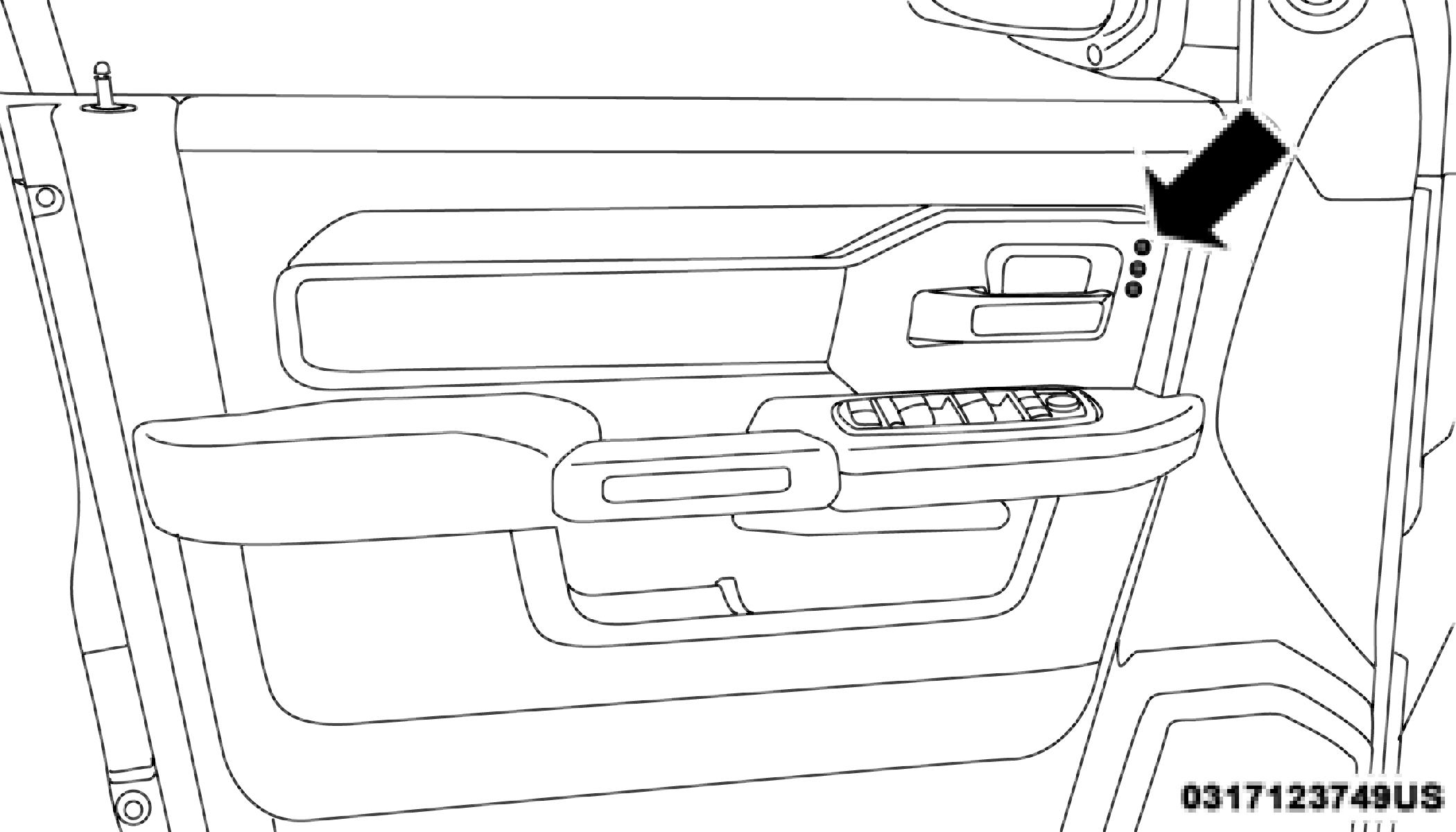

The driver memory seat buttons are located on the driver door, next to the door handle.

Driver Memory Seat Buttons

To create a new memory profile, perform the following:

Cycle the vehicle’s ignition to the ON/RUN position (do not start the engine).

Adjust all memory profile settings to desired preferences (i.e., driver’s seat, outside mirrors, adjustable pedals (if equipped), and radio station presets).

Push and release the set (S) button on the memory switch.

Within five seconds, push and release either of the memory buttons (1) or (2). The instrument cluster display will show which memory position has been set.

NOTE:

Memory profiles can be set without the vehicle in PARK.

Your key fob can be programmed to recall one of two pre-programmed memory profiles by pushing the unlock button on the key fob.

NOTE:

Before programming your key fob you must select the “Personal Settings Linked to Key Fob” feature through the Uconnect Settings. Refer to “Uconnect Settings” in “Multi- media” for further information.

To program your key fob, perform the following:

Cycle the vehicle’s ignition to the OFF position.

Select a desired memory profile 1 or 2.

NOTE:

If a memory profile has not already been set, refer to "Programming The Memory Feature" in this section for instructions on how to set a memory profile.

Driver One Memory Position Recall

To recall the memory settings for driver one using the memory buttons on the door panel, push memory button (1).

Once the profile has been recalled, push and release the

To recall the memory settings for driver one using the key 2

set (S) button on the memory switch.

Push and release button (1) or (2) accordingly. “Memory Profile Set” (1 or 2) will display in the instrument cluster.

Push and release the lock button on the key fob within 10 seconds.

NOTE:

Your key fob can be unlinked to your memory settings by pushing the set (S) button, and within 10 seconds, followed by pushing the unlock button on the key fob.

NOTE:

The vehicle speed must be lower than 5 mph (8 km/h) to recall memory positions. If a recall is attempted when the vehicle speed is greater than 5 mph (8 km/h), a message will be displayed in the instrument cluster display.

fob, push the unlock button on the key fob linked to memory position 1.

Driver Two Memory Position Recall

To recall the memory setting for driver two using the memory buttons on the door panel, push memory button (2).

To recall the memory settings for driver two using the key fob, push the unlock button on the key fob linked to memory position 2.

A recall can be cancelled by pushing any of the memory buttons during a recall (S, 1, or 2). When a recall is canceled, the driver's seat and the power pedals (if equipped) stop moving. A delay of one second will occur before another recall can be selected.

This feature provides automatic driver’s seat positioning to enhance driver mobility when entering and exiting the vehicle.

The distance the driver’s seat moves depends on where you have the driver’s seat positioned when you remove the key fob from the ignition.

When you remove the key fob from the ignition, the driver’s seat will move about 2.4 inches (60 mm) rearward if the driver’s seat position is greater than or equal to

inches (67.7 mm) forward of the rear stop. The seat will return to its previously set position when you place the ignition into the ACC or RUN position.

When you remove the key fob from the ignition, the driver’s seat will move to a position 0.3 inches (7.7 mm) forward of the rear stop if the driver’s seat position is between 0.9 inches and 2.7 inches (22.7 mm and 67.7 mm) forward of the rear stop. The seat will return to its previ- ously set position when you place the ignition to the ACC or RUN position.

The Easy Entry/Easy Exit feature is disabled when the driver’s seat position is less than 0.9 inches (22.7 mm) forward of the rear stop. At this position, there is no benefit to the driver by moving the seat for Easy Exit or Easy Entry.

Each stored memory setting will have an associated Easy Entry and Easy Exit position.

NOTE:

The Easy Entry/Exit feature is not enabled when the vehicle is delivered from the factory. The Easy Entry/Exit feature is enabled (or later disabled) through the programmable features in the Uconnect system. Refer to “Uconnect Settings” in “Multimedia” for further information.

On some models, the front and rear seats may be equipped with heaters located in the seat cushions and seat backs.

Push the heated seat button a second time to turn the MED setting on.

Push the heated seat button a third time to turn the LO

setting on.

The heated seats control buttons are located on the center instrument panel below the touchscreen, and are also located within the climate or controls screen of the touchscreen.

Push the heated seat button once to turn the HI setting on.

Push the heated seat button a fourth time to turn the heating elements off.

NOTE:

The engine must be running for the heated seats to operate.

The level of heat selected will stay on until the operator changes it.

Vehicles Equipped With Remote Start

On models that are equipped with remote start, the driver’s seat can be programmed to come on during a remote start.

This feature can be programmed through the Uconnect system. Refer to “Uconnect Settings” in “Multimedia” for further information.

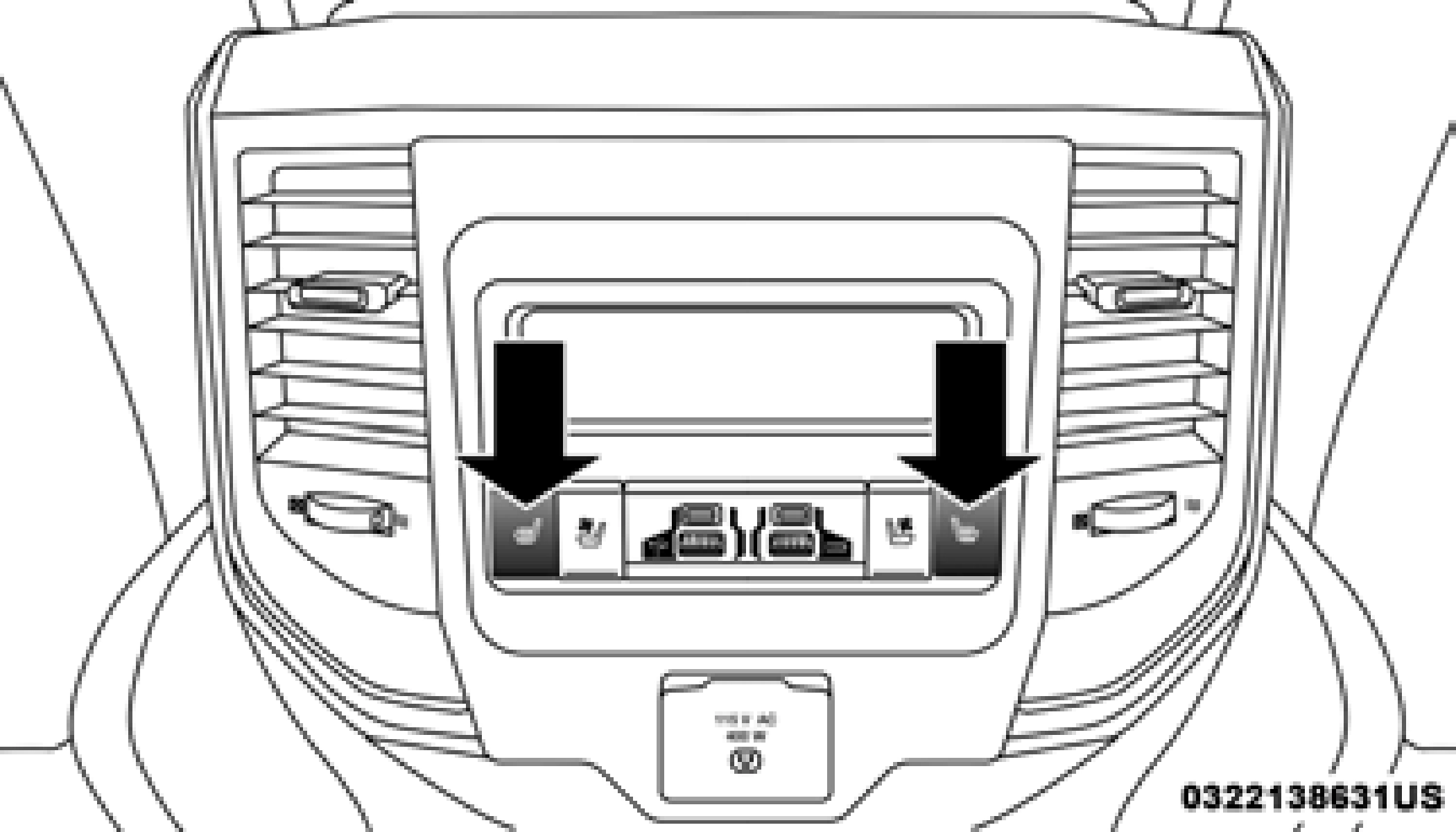

On some models, the two outboard rear seats are equipped with heated seats. The heated seat switches for these seats are located on the rear of the center console.

Rear Heated Seat Switches

There are two heated seat switches that allow the rear passengers to operate the seats independently. You can choose from HI, MED, LO, or OFF heat settings. Amber indi- cator lights in each switch indicate the level of heat in use.

Push the heated seat button once to turn the HI setting on.

Push the heated seat button a second time to turn the MED setting on.

Push the heated seat button a third time to turn the LO setting on.

Push the heated seat button a fourth time to turn the heating elements off.

NOTE:

The level of heat selected will stay on until the operator changes it.

Once a heat setting is selected, heat will be felt within two to five minutes.

The engine must be running for the heated seats to operate.

Located in the seat cushion are small fans that draw the air from the passenger compartment and move air through fine perforations in the seat cover to help keep the driver and front passenger cooler in higher ambient temperatures. The fans operate at three speeds, HI, MED and LO.

The front ventilated seats control buttons are located on the center instrument panel below the touchscreen, and are also located within the climate or controls screen of the touch- screen.
