MIRRORS
The mirror head can be adjusted up, down, left, and right for various drivers. The mirror should be adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare from vehicles behind you.
NOTE:
The Automatic Dimming feature is disabled when the vehicle is in REVERSE to improve rear view viewing.
The Automatic Dimming feature can be turned on or off through the touchscreen.

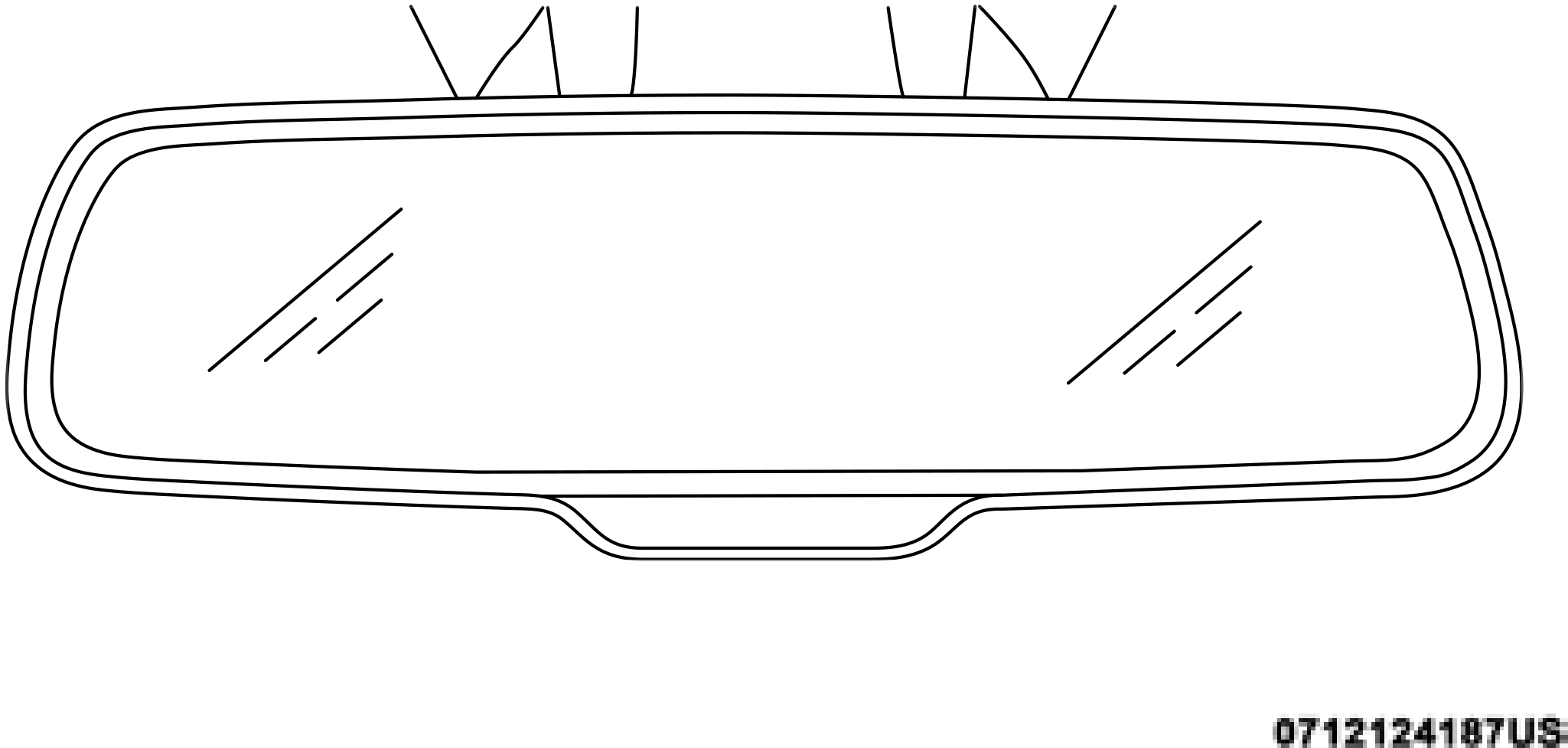

Automatic Dimming Mirror
A single ball joint mirror is provided in the vehicle. It is a
twist on mirror that has a fixed position at the windshield. 2
The mirror installs on the windshield button with a counter- clockwise rotation and requires no tools for mounting. The mirror head can be adjusted up, down, left, and right for various drivers. The mirror should be adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare from vehicles behind you.
When the vehicle is placed into reverse gear, a video display illuminates to display the image generated by the rear view camera located on the tailgate handle. The auto dimming feature is also disabled to improve rear view viewing.

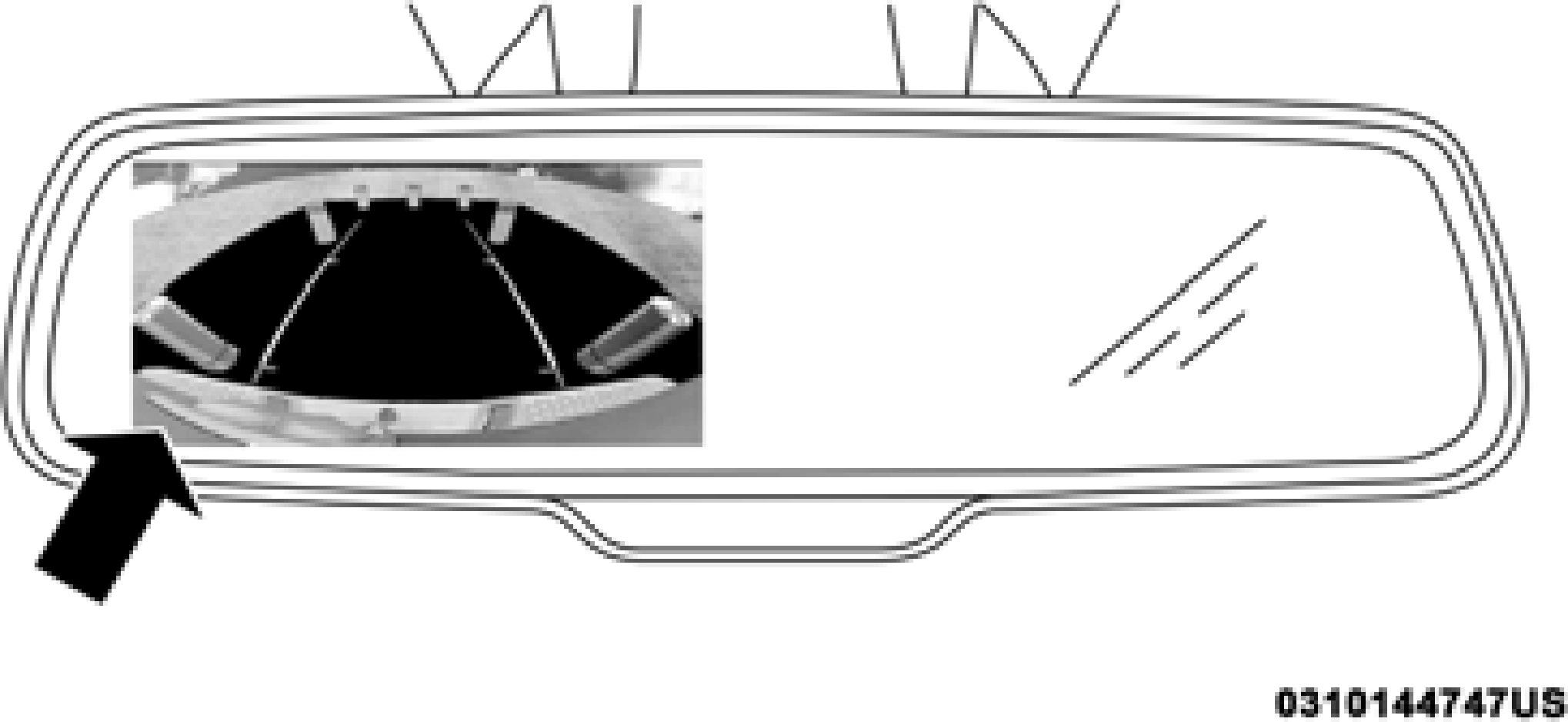

Automatic Dimming Mirror With Rear View Camera
To receive maximum benefit, adjust the outside mirrors to center on the adjacent lane of traffic with a slight overlap of the view obtained on the inside mirror.
NOTE:
If your vehicle is equipped with puddle lamps under the outside mirrors, they can be turned off through the Uconnect display. For further information, refer to “Uconnect Settings” in “Multimedia”.
The controls for the power mirrors are located on the driver's door trim panel.
The driver’s outside mirror will automatically adjust for glare from vehicles behind you. This feature is controlled by the inside automatic dimming mirror and will automatically adjust for headlight glare when the inside mirror adjusts.

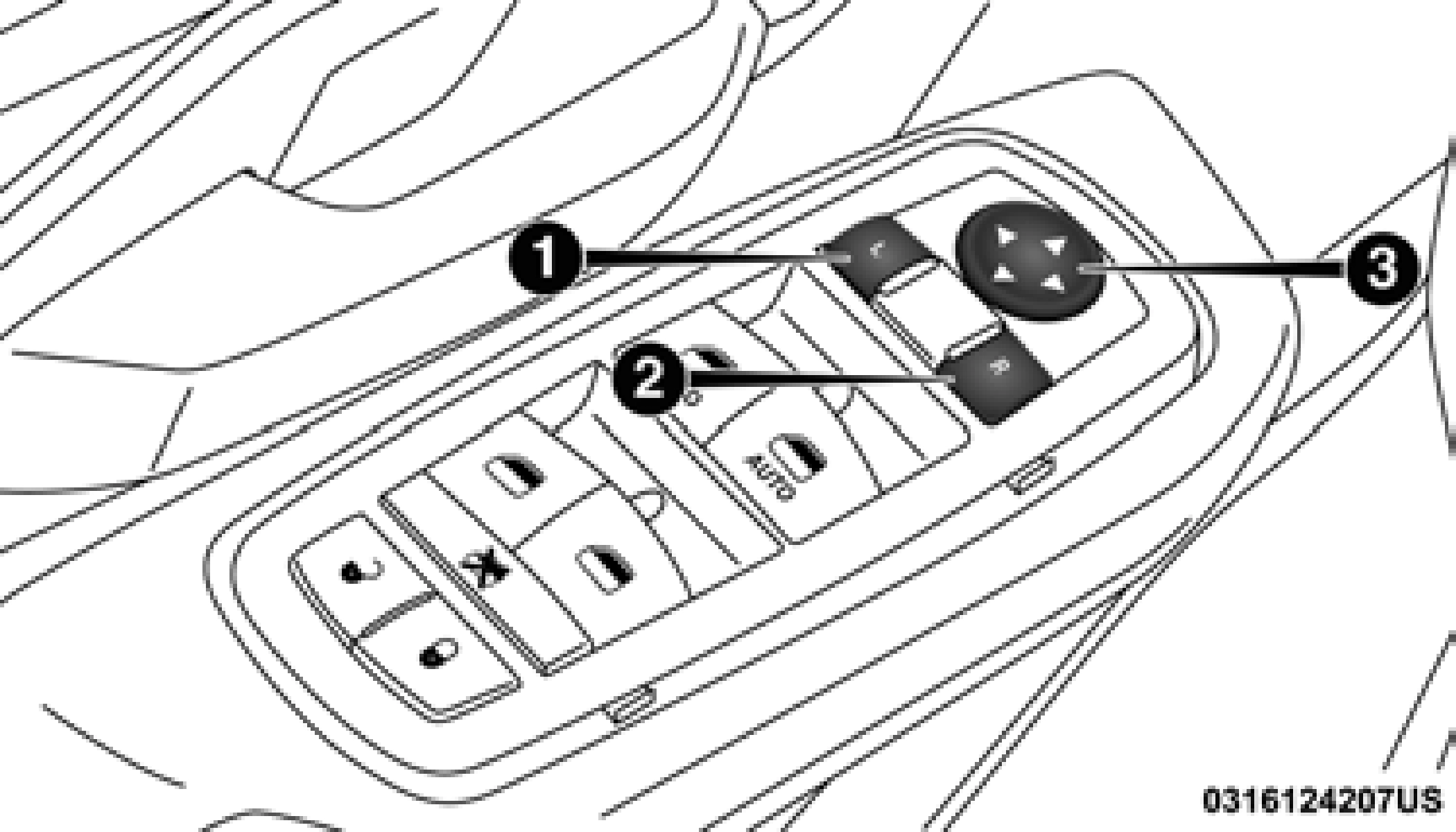

Power Mirror Controls
1 — Left Mirror Selection 2 — Right Mirror Selection
3 — Mirror Direction Control
The power mirror controls consist of mirror select buttons and a four-way mirror control switch.
To adjust a mirror, push either the L (left) or R (right) button
The Power Convex Mirror Switch is located on the door trim panel, above the power mirror controls. The switch enables
to select the mirror that you want to adjust.
the movement of the convex portion of both the driver and 2
Using the mirror control switch, push on any of the four arrows for the direction that you want the mirror to move.

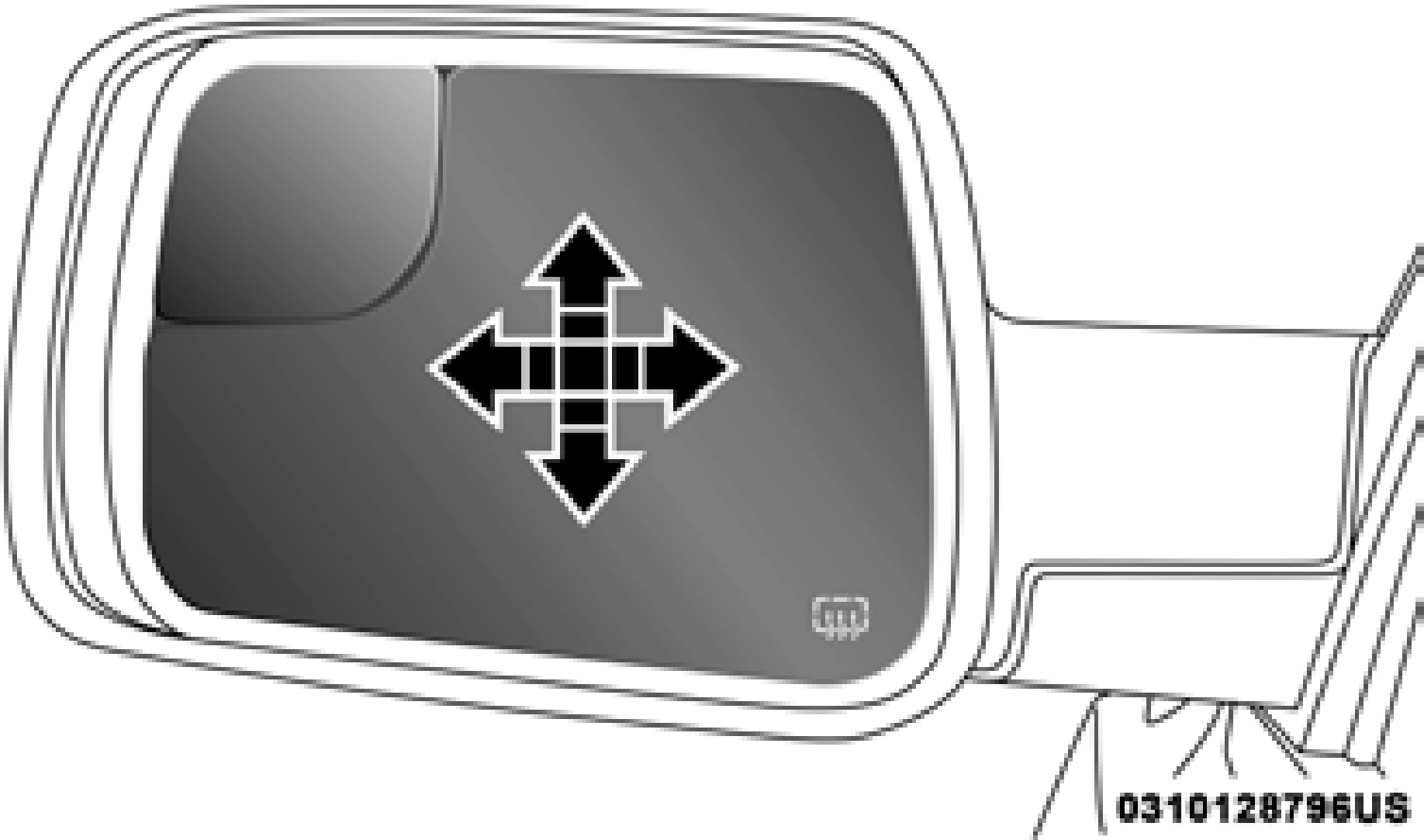

Power Mirror Movement
passenger outside mirrors.

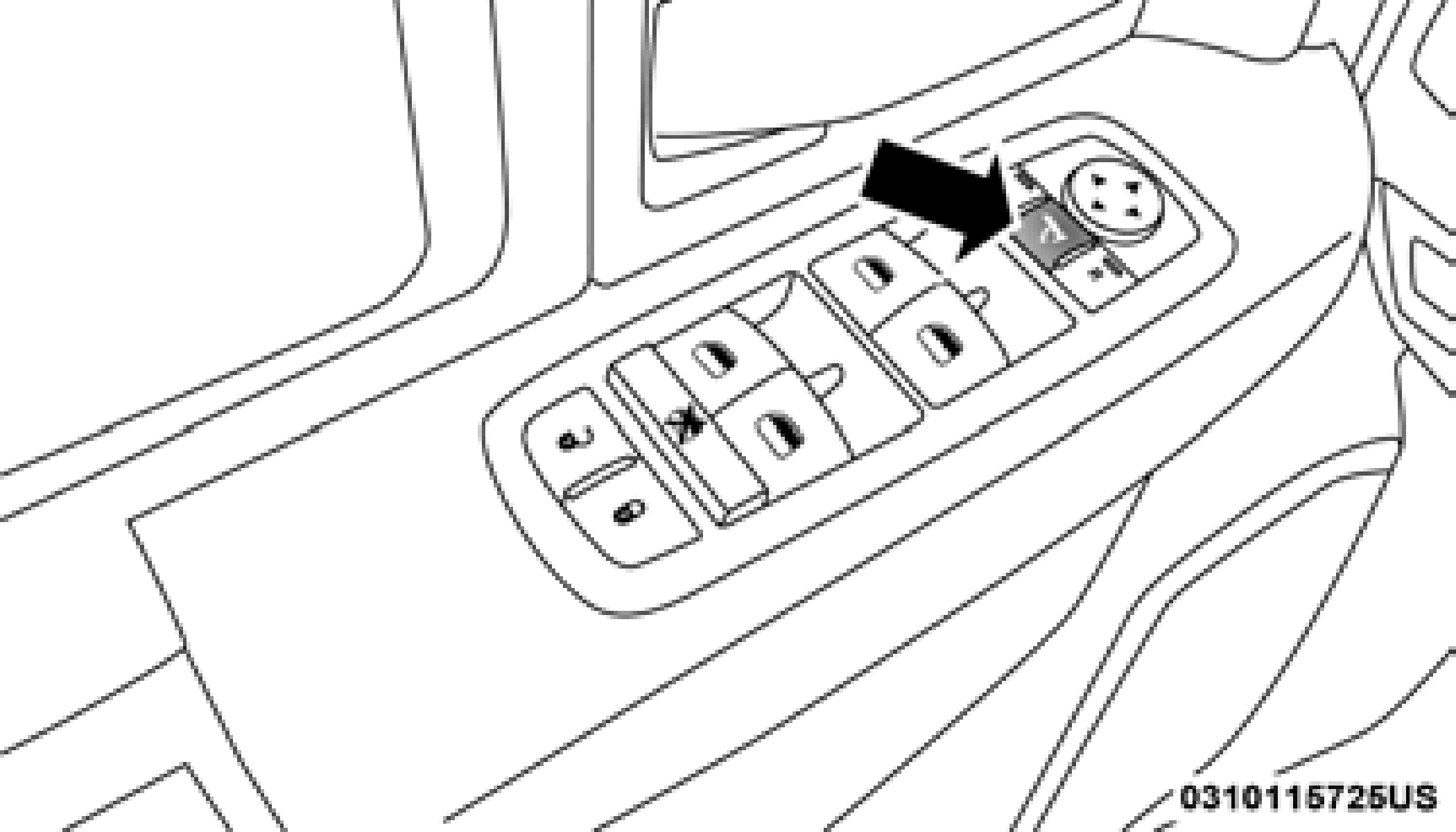

Power Convex Mirror Switch
To adjust the convex portion of the outside mirrors, push the Power Convex Mirror Switch. Then, select the mirror you want to adjust by using the L (left) or R (right) buttons.
To return the control to the large mirror, push the Power Convex Mirror Switch a second time.
These mirrors are designed with an adjustable mirror head to provide a greater vision range when towing extra-wide loads. To change position inboard or outboard, the mirror head should be rotated (flipped in or out).

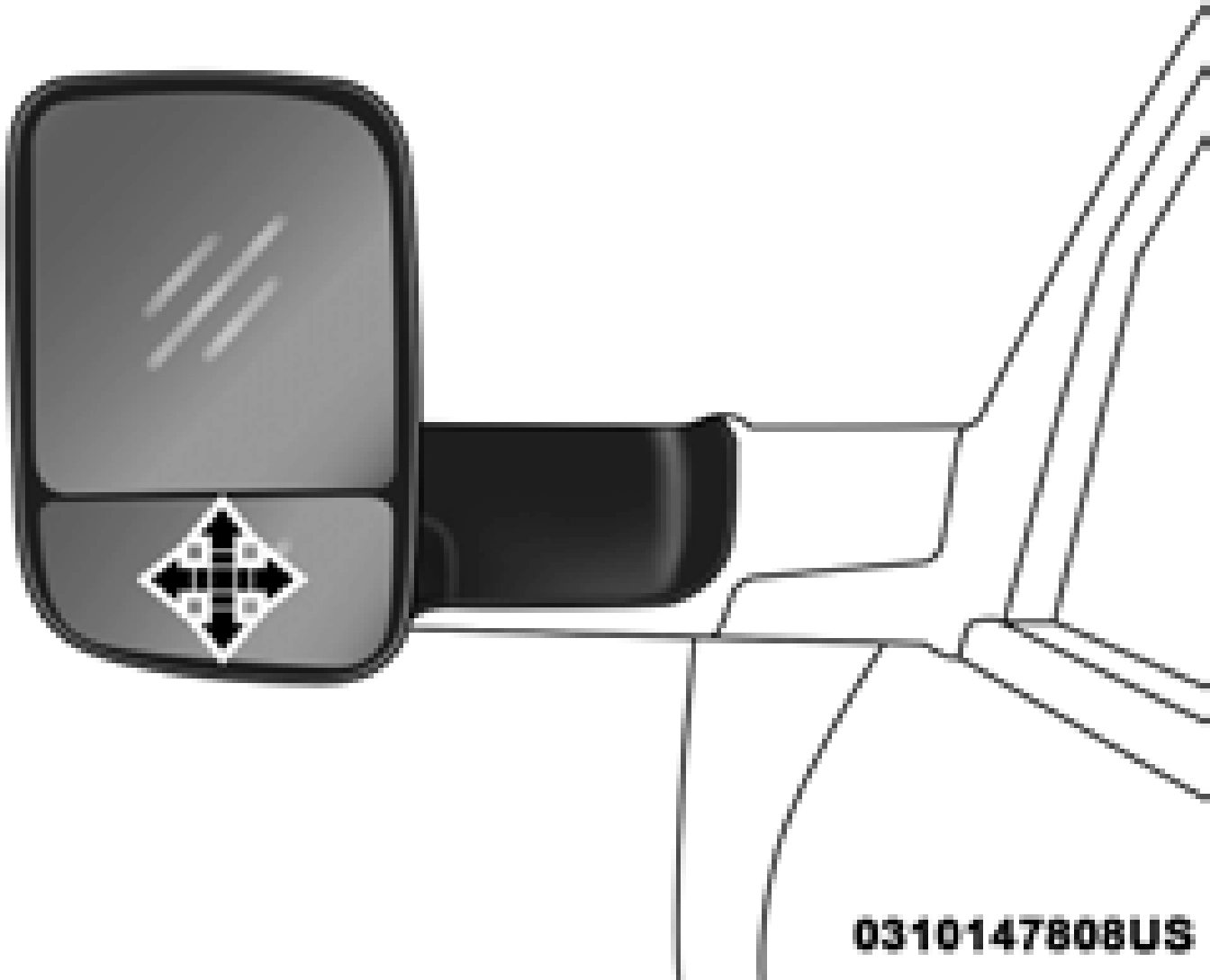

Trailer Tow Power Convex Mirror
NOTE:
If the Power Convex Mirror Switch is not pushed a second time, the switch will automatically default back to the larger portion of the outside mirrors after a period of time.
NOTE:

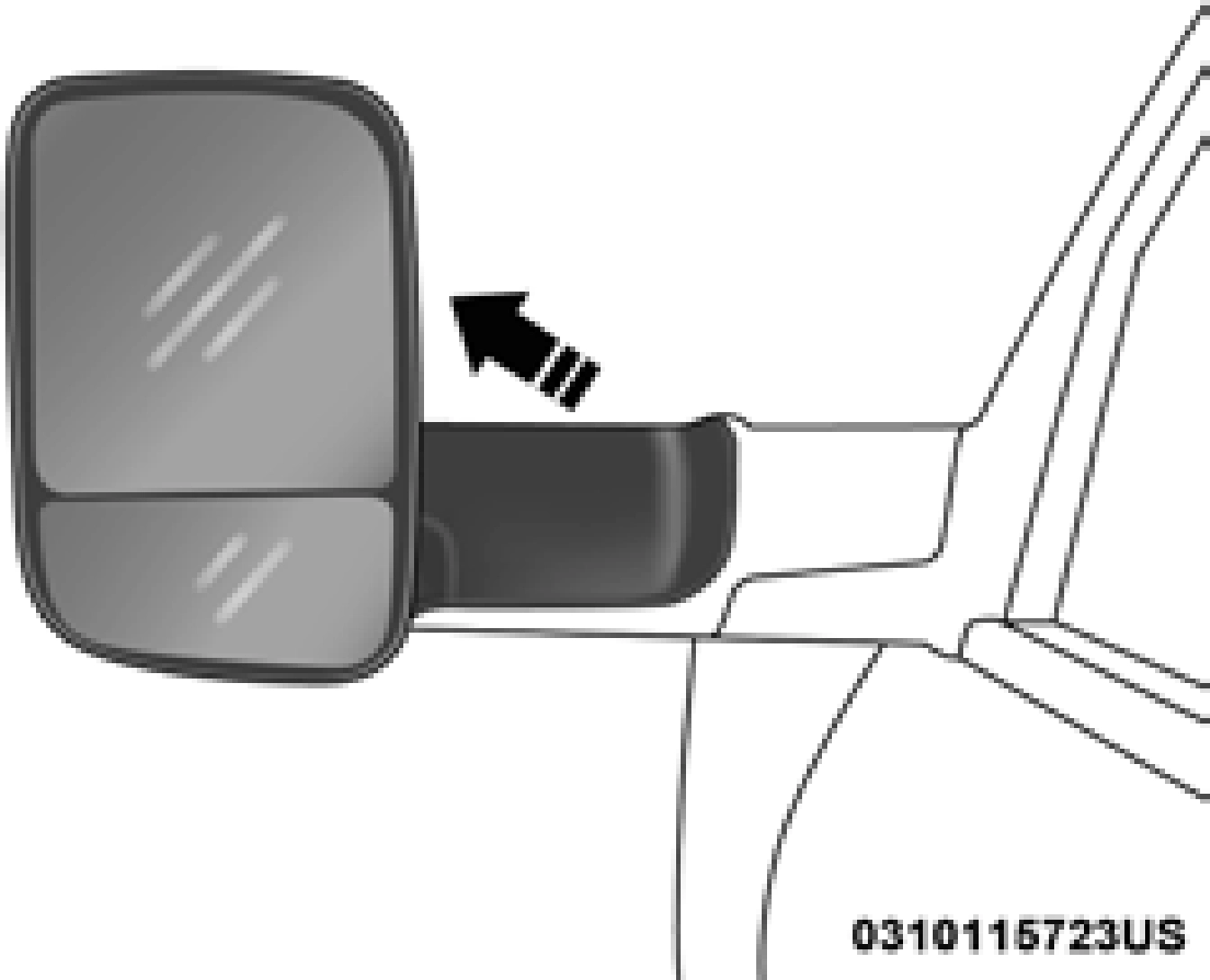

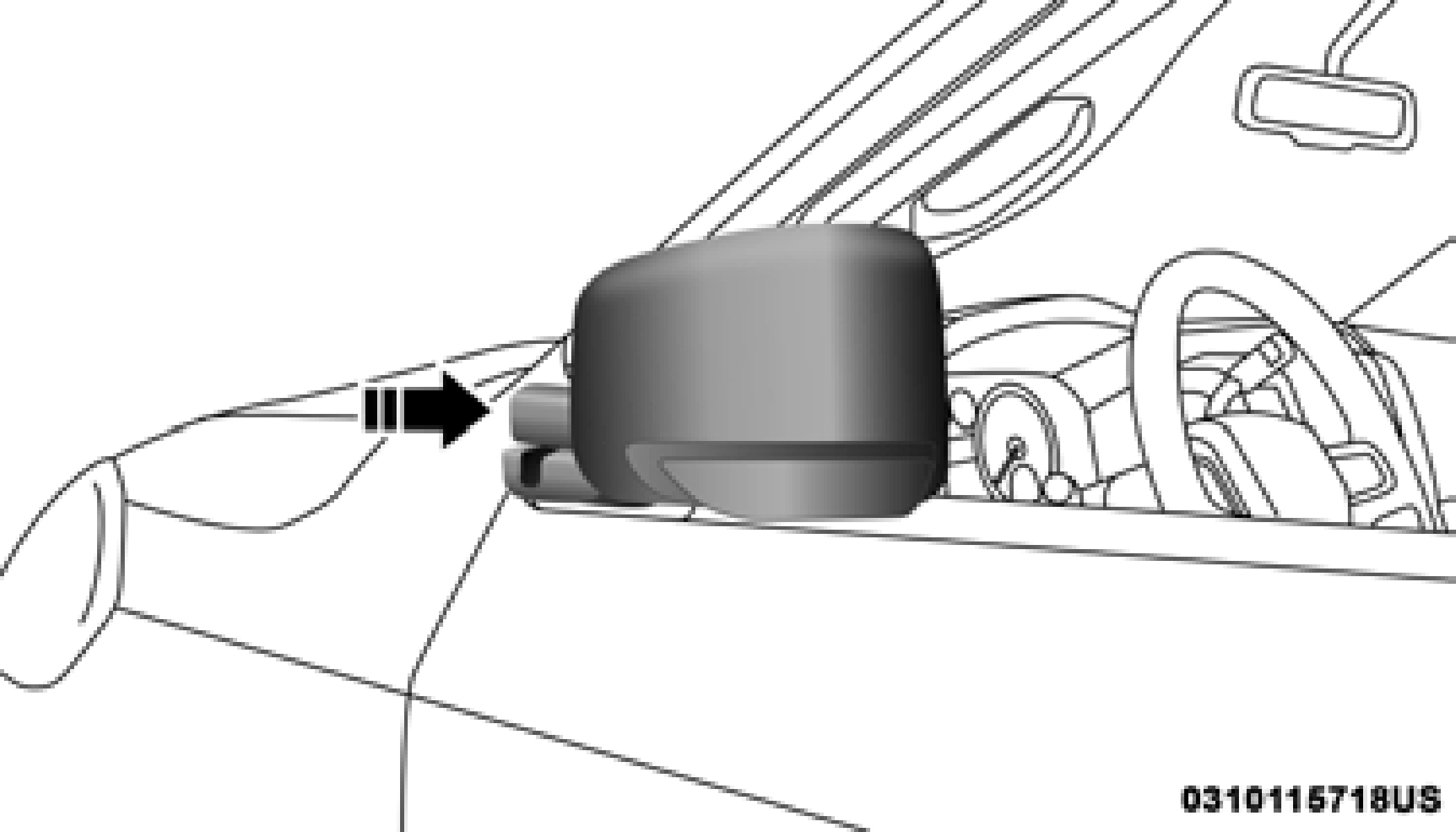

Trailer Towing Position
Fold the trailer towing mirrors rearward prior to entering an automated car wash.
A small blindspot mirror is located next to main mirror and can be adjusted separately.
Tilt Side Mirrors In Reverse provides automatic outside mirror positioning which will aid the driver’s view of the
ground rearward of the front doors. The outside mirrors will move slightly downward from the present position when the vehicle is shifted into REVERSE. The outside mirrors will then return to the original position when the vehicle is shifted out of the REVERSE position. Each stored memory setting will have an associated Tilt Side Mirrors In Reverse position.
NOTE:
The Tilt Side Mirrors In Reverse feature is not turned on when delivered from the factory.

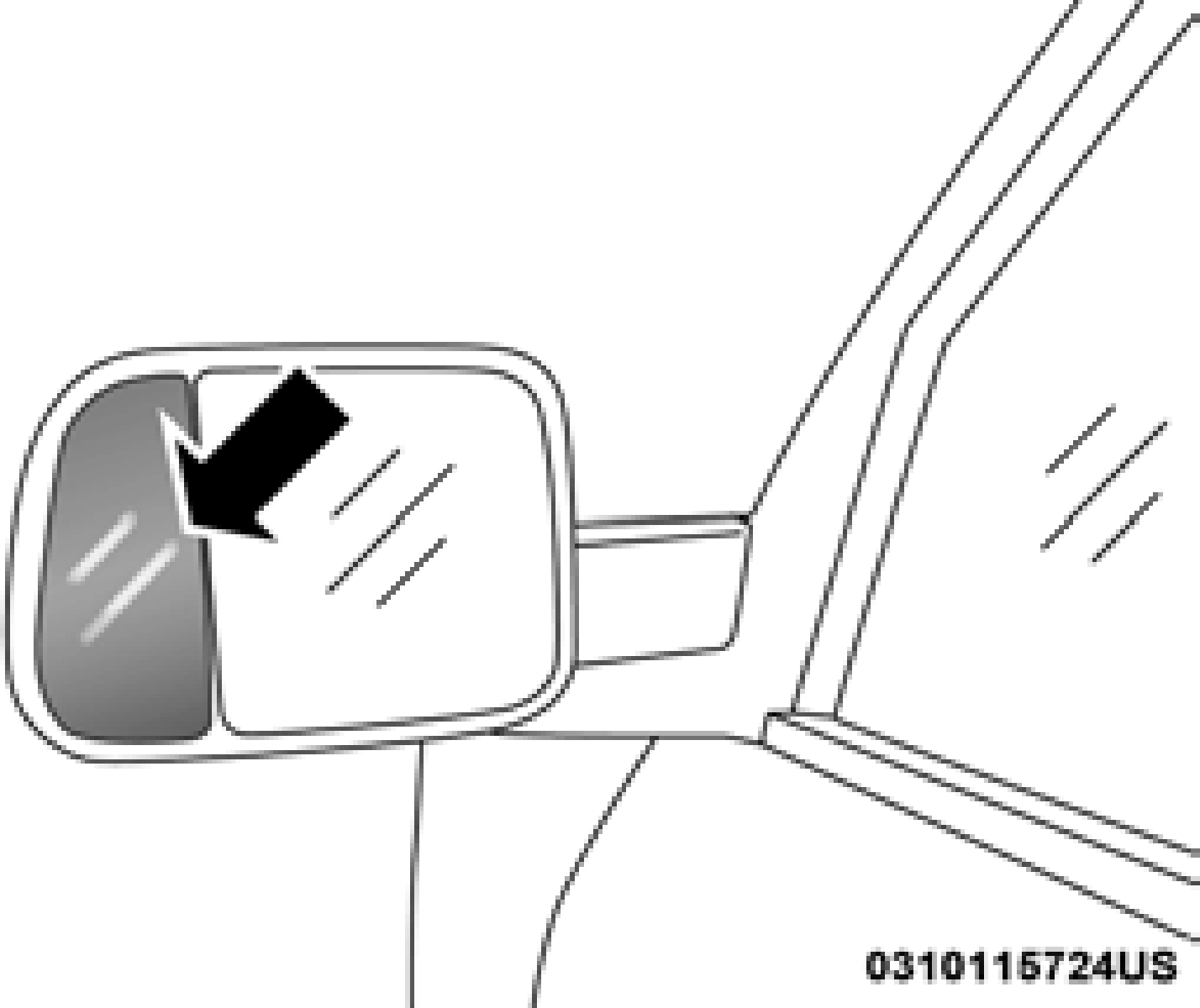

Blindspot Mirror
These mirrors are heated to melt frost or ice. This feature will be activated whenever you turn on the rear window defroster (if equipped).
Refer to “Climate Controls” in this section for further infor- mation.
This feature can be programmed through the Uconnect system. Refer to “Uconnect Settings” in “Multimedia” for further information.
If equipped with power folding mirrors, they can be electri- cally folded rearward and unfolded into the drive position.
The switch for the power folding mirrors is located between the power mirror switches L (left) and R (right). Push the switch once and the mirrors will fold in, push the switch a second time and the mirrors will return to the normal driving position.
If the mirror is manually folded after electrically cycled, a potential extra button push is required to get the mirrors back to the home position. If the mirror does not electrically fold, check for ice or dirt build up at the pivot area which can cause excessive drag.

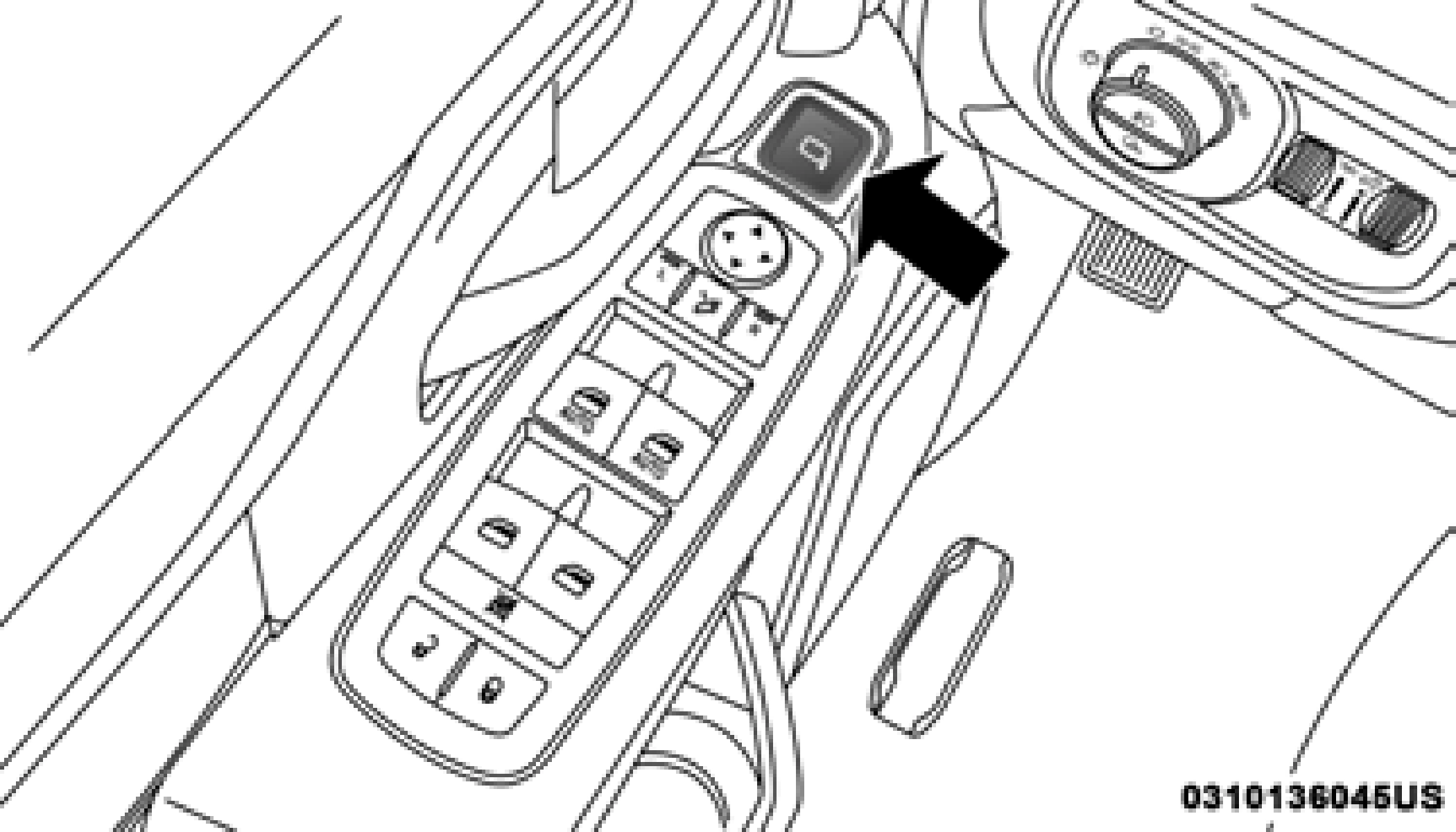

Power Folding Mirror Switch Resetting The Power Folding Outside Mirrors
You may need to reset the power folding mirrors if the following occurs:
To Reset The Power Folding Mirrors:
All outside mirrors are designed to be able to be manually folded both forward and rearward to prevent damage.
Using the power folding mirror switch, move the mirror 2 to the full retract position (this may require multiple button pushes). This resets them to their normal position.
NOTE:
Folding Mirror
Illuminated vanity mirrors are located on each sun visor. To use the mirror, rotate the sun visor down and swing the mirror cover upward. The lights will turn on automatically. Closing the mirror cover turns off the light.

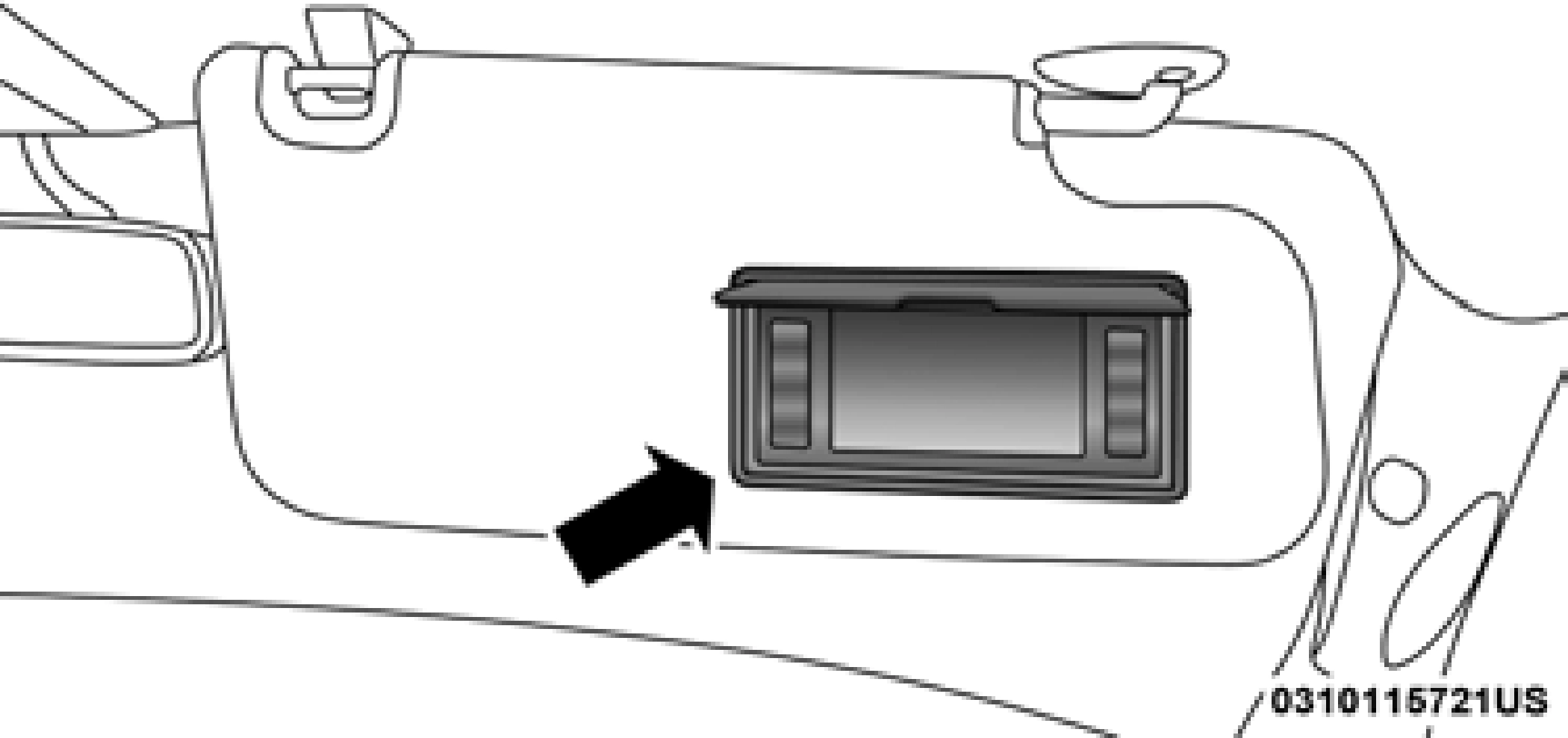

Illuminated Vanity Mirror
The sun visor “Slide-On-Rod” feature allows for additional flexibility in positioning the visor to block out the sun.
To use the “Slide-On-Rod” feature, rotate the sun visor downward and unclip it. Pull the sun visor along the “Slide-On-Rod” until the sun visor is in the desired position.

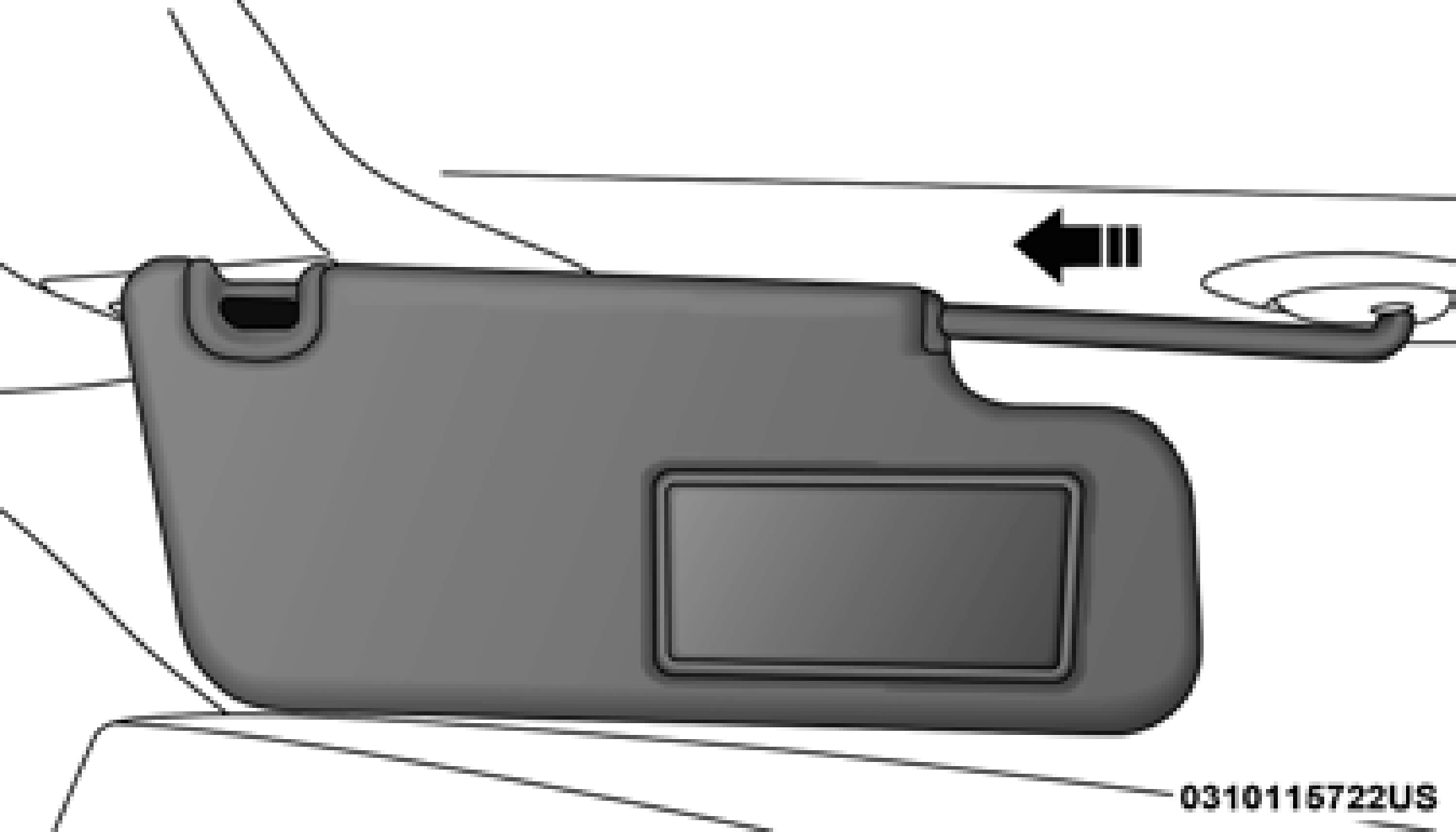

“Slide-On-Rod” Extender
Multifunction Lever
Headlight Switch
The headlight switch is located on the left side of the instru- ment panel. This switch controls the operation of the head-
