INSTRUMENT CLUSTER DISPLAY
Your vehicle will be equipped with an instrument cluster display, which offers useful information to the driver. With the ignition in the STOP/OFF mode, opening/closing of a door will activate the display for viewing, and display the total miles, or kilometers, in the odometer. Your instrument cluster display is designed to display important information about your vehicle’s systems and features. Using a driver interactive display located on the instrument panel, your instrument cluster display can show you how systems are working and give you warnings when they are not. The steering wheel mounted controls allow you to scroll through the main menus and submenus. You can access the specific information you want and make selections and adjustments.
The instrument cluster display features a driver-interactive display that is located in the instrument cluster.
3

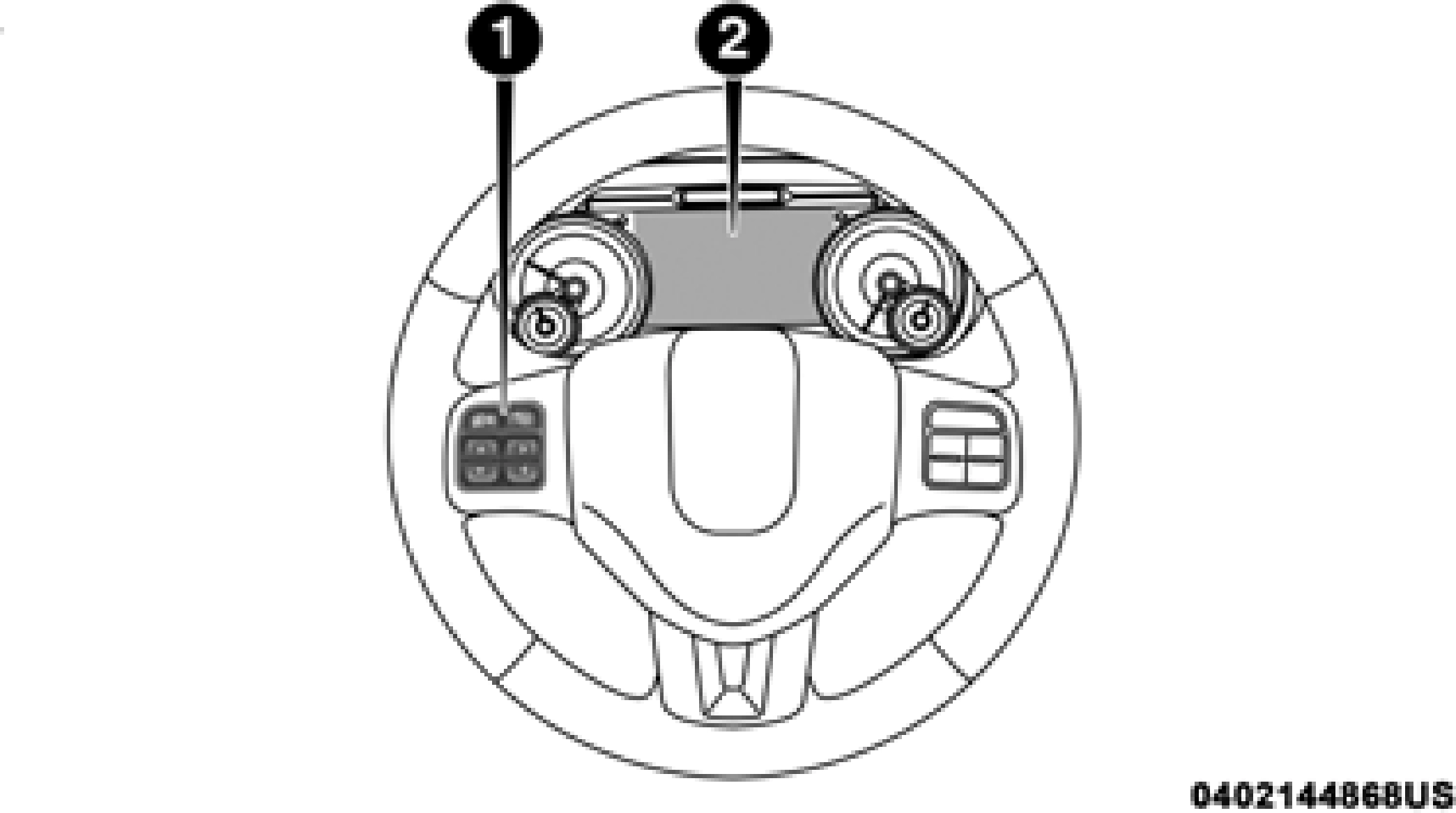

Base Instrument Cluster Display
1 – Instrument Cluster Display Controls 2 – Instrument Cluster Display Screen

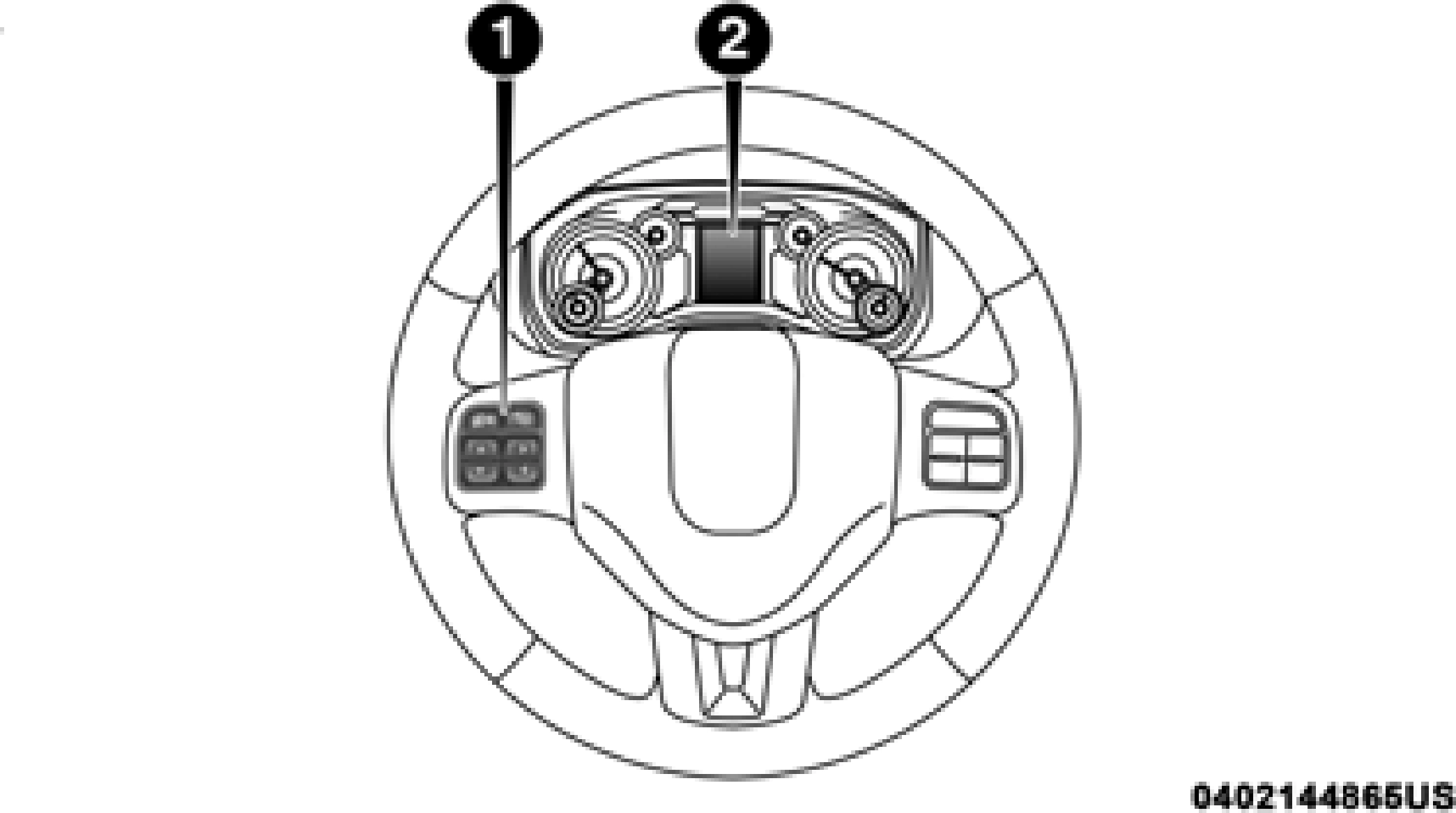

Premium Instrument Cluster Display
1 – Instrument Cluster Display Controls 2 – Instrument Cluster Display Screen
The instrument cluster display menu items may consist of the following:
Speedometer
Vehicle Info
Driver Assist — If Equipped
Fuel Economy
Trip
Trailer Tow
Audio
Stored Messages
Screen Set Up
Commercial Settings — If Equipped
The system allows the driver to select information by pushing the following instrument cluster display control buttons located on the left side of the steering wheel:
Right Arrow Button
Push and release the right arrow button to access/ select the information screens or submenu screens
of a main menu item. Push and hold the RIGHT arrow button for two seconds to reset displayed/selected
features that can be reset.
Left Arrow Button 3

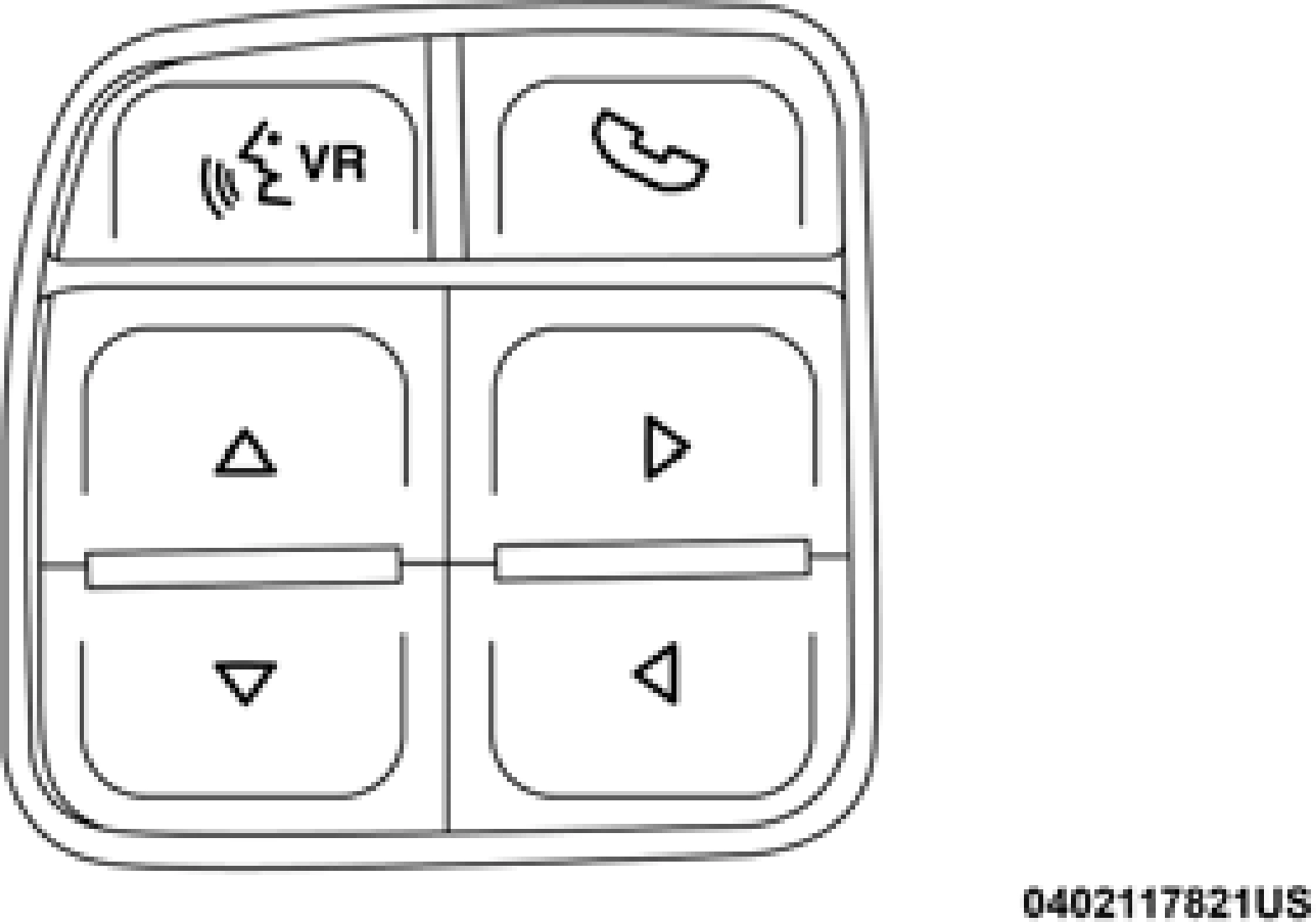

Instrument Cluster Display Control Buttons
Up Arrow ButtonPush and release the up arrow button to scroll upward through the main menu items, submenu
screen, and vehicle settings.
Down Arrow ButtonPush and release the down arrow button to scroll downward through the main menu items,
submenu screen, and vehicle settings.
Push and release the left arrow button to access/ select the information screens, submenu screens of
a main menu item, or to return to the main menu.
Your vehicle is equipped with an engine oil change indicator system. The “Oil Change Required” message will display in the instrument cluster display after a single chime has sounded, to indicate the next scheduled oil change interval. The engine oil change indicator system is duty cycle based, which means the engine oil change interval may fluctuate, dependent upon your personal driving style.
NOTE:
Use the steering wheel instrument cluster display controls for the following procedure.
Oil Life Reset Procedure
Secondary Method Of Resetting Engine Oil Life
NOTE:
If the indicator message illuminates when you start the vehicle, the oil change indicator system did not reset. If necessary, repeat this procedure.
Push and release the up or down arrow button until the desired selectable menu icon is highlighted in the instrument cluster display.
Exhaust Brake — If Equipped
Turbo Boost — If Equipped
Oil Life
Fuel Filter Life — If Equipped
Battery Voltage
Push and release the up or down arrow button until the
Gauge Summary — If Equipped 3
speedometer menu item is highlighted in the instrument cluster display. Push and release the right arrow button to cycle the display between mph and km/h.
Push and release the up or down arrow button until the Vehicle Info menu item is highlighted in the instrument cluster display. Push and release the right arrow button to enter the submenus items of Vehicle Info. Follow the direc- tional prompts to access or reset any of the following Vehicle Info submenu items:
Tire Pressure
Coolant Temperature — If Equipped
Transmission Temperature — If Equipped
Oil Temperature — If Equipped
Oil Pressure
Engine Hours
The Driver Assist menu displays the status of the ACC system.
Push and release the up or down arrow button until the Driver Assist menu is displayed in the instrument cluster display.
Adaptive Cruise Control (ACC) Feature
The instrument cluster display displays the current ACC system settings. The information displayed depends on ACC system status.
Push the Adaptive Cruise Control (ACC) on/off button (located on the steering wheel) until one of the following displays in the instrument cluster display:
Adaptive Cruise Control Off
When ACC is deactivated, the display will read “Adaptive Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed setting has not been selected, the display will read “Adaptive Cruise Control Ready.”
Push the SET + or the SET- button (located on the steering wheel) and the following will display in the instrument cluster display:
ACC SET
When ACC is set, the set speed will display in the instrument cluster.
The ACC screen may display once again if any ACC activity occurs, which may include any of the following:
Distance Setting Change
System Cancel
Driver Override
System Off
ACC Proximity Warning
ACC Unavailable Warning
For further information, refer to “Adaptive Cruise Control (ACC) — If Equipped” in “Starting And Operating.”
Push and release the up or down arrow button until the Fuel Economy menu item is highlighted in the instrument cluster display. Push and Hold the right arrow button to reset Average Fuel Economy.
Current Fuel Economy Gauge
Average Fuel Economy Value
Range To Empty
Push and release the up or down arrow button until the Trip menu item is highlighted in the instrument cluster display. Push and release the right arrow button to enter the submenus of Trip A and Trip B. The Trip A or Trip B infor-
Trailer Brake
Output
Type
Gain
Trailer Tire Pressure — If Equipped
mation will display the following:
3
Distance
Average Fuel Economy
Elapsed Time
Push and hold right arrow button to reset all information.
Push and release the up or down arrow button until the Trailer Tow menu item is highlighted in the instrument cluster display. Push and release the right arrow button and the next screen will display the following trailer trip infor- mation:
Trip (trailer specific) Distance: Push and hold the right
arrow button to reset the distance.
Push and release the up or down arrow button until the Audio Menu icon/title is highlighted in the instrument cluster display. This menu will display the audio source information, including the Song name, Artist name, and audio source with an accompanying graphic.
Phone Call Status
When a call is incoming, a Phone Call Status pop-up will display on the screen. The pop-up will remain until the phone is answered or ignored.
NOTE:
The call status will temporarily replace the previous media source information displayed on the screen. When the pop-up is no longer displayed, the display will return to the last used screen.
Push and release the up or down arrow button until the Messages Menu item is highlighted. This feature shows the number of stored warning messages. Push and release the right or left arrow buttons to cycle through stored messages.
Push and release the up or down arrow button until the Screen Setup menu item is highlighted in the instrument cluster display. Push and release the right arrow button to enter the Screen Setup submenu. The Screen Setup feature allows you to change what information is displayed in the instrument cluster as well as the location that information is displayed.
Current Gear
Off (Default Setting)
On
Odometer
Unit Without Decimal (Default Setting)
Unit With Decimal
Favorite Menu
Speedometer
Vehicle Info
Driver Assist (Show/Hide) — If Equipped
Fuel Economy (Show/Hide)
Trip Info (Show/Hide)
Trailer Tow (Show/Hide)
Audio (Show/Hide)
Messages
Screen Setup
Commercial Settings — If Equipped
NOTE:
Menus with (Show/Hide) can push the OK button to choose whether to show or hide this menu in the instrument cluster display.
Upper Left
None
Compass (Default Setting) — If Equipped
Outside Temp — If Equipped
Exhaust Brake — If Equipped
Turbo Boost — If Equipped
Fuel Filter Life — If Equipped
Upper Center
Time
None 3
Range To Empty
Average MPG
Current MPG
Trip A Distance
Trip B Distance
Trailer Trip — If Equipped
Trailer Brake — If Equipped
Oil Pressure — If Equipped
Coolant Temperature — If Equipped
Oil Temperature — If Equipped
Battery Voltage — If Equipped
Transmission Temperature — If Equipped
Oil Life — If Equipped
Compass
Outside Temp
Time
Range To Empty
Average MPG
Current MPG
Trip A Distance
Trip B Distance
Trailer Trip
Audio
Speedometer (Default Setting)
Menu Title
Upper Right
None
Compass — If Equipped
Outside Temp (Default Setting) — If Equipped
Time
Range To Empty
Average MPG
Current MPG
Trip A Distance
Trip B Distance
Trailer Trip — If Equipped
Trailer Brake — If Equipped
Oil Pressure — If Equipped
Coolant Temperature — If Equipped
Oil Temperature — If Equipped
Battery Voltage — If Equipped
Transmission Temperature — If Equipped
Oil Life — If Equipped
Exhaust Brake — If Equipped
Turbo Boost — If Equipped
Fuel Filter Life — If Equipped
Left Side — If Equipped
None
Range
Average MPG
Menu Icon (Default Setting)
Coolant Temperature
Oil Temperature
Transmission Temperature
Oil Life
Fuel Filter Life — If Equipped
Right Side — If Equipped
None
Range (Default Setting)
Average MPG
Menu Icon
Average MPG
Current MPG
Trip A Distance
Trip B Distance
Trailer Trip
Coolant Temperature
Trailer Brake 3
Oil Temperature
Transmission Temperature
Oil Life
Fuel Filter Life — If Equipped
Lower Left — If Equipped
None
Compass
Outside Temp
Time
Range To Empty
Oil Pressure
Coolant Temperature
Oil Temperature
Battery Voltage (Default Setting)
Transmission Temperature
Oil Life
Exhaust Brake — If Equipped
Turbo Boost — If Equipped
Fuel Filter Life — If Equipped
Lower Right — If Equipped
None
Compass
Outside Temp
Time
Range To Empty
Average MPG
Current MPG
Trip A Distance
Trip B Distance
Trailer Trip
Trailer Brake
Oil Pressure (Default Setting)
Coolant Temperature
Oil Temperature
Battery Voltage
Transmission Temperature
Oil Life
Exhaust Brake — If Equipped
Turbo Boost — If Equipped
Fuel Filter Life — If Equipped
Restore Defaults
Cancel (Default Setting)
Ok
Commercial Settings allows the driver to set and recall addi- tional features when the transmission is in PARK.
Push and release the up and down button until Commercial Settings displays in the instrument cluster display.
This vehicle is equipped with an Intelligent Battery Sensor (IBS) to perform additional monitoring of the electrical system and status of the vehicle battery.
In cases when the IBS detects charging system failure, or the 3
Follow the prompts to enter the required PIN and enter the Commercial Settings submenu.
Commercial Settings allows you to access the following features:
PTO — If Equipped
Remote Ignition
Idle Control
Backup Alarm
Commercial ParkSense — If Equipped
Aux Switches
PIN Setup
NOTE:
If the vehicle’s PIN is forgotten or not known, see an autho- rized dealer to have the PIN reset.
vehicle battery conditions are deteriorating, electrical load reduction actions will take place to extend the driving time and distance of the vehicle. This is done by reducing power to or turning off non-essential electrical loads.
Load reduction is only active when the engine is running. It will display a message if there is a risk of battery depletion to the point where the vehicle may stall due to lack of electrical supply, or will not restart after the current drive cycle.
When load reduction is activated, the message “Battery Saver On Some Systems May Have Reduced Power” will appear in the instrument cluster.
These messages indicate the vehicle battery has a low state of charge and continues to lose electrical charge at a rate that the charging system cannot sustain.
NOTE:
The charging system is independent from load reduction. The charging system performs a diagnostic on the charging system continuously.
If the Battery Charge Warning Light is on it may indicate a problem with the charging system. Refer to “Battery Charge Warning Light” in “Getting To Know Your Instru- ment Panel” for further information.
The electrical loads that may be switched off (if equipped), and vehicle functions which can be affected by load reduction:
Heated Seats/Vented Seats/Heated Wheel
Rear Defroster And Heated Mirrors
HVAC System
115V AC Power Inverter System
Audio and Telematics System
Loss of the battery charge may indicate one or more of the following conditions:
The charging system cannot deliver enough electrical power to the vehicle system because the electrical loads are larger than the capability of charging system. The charging system is still functioning properly.
Turning on all possible vehicle electrical loads (e.g. HVAC to max settings, exterior and interior lights, overloaded power outlets +12V, 115V AC, USB ports) during certain driving conditions (city driving, towing, frequent stop- ping).
Installing options like additional lights, upfitter electrical accessories, audio systems, alarms and similar devices.
Unusual driving cycles (short trips separated by long parking periods).
The vehicle was parked for an extended period of time (weeks, months).
The battery was recently replaced and was not charged completely.
The battery was discharged by an electrical load left on when the vehicle was parked.
The battery was used for an extended period with the engine not running to supply radio, lights, chargers, +12V portable appliances like vacuum cleaners, game consoles and similar devices.
What to do when an electrical load reduction action message is present (“Battery Saver On” or “Battery Saver Mode”)
During a trip:
Reduce power to unnecessary loads if possible:
