FUSES
Side Marker Lamp Locations
The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside
cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.

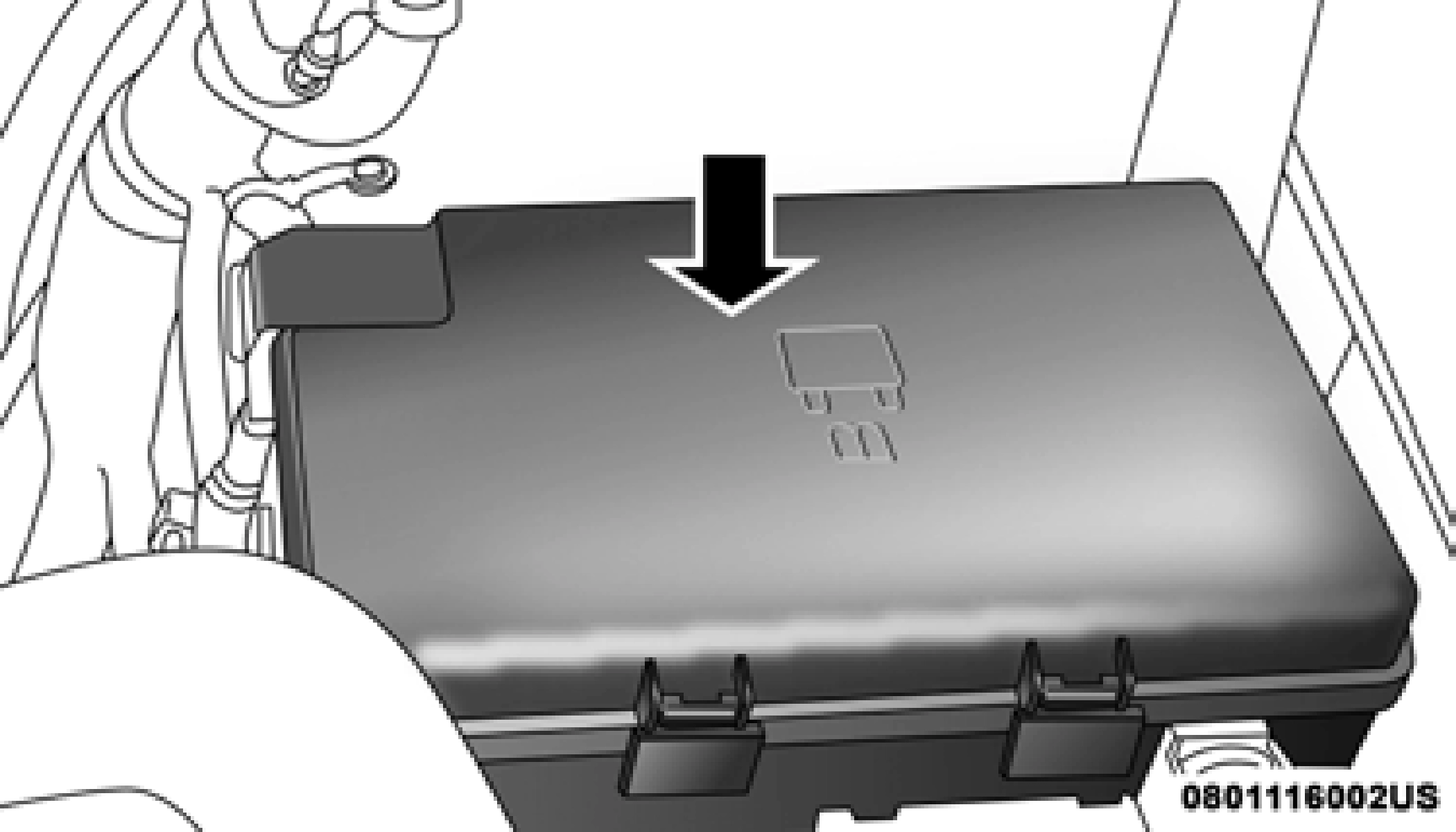

Power Distribution Center Location
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F01 |
80 Amp Black |
– |
Rad Fan Control Module – If Equipped (DS 1500 Only) |
|
F02 |
60 Amp Yellow |
– |
ABS Pump Motor (HD Only) |
|
F03 |
60 Amp Yellow |
– |
Rad Fan – If Equipped |
|
F04 |
50 Amp Red |
400W Inverter – If Equipped (HD Only) |
|
|
F05 |
40 Amp Green 50 Amp Red (Special Services Vehicle (SSV)) |
– |
Compressor For Air Suspension – If Equipped |
6
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F19 |
20 Amp Blue (DS 1500 LD Diesel) 30 Amp Pink (Cummins Diesel) |
– |
SCR – If Equipped |
|
F20 |
30 Amp Pink |
– |
Passenger Door Module |
|
F21 |
30 Amp Pink |
– |
Drive Train Control Module |
|
F22 |
20 Amp Blue |
– |
Engine Control Module GPEC / Heavy Duty / Other – If Equipped |
|
F22 |
25 Amp White (Cummins Diesel) |
– |
PCM – If Equipped |
|
F23 |
30 Amp Pink |
– |
CBC Feed # 1 |
|
F24 |
30 Amp Pink |
– |
Driver Door Module |
|
F25 |
30 Amp Pink |
– |
Front Wiper |
|
F26 |
30 Amp Pink |
– |
Antilock Brakes / Stability Control Module / Valves – If Equipped (DS 1500 Only) |
|
F28 |
20 Amp Blue |
– |
Trailer Tow Backup Lights – If Equipped |
|
F29 |
20 Amp Blue |
– |
Trailer Tow Parking Lights – If Equipped |
|
F30 |
30 Amp Pink |
– |
Trailer Tow Receptacle / Trailer Tow (Separate E-Brake)/Trailer Tow (BUX) |
6
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F41 |
– |
10 Amp Red |
Active Grille Shutter / Active Air Dam – If Equipped |
|
F42 |
– |
20 Amp Yellow |
Horn |
|
F43 |
– |
15 Amp Blue |
Heated Steering Wheel – If Equipped (HD Only) |
|
F44 |
– |
10 Amp Red |
Diagnostic Port |
|
F46 |
– |
10 Amp Red |
Upfitters Relay Coil – If Equipped (HD Only) Spare (DS 1500 Only) |
|
F49 |
– |
10 Amp Red |
Instrument Panel Cluster / HVAC (DS 1500 Only) Instrument Cluster / MOD CSG (HD Only) |
|
F50 |
– |
20 Amp Yellow |
Air Suspension Control Module – If Equipped |
|
F51 |
– |
10 Amp Red |
Ignition Node Module / Keyless Ignition Node Module, Radio Frequency Hub Module / Electric Steering Column Lock - If Equipped |
|
F52 |
– |
5 Amp Tan |
Battery Sensor |
|
F53 |
– |
20 Amp Yellow |
Trailer Tow – Left Turn/Stop Lights - If Equipped |
|
F54 |
– |
20 Amp Yellow |
Non Memory Adjustable Pedals - If Equipped |
|
F56 |
– |
15 Amp Blue |
Additional Diesel Content - If Equipped (DS 1500 Only) |
6
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F67 |
– |
10 Amp Red |
CD / DVD / UCI Port – If Equipped (HD Only) Bluetooth Hands-Free Module / CD – If Equipped (DS 1500 Only) |
|
F68 |
– |
10 Amp Red |
AEB RACAM HTR – If Equipped (HD Only) |
|
F69 |
– |
15 Amp Blue |
SCR Module – If Equipped (HD Only) |
|
F70 |
– |
30 Amp Green |
Fuel Pump Motor / K09 RLY Coil Feed (Cummins Diesel) – If Equipped |
|
F71 |
– |
25 Amp Clear |
Amplifier / Active Noise Cancelation – If Equipped (HD Only) |
|
F72 |
– |
10 Amp Red |
PCM / DC/DC Converter Voltage– If Equipped (DS 1500 Only) |
|
F73 |
– |
20 Amp Yellow |
Fuel Transfer Pump (Rear Tank) – If Equipped (HD Only) |
|
F74 |
– |
20 Amp Yellow |
Brake Vacuum Pump Gas/Diesel – If Equipped (DS 1500 Only) |
|
F74 |
– |
10 Amp Red |
Backup Alarm – If Equipped (HD Only) |
|
F75 |
– |
10 Amp Red |
ATMM / Coil-SCR Module RLY– If Equipped (HD Only) Coolant Temperature Valve – If Equipped (DS 1500 Only) |
6
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F82 |
– |
10 Amp Red |
Steering Column Control Module / Cruise Control |
|
F83 |
– |
– |
No Connection |
|
F84 |
– |
15 Amp Blue |
ASBM / HVAC / ICS / Rear Heated Seat Switches |
|
F85 |
– |
10 Amp Red |
Airbag Module |
|
F86 |
– |
10 Amp Red |
Airbag Module |
|
F87 |
– |
10 Amp Red |
Air Suspension / ITBM / Steering Column Control Module / MOD Gateway CAN-C Trailer TPM (HD Only) Air Suspension / Trailer Tow / DC/DC Converter (Voltage Stabilizer) / Steering Column Control Module / Occupant Classification Sensor (DS 1500 Only) |
|
F88 |
– |
15 Amp Blue |
Instrument Panel Cluster |
|
F90/F91 |
– |
20 Amp Yellow |
IGN or BATT Customer Selectable – If Equipped (HD Only) Power Outlet (Rear Seats) Customer Selectable (DS 1500 Only) |
|
F93 |
– |
20 Amp Yellow |
Cigar Lighter - If Equipped |
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F99 |
– |
10 Amp Red |
HVAC / DASM (DS 1500 Only) HVAC / In-Car Temperature Sensor / CSG MOD / Humidity Sensor (HD Only) |
|
F100 |
– |
10 Amp Red |
Upfitters – If Equipped (HD Only) |
|
F101 |
– |
15 Amp Blue |
SSV Only |
|
F101 |
– |
20 Amp Yellow |
Rear Heated Seat Right (HD Only) |
|
F102 |
– |
20 Amp Yellow |
Rear Heated Seat Left / Run RLY #3 Coil (HD Only) |
|
F103 |
– |
10 Amp Red |
HeadLamp AFLS (HD Only) |
|
F104 |
– |
20 Amp Yellow |
Power Outlets (Instrument Panel / Center Console) / Trunk – If Equipped (DS 1500 Only) UCI Port / USB Rear (HD Only) |
