BASE / MIDLINE INSTRUMENT CLUSTER

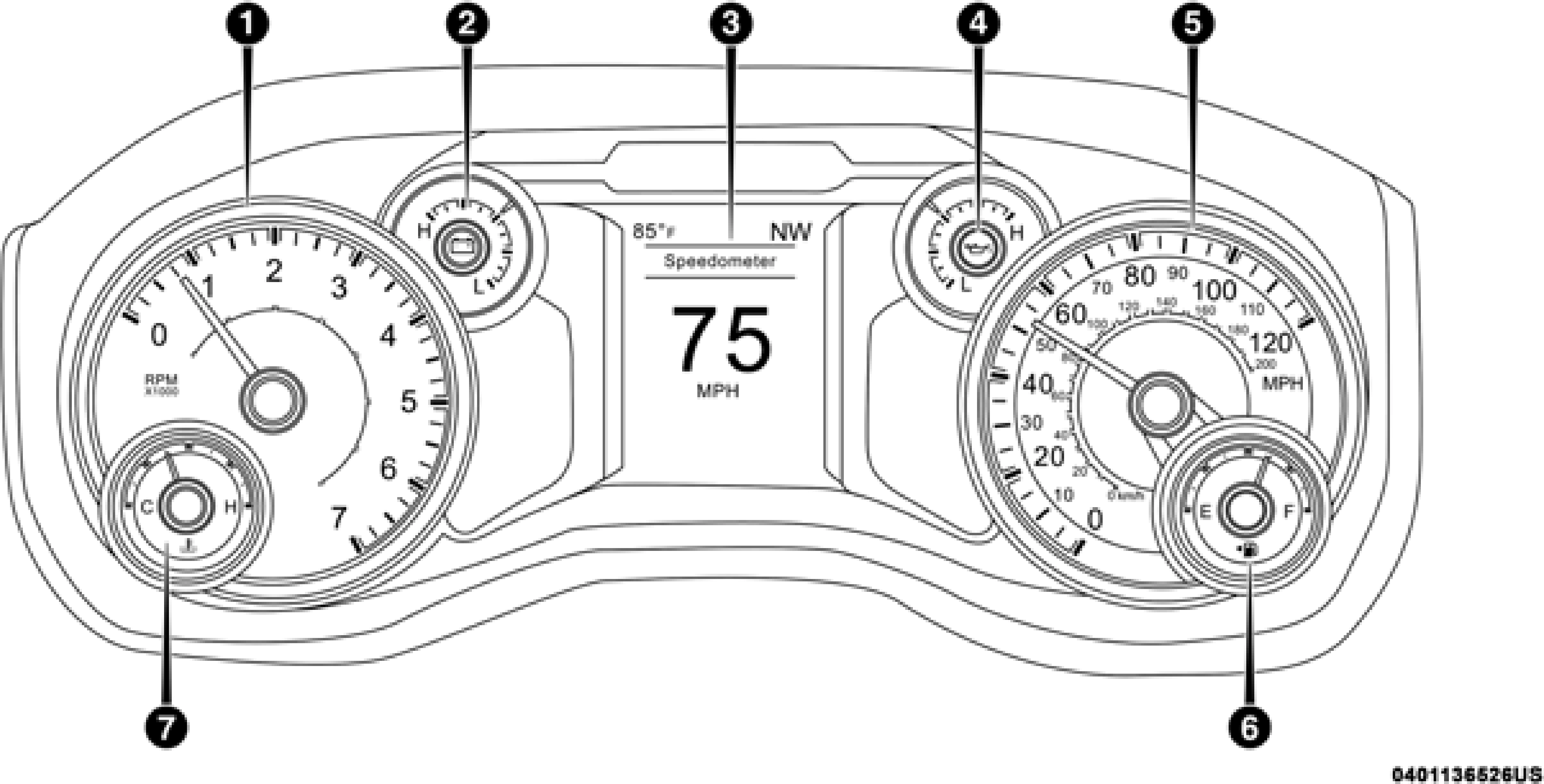

Base / Midline Instrument Cluster
Tachometer
Indicates the engine speed in revolutions per minute (RPM x 1000).
Oil Pressure Gauge
The pointer should always indicate the oil pressure when the engine is running. A continuous high or low reading under normal driving conditions may indicate a lubrication system malfunction. Immediate service
Voltmeter
should be obtained from an authorized dealer. 3
When the vehicle is in the RUN state, the gauge indi- cates the electrical system voltage. The pointer should stay within the normal range if the battery is charged. If the pointer moves to either extreme left or right and remains there during normal driving, the electrical system should be serviced.
Instrument Cluster Display
When the appropriate conditions exist, this display shows the instrument cluster display messages. Refer to “Instrument Cluster Display” in “Getting To Know Your Instrument Panel” for further information.
NOTE:
In vehicles equipped with Stop/Start, an oil pressure indica- tion of zero is normal during an Autostop.
Speedometer
Indicates vehicle speed.
Fuel Gauge
The pointer shows the level of fuel in the fuel tank when the ignition is in the ON/RUN position.
The fuel pump symbol points to the side of the vehicle where the fuel door is located.Temperature Gauge
The gauge pointer shows engine coolant temperature. The pointer positioned within the normal range indi- cates that the engine cooling system is operating satis- factorily.
The gauge pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.
