Capacities and Specifications
|
Engine |
6.2L V8 Engine |
|
Displacement. |
379 in³ (6,210 cm³) |
|
Required fuel. |
Minimum 87 octane |
|
Firing order. |
1-5-4-8-6-3-7-2 |
|
Ignition system. |
Coil on plug |
|
Spark plug gap. |
0.041 in (1.04 mm) - 0.047 in (1.2 mm) |
|
Compression ratio. |
9.8:1 |
E163761
|
Engine |
6.7L V8 Diesel Engine |
|
Displacement. |
406 in³ (6,651 cm³) |
|
Required fuel. |
Ultra Low Sulfur Diesel up to B20 |
|
Firing order. |
1-3-7-2-6-5-4-8 |
|
Compression ratio. |
15.8:1 |
E299020
E299021
|
Engine |
7.3L V8 Engine |
|
Displacement. |
445 in³ (7,293 cm³) |
|
Required fuel. |
Minimum 87 octane |
|
Firing order. |
1-5-4-8-6-3-7-2 |
|
Ignition system. |
Coil near spark plug with spark plug wire |
|
Spark plug gap. |
0.049 in (1.25 mm) - 0.053 in (1.35 mm) |
|
Compression ratio. |
10.5:1 |

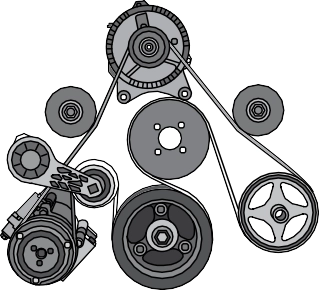

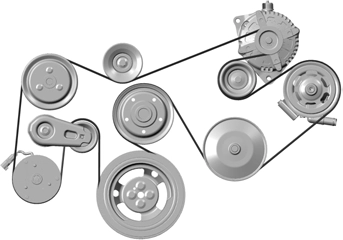

Drivebelt Routing

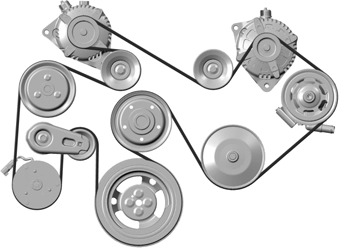

Dual Alternator
|
Component |
Motorcraft Part number |
|
Air filter element. |
FA-1950 |
|
Battery (XL). |
BXT-65-650 |
|
Battery (all except XL). |
BXT-65-750 |
|
Cabin air filter. |
FP-79 |
|
Engine oil filter.1 |
FL-820-S |
|
Spark plugs.2 |
SP-526 |
|
Six-speed automatic transmission fluid filter (6R100). |
FT-188 |
|
Component |
Motorcraft Part number |
|
Ten-speed automatic transmission fluid filter (10R140). |
FT-221 |
|
Windshield wiper blades. |
WW-2248 |
1 If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36/USC-D.
2 For spark plug replacement, contact your authorized dealer. Replace the spark plugs at the recommended intervals. See Normal Scheduled Maintenance (page 568).
We recommend Motorcraft® parts that are available at your authorized dealer or at www.fordparts.com. These parts are engineered for your vehicle, and meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty could be void for any damage related to use of other parts.
|
Component |
Motorcraft Part number |
|
Air filter. |
FA-1951 |
|
Foam pre-filter. |
FA-1952 |
|
Battery (two required). |
BXT-65-750 |
|
Cabin air filter. |
FP-79 |
|
Engine oil filter.1 |
FL-2051-S |
|
Fuel filter. |
FD-4631 |
|
Ten-speed automatic transmission fluid filter (10R140). |
FT-221 |
|
Windshield wiper blades. |
WW-2248 |
1 If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36/USC-D.
We recommend Motorcraft® parts that are available at your authorized dealer or at www.fordparts.com. These parts are engineered for your vehicle, and meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty could be void for any damage related to use of other parts.
|
Component |
Motorcraft Part Number |
|
Air filter element. |
FA-1950 |
|
Battery. |
BXT-65-750 |
|
Cabin air filter. |
FP-79 |
|
Engine oil filter.1 |
FL-820-S |
|
Spark plugs. |
SP-589 |
|
Ten-speed automatic transmission fluid filter (10R140). |
FT-221 |
|
Windshield wiper blades. |
WW-2248 |
1 If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty could be void for any damage related to use of other parts.
Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized D.O.T. marking for North America to make sure they have
the proper lamp performance, light brightness, light pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb illumination time.
|
Lamp |
Specification |
Power (Watt) |
|
Headlamp. |
H13/9008 |
60/55 |
|
Headlamp. |
LED |
LED |
|
Front side marker lamp. |
W5W |
5 |
|
Front fog lamp. |
9140 |
40 |
|
Front fog lamp.3 |
LED |
LED |
|
Front direction indicator and parking lamp. |
T20/7444NA |
28/8 |
|
Rear lamp, brake lamp, and rear side marker lamp. Low/Mid series.1 |
3157K |
27/7 |
|
Rear direction indicator lamp. Low/Mid series.1 |
WTY21W |
21 |
|
Rear lamp, brake lamp, rear direction indicator, rear side marker lamp and reverse lamp. High series.1 |
LED |
LED |
|
Rear lamp, brake lamp, rear direction indicator and rear side marker lamp.2 |
3157K |
27/7 |
|
Reversing lamp. Low/Mid series. |
WT21W |
21 |
|
License plate lamp. Low series. |
168 |
5 |
|
License plate lamp. High series. |
LED |
LED |
|
Central high mounted cargo lamp. |
912 |
12.8 |
|
Central high mounted cargo lamp. |
LED |
LED |
|
Side direction indicator and mirror clearance lamp. |
LED |
LED |
|
Lamp |
Specification |
Power (Watt) |
|
Front clearance lamp. |
LED |
LED |
|
Rear clearance lamp. |
LED |
LED |
|
Front identification lamp. |
LED |
LED |
|
Rear identification lamp. |
LED |
LED |
|
Underhood lamp. |
LED |
LED |
1 Pickup only.
2 Chassis cab only.
3 U.S. and Canada only
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
|
Lamp |
Specification |
Power (Watt) |
|
Map lamp. |
LED |
LED |
|
Glove compartment lamp. |
LED |
LED |
|
Interior lamp. |
LED |
LED |
|
Overhead console lamp. |
LED |
LED |
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
Use oil that meets the defined specification and viscosity grade.
If you do not use oil that meets the defined specification and viscosity grade, it could result in:
• Component damage that your vehicle warranty does not cover.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced vehicle performance.
• Reduced fuel economy.
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
We recommend Motorcraft motor oil for your vehicle. If Motorcraft oil is not available, use motor oils of the recommended viscosity grade that meet API SP requirements and display the API Certification Mark for gasoline engines.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
|
Variant |
Including the Oil Filter |
|
All. |
7.0 qt (6.6 L) |
|
Name |
Specification |
|
Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.) Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très haute qualití© SAE 5W-30 Motorcraft®(Canada) XO-5W30-Q1SP(U.S.) CXO-5W30-LSP6(Canada) |
WSS-M2C961-A1 |
Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance,
we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-30 - Synthetic Blend |
WSS-M2C963-A1 |
Use oil that meets the defined specification and viscosity grade.
If you do not use oil that meets the defined specification and viscosity grade, it could result in:
• Component damage that your vehicle warranty does not cover.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced vehicle performance.
• Reduced fuel economy.
We recommend Motorcraft motor oil for your vehicle. If Motorcraft motor oil is not available, use motor oil of the recommended viscosity grade that meets our specification WSS-M2C171-F1. You can find the list of approved motor oils at www.motorcraft.com.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.

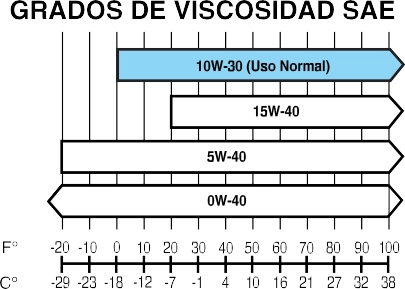

The use of correct oil viscosities for diesel engines is important for satisfactory operation. Determine which oil viscosity best suits the temperature range you expect to encounter for the next service interval from the SAE Viscosity Grades chart.
Note: An engine block heater is recommended at temperatures below -9°F (-23°C).
|
|
E327351
|
Variant |
Including the Oil Filter |
|
All. |
13.0 qt (12.3 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil(U.S.) Motorcraft® Super Duty Motor Oil SAE 10W-30 / Huile moteur Super Duty SAE 10W-30 Motor- craft®(Canada) XO-10W30-QSDF(U.S.) CXO-10W30-LSD12(Canada) |
WSS-M2C171-F1 |
Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-40 |
WSS-M2C171-F1 |
Alternative Engine Oil for Biodiesel Fuel Blends (B20 Max)
|
Name |
Specification |
|
Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil(U.S.) (Canada) XO-5W40-5Q3SD(U.S.) |
WSS-M2C171-F1 |
|
Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil(U.S.) Motorcraft® Super Duty Motor Oil SAE 15W-40 / Huile moteur Super Duty SAE 15W-40 Motor- craft®(Canada) XO-15W40-QSDF(U.S.) CXO-15W40-LSD12(Canada) |
WSS-M2C171-F1 |
Alternative Engine Oil for Severe Duty Service
Materials
|
Name |
Specification |
|
Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil(U.S.) (Canada) XO-5W40-5Q3SD(U.S.) |
WSS-M2C171-F1 |
ENGINE OIL CAPACITY AND SPECIFICATION - 7.3L
Use oil that meets the defined specification and viscosity grade.
If you do not use oil that meets the defined specification and viscosity grade, it could result in:
• Component damage that your vehicle warranty does not cover.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced vehicle performance.
• Reduced fuel economy.
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
We recommend Motorcraft motor oil for your vehicle. If Motorcraft oil is not available, use motor oils of the recommended viscosity grade that meet API SP requirements and display the API
Certification Mark for gasoline engines.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
|
Variant |
Including the Oil Filter |
|
All. |
8.0 qt (7.57 L) |
|
Name |
Specification |
|
Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.) Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très haute qualití© SAE 5W-30 Motorcraft®(Canada) XO-5W30-Q1SP(U.S.) CXO-5W30-LSP6(Canada) |
WSS-M2C961-A1 |
Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-30 - Synthetic Blend |
WSS-M2C963-A1 |
454
Use coolant that meets the defined specification.
If you do not use coolant that meets the defined specification, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Quantity |
|
All. |
24.6 qt (23.3 L) |
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
455
Use coolant that meets the defined specification.
If you do not use coolant that meets the defined specification, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
Note: An engine block heater is recommended at temperatures below-9°F (-23°C).
|
Variant |
Quantity |
|
Primary cooling system. |
31.7 qt (30 L) |
|
Secondary cooling system. |
8.1 qt (7.7 L) |
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
COOLING SYSTEM CAPACITY AND SPECIFICATION - 7.3L
Use coolant that meets the defined specification.
If you do not use coolant that meets the defined specification, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Quantity |
|
All. |
22.5 qt (21.3 L) |
456
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
FUEL TANK CAPACITY - DIESEL
Capacities
|
Variant |
Quantity |
|
Complete vehicle-142 inch and 148 inch wheelbase, middle location. |
29.0 gal (109.8 L) |
|
Complete vehicle-160 inch and 164 inch wheelbase, middle location. |
34.0 gal (128.7 L) |
|
Complete vehicle-176 inch wheelbase, middle location. |
48.0 gal (181.7 L) |
|
Incomplete vehicle, middle location. |
26.5 gal (100.3 L) |
|
Incomplete vehicle, aft- axle -location. |
40.0 gal (151.4 L) |
|
Incomplete vehicle, middle and aft- axle - locations. |
66.5 gal (251.7 L) |
457
|
Variant |
Quantity |
|
Complete vehicle-all except 176 inch wheelbase and incomplete vehicles. |
34.0 gal (128.7 L) |
|
Complete vehicle-176 inch wheelbase. |
48.0 gal (181.7 L) |
|
Incomplete vehicle, aft- axle -location. |
40.0 gal (151.4 L) |
|
Incomplete vehicle, middle location. |
26.5 gal (100.3 L) |
|
the air conditioning refrigerant system can cause personal injury. |
Use refrigerant and oil that meets the defined specifications.
If you do not use refrigerant and oil that meets the defined specifications, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Refrigerant |
Refrigerant Oil |
|
With six-speed automatic transmission. |
27 oz (0.765 kg) |
4.1 fl oz (120 ml) |
|
With ten-speed automatic transmission. |
27 oz (0.765 kg) |
3.7 fl oz (110 ml) |
|
Name |
Specification |
|
Motorcraft® R-134a Refrigerant(U.S.) R-134a Refrigerant / Frigorigène R-134a(Canada) YN-19(U.S.) CYN-19-R(Canada) |
WSH-M17B19-A |
|
Motorcraft® PAG Refrigerant Compressor Oil(U.S.) Motorcraft® PAG Refrigerant Compressor Oil / Huile PAG pour compresseur frigorifique Motor- craft®(Canada) YN-12-D(U.S. & Canada) |
WSH-M1C231-B |
|
the air conditioning refrigerant system can cause personal injury. |
Use refrigerant and oil that meets the defined specifications.
If you do not use refrigerant and oil that meets the defined specifications, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Refrigerant |
Refrigerant Oil |
|
All. |
27 oz (0.765 kg) |
3.7 fl oz (110 ml) |
|
Name |
Specification |
|
Motorcraft® R-134a Refrigerant(U.S.) R-134a Refrigerant / Frigorigène R-134a(Canada) YN-19(U.S.) CYN-19-R(Canada) |
WSH-M17B19-A |
|
Motorcraft® PAG Refrigerant Compressor Oil(U.S.) Motorcraft® PAG Refrigerant Compressor Oil / Huile PAG pour compresseur frigorifique Motor- craft®(Canada) YN-12-D(U.S. & Canada) |
WSH-M1C231-B |
|
the air conditioning refrigerant system can cause personal injury. |
Use refrigerant and oil that meets the defined specifications.
If you do not use refrigerant and oil that meets the defined specifications, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Refrigerant |
Refrigerant Oil |
|
All. |
27 oz (0.765 kg) |
3.7 fl oz (110 ml) |
|
Name |
Specification |
|
Motorcraft® R-134a Refrigerant(U.S.) R-134a Refrigerant / Frigorigène R-134a(Canada) YN-19(U.S.) CYN-19-R(Canada) |
WSH-M17B19-A |
|
Motorcraft® PAG Refrigerant Compressor Oil(U.S.) Motorcraft® PAG Refrigerant Compressor Oil / Huile PAG pour compresseur frigorifique Motor- craft®(Canada) YN-12-D(U.S. & Canada) |
WSH-M1C231-B |
WASHER FLUID SPECIFICATION
Capacities
|
Variant |
Quantity |
|
All. |
Fill as required. |
|
Name |
Specification |
|
Motorcraft® Premium Windshield Wash Concen- trate with Bitterant(U.S.) Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualití© Motor- craft®(Canada) ZC-32-B2(U.S.) CXC-37-F/M(Canada) |
WSS-M14P19-A |
DIESEL EXHAUST FLUID CAPACITY AND SPECIFICATION (IF EQUIPPED)
Use fluid that meets the defined specification.
If you do not use fluid that meets the defined specification, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Quantity |
|
Complete vehicle. |
7.4 gal (28 L) |
|
Incomplete vehicle. |
7.2 gal (27.3 L) |
|
Name |
Specification |
|
Motorcraft® Diesel Exhaust Fluid(U.S.) Motorcraft® Diesel Exhaust Fluid / Fluide pour í©chappement diesel Motorcraft®(Canada) PM-27-GAL,PM-27-JUG(U.S.) CPM-27-J(Canada) |
WSS-M99C130-A |
Use fluid that meets the defined specification.
If you do not use fluid that meets the defined specification, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
Note: Only use MERCON ULV transmission fluid for automatic transmissions that require MERCON ULV transmission fluid.
The use of any other fluid could cause transmission damage.
|
Variant |
Quantity |
|
All. |
18.1 qt (17.1 L) 1 |
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
|
Name |
Specification |
|
Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid(U.S.) Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid / MERCON® ULV huile pour boí®tes auto- matique Motorcraft®(Canada) XT-12-QULV(U.S. & Canada) |
WSS-M2C949-A, MERCON® ULV |
AUTOMATIC TRANSMISSION FLUID CAPACITY AND SPECIFICATION - GASOLINE
Use fluid that meets the defined specification.
If you do not use fluid that meets the defined specification, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
Six-Speed Automatic Transmission
Note: Only use MERCON LV transmission fluid for automatic transmissions that require MERCON LV transmission fluid. The use of any other fluid could cause transmission damage.
|
Variant |
Quantity |
|
6.2L. |
13.9 qt (13.2 L) 1 |
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Ten-Speed Automatic Transmission
Note: Only use MERCON ULV transmission fluid for automatic transmissions that require MERCON ULV transmission fluid.
The use of any other fluid could cause transmission damage.
|
Variant |
Quantity |
|
6.2L. |
18.2 qt (17.2 L) 1 |
|
7.3L . |
18.2 qt (17.2 L) 1 |
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
464
|
Name |
Specification |
|
Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid(U.S.) Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid / MERCON® ULV huile pour boí®tes auto- matique Motorcraft®(Canada) XT-12-QULV(U.S. & Canada) |
WSS-M2C949-A, MERCON® ULV |
BRAKE FLUID SPECIFICATION
Use fluid that meets the defined specification and viscosity grade.
If you do not use fluid that meets the defined specification and viscosity grade, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced brake performance.
Note: We recommend you use DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. If you use any fluid other than the recommended fluid, it could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.
|
Variant |
Quantity |
|
All. |
Fill as required. |
|
Name |
Specification |
|
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV Motorcraft®(Canada) PM-20(U.S. & Canada) |
WSS-M6C65-A2 |
465
Use fluid that meets the defined
specification.
If you do not use fluid that meets the defined specification, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Quantity |
|
All. |
1.9 qt (1.8 L) |
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
FRONTAXLEFLUIDCAPACITY AND SPECIFICATION
Use fluid that meets the defined specification and viscosity grade.
If you do not use fluid that meets the defined specification and viscosity grade, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Quantity |
|
Four-wheel drive without limited slip. |
2.75 qt (2.6 L) |
|
Four-wheel drive with limited slip. |
2.75 qt (2.6 L) 1 |
1 For complete refill of limited slip axles, add 5.4 fl oz. (160 ml) of Additive Friction Modifier XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in the total lube volume of 2.75 qt (2.6 L).
466
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant(U.S.) Motorcraft® SAE 80W-90 Premium Axle Lubricant / Lubrifiant pour essieux de très haute qualití© SAE 80W-90 Motorcraft®(Canada) XY-80W90-QL(U.S.) CXY-80W90-1L(Canada) |
WSP-M2C197-A |
REAR AXLE FLUID CAPACITY AND SPECIFICATION - DIESEL
Use fluid that meets the defined specification and viscosity grade.
Rear Axle - 10.5
If you do not use fluid that meets the defined specification and viscosity grade, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Quantity |
|
With Electronic Locking Differential. |
3.3–3.5 qt (3.1–3.3 L) |
|
Without Electronic Locking Differential. |
3.5–3.6 qt (3.3–3.4 L) |
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
467
|
Variant |
Quantity |
|
All. |
3.6 qt (3.42 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthí©tique pour pont arrière SAE 75W-140 Motorcraft®(Canada) XY-75W140-QL(U.S.) CXY-75W140-1L(Canada) |
WSL-M2C192-A |
Rear Axle - 11.8
Capacities
|
Variant |
Quantity |
|
All. |
3.78 qt (3.58 L) 1 |
1 For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent, meeting Ford Specification EST-M2C118-A. Include this friction modifier in the total lube volume of 3.78 qt (3.58 L).
468
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthí©tique pour pont arrière SAE 75W-140 Motorcraft®(Canada) XY-75W140-QL(U.S.) CXY-75W140-1L(Canada) |
WSL-M2C192-A |
REAR AXLE FLUID CAPACITY AND SPECIFICATION - GASOLINE
Use fluid that meets the defined specification and viscosity grade.
If you do not use fluid that meets the defined specification and viscosity grade, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Quantity |
|
With Electronic Locking Differential. |
3.3–3.5 qt (3.1–3.3 L) |
|
Without Electronic Locking Differential. |
3.5–3.6 qt (3.3–3.4 L) |
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Rear Axle - 10.8
Capacities
|
Variant |
Quantity |
|
7.3L. |
3.6 qt (3.42 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthí©tique pour pont arrière SAE 75W-140 Motorcraft®(Canada) XY-75W140-QL(U.S.) CXY-75W140-1L(Canada) |
WSL-M2C192-A |
Rear Axle - 11.8
Capacities
|
Variant |
Quantity |
|
All. |
3.78 qt (3.58 L) 1 |
1 For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent, meeting Ford Specification EST-M2C118-A. Include this friction modifier in the total lube volume of 3.78 qt (3.58 L).
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant(U.S.) Motorcraft® SAE 80W-90 Premium Axle Lubricant / Lubrifiant pour essieux de très haute qualití© SAE 80W-90 Motorcraft®(Canada) XY-80W90-QL(U.S.) CXY-80W90-1L(Canada) |
WSP-M2C197-A |
Rear Axle - 11.8 (With Heavy Duty Tow Option)
Capacities
|
Variant |
Quantity |
|
7.3L. |
3.78 qt (3.58 L) 1 |
1 For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in the total lube volume of 3.78 qt (3.58 L).
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthí©tique pour pont arrière SAE 75W-140 Motorcraft®(Canada) XY-75W140-QL(U.S.) CXY-75W140-1L(Canada) |
WSL-M2C192-A |
471
Use fluid that meets the defined specification.
If you do not use fluid that meets the defined specification, it could result in:
• Component damage that your vehicle warranty does not cover.
• Reduced vehicle performance.
|
Variant |
Quantity |
|
All. |
Fill as required. |
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Download Manual
