Capacities and Specifications
|
Engine |
6.2L V8 Engine |
|
Displacement. |
379 in³ (6,210 cm³) |
|
Required fuel. |
Minimum 87 octane |
|
Firing order. |
1-5-4-8-6-3-7-2 |
|
Ignition system. |
Coil on plug |
|
Spark plug gap. |
0.041 in (1.04 mm) - 0.047 in (1.2 mm) |
|
Compression ratio. |
9.8:1 |
E163761
|
Engine |
6.7L V8 Diesel Engine |
|
Displacement. |
406 in³ (6,651 cm³) |
|
Required fuel. |
Ultra Low Sulfur Diesel up to B20 |
|
Firing order. |
1-3-7-2-6-5-4-8 |
|
Compression ratio. |
15.8:1 |
429
E299020
E299021
|
Engine |
7.3L V8 Engine |
|
Displacement. |
445 in³ (7,293 cm³) |
|
Required fuel. |
Minimum 87 octane |
|
Firing order. |
1-5-4-8-6-3-7-2 |
|
Ignition system. |
Coil near spark plug with spark plug wire |
|
Spark plug gap. |
0.049 in (1.25 mm) - 0.053 in (1.35 mm) |
|
Compression ratio. |
10.5:1 |
430

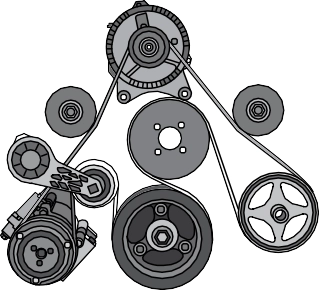

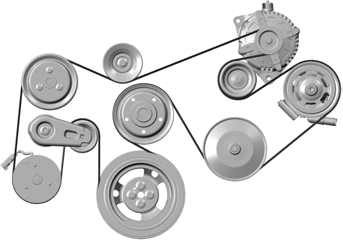

Drivebelt Routing

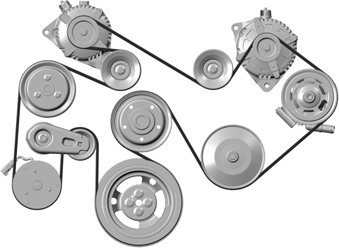

Dual Alternator
|
Component |
Motorcraft Part number |
|
Air filter element. |
FA-1950 |
|
Battery (XL). |
BXT-65-650 |
|
Battery (all except XL). |
BXT-65-750 |
|
Cabin air filter. |
FP-79 |
|
Engine oil filter.1 |
FL-820-S |
|
Spark plugs.2 |
SP-526 |
|
Six-speed automatic transmission fluid filter (6R100). |
FT-188 |
431
|
Component |
Motorcraft Part number |
|
Ten-speed automatic transmission fluid filter (10R140). |
FT-221 |
|
Windshield wiper blades. |
WW-2248 |
1 If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36/USC-D.
2 For spark plug replacement, contact your authorized dealer. Replace the spark plugs at the recommended intervals. See Normal Scheduled Maintenance (page 556).
We recommend Motorcraft® parts that are available at your authorized dealer or at www.fordparts.com. These parts are engineered for your vehicle, and meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty could be void for any damage related to use of other parts.
432
|
Component |
Motorcraft Part number |
|
Air filter. |
FA-1951 |
|
Foam pre-filter. |
FA-1952 |
|
Battery (two required). |
BXT-65-750 |
|
Cabin air filter. |
FP-79 |
|
Engine oil filter.1 |
FL-2051-S |
|
Fuel filter. |
FD-4631 |
|
Ten-speed automatic transmission fluid filter (10R140). |
FT-221 |
|
Windshield wiper blades. |
WW-2248 |
1 If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36/USC-D.
We recommend Motorcraft® parts that are available at your authorized dealer or at www.fordparts.com. These parts are engineered for your vehicle, and meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty could be void for any damage related to use of other parts.
433
|
Component |
Motorcraft Part Number |
|
Air filter element. |
FA-1950 |
|
Battery. |
BXT-65-750 |
|
Cabin air filter. |
FP-79 |
|
Engine oil filter.1 |
FL-820-S |
|
Spark plugs.2 |
SP-586 |
|
Ten-speed automatic transmission fluid filter (10R140). |
FT-221 |
|
Windshield wiper blades. |
WW-2248 |
1 If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
2 For spark plug replacement, contact your authorized dealer. Replace the spark plugs at the recommended intervals. See Normal Scheduled Maintenance (page 556).
We recommend Motorcraft® parts that are available at your authorized dealer or at www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty could be void for any damage related to use of other parts.
434
The vehicle identification number is located on the left-hand side of the instrument panel.
Please note that in the graphic, XXXX is representative of your vehicle identification number.
The Vehicle Identification Number contains the following information:
E142477
A B
C
D E F G H
World manufacturer identifier
Brake system, Gross Vehicle Weight Rating, Restraint Devices and their locations
Make, vehicle line, series, body type
Engine type Check digit Model year Assembly plant
Production sequence number
435
E167469
The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label shall be affixed to either the door hinge pillar, the door latch post, or the edge of the door near the door latch, next to the driver's seating position.
E167814
The transmission code is on the Safety Compliance Certification Label. The following table shows the transmission code along with the transmission description.
|
Description |
Code |
|
Six-speed automatic transmission 6R100. |
S |
|
Ten-speed automatic transmission 10R140. |
G |
436
Use oil and fluid that meets the defined specification and viscosity grade.
If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:
Component damage not covered by the vehicle warranty.
Longer engine cranking periods.
Increased emission levels.
Reduced engine performance.
Reduced fuel economy.
Reduced brake performance.
Air Conditioning System
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.|
Variant |
Refrigerant |
Refrigerant Oil |
|
With six-speed automatic transmission (6R100). |
27 oz (0.765 kg) |
4.1 fl oz (120 ml) |
|
With ten-speed automatic transmission (10R140). |
27 oz (0.765 kg) |
3.7 fl oz (110 ml) |
|
Name |
Specification |
|
Motorcraft® R-134a Refrigerant(U.S.) R-134a Refrigerant / Frigorigène R-134a(Canada) YN-19(U.S.) CYN-19-R(Canada) |
WSH-M17B19-A |
|
Motorcraft® PAG Refrigerant Compressor Oil(U.S.) Motorcraft® PAG Refrigerant Compressor Oil / Huile PAG pour compresseur frigorifique Motor- craft®(Canada) YN-12-D(U.S. & Canada) |
WSH-M1C231-B |
437
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid could cause transmission damage.
|
Variant |
Quantity |
|
Six-speed automatic transmission (6R100). |
13.9 qt (13.2 L) 1 |
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Automatic Transmission-Ten Speed
Note: Automatic transmissions that require MERCON® ULV transmission fluid should only use MERCON® ULV transmission fluid. The use of any other fluid could cause transmission damage.
|
Variant |
Quantity |
|
Ten-speed automatic transmission (10R140). |
18.2 qt (17.2 L) 1 |
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
438
|
Name |
Specification |
|
Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid(U.S.) Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid / MERCON® ULV huile pour boí®tes auto- matique Motorcraft®(Canada) XT-12-QULV(U.S. & Canada) |
WSS-M2C949-A, MERCON® ULV |
Engine Coolant
Capacities
|
Variant |
Quantity |
|
All. |
24.6 qt (23.3 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
Engine Oil
E276075
E142732
439
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN PLUS requirements and display the API Certification Mark for gasoline engines.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
|
Variant |
Including the Oil Filter |
|
All. |
7.0 qt (6.6 L) |
|
Name |
Specification |
|
Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil(U.S.) Engine Oil - SAE 5W-30 - Super Premium Motor Oil / Huile moteur de très haute qualití© SAE 5W-30 Motorcraft®(Canada) XO-5W30-Q1SP(U.S.) CXO-5W30-LSP6(Canada) |
WSS-M2C946-B1 |
Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-30 |
WSS-M2C953-B1 |
440
|
Variant |
Quantity |
|
Complete vehicle-all except 176 inch wheelbase and incomplete vehicles. |
34.0 gal (128.7 L) |
|
Complete vehicle-176 inch wheelbase. |
48.0 gal (181.7 L) |
|
Incomplete vehicle, aft- axle -location. |
40.0 gal (151.4 L) |
|
Incomplete vehicle, middle location. |
26.5 gal (100.3 L) |
Grease
441
|
Name |
Specification |
|
Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease(U.S.) Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / Graisse haute tempí©rature pour roulements de roue et ponts avant 4x4 Motor- craft®(Canada) XG-11(U.S. & Canada) |
WSS-M1C267-A1 |
|
Motorcraft® Multi-Purpose Grease Spray(U.S.) Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aí©rosol Motorcraft®(Canada) XL-5-A(U.S. & Canada) |
ESB-M1C93-B |
|
Motorcraft® Premium Long-Life Grease(U.S.) Motorcraft® Premium Long-Life Grease / Graisse longue durí©e de qualití© première Motor- craft®(Canada) XG-1-E1(U.S. & Canada) |
ESA-M1C75-B |
Hydraulic Brake System
Materials
|
Name |
Specification |
|
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV Motorcraft®(Canada) PM-20(U.S. & Canada) |
WSS-M6C65-A2 |
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.
442
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Locks
Materials
|
Name |
Specification |
|
Motorcraft® Penetrating and Lock Lubricant(U.S.) Motorcraft® Penetrating Fluid / Liquide dí©grippant Motorcraft®(Canada) XL-1(U.S.) CXC-51-A(Canada) |
- |
Transfer Case
Capacities
|
Variant |
Quantity |
|
All. |
1.9 qt (1.8 L) |
Materials
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
443
|
Variant |
Quantity |
|
Four wheel drive. |
2.75 qt (2.6 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant(U.S.) Motorcraft® SAE 80W-90 Premium Axle Lubricant / Lubrifiant pour essieux de très haute qualití© SAE 80W-90 Motorcraft®(Canada) XY-80W90-QL(U.S.) CXY-80W90-1L(Canada) |
WSP-M2C197-A |
Rear Axle - 10.5
Capacities
|
Variant |
Quantity |
|
With Electronic Locking Differential. |
3.3–3.5 qt (3.1–3.3 L) |
|
Without Electronic Locking Differential. |
3.5–3.6 qt (3.3–3.4 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
444
|
Variant |
Quantity |
|
All. |
3.78 qt (3.58 L) 1 |
1 For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent, meeting Ford Specification EST-M2C118-A. Include this friction modifier in the total lube volume of 3.78 qt (3.58 L).
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant(U.S.) Motorcraft® SAE 80W-90 Premium Axle Lubricant / Lubrifiant pour essieux de très haute qualití© SAE 80W-90 Motorcraft®(Canada) XY-80W90-QL(U.S.) CXY-80W90-1L(Canada) |
WSP-M2C197-A |
Washer Reservoir
Capacities
|
Variant |
Quantity |
|
All. |
Fill as required. |
445
|
Name |
Specification |
|
Motorcraft® Premium Windshield Wash Concen- trate with Bitterant(U.S.) Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualití© Motor- craft®(Canada) ZC-32-B2(U.S.) CXC-37-A/B/D/F(Canada) |
WSS-M14P19-A |
CAPACITIES AND SPECIFICATIONS - 6.7L DIESEL
Use oil and fluid that meets the defined specification and viscosity grade.
If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:
Component damage not covered by the vehicle warranty.
Longer engine cranking periods.
Increased emission levels.
Reduced engine performance.
Reduced fuel economy.
Reduced brake performance.
Note: We recommend an engine block heater at temperatures below –10°F (–23°C).
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.|
Variant |
Refrigerant |
Refrigerant Oil |
|
All. |
27 oz (0.765 kg) |
3.7 fl oz (110 ml) |
446
|
Name |
Specification |
|
Motorcraft® R-134a Refrigerant(U.S.) R-134a Refrigerant / Frigorigène R-134a(Canada) YN-19(U.S.) CYN-19-R(Canada) |
WSH-M17B19-A |
|
Motorcraft® PAG Refrigerant Compressor Oil(U.S.) Motorcraft® PAG Refrigerant Compressor Oil / Huile PAG pour compresseur frigorifique Motor- craft®(Canada) YN-12-D(U.S. & Canada) |
WSH-M1C231-B |
Automatic Transmission
Note: Only use MERCON ULV transmission fluid for automatic transmissions that require MERCON ULV transmission fluid.
The use of any other fluid could cause transmission damage.
|
Variant |
Quantity |
|
All. |
18.1 qt (17.1 L) 1 |
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
|
Name |
Specification |
|
Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid(U.S.) Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid / MERCON® ULV huile pour boí®tes auto- matique Motorcraft®(Canada) XT-12-QULV(U.S. & Canada) |
WSS-M2C949-A, MERCON® ULV |
447
|
Variant |
Quantity |
|
Primary cooling system. |
31.7 qt (30 L) |
|
Secondary cooling system. |
8.1 qt (7.7 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
Engine Oil
We recommend Motorcraft motor oil for your vehicle. If Motorcraft motor oil is not available, use motor oil of the recommended viscosity grade that meets our specification WSS-M2C171-F1. You can find the list of approved motor oils at www.motorcraft.com.
Do not use engine oil additives as they could lead to engine damage not covered by your vehicle warranty.

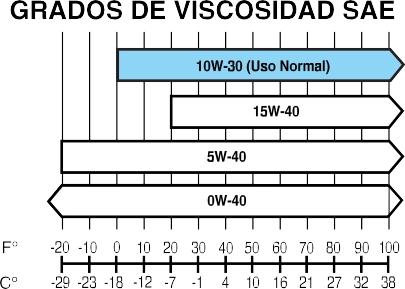

The use of correct oil viscosities for diesel engines is important for satisfactory operation. Determine which oil viscosity best suits the temperature range you expect to encounter for the next service interval from the SAE Viscosity Grades chart.
448
|
|
E327351
449
|
Variant |
Including the Oil Filter |
|
All. |
13.0 qt (12.3 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil(U.S.) Motorcraft® Super Duty Motor Oil SAE 10W-30 / Huile moteur Super Duty SAE 10W-30 Motor- craft®(Canada) XO-10W30-QSDF(U.S.) CXO-10W30-LSD12(Canada) |
WSS-M2C171-F1 |
Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-40 |
WSS-M2C171-F1 |
Alternative Engine Oil for Biodiesel Fuel Blends (B20 Max)
450
|
Name |
Specification |
|
Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil(U.S.) (Canada) XO-5W40-5Q3SD(U.S.) |
WSS-M2C171-F1 |
|
Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil(U.S.) Motorcraft® Super Duty Motor Oil SAE 15W-40 / Huile moteur Super Duty SAE 15W-40 Motor- craft®(Canada) XO-15W40-QSDF(U.S.) CXO-15W40-LSD12(Canada) |
WSS-M2C171-F1 |
Alternative Engine Oil for Severe Duty Service
Materials
|
Name |
Specification |
|
Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil(U.S.) (Canada) XO-5W40-5Q3SD(U.S.) |
WSS-M2C171-F1 |
Fuel Tank
Capacities
|
Variant |
Quantity |
|
Complete vehicle-142 inch and 148 inch wheelbase, middle location. |
29.0 gal (109.8 L) |
|
Complete vehicle-160 inch and 164 inch wheelbase, middle location. |
34.0 gal (128.7 L) |
|
Complete vehicle-176 inch wheelbase, middle location. |
48.0 gal (181.7 L) |
451
|
Variant |
Quantity |
|
Incomplete vehicle, middle location. |
26.5 gal (100.3 L) |
|
Incomplete vehicle, aft- axle -location. |
40.0 gal (151.4 L) |
|
Incomplete vehicle, middle and aft- axle - locations. |
66.5 gal (251.7 L) |
|
Variant |
Quantity |
|
Complete vehicle. |
7.4 gal (28 L) |
|
Incomplete vehicle. |
7.2 gal (27.3 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Diesel Exhaust Fluid(U.S.) Motorcraft® Diesel Exhaust Fluid / Fluide pour í©chappement diesel Motorcraft®(Canada) PM-27-GAL,PM-27-JUG(U.S.) CPM-27-J(Canada) |
WSS-M99C130-A |
Grease
452
|
Name |
Specification |
|
Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease(U.S.) Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / Graisse haute tempí©rature pour roulements de roue et ponts avant 4x4 Motor- craft®(Canada) XG-11(U.S. & Canada) |
WSS-M1C267-A1 |
|
Motorcraft® Multi-Purpose Grease Spray(U.S.) Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aí©rosol Motorcraft®(Canada) XL-5-A(U.S. & Canada) |
ESB-M1C93-B |
|
Motorcraft® Premium Long-Life Grease(U.S.) Motorcraft® Premium Long-Life Grease / Graisse longue durí©e de qualití© première Motor- craft®(Canada) XG-1-E1(U.S. & Canada) |
ESA-M1C75-B |
Hydraulic Brake System
Materials
|
Name |
Specification |
|
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV Motorcraft®(Canada) PM-20(U.S. & Canada) |
WSS-M6C65-A2 |
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and failure.
453
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Locks
Materials
|
Name |
Specification |
|
Motorcraft® Penetrating and Lock Lubricant(U.S.) Motorcraft® Penetrating Fluid / Liquide dí©grippant Motorcraft®(Canada) XL-1(U.S.) CXC-51-A(Canada) |
- |
Transfer Case
Capacities
|
Variant |
Quantity |
|
All. |
1.9 qt (1.8 L) |
Materials
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
454
|
Variant |
Quantity |
|
With Tremor package-with limited slip. |
2.75 qt (2.6 L) 1 |
|
Without Tremor package-without limited slip. |
2.75 qt (2.6 L) |
1 For complete refill of limited slip axles, add 5.4 fl oz. (160 ml) of Additive Friction Modifier XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in the total lube volume of 2.75 qt (2.6 L).
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant(U.S.) Motorcraft® SAE 80W-90 Premium Axle Lubricant / Lubrifiant pour essieux de très haute qualití© SAE 80W-90 Motorcraft®(Canada) XY-80W90-QL(U.S.) CXY-80W90-1L(Canada) |
WSP-M2C197-A |
Rear Axle - 10.5
Capacities
|
Variant |
Quantity |
|
With Electronic Locking Differential. |
3.3–3.5 qt (3.1–3.3 L) |
|
Without Electronic Locking Differential. |
3.5–3.6 qt (3.3–3.4 L) |
455
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Rear Axle - 10.8
Capacities
|
Variant |
Quantity |
|
All. |
3.6 qt (3.42 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthí©tique pour pont arrière SAE 75W-140 Motorcraft®(Canada) XY-75W140-QL(U.S.) CXY-75W140-1L(Canada) |
WSL-M2C192-A |
Rear Axle - 11.8
Capacities
|
Variant |
Quantity |
|
All. |
3.78 qt (3.58 L) 1 |
1 For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in the total lube volume of 3.78 qt (3.58 L).
456
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthí©tique pour pont arrière SAE 75W-140 Motorcraft®(Canada) XY-75W140-QL(U.S.) CXY-75W140-1L(Canada) |
WSL-M2C192-A |
Washer Reservoir
Capacities
|
Variant |
Quantity |
|
All. |
Fill as required. |
Materials
|
Name |
Specification |
|
Motorcraft® Premium Windshield Wash Concen- trate with Bitterant(U.S.) Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualití© Motor- craft®(Canada) ZC-32-B2(U.S.) CXC-37-A/B/D/F(Canada) |
WSS-M14P19-A |
CAPACITIES AND SPECIFICATIONS - 7.3L
Use oil and fluid that meets the defined specification and viscosity grade.
If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:
Component damage not covered by the vehicle warranty.
Longer engine cranking periods.
Increased emission levels.
457
Reduced engine performance.
Reduced fuel economy.
Reduced brake performance.
Air Conditioning System
|
|
WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.|
Variant |
Refrigerant |
Refrigerant Oil |
|
All. |
27 oz (0.765 kg) |
3.7 fl oz (110 ml) |
Materials
|
Name |
Specification |
|
Motorcraft® R-134a Refrigerant(U.S.) R-134a Refrigerant / Frigorigène R-134a(Canada) YN-19(U.S.) CYN-19-R(Canada) |
WSH-M17B19-A |
|
Motorcraft® PAG Refrigerant Compressor Oil(U.S.) Motorcraft® PAG Refrigerant Compressor Oil / Huile PAG pour compresseur frigorifique Motor- craft®(Canada) YN-12-D(U.S. & Canada) |
WSH-M1C231-B |
Automatic Transmission
Note: Only use MERCON® ULV transmission fluid for automatic transmissions that require MERCON® ULV transmission fluid. The use of any other fluid could cause transmission damage.
|
Variant |
Quantity |
|
Ten-speed automatic transmission (10R140). |
18.2 qt (17.2 L) 1 |
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
458
|
Name |
Specification |
|
Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid(U.S.) Motorcraft® MERCON® ULV Automatic Transmis- sion Fluid / MERCON® ULV huile pour boí®tes auto- matique Motorcraft®(Canada) XT-12-QULV(U.S. & Canada) |
WSS-M2C949-A, MERCON® ULV |
Engine Coolant
Capacities
|
Variant |
Quantity |
|
All. |
22.5 qt (21.3 L) |
Materials
|
Name |
Specification |
|
Motorcraft® Yellow Prediluted Antifreeze/ Coolant(U.S.) Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prí©diluí© jaune Motorcraft®(Canada) VC-13DL-G(U.S.) CVC-13DL-G(Canada) |
WSS-M97B57-A2 |
Engine Oil
E276075
E142732
459
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN PLUS requirements and display the API Certification Mark for gasoline engines.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
|
Variant |
Including the Oil Filter |
|
All. |
8.0 qt (7.57 L) |
|
Name |
Specification |
|
Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil(U.S.) Engine Oil - SAE 5W-30 - Super Premium Motor Oil / Huile moteur de très haute qualití© SAE 5W-30 Motorcraft®(Canada) XO-5W30-Q1SP(U.S.) CXO-5W30-LSP6(Canada) |
WSS-M2C946-B1 |
Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.
|
Name |
Specification |
|
Engine Oil - SAE 0W-30 |
WSS-M2C953-B1 |
460
|
Variant |
Quantity |
|
Complete vehicle-all except 176 inch wheelbase and incomplete vehicles. |
34.0 gal (128.7 L) |
|
Complete vehicle-176 inch wheelbase. |
48.0 gal (181.7 L) |
|
Incomplete vehicle, aft- axle -location. |
40.0 gal (151.4 L) |
|
Incomplete vehicle, middle location. |
26.5 gal (100.3 L) |
Grease
461
|
Name |
Specification |
|
Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease(U.S.) Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / Graisse haute tempí©rature pour roulements de roue et ponts avant 4x4 Motor- craft®(Canada) XG-11(U.S. & Canada) |
WSS-M1C267-A1 |
|
Motorcraft® Multi-Purpose Grease Spray(U.S.) Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aí©rosol Motorcraft®(Canada) XL-5-A(U.S. & Canada) |
ESB-M1C93-B |
|
Motorcraft® Premium Long-Life Grease(U.S.) Motorcraft® Premium Long-Life Grease / Graisse longue durí©e de qualití© première Motor- craft®(Canada) XG-1-E1(U.S. & Canada) |
ESA-M1C75-B |
Hydraulic Brake System
Materials
|
Name |
Specification |
|
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.) Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV Motorcraft®(Canada) PM-20(U.S. & Canada) |
WSS-M6C65-A2 |
Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.
462
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
Locks
Materials
|
Name |
Specification |
|
Motorcraft® Penetrating and Lock Lubricant(U.S.) Motorcraft® Penetrating Fluid / Liquide dí©grippant Motorcraft®(Canada) XL-1(U.S.) CXC-51-A(Canada) |
- |
Transfer Case
Capacities
|
Variant |
Quantity |
|
All. |
1.9 qt (1.8 L) |
Materials
|
Name |
Specification |
|
Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.) Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boí®te automatique MERCON® LV Motorcraft®(Canada) XT-10-QLVC(U.S.) CXT-10-LV6(Canada) |
WSS-M2C938-AMERCON® LV, |
463
|
Variant |
Quantity |
|
With Tremor package (with limited slip). |
2.75 qt (2.6 L) 1 |
|
Without Tremor package (without limited slip). |
2.75 qt (2.6 L) |
1 For complete refill of limited slip axles, add 5.4 fl oz. (160 ml) of Additive Friction Modifier XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in the total lube volume of 2.75 qt (2.6 L).
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant(U.S.) Motorcraft® SAE 80W-90 Premium Axle Lubricant / Lubrifiant pour essieux de très haute qualití© SAE 80W-90 Motorcraft®(Canada) XY-80W90-QL(U.S.) CXY-80W90-1L(Canada) |
WSP-M2C197-A |
Rear Axle - 10.5
Capacities
|
Variant |
Quantity |
|
With Electronic Locking Differential. |
3.3–3.5 qt (3.1–3.3 L) |
|
Without Electronic Locking Differential. |
3.5–3.6 qt (3.3–3.4 L) |
464
|
Name |
Specification |
|
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.) Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthí©tique de haute qualití© pour engrenages hypoí¯des SAE 75W-85 Motorcraft®(Canada) XY-75W85-QL(U.S. & Canada) |
WSS-M2C942-A |
Rear Axle - 10.8
Capacities
|
Variant |
Quantity |
|
All. |
3.6 qt (3.42 L) |
Materials
|
Name |
Specification |
|
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthí©tique pour pont arrière SAE 75W-140 Motorcraft®(Canada) XY-75W140-QL(U.S.) CXY-75W140-1L(Canada) |
WSL-M2C192-A |
Rear Axle - 11.8 (With HD Tow Option)
Capacities
|
Variant |
Quantity |
|
All. |
3.78 qt (3.58 L) 1 |
1 For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in the total lube volume of 3.78 qt (3.58 L).
465
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.) Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthí©tique pour pont arrière SAE 75W-140 Motorcraft®(Canada) XY-75W140-QL(U.S.) CXY-75W140-1L(Canada) |
WSL-M2C192-A |
Rear Axle - 11.8 (Without HD Tow Option)
Capacities
|
Variant |
Quantity |
|
All. |
3.78 qt (3.58 L) 1 |
1 For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in the total lube volume of 3.78 qt (3.58 L).
|
Name |
Specification |
|
Motorcraft® Additive Friction Modifier(U.S.) Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft®(Canada) XL-3(U.S.) CXL-3(Canada) |
EST-M2C118-A |
|
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant(U.S.) Motorcraft® SAE 80W-90 Premium Axle Lubricant / Lubrifiant pour essieux de très haute qualití© SAE 80W-90 Motorcraft®(Canada) XY-80W90-QL(U.S.) CXY-80W90-1L(Canada) |
WSP-M2C197-A |
466
|
Variant |
Quantity |
|
All. |
Fill as required. |
Materials
|
Name |
Specification |
|
Motorcraft® Premium Windshield Wash Concen- trate with Bitterant(U.S.) Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualití© Motor- craft®(Canada) ZC-32-B2(U.S.) CXC-37-A/B/D/F(Canada) |
WSS-M14P19-A |
BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized D.O.T. marking for North America to make sure they have the proper lamp performance, light brightness, light pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb illumination time.
|
Lamp |
Specification |
Power (Watt) |
|
Headlamp. |
H13/9008 |
60/55 |
|
Headlamp. |
LED |
LED |
|
Front side marker lamp. |
W5W |
5 |
|
Front fog lamp. |
9140 |
40 |
|
Front fog lamp.3 |
LED |
LED |
467
|
Lamp |
Specification |
Power (Watt) |
|
Front direction indicator and parking lamp. |
T20/7444NA |
28/8 |
|
Rear lamp, brake lamp, and rear side marker lamp. Low/Mid series.1 |
3157K |
27/7 |
|
Rear direction indicator lamp. Low/Mid series.1 |
WTY21W |
21 |
|
Rear lamp, brake lamp, rear direction indicator, rear side marker lamp and reverse lamp. High series.1 |
LED |
LED |
|
Rear lamp, brake lamp, rear direction indicator and rear side marker lamp.2 |
3157K |
27/7 |
|
Reversing lamp. Low/Mid series. |
WT21W |
21 |
|
License plate lamp. Low series. |
168 |
5 |
|
License plate lamp. High series. |
LED |
LED |
|
Central high mounted cargo lamp. |
912 |
12.8 |
|
Central high mounted cargo lamp. |
LED |
LED |
|
Side direction indicator and mirror clearance lamp. |
LED |
LED |
|
Front clearance lamp. |
LED |
LED |
|
Rear clearance lamp. |
LED |
LED |
|
Front identification lamp. |
LED |
LED |
|
Rear identification lamp. |
LED |
LED |
|
Underhood lamp. |
LED |
LED |
1 Pickup only.
2 Chassis cab only.
3 U.S. and Canada only
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
468
|
Lamp |
Specification |
Power (Watt) |
|
Map lamp. |
LED |
LED |
|
Glove compartment lamp. |
LED |
LED |
|
Interior lamp. |
LED |
LED |
|
Overhead console lamp. |
LED |
LED |
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
469
Download Manual
