Capacities and Specifications
|
Engine |
6.2L V8 Engine |
|
Cubic inches |
378 |
|
Required fuel |
Minimum 87 octane |
|
Firing order |
1-5-4-8-6-3-7-2 |
|
Ignition system |
Coil on plug |
|
Spark plug gap |
0.041-0.047 in (1.04-1.20 mm) |
|
Compression ratio |
9.8:1 |
E163761
|
Engine |
6.7L Diesel |
|
Cubic inches |
406 |
|
Required fuel |
Low Sulfur Diesel up to B20 |
|
Firing order |
1-3-7-2-6-5-4-8 |
|
Compression ratio |
16.2:1 |
420
E224819
E224820
|
Engine |
6.8L V10 Engine |
|
Cubic inches |
413 |
|
Required fuel |
Minimum 87 octane |
|
Firing order |
1-6-5-10-2-7-3-8-4-9 |
|
Ignition system |
Coil on plug |
|
Spark plug gap |
0.039 - 0.043 in (1.00 - 1.10 mm) |
|
Compression ratio |
9.2:1 |
421
Drivebelt Routing

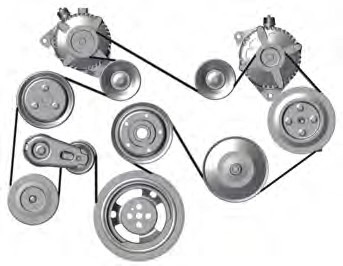

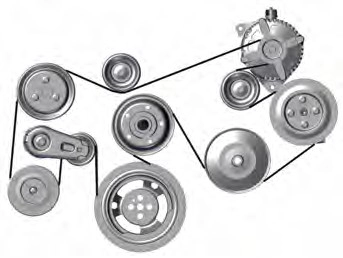

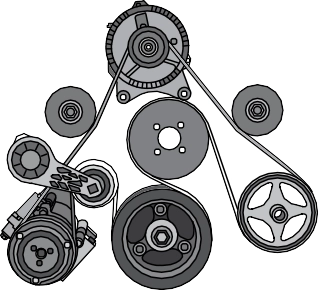

6.8L Engines without A/C
|
Component |
Motorcraft Part number |
|
Air filter element |
FA-1928 |
|
Oil filter |
FL-820-S |
|
Battery (XL) |
BXT-65-650 |
|
Battery (all except XL) |
BXT-65-750 |
|
Spark plugs-platinum |
SP-526 |
|
Windshield wiper blade |
WW-2247 |
|
Transmission fluid filter |
FT-187 |
|
Cabin air filter |
FP-79 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your Ford dealer or at fordparts.com. These parts meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance (page 581).
422
|
Component |
Motorcraft Part number |
|
Engine oil filter |
FL-2051S |
|
Foam pre-filter |
FA-1927 |
|
Air filter |
FA-1926 |
|
Fuel filter |
FG-1147 |
|
Battery (Two) |
BXT-65-750 |
|
Windshield wiper blade |
WW-2247 |
|
Cabin air filter |
FP-79 |
|
Transmission filter |
FT-187 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your Ford dealer or at fordparts.com. These parts meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
423
|
Component |
Motorcraft Part number |
|
Air filter element. |
FA-1928 |
|
Oil filter. |
FL-820-S |
|
Battery (XL). |
BXT-65-650 |
|
Battery (all except XL). |
BXT-65-750 |
|
Spark plugs-platinum. |
SP-509 |
|
Windshield wiper blade. |
WW-2247 |
|
Transmission fluid filter |
FT-187 |
|
Cabin air filter. |
FP-79 |
For scheduled maintenance, we recommend Motorcraft® replacement parts available at your Ford dealer or at fordparts.com. These parts meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36/USC-D.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Normal Scheduled Maintenance (page 584).
424
The vehicle identification number is located on the left-hand side of the instrument panel.
Please note that in the graphic, XXXX is representative of your vehicle identification number.
The Vehicle Identification Number contains the following information:
E142477
A B
C
D E F G H
World manufacturer identifier
Brake system, Gross Vehicle Weight Rating, Restraint Devices and their locations
Make, vehicle line, series, body type
Engine type Check digit Model year Assembly plant
Production sequence number
425
E167469
The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label shall be affixed to either the door hinge pillar, the door latch post, or the edge of the door near the door latch, next to the driver's seating position.
E167814
The transmission code is on the Safety Compliance Certification Label. The following table shows the transmission code along with the transmission description.
|
Description |
Code |
|
Six-speed automatic transmission 6R140 |
P |
|
Six-speed automatic transmission 6R100 |
S |
|
Six-speed automatic transmission 6R140W |
W |
426
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.
|
Item |
Capacity |
|
Engine oil (with oil filter) |
7.0 qt (6.6 L) |
|
Engine coolant |
21.3 qt (20.2 L) |
|
Brake fluid |
Between MIN and MAX on brake fluid reservoir |
|
Front axle |
2.7 qt (2.6 L) |
|
Rear axle-10.5 inch (E-Locker) |
3.3–3.5 qt (3.1–3.3 L) |
|
Rear axle-10.5 inch (non E-Locker) |
3.5–3.6 qt (3.3–3.4 L) |
|
Rear axle-Dana M300 |
3.78 qt (3.58 L) * |
|
Automatic transmission fluid (6R100) |
16.7 qt (15.8 L) ** |
|
Automatic transmission fluid (6R140) |
17.4 qt (16.5 L) ** |
|
Transfer case fluid |
1.9 qt (1.8 L) |
|
Windshield washer fluid |
Fill as required |
|
Fuel tank (incomplete vehicle, middle location) |
26.5 gal (100.3 L) |
|
Fuel tank (All except 176 inch wheelbase and incomplete vehicles) |
34.5 gal (130.6 L) |
|
Fuel tank (176 inch wheelbase) |
48.5 gal (183.6 L) |
|
Fuel tank (incomplete vehicle, Aft- axle - location) |
40 gal (151.4 L) |
427
|
Item |
Capacity |
|
A/C refrigerant |
27 oz (0.77 kg) |
|
A/C refrigerant compressor oil |
4.1 fl oz (120 ml) |
*For complete refill of limited slip Ford axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent, meeting Ford Specification EST-M2C118-A. This added friction modifier should be included in the total lube volume of 3.78 qt (3.58 L).
**Approximate dry fill capacity. Actual amount may vary during fluid changes.
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP |
WSS-M2C946-A |
|
Recommended motor oil (Canada): Motorcraft® SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 |
WSS-M2C946-A |
|
Optional motor oil (U.S.): Motorcraft® SAE 5W-30 Full Synthetic Motor Oil XO-5W30-QFS |
WSS-M2C946-A |
|
Optional motor oil (Canada): Motorcraft® SAE 5W-30 Synthetic Motor Oil CXO-5W30-LFS12 |
WSS-M2C946-A |
|
Engine coolant (U.S.): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Front axle fluid : Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant |
WSP-M2C197-A |
428
|
Name |
Specification |
|
XY-80W90-QL |
|
|
Rear axle fluid (10.50 inch axle) (E-Locker/non E-Locker): Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Rear axle fluid (Dana M300 except 3.73 ratio Chassis Cab) (U.S.): Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL |
WSP-M2C197-A |
|
Rear axle fluid (Dana M300) (Canada): Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant CXY-80W90-1L |
WSP-M2C197-A |
|
Friction Modifier Motorcraft® Additive Friction Modifier XL-3 |
EST-M2C118-A |
|
Automatic transmission fluid (U.S.) : Motorcraft® MERCON LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Automatic transmission fluid (Canada): Motorcraft® MERCON LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON LV |
|
Transfer case fluid (U.S.): Motorcraft® Transfer Case Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Transfer case fluid (Canada): Motorcraft® Transfer Case Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON LV |
|
Power steering fluid: Motorcraft® MERCON LV XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Spindle bearing: High Temperature 4x4 Front Axle and Wheel Bearing Grease XG-11 |
WSS-M2C192-A |
|
Windshield washer fluid (U.S.): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
429
|
Name |
Specification |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): Motorcraft® R-134a Refrigerant YN-19 |
WSH-M17B19-A |
|
A/C refrigerant (Canada): Motorcraft® R-134a Refrigerant CYN-16-R |
WSH-M17B19-A |
|
A/C refrigerant compressor oil: Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Penetrating Fluid CXC-51-A |
- |
|
Transmission, parking brake linkages and pivots, brake pedal shift: Motorcraft® Premium Long-Life Grease XG-1-E |
WSD-M1C227-A |
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
Component damage which is not covered by the vehicle warranty.
Longer engine cranking periods.
Increased emission levels.
Reduced engine performance.
Reduced fuel economy.
Degraded brake performance.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
430
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
Note: Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid may cause transmission damage.

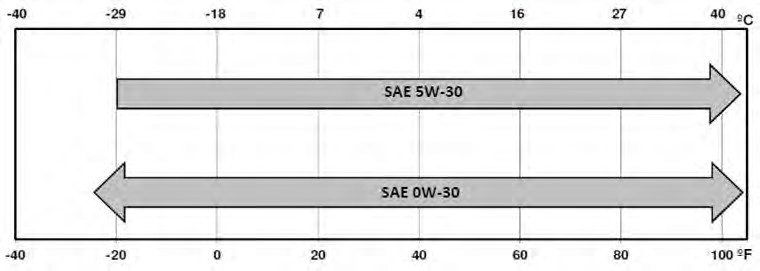

To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22°F (-30°C) or below.
|
Name |
Specification |
|
Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil: Engine Oil - SAE 0W-30 XO-0W30-QSP |
WSS-M2C953-A1 |
431
E240523
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.
|
Item |
Capacity |
|
Engine oil (includes filter change) |
13.0 qt (12.3 L) |
|
Engine coolant (primary high-temperature cooling system loop) |
35.1 qt (33.2 L) 1 |
|
Engine coolant additive (primary high- temperature cooling system loop) |
47.3 fl oz (1.4 L) 2 |
|
Engine coolant (secondary cooling system) |
15.1 qt (14.3 L) 1 |
|
Engine coolant additive (secondary cooling system) |
16.0 fl oz (473 ml) 2 |
|
Brake fluid |
Between MIN and MAX on brake fluid reservoir |
|
Front axle |
2.7 qt (2.6 L) |
|
Rear axle-10.5 inch (E-Locker) |
3.3–3.5 qt (3.1–3.3 L) |
432
|
Item |
Capacity |
|
Rear axle-10.5 inch (non E-Locker) |
3.5–3.6 qt (3.3–3.4 L) |
|
Rear axle- Dana M275 |
3.61 qt (3.42 L) |
|
Rear axle- Dana M300 |
3.78 qt (3.58 L) 3 |
|
Automatic transmission fluid |
17.4 qt (16.5 L) 4,5 |
|
Transfer case fluid |
1.9 qt (1.8 L) |
|
Windshield washer fluid |
Fill as required |
|
Fuel Tank (142 inch and 148 inch wheel- base, middle location) |
29.0 gal (109.8 L) |
|
Fuel Tank (160 inch and 164 inch wheel- base, middle location) |
34.0 gal (128.7 L) |
|
Fuel Tank (176 inch wheelbase, middle location) |
48 gal (181.7 L) |
|
Fuel tank (incomplete vehicle, middle location) |
106.0 qt (100.3 L) |
|
Fuel tank (incomplete vehicle, Aft- axle - location) |
40.0 gal (151.4 L) |
|
Fuel tank (incomplete vehicle, Middle and Aft- axle -locations) |
66.5 gal (251.7 L) |
|
Diesel Exhaust Fluid (DEF) (complete vehicle) |
7.4 gal (28 L) |
|
Diesel Exhaust Fluid (DEF) (incomplete vehicle) |
7.2 gal (27.3 L) |
|
Windshield washer fluid |
Fill as required |
433
|
Item |
Capacity |
|
A/C refrigerant |
27 oz (0.77 kg) |
|
A/C refrigerant compressor oil |
3.4 fl oz (100 ml) 6 |
1Use the coolant type originally equipped in your vehicle. Using any other coolant may result in vehicle damage.
2Per addition if required.
3For complete refill of limited slip Ford axles add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford Specification EST-M2C118-A this added friction modifier should be included in the total lube volume 3.58 L (3.78 qt).
4Approximate dry fill capacity. Actual amount may vary during fluid changes.
5Capacities may be higher if the vehicle is equipped with a cooler. Always check to make sure the fluid level is in the acceptable range.
6This system uses mineral-based refrigerant oil to lubricate O-rings and fittings.
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil1 XO-10W30-QSD |
WSS-M2C171-F1 |
|
Recommended motor oil (Canada): Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil1 CXO-10W30-LSD12 |
WSS-M2C171-F1 |
|
Recommended motor oil (U.S.): Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil1,3 XO-15W40-QSD |
WSS-M2C171-F1 |
|
Recommended motor oil (Canada): Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil1,3 CXO-15W40-LSD12 |
WSS-M2C171-F1 |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil1,2,3 XO-5W40-5QSD |
WSS-M2C171-F1 |
|
Recommended motor oil (U.S.): |
WSS-M2C171-F1 |
434
|
Name |
Specification |
|
Motorcraft® SAE 0W-40 Full Synthetic Diesel Motor Oil1 XO-0W40-DAS |
|
|
Engine and secondary cooling system coolant (U.S.): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
|
Engine and secondary cooling system coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Engine and secondary cooling system coolant additive (U.S. and Canada): Motorcraft® Specialty Orange Engine Coolant Revitalizer VC-12 |
-- |
|
Diesel Exhaust Fluid (DEF): Motorcraft® Diesel Exhaust Fluid PM-27-Gal / PM-27-Jug |
WSS-M99C130-A |
|
Cetane Booster & Performance Improver (U.S.): Motorcraft® Cetane Booster & Performance Improver PM-22-A |
-- |
|
Cetane Booster & Performance Improver (Canada): Motorcraft® Cetane Booster & Performance Improver PM-22-B |
-- |
|
Anti-Gel & Performance Improver (U.S.): Motorcraft® Anti-Gel & Performance Improver PM-23-A |
-- |
|
Anti-Gel & Performance Improver (Canada): Motorcraft® Anti-Gel & Performance Improver PM-23-B |
-- |
|
Brake fluid: Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Front axle fluid : Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL |
WSP-M2C197-A |
|
Rear axle fluid (10.50 inch axle) (E-Locker/non E-Locker): Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant |
WSS-M2C942-A |
435
|
Name |
Specification |
|
XY-75W85-QL |
|
|
Rear axle fluid (Dana M275) (U.S.): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL |
WSL-M2C192-A |
|
Rear axle fluid (Dana M275) (Canada): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant CXY-75W140-1L |
WSL-M2C192-A |
|
Rear axle fluid (Dana M300) (U.S.): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-80W90-QL |
WSL-M2C192-A |
|
Rear axle fluid (Dana M300) (Canada) : Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant CXY-80W90-1L |
WSL-M2C192-A |
|
Friction Modifier Motorcraft® Additive Friction Modifier XL-3 |
EST-M2C118-A |
|
Automatic transmission fluid (U.S.): Motorcraft® MERCON LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Automatic transmission fluid (Canada): Motorcraft® MERCON LV Automatic Transmission Fluid CXT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Windshield washer fluid (U.S.): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSB-M8B16-A2 |
|
Transfer case fluid (U.S.): Motorcraft® Transfer Case Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Transfer case fluid (Canada): Motorcraft® Transfer Case Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON LV |
|
Power steering fluid: Motorcraft® MERCON LV XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Spindle bearing: |
WSS-M2C192-A |
436
|
Name |
Specification |
|
High Temperature 4x4 Front Axle and Wheel Bearing Grease XG-11 |
|
|
Windshield washer fluid (U.S.): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): Motorcraft® R-134a Refrigerant YN-19 |
WSH-M17B19-A |
|
A/C refrigerant (Canada): Motorcraft® R-134a Refrigerant CYN-16-R |
WSH-M17B19-A |
|
A/C refrigerant compressor oil: Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Penetrating and Lock Lubricant XL-1 |
-- |
|
Lock cylinders (Canada): Penetrating Fluid CXC-51-A |
-- |
|
Transmission, parking brake linkages and pivots, brake pedal shift: Motorcraft® Premium Long-Life Grease XG-1-E |
WSD-M1C227-A |
1See the SAE viscosities grades chart for correct temperature usage.
2For severe duty service, use SAE 5W-40 oil that meets Ford specification
WSS-M2C171-F1.
3For biodiesel fuel blends (B20 max), use SAE 5W-40 or SAE 15W-40 oil that meets Ford specification WSS-M2C171-F1.
437
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
Component damage which is not covered by the vehicle warranty.
Longer engine cranking periods.
Increased emission levels.
Reduced engine performance.
Reduced fuel economy.
Degraded brake performance.
Note: An engine block heater is recommended at temperatures below
–10°F (–23°C).

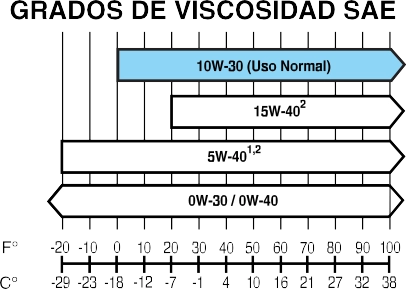

The use of correct oil viscosities for diesel engines is important for satisfactory operation. Determine which oil viscosity best suits the temperature range you expect to encounter for the next service interval from the following SAE viscosity grade chart.
|
|
E163370
438
Note: Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.
|
Item |
Capacity |
|
Engine oil (with oil filter) |
7.0 qt (6.6 L) |
|
Engine coolant |
26.7 qt (25.3 L) |
|
Brake fluid |
Between MIN and MAX on brake fluid reservoir |
|
Front axle |
2.7 qt (2.6 L) |
|
Rear axle-10.5 inch (E-Locker) |
3.3–3.5 qt (3.1–3.3 L) |
|
Rear axle-10.5 inch (non E-Locker) |
3.5–3.6 qt (3.3–3.4 L) |
|
Rear axle-Dana M300 |
3.78 qt (3.58 L) 1 |
|
Automatic transmission fluid |
17.4 qt (16.5 L) 2 |
|
Transfer case fluid |
1.9 qt (1.8 L) |
|
Windshield washer fluid |
Fill as required |
|
Fuel tank (incomplete vehicle, middle location) |
26.5 gal (100.3 L) |
439
|
Item |
Capacity |
|
Fuel tank (incomplete vehicle, Aft- axle - location) |
40 gal (151.4 L) |
|
A/C refrigerant |
27 oz (0.77 kg) |
|
A/C refrigerant compressor oil |
4.1 fl oz (120 ml) |
1For complete refill of limited slip Ford axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent, meeting Ford Specification EST-M2C118-A. This added friction modifier should be included in the total lube volume of 3.78 qt (3.58 L).
2Approximate dry fill capacity. Actual amount may vary during fluid changes.
|
Name |
Specification |
|
Recommended motor oil (U.S.): Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP |
WSS-M2C945-A |
|
Recommended motor oil (Canada): Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 |
WSS-M2C945-A |
|
Optional motor oil (U.S.): Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP |
WSS-M2C946-A |
|
Optional motor oil (Canada): Motorcraft® SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 |
WSS-M2C946-A |
|
Optional motor oil (U.S.): Motorcraft® SAE 5W-30 Full Synthetic Motor Oil XO-5W30-QFS |
WSS-M2C946-A |
|
Optional motor oil (Canada): Motorcraft® SAE 5W-30 Synthetic Motor Oil CXO-5W30-LFS12 |
WSS-M2C946-A |
|
Engine coolant (U.S.): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B |
WSS-M97B44-D2 |
440
|
Name |
Specification |
|
Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B |
WSS-M97B44-D2 |
|
Brake fluid: Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20 |
WSS-M6C65-A2 |
|
Front axle fluid : Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL |
WSP-M2C197-A |
|
Rear axle fluid (10.50 inch axle) (E-Locker/non E-Locker): Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |
|
Rear axle fluid (Dana M300 With HD Tow Option) (U.S.): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-Q |
WSL-M2C192-A |
|
Rear axle fluid (Dana M300) (U.S.): Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL |
WSP-M2C197-A |
|
Rear axle fluid (Dana M300) (Canada): Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant CXY-80W90-1L |
WSP-M2C197-A |
|
Friction Modifier Motorcraft® Additive Friction Modifier XL-3 |
EST-M2C118-A |
|
Automatic transmission fluid (U.S.) : Motorcraft® MERCON LV Automatic Transmission Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Automatic transmission fluid (Canada): Motorcraft® MERCON LV Automatic Transmission Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON LV |
|
Transfer case fluid (U.S.): Motorcraft® Transfer Case Fluid XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Transfer case fluid (Canada): Motorcraft® Transfer Case Fluid CXT-10-LV12 |
WSS-M2C938-A MERCON LV |
441
|
Name |
Specification |
|
Power steering fluid: Motorcraft® MERCON LV XT-10-QLVC |
WSS-M2C938-A MERCON LV |
|
Spindle bearing: High Temperature 4x4 Front Axle and Wheel Bearing Grease XG-11 |
WSS-M2C192-A |
|
Windshield washer fluid (U.S.): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A |
|
Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) |
WSS-M14P19-A |
|
A/C refrigerant (U.S.): Motorcraft® R-134a Refrigerant YN-19 |
WSH-M17B19-A |
|
A/C refrigerant (Canada): Motorcraft® R-134a Refrigerant CYN-16-R |
WSH-M17B19-A |
|
A/C refrigerant compressor oil: Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |
|
Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B |
|
Lock cylinders (U.S.): Penetrating and Lock Lubricant XL-1 |
- |
|
Lock cylinders (Canada): Penetrating Fluid CXC-51-A |
- |
|
Transmission, parking brake linkages and pivots, brake pedal shift: Motorcraft® Premium Long-Life Grease XG-1-E |
WSD-M1C227-A |
442
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines. Do not use oil labeled with API SN service category unless the label also displays the API certification mark.
E142732
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
Note: Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note: Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid. The use of any other fluid may cause transmission damage.

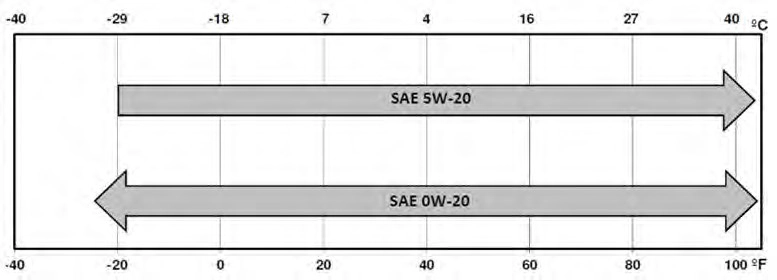

To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22°F (-30°C) or below.
|
Name |
Specification |
|
Motorcraft® SAE 0W-20 Premium Synthetic Blend Motor Oil: Engine Oil - SAE 0W-20 XO-0W20-QSP |
WSS-M2C947-A |
443
E240522
444
Download Manual
