2019 Dodge Charger Owners Manual - UCONNECT SETTINGS

Setting Name

Selectable Options

Units

US

Metric

Custom

Speed

MPH

km/h

Distance

mi

km

Fuel Consumption

MPG (US)

MPG (UK)

L/100 km

km/L

Pressure

psi

kPa

bar

Temperature

°F

°C

Setting Name

Selectable Options

Voice Response Length

Brief

Detailed

Show Command List

Always

With Help

Never

Setting Name

Selectable Options

Forward Collision Warning On/Off — If Equipped

On

Off

NOTE:

Changing the FCW status to “Off” prevents the system from warning you of a possible collision with the vehicle in front of you.

The FCW system state is kept in memory from one ignition cycle to the next. If the system is turned off, it remains off when the vehicle is restarted.

Forward Collision Warning Sensitivity — If Equipped

Near

Far

NOTE:

The Forward Collision Warning (FCW) feature provides an audible and/or visual warning to potential forward colli- sions. The feature can be set to Far, or set to Near. The default status of FCW is the Far setting. This means the sys- tem warns you of a possible collision with the vehicle in front of you when you are farther away. This gives you the most reaction time. To change the setting for more dynamic driving, select the Near setting. This warns you of a pos- sible collision when you are much closer to the vehicle in front of you.

Setting Name

Selectable Options

Electric Power Steering Default — If Equipped

Normal

Sport

Comfort

NOTE:

When "Electric Power Steering Default" is selected, it allows you to change the default setting of your vehicle to either normal, sport, or comfort.

ParkSense — If Equipped

Sound

Sound & Display

NOTE:

The ParkSense system scans for objects behind the vehicle when the transmission gear selector is in REVERSE and the vehicle speed is less than 11 mph (18 km/h). It provides an alert (audible and/or visual) to indicate the proximity to other objects. The system can be enabled with Sound, or Sound & Display.

Rear ParkSense Chime Volume — If Equipped

Low

Med

High

ParkView Backup Camera Active Guidelines

On

Off

Setting Name

Selectable Options

Hill Start Assist — If Equipped

On

Off

NOTE:

When the “Hill Start Assist” feature is selected, the Hill Start Assist (HSA) system is active. To enable or disable, press the “Hill Start Assist” button on the touchscreen, and select “On” or “Off.”

Setting Name

Selectable Options

Headlight Off Delay

0

30

60

90

NOTE:

When the “Headlight Off Delay” feature is selected, it allows the adjustment of the amount of time the headlights remain on after the engine is shut off. To change the Headlight Off Delay setting, press the “Headlight Off Delay” button on the touchscreen and choose either “0,” “30,” “60,” or “90” buttons on the touchscreen to select your desired time interval.

Setting Name

Selectable Options

Flash Lights With Lock

On

Off

NOTE:

When the “Flash Lights With Locks” feature is selected, the exterior lights will flash when the doors are locked or unlocked with the key fob. This feature may be selected with or without the sound horn on lock feature selected.

Setting Name

Selectable Options

Auto Door Locks — If Equipped

On

Off

Auto Unlock On Exit

On

Off

Flash Lights With Lock

On

Off

NOTE:

When this feature is selected, the exterior lights flashes when the doors are locked or unlocked with the key fob. This feature may be selected with or without the sound horn on lock feature selected.

Sound Horn With Lock

Off

1st Press

2nd Press

Sound Horn With Remote Start

On

Off

Setting Name

Selectable Options

Headlight Off Delay

0

60

30

90

Engine Off Power Delay

0 sec

5 mins

45 sec

10 mins

NOTE:

When this feature is selected, the power window switches, radio, Uconnect phone system (if equipped), DVD video system (if equipped), power sunroof (if equipped), and power outlets remain active for up to ten minutes after the ignition is cycled to OFF. Opening either front door cancels this feature.

Setting Name

Selectable Options

Compass Variance

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

NOTE:

When the “Compass Variance” feature is selected, it allows the compass variance to be set to any number from 1 to 15 per the compass variance zone map figure.

Setting Name

Selectable Options

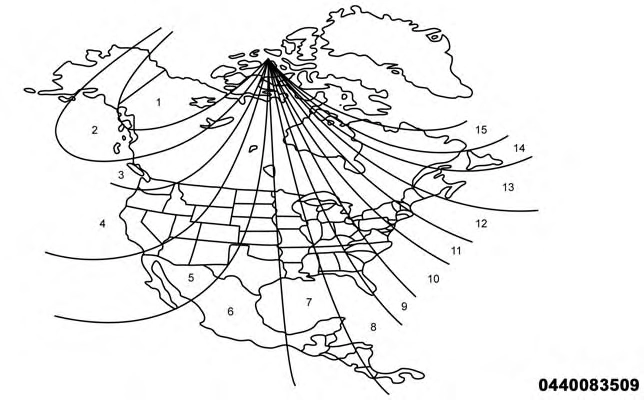

Compass Variance is the difference between Magnetic North and Geographic North. To compensate for the differ- ences, the variance should be set for the zone where the vehicle is being driven, illustrated in the zone map. Once properly set, the compass will automatically compensate for the differences when calibrated, and provide the most accurate compass headings.

Compass Calibration

Yes

NOTE:

Press “Compass Calibration” on the touchscreen to enter calibration. To start calibration of the compass, press the “Yes” button on the touchscreen and complete one or more 360-degree turns (in an area free from large metal or metallic objects). A message will appear on the touchscreen when the compass has been successfully calibrated. Keep magnetic materials away from the rear view mirror, such as Mobile Phones, Laptops and Radar Detectors. This is where the compass module is located, and it can cause interference with the compass sensor, and it may give false readings.

Setting Name

Selectable Options

Equalizer

+

-

NOTE:

When in the “Equalizer” display you may adjust the Bass, Mid and Treble settings. Adjust the settings with the “+” and “–” buttons on the touchscreen or by selecting any point on the scale between the “+” and “–” buttons on the touchscreen.

Setting Name

Selectable Options

Restore Settings

Yes

Cancel

NOTE:

When the “Restore Settings” feature is selected it will reset the Display, Clock, Audio, and Radio Settings to their default settings. If “Yes” is selected, a pop-up will appear asking "Are you sure you want to reset your settings to default?” Select “Yes” to restore, or “Cancel” to exit.

Reset App Drawer to Default Order

Ok

Cancel

NOTE:

When this feature is selected, it will reset all settings to their default settings. To restore the settings to their default setting, press the “Restore Settings” button on the touchscreen. A pop-up will appear asking "Are you sure you want to reset your settings to default?”

Restore Apps

Ok

Cancel

Clear Personal Data

Yes

Cancel

NOTE: When the “Clear Personal Data” feature is selected it will remove all personal data including Clock, Audio, Radio, Bluetooth devices, Apps, and Favorites.

Modem Reset

Ok

Cancel

Setting Name

Selectable Options

Clear Personal Data

Yes

Cancel

NOTE:

When this feature is selected it will remove all personal data including Bluetooth devices and presets. If “Yes” is selected a pop-up will appear asking "Are you sure you want to clear all personal data?” select “Yes” to Clear, or “Cancel” to exit.

Setting Name

Selectable Options

Set Language

English

Français

Español

Setting Name

Selectable Options

Display Mode

Auto

Manual

Setting Name

Selectable Options

Touchscreen Beep

On

Off

Controls Screen Time-Out — If Equipped

On

Off

NOTE:

When the “Control Screen Time-Out” feature is selected, the controls screen will stay open for five seconds before the screen times out. With the feature deselected, the screen will stay open until it is manually closed.

Navigation Next Turn Pop-Ups Displayed In Cluster —

If Equipped

On

Off

NOTE:

When the “Navigation Turn-By-Turn Displayed In Cluster” feature is selected, the turn-by-turn directions will appear in the instrument cluster display as the vehicle approaches a designated turn within a programmed route.

Setting Name

Selectable Options

Voice Response Length

Brief

Detailed

Show Command List

Never

w/Help

Always

Setting Name

Selectable Options

Sync Time With GPS — If Equipped

On

Off

NOTE:

The “Sync Time With GPS” feature will allow you to automatically have the radio set the time.

Set Time Hours

+

–

Set Time Minutes

+

–

Time Format

12 hrs

24 hrs

AM

PM

Show Time In Status Bar — If Equipped

On

Off

NOTE:

The “Show Time In Status Bar” feature will allow you to turn on or shut off the digital clock in the status bar.

Setting Name

Selectable Options

Active ParkView Backup Camera Guidelines

On

Off

NOTE:

The “Active ParkView Backup Camera Guidelines” feature overlays the Rear Backup Camera image with active, or dynamic, grid lines to help illustrate the width of the vehicle and its project back up path, based on the steering wheel position when the option is checked. A dashed center line overlay indicates the center of the vehicle to assist with parking or aligning to a hitch/receiver.

Forward Collision Warning On/Off — If Equipped

On

Off

NOTE:

Changing the FCW status to “Off” prevents the system from warning you of a possible collision with the vehicle in front of you.

The FCW system state is kept in memory from one ignition cycle to the next. If the system is turned off, it will remain off when the vehicle is restarted.

Forward Collision Warning Sensi- tivity — If Equipped

Near

Far

Setting Name

Selectable Options

LaneSense Strength — If Equipped

Low

Medium

High

NOTE:

When the “LaneSense Strength” feature is selected, it sets the strength of the steering wheel feedback for potential lane departures.

ParkSense — If Equipped

Sound Only

Sound & Display

NOTE:

The ParkSense system scans for objects behind the vehicle when the transmission gear selector is in REVERSE and the vehicle speed is less than 11 mph (18 km/h). It provides an alert (audible and/or visual) to indicate the proximity to other objects. The system can be enabled with Sound Only, or Sound & Display.

Rear ParkSense Volume

Low

Med

High

NOTE:

The Rear ParkSense Chime Volume settings can be selected from the instrument cluster display or Uconnect System. The chime volume settings include LOW, MED, and HIGH. The factory default volume setting is MED. ParkSense retains its last known configuration state through ignition cycles.

Electric Power Steering Default— If Equipped

Normal

Sport

Comfort

NOTE:

When "Electric Power Steering Default" is selected, it allows you to change the default setting of your vehicle to either normal, sport, or comfort.

Setting Name

Selectable Options

Rain Sensing Auto Wipers — If Equipped

On

Off

NOTE:

When this feature is selected and the wipers are on, the system will automatically activate the windshield wipers if it senses moisture on the windshield.

Tilt Side Mirrors in Reverse — If Equipped

On

Off

NOTE:

When the “Tilt Side Mirror In Reverse” feature is selected, the exterior sideview mirrors will tilt downward when the ignition is in the RUN position and the transmission gear selector is in the REVERSE position. The mirrors will move back to their previous position when the transmission is shifted out of REVERSE.

Headlights with Wipers

On

Off

Setting Name

Selectable Options

Auto Door Locks — If Equipped

On

Off

Auto Unlock On Exit

On

Off

NOTE:

When the “Auto Unlocks On Exit” feature is selected, all doors unlock when the vehicle is stopped, the transmission is in the PARK or NEUTRAL position and the driver’s door is opened.

Flash Lights With Lock

On

Off

NOTE:

When the “Flash Lights With Lock” feature is selected, the exterior lights flash when the doors are locked or unlocked with the key fob, or when using the passive entry feature. This feature may be selected with or without the “Sound Horn on Lock” feature selected.

Sound Horn With Lock

Off

1st Press

2nd Press

Sound Horn With Remote Start — If Equipped

On

Off

Setting Name

Selectable Options

Personal Settings Linked To Key Fob — If Equipped

On

Off

NOTE:

• This feature provides automatic recall of all settings stored to a memory location (driver’s seat, exterior mirrors, power steering column position and radio station pre-sets) to enhance driver mobility when entering and exiting the vehicle.

• The seat returns to the memorized seat location (if Personal Settings Linked to Key Fob is set to on) when the key fob is used to unlock the door.

Setting Name

Selectable Options

Auto-On Dr Heat Seat

Off

Remote Start

All Starts

NOTE:

When this feature is selected the driver’s heated seat and heated steering wheel will automatically turn on when tem- peratures are below 40 ° F (4.4 ° C). When temperatures are above 80 ° F (26.7 ° C) the driver vented seat will turn on.

Setting Name

Selectable Options

Headlight Off Delay

0 sec

30 sec

60 sec

90 sec

NOTE:

When the “Headlight Off Delay” feature is selected, the driver can choose to have the headlights remain on for 0, 30, 60, or 90 seconds when exiting the vehicle. To change the Headlight Off Delay status press the “+” or “–” button on the touchscreen to select your desired time interval.

Setting Name

Selectable Options

Balance/Fade

“Speaker” Icon

Arrow Buttons

NOTE:

The “Balance/Fade” feature allows you to adjust the Balance and Fade settings. Press and drag the speaker icon, use the arrows to adjust, or tap the “Speaker” icon to readjust to the center.

Setting Name

Selectable Options

AUX Volume Offset — If Equipped

-3

+3

NOTE:

The “AUX Volume Offset” feature provides the ability to tune the audio level for portable devices connected through the AUX input. To make your selection, press the AUX Volume Match button on the touchscreen, choose a level from

–3 to +3.

Auto Play

On

Off

NOTE:

The “Auto Play” feature allows a media device to begin playing when the media device is plugged in. To make your selection, press the On or Off buttons to activate or deactivate Auto Play.

Setting Name

Selectable Options

Do Not Disturb

List of Settings

NOTE:

Press “Do Not Disturb” to access the available settings. The following settings are: Auto Reply (both, text, call), Auto Reply Message (custom, default), and Custom Auto Reply Message (create message).

Setting Name

Selectable Options

Paired Phones and Audio Sources

List Of Paired Phones and Audio Sources

NOTE:

The “Paired Phones and Audio Sources” feature shows which phones and audio sources are paired to the Phone and Audio Sources Settings system. For further information, refer to the Uconnect Owner’s Manual Supplement.

Smartphone Projection Manager

On

Off

NOTE: Pressing “Smartphone Projection Manager” feature allows you to see a list of all connected phones and gives you the option to determine which phone will be used for projection (Apple CarPlay or Android Auto).

Setting Name

Selectable Options

Subscription Information

Subscription Info

NOTE:

New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM Satellite Radio with your radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription Information screen to re-subscribe.

• Press the “Subscription Info” button on the touchscreen to access the Subscription Information screen.

• Write down the SIRIUS ID numbers for your receiver. To reactivate your service, either call the number listed on the screen or visit the provider online.

SiriusXM Travel Link is a separate subscription.

Setting Name

Selectable Options

Reset App Drawer to Default

OK

Cancel

Restore Apps

OK

Cancel

Restore Settings to Default

OK

Cancel

X

Setting Name

Selectable Options

NOTE:

When this feature is selected, it will reset all of the radio features to their default settings. To restore the settings to their default setting, press the “Restore Settings” button on the touchscreen. A pop-up will appear asking "Are you sure you want to reset your settings to default?”

Clear Personal Data

OK

Cancel

X

NOTE:

When this feature is selected, it will remove all personal data including Bluetooth devices and presets. To remove per- sonal information, press the “Clear Personal Data” button and a pop-up will appear asking "Are you sure you want to clear all personal data?”

Modem Reset

OK

Cancel
