FUSES
General Information
When a device does not work, you must check the fuse element inside the blade fuse for a break/melt.
Also, please be aware that when using power outlets for extended periods of time with the engine off may result in vehicle battery discharge.

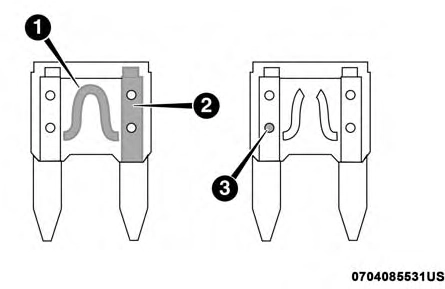

Blade Fuses
Underhood Fuses

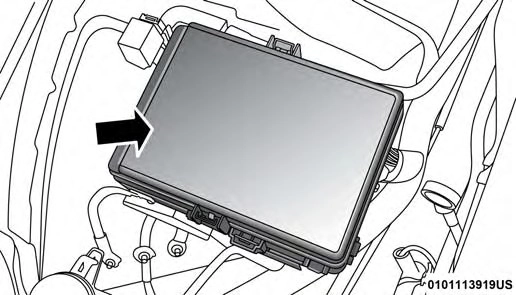

The Front Power Distribution Center is located in the engine compartment. This module contains fuses and relays. Fuse cavity location and descriptions are printed on the inside of the power distribution center cover.
Front Power Distribution Center
|
Cavity |
Cartridge Fuse |
Mini-Fuse |
Description |
|
10 |
– |
10 Amp Red |
Intrusion MOD (300) – If Equipped / Under Hood Lamp – Police |
|
11 |
– |
20 Amp Yellow |
Horns |
|
12 |
– |
10 Amp Red |
Air Conditioning Clutch |
|
13 |
– |
– |
Fuse – Spare |
|
14 |
– |
– |
Fuse – Spare |
|
15 |
– |
20 Amp Yellow |
Left HID – If Equipped |
|
16 |
– |
20 Amp Yellow |
Right HID – If Equipped |
|
18 |
50 Amp Red |
– |
Radiator Fan – (Non 6.2L Supercharged) |
|
19 |
50 Amp Red |
– |
Electric Power Steering #2 – If Equipped |
|
20 |
30 Amp Pink |
– |
Wiper Motor |
|
21 |
30 Amp Pink 20 Amp Blue – Police |
– |
Headlamp Washers – If Equipped Police Bat Feed #2 |
|
22 |
40 Amp Green / 20 Amp Blue – Police |
– |
Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 |
|
23 |
20 Amp Blue |
– |
Police Bat Feed # 1 |
|
24 |
50 Amp Red / 20 Amp Blue |
– |
Radiator Fan (6.2L Supercharged) / Police Ignition Run/ACC Feed # 3 |
|
28 |
– |
– |
Fuse – Spare |
|
51 |
– |
20 Amp Yellow |
Vacuum Pump |
|
52 |
– |
5 Amp Tan |
Adaptive Cruise – If Equipped |
|
53 |
– |
– |
Fuse – Spare |
|
11 |
30 Amp Pink |
– |
Passenger Door Control Module |
|
12 |
– |
20 Amp Yellow |
Dual USB Center Console Rear/Cigar Lighter IP – If Equipped |
|
15 |
40 Amp Green |
– |
HVAC Blower |
|
16 |
20 Amp Blue |
– |
Left Spot Lamp – Police |
|
17 |
20 Amp Blue |
– |
Right Spot Lamp – Police |
|
18 |
30 Amp Pink |
– |
Mod Network Interface – Police |
|
19 |
– |
– |
Fuse – Spare |
|
20 |
– |
– |
Fuse – Spare |
|
21 |
30 Amp Pink |
– |
Fuel Pump (Non 6.2L SRT HO) |
|
22 |
– |
5 Amp Tan |
Cyber Gateway Mod |
|
23 |
– |
10 Amp Red |
Fuel Door – If Equipped/Diagnostic Port |
|
24 |
– |
10 Amp Red |
Integrated Center Stack |
|
25 |
– |
10 Amp Red |
Tire Pressure Monitor |
|
26 |
– |
15 Amp Blue |
Cygnus Transmission Module (Charger/300) / Electronic Shift Module (Charger/300) |
|
27 |
– |
25 Amp Clear |
Amplifier – If Equipped |
|
31 |
– |
25 Amp Breaker |
Power Seats – If Equipped |
|
32 |
– |
15 Amp Blue |
HVAC Module/Cluster |
|
49 |
– |
– |
Fuse – Spare |
|
50 |
– |
– |
Fuse – Spare |
|
51 |
– |
20 Amp Yellow |
Front Heated / Vented Seats – If Equipped |
|
52 |
– |
10 Amp Red |
Heated Cupholders/Rear Heated Seat Switches – If Equipped |
|
53 |
– |
10 Amp Red |
HVAC Module/In Vehicle Temperature Sensor |
|
54 |
– |
– |
Fuse – Spare |
|
55 |
– |
– |
Fuse – Spare |
|
56 |
– |
– |
Fuse – Spare |
|
57 |
– |
– |
Fuse – Spare |
|
58 |
– |
10 Amp Red |
Airbag Module |
|
59 |
– |
20 Amp Yellow |
Adjustable Pedals – Police |
|
60 |
– |
– |
Fuse – Spare |
|
61 |
– |
– |
Fuse – Spare |
|
62 |
– |
– |
Fuse – Spare |
|
63 |
– |
– |
Fuse – Spare |
|
64 |
– |
25 Amp Breaker |
Rear Windows (Charger/300) |
|
65 |
– |
10 Amp Red |
Airbag Module |
|
66 |
– |
– |
Fuse – Spare |
|
67 |
– |
10 Amp Red |
Rain and Light Sensor / Sunroof / Inside RR |
|
View Mirror / Police Run Acc Relay |
|||
|
68 |
– |
10 Amp Red |
Dual USB Power Outlet – R/A Sense (Charger/ 300) Rear Sunshade (Charger/300) RR USB Timer |
|
69 |
– |
– |
Fuse – Spare |
|
70 |
– |
– |
Fuse – Spare |
