2019 Toyota Tundra Owners Manual - Opening, closing the windows and moon roof

Opening, closing the windows and moon roof

Type A Closing Opening

One-touch opening* (driver’s

window only)

*: To stop the window partway, oper- ate the switch in the opposite direc- tion.

One-touch closing* (front seat windows)

Opening

One-touch opening* (front seat windows)

*: To stop the window partway, oper- ate the switch in the opposite direc- tion.

Use this switch to prevent children from accidentally opening or clos- ing a passenger window.

The power windows can be operated when

The engine switch is in the “ON” position.

Operating the power windows after turning the engine off

The power windows can be operated for approximately 43 seconds after the engine switch is turned to the “ACC” or “LOCK” position. They cannot, how- ever, be operated once either front door is opened.

Jam protection function (type B only)

If an object becomes caught between the window and the window frame, win- dow travel is stopped and the window is opened slightly.

When the power window does not close normally (type B only)

If the jam protection function is operating abnormally and a window cannot be closed, perform the following operations using the power window switch on the relevant door.

After stopping the vehicle, the window can be closed by holding the power window switch in the one-touch closing position while the engine switch is turned to the “ON” position.

If the window still cannot be closed even by carrying out the operation as explained above, initialize the function by performing the following proce- dure.

Hold the power window switch in the one-touch closing position. Continue holding the switch for a further 6 seconds after the window has closed.

Hold the power window switch in the one-touch opening position. Con- tinue holding the switch for a further 2 seconds after the window has opened completely.

Hold the power window switch in the one-touch closing position once again. Continue holding the switch for a further 2 seconds after the win- dow has closed.

If you release the switch while the window is moving, start again from the beginning.

If the window continues to close but then re-open slightly even after perform- ing the above procedure correctly, have the vehicle inspected by your Toyota dealer.

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

Closing the windows

The driver is responsible for all the power window operations, including the operation for the passengers. In order to prevent accidental operation, especially by a child, do not let a child operate the power windows. It is possible for children and other passengers to have body parts caught in the power window. Also, when riding with a child, it is recommended to use the window lock switch. (P. 147)

Check to make sure that all passengers do not have any part of their body in a position where it could be caught when a window is being operated.

When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that may possibly lead to an accident.

Jam protection function (type B only)

Never use any part of your body to intentionally activate the jam protection function.

The jam protection function may not work if something gets caught just before the window fully closes.

Push the lock release lever and slide the back window.

Closing the back window

Make sure that the back window is securely closed after closing it.

*: If equipped

Closing

*: If equipped

Closing

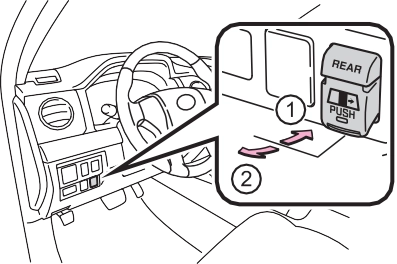

The power back window can be operated when

The engine switch is in the “ON” position.

Operating the power back windows after turning the engine off

The power back windows can be operated for approximately 43 seconds after the engine switch is turned to the “ACC” or “LOCK” position. They cannot, however, be operated once either front door is opened.

WARNING

Closing the back window

Observe the following precautions.

Failure to do so may result in death or serious injury.

The driver is responsible for all the power back window operations, includ- ing the operation for the passengers. In order to prevent accidental opera- tion, especially by a child, do not let a child operate the power back window. It is possible for children and other passengers to have body parts caught in the power back window.

Check to make sure that all passengers do not have any part of their body in a position where it could be caught when a window is being operated.

When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that may possibly lead to an accident.

Caution while driving

Keep the back window closed.

This not only keeps personal belongings from being thrown out, but also prevents exhaust gases from entering the vehicle.

*: Lightly press either way of the moon roof switch to stop the moon roof partway.

*: Lightly press either way of the moon roof switch to stop the moon roof partway.

The moon roof can be operated when

The engine switch in the “ON” position.

Operating the moon roof after turning the engine off

The moon roof can be operated for approximately 43 seconds after the engine switch is turned to the “ACC” or “LOCK” position. It cannot, however, be operated once either front door is opened.

Jam protection function

If an object is detected between the moon roof and the frame while the moon roof is closing or tilting down, travel is stopped and the moon roof opens slightly.

*: If equipped

Sunshade

The sunshade can be opened and closed manually. However, the sunshade will open automatically when the moon roof is opened.

Door lock linked moon roof operation

The moon roof can be opened and closed using the key. (P. 114)

When the moon roof does not close normally

Perform the following procedure:

If the moon roof closes but then re-opens slightly Stop the vehicle.

Press and hold the “ ▼ ” (sliding close) switch.*1

The moon roof will close, reopen and pause for approximately 10 sec- onds.*2 Then it will close again, tilt up and pause for approximately 1 sec- ond. Finally, it will tilt down, open and close.

Check to make sure that the moon roof is completely closed and then release the switch.

If the moon roof tilts down but then tilts back up Stop the vehicle.

Press and hold the “UP” (tilt up) switch*1 until the moon roof moves into

the tilt up position and stops.

Release the “UP” (tilt up) switch once and then press and hold the “UP” (tilt up) switch again.*1

The moon roof will pause for approximately 10 seconds in the tilt up posi- tion.*2 Then it will adjust slightly and pause for approximately 1 second. Finally, it will tilt down, open and close.

Check to make sure that the moon roof is completely closed and then release the switch.

*1: If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning.

*2: If the switch is released after the above mentioned 10 seconds pause, automatic operation will be disabled. In that case, press and hold the “ ▼ ” (sliding close) or “UP” (tilt up) switch, and the moon roof will tilt up and pause for approximately 1 second. Then it will tilt down, open and close. Check to make sure that the moon roof is completely closed and then release the switch.

If the moon roof does not fully close even after performing the above proce- dure correctly, have the vehicle inspected by your Toyota dealer.

Moon roof open reminder function

The buzzer sounds and a message is shown on the multi-information display in the instrument cluster when the engine switch is turned off and the driver’s door is opened with the moon roof open.

When the battery is disconnected

The moon roof must be initialized in order to ensure proper operation.

Push and hold the switch toward the “UP” (tilt up) side or “ ▼ ” (sliding close) side.

After the moon roof will tilt up and down, release the switch.

To ensure the initialization is complete, make sure automatic opening and closing functions work properly.

Customization that can be configured at Toyota dealer Settings (e.g. linked door lock operation) can be changed. (Customizable features: P. 623)

WARNING

Observe the following precautions.

Failure to do so may cause death or serious injury.

Opening the moon roof

Do not allow any passengers to put their hands or heads outside the vehi- cle while it is moving.

Do not sit on top of the moon roof.

Closing the moon roof

The driver is responsible for moon roof opening and closing operations. In order to prevent accidental operation, especially by a child, do not let a child operate the moon roof. It is possible for children and other passen- gers to have body parts caught in the moon roof.

Check to make sure that all passengers do not have any part of their body in a position where it could be caught when the moon roof is being oper- ated.

When using the key and operating the moon roof, operate the moon roof after checking to make sure that there is no possibility of any passenger having any of their body parts caught in the moon roof. Also, do not let a child operate moon roof by the key. It is possible for children and other passengers to get caught in the moon roof.

When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that may possibly lead to an accident.

Jam protection function

Never use any part of your body to intentionally activate the jam protection function.

The jam protection function may not work if something gets caught just before the moon roof fully closes.
