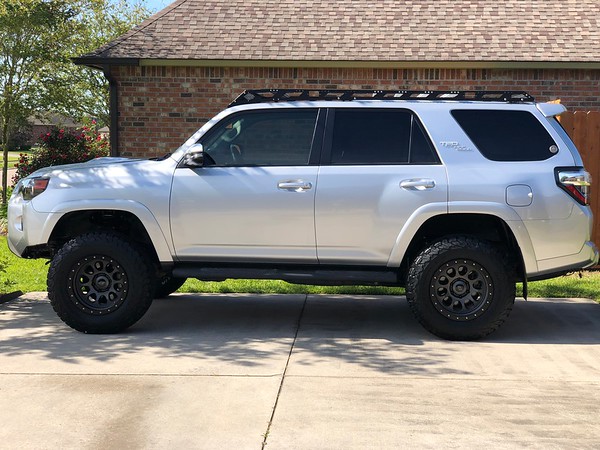

2017 Toyota 4Runner with SCS Ray 10
Project Specifications
| Make | Toyota |
| Model | 4Runner |
| Year | 2017 |
| Wheel Brand | SCS Ray 10 |
| Rim Size | 17x9.0 |
| Offset | -38 mm |
| Tire Brand | BFGoodrich All-Terrain T/A KO2 |
| Tire Size | 285/70R17 |
Description
2017 TRD ORP
3” OME lift
2884 friont coils
2889 rear coils
SPC upper control arms @ +2 deg caster
SCS Ray10 17x9, 3.5” bs, -38 offset
BFG KO2 285/70/17

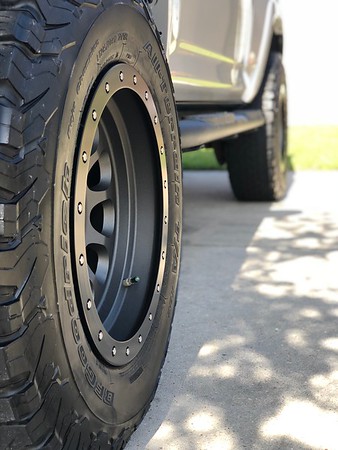

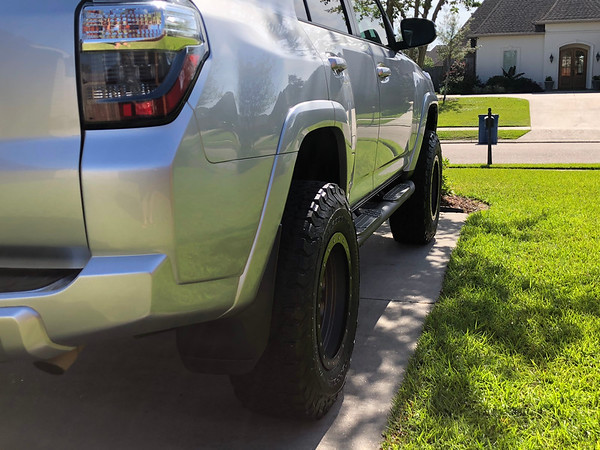

Wheels are SCS Ray 10 in matte gunmetal. These are the 17x9, 3.5” backspacing, -38 offset. Its comparable to running their 17x8.5 -10 WITH a 1.3” spacer. I had to remove the mudflaps and do a very aggressive BMC(thanks SSO), and I opted to do a conservative high clearance type cut on front bumper and well liners. No rubbing on or offroad after BMC.
