Warning and indicator
Several of the warning and indicator lights illuminate when the ignition switch is initially turned to the “ON” position. This permits checking the operation of the bulbs.
Apply the parking brake and turn the ignition switch to the “ON” position. For the system check, several of the following lights illuminate and then turn off after several seconds or after the engine has started.
: Seatbelt warning light (The seatbelt warning light turns off only when the driver fastens the seatbelt.)/Front pas- senger’s seatbelt warning light (The seatbelt warning light turns off only when the front seat passenger fastens the seatbelt.)
: Rear seatbelt warning light (if equipped)
: SRS airbag system warning light
: Front passenger’s frontal airbag ON
indicator light
: Front passenger’s frontal airbag OFF indicator light
/
: CHECK ENGINE warning light/ Malfunction indicator light
: Coolant temperature low indicator light/Coolant temperature high warn- ing light
: Charge warning light
: Oil pressure warning light
: Engine low oil level warning light
: Windshield washer fluid warning light
: AT OIL TEMP warning light
: Low tire pressure warning light (U.S.- spec. models)
/
: ABS warning light
/
: Brake system warning light
: Electronic parking brake light
: Low fuel warning light
: Door open warning light
: AWD warning light
: Power steering warning light
: Vehicle Dynamics Control warning light/ Vehicle Dynamics Control operation indicator light
: Vehicle Dynamics Control OFF indicator light
: Automatic headlight beam leveler warning light (if equipped)
: Auto Start Stop warning light/Auto Start Stop OFF indicator light (yellow)
: Auto Start Stop No Activity Detected indicator light
If any lights fail to illuminate, it indicates a burned-out bulb or a malfunction of the corresponding system.
Consult your authorized SUBARU dealer for repair.

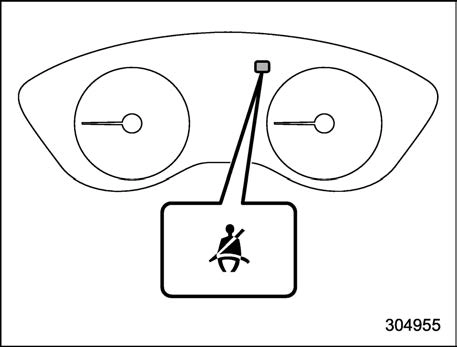

Seatbelt warning light and chimeYour vehicle is equipped with a seatbelt warning device at the driver’s and passen- ger’s seats, as required by current safety standards.
With the ignition switch turned to the “ON” position, this device reminds the driver and front passenger to fasten their seatbelts by illuminating the warning lights in the loca- tions indicated in the following illustration and sounding a chime.
Driver’s seat
Front passenger’s seat
When the ignition switch is turned to the “ON” position, the driver’s and/or front passenger’s warning light will illuminate, then it will blink for several seconds. If the seatbelt of the driver’s seat is not fastened, the warning chime may make a peep sound.
13 mph (20 km/h). The warning chime will stop when the vehicle stops.
mph (20 km/h).
the warning chime will sound loudly when driving approximately more than 13 mph (20 km/h).
If there is no passenger on the front passenger’s seat, the seatbelt warning device for the front passenger’s seat will be deactivated. The front passenger’s occupant detection system monitors whether or not there is a passenger on the front passenger’s seat.
If the seatbelt warning device for the front passenger’s seat does not function cor- rectly (e.g., it is activated even when the front passenger’s seat is empty or it is deactivated even when the front passen- ger has not fastened his/her seatbelt), take the following actions.
If still the seatbelt warning device for front passenger’s seat does not function cor- rectly after taking relevant corrective ac- tions described above, immediately con- tact your SUBARU dealer for an inspec- tion.

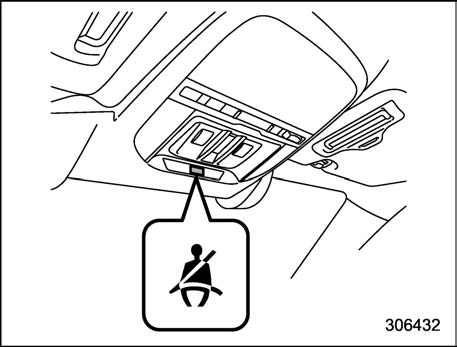

With the ignition switch turned to the “ON” position, the seatbelt warning light and chime reminds the rear passenger to fasten their seatbelt by illuminating the warning lights in the locations indicated in the above illustration and sounding a chime.
or large pets on the rear seat may result in the activation of the passenger seatbelt warning light and chime. Fas- tening the rear seatbelt prior to loading cargo or large pets will avoid activating the passenger seatbelt warning light and chime.
! Operation

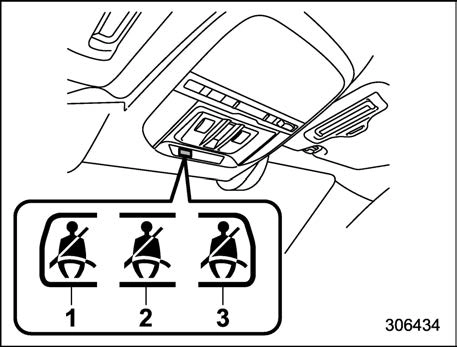

If passengers in the rear seats do not fasten their seatbelts while the ignition switch is turned to the “ON” position, the seatbelt warning lights will illuminate or blink to indicate that their seatbelts are not fastened.
The chime will make a peep sound for 15 seconds, and it then will become louder and continue for 35 seconds. The warning light will blink for 50 seconds, then it will illuminate steadily and the chime will stop.
the warning device settings will be restored. For details about the warning cancellation, contact a SUBARU dealer.
SRS airbag system warning lightFor details about the components mon- itored by the warning light, refer to “SRS airbag system monitors” P105.
ON

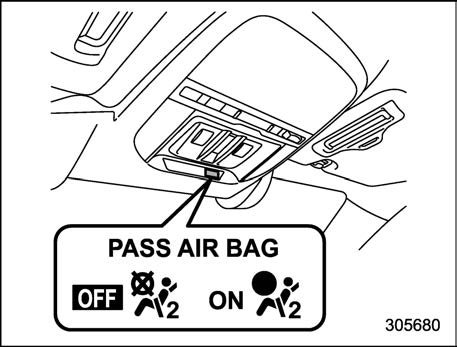

: Front passenger’s frontal airbag ON indicator lights
: Front passenger’s frontal airbag OFF indicator lights
The front passenger’s frontal airbag ON and OFF indicators show you the status of the front passenger’s SRS frontal airbag. The indicator is displayed near the map
lights.
When the ignition switch is turned to the “ON” position, both the ON and OFF indicators illuminate for 6 seconds during
which time the system is checked. Follow- ing the system check, both indicators turn off for 2 seconds. After that, one of the indicators illuminates depending on the status of the front passenger’s SRS frontal airbag determined by the SUBARU ad- vanced frontal airbag system monitoring.
If the front passenger’s SRS frontal airbag is activated, the passenger’s frontal airbag ON indicator will illuminate while the OFF indicator will remain off.
If the front passenger’s SRS frontal airbag is deactivated, the passenger’s frontal airbag ON indicator will remain off while the OFF indicator will illuminate.
With the ignition switch turned to the “ON” position, if both the ON and OFF indicators remain illuminated or off simultaneously even after the system check period, the system is malfunctioning. Contact your SUBARU dealer immediately for an in- spection.
ing light/Malfunction indicator light
If this light illuminates steadily or blinks while the engine is running, it may indicate that there is at least one problem or potential problem somewhere in the emis- sion control system.
If the light illuminates steadily while driving or does not turn off after the engine starts, an emission control system malfunction has been detected.
You should have your vehicle checked by an authorized SUBARU dealer immedi- ately.
If you have recently refueled your vehicle, the cause of the CHECK ENGINE warning light/malfunction indicator light illuminating could be a loose or missing fuel filler cap. Remove the cap and retighten it until it
clicks. Make sure nothing is interfering with the sealing of the cap. Tightening the cap will not make the CHECK ENGINE warn- ing light turn off immediately. It may take several driving trips. If the light does not turn off, take your vehicle to your author- ized SUBARU dealer immediately.
If the light is blinking while driving, an engine misfire condition has been de- tected which may damage the emission control system.
To prevent serious damage to the emis- sion control system, you should do the following.
The CHECK ENGINE warning light may stop blinking and illuminate steadily after several driving trips. You should have your vehicle checked by an authorized SUBARU dealer immediately.
This coolant temperature low indicator light/coolant temperature high warning light has the following three functions.
For a system check, this indicator light/ warning light illuminates in RED for ap- proximately 2 seconds when the ignition switch is turned to the “ON” position. After that, this indicator light/warning light changes to BLUE and maintains illumina- tion in BLUE. This BLUE illuminated light turns off when the engine is warmed up sufficiently.
If the engine coolant temperature in- creases over the specified range, the indicator light/warning light blinks in RED. At this time, the engine is close to over- heating.
If the engine coolant temperature in- creases further, the indicator light/warning light illuminates in RED continuously. At this time, the engine may be overheating.
When the indicator light/warning light blinks in RED or illuminates in RED, safely stop the vehicle as soon as possible, and refer to the emergency steps to take in the case of engine overheating. Refer to “Engine overheating” P436. After that, have the system checked by your nearest SUBARU dealer.
Also, if the indicator light/warning light often blinks in RED, the electrical system may be malfunctioning. Contact your SUBARU dealer for an inspection.
If this light illuminates when the engine is running, it may indicate that the charging system is not working properly.If the light illuminates while driving or does not turn off after the engine starts, stop the engine at the first safe opportunity and check the alternator belt. If the belt is loose, broken or if the belt is in good condition but the light remains illuminated, contact your nearest SUBARU dealer immediately.
lightIf this light illuminates when the engine is running, it may indicate that the engine oil pressure is low and the lubricating system is not working properly.
If the light illuminates while driving or does not turn off after the engine starts, stop the engine at the first safe opportunity and contact your nearest SUBARU dealer immediately.
warning lightThis light illuminates when the engine oil level decreases to the lower limit.
If the warning light illuminates, check the engine oil level on a level surface. When the engine oil level is not within the normal range, refill with engine oil. Refer to “Engine oil” P464. After adding or chan- ging the engine oil, warm up the engine and stop it on a level surface, then start the engine after a lapse of 1 minute or more. Confirm that the warning light has turned off after the engine has started. If the warning light does not turn off after refilling the engine oil, or the light illuminates even though the engine oil level is within the normal range, have the vehicle checked by a SUBARU dealer.
Windshield washer fluid warning lightThis light illuminates when the fluid level in the windshield washer fluid tank de- creases to the lower limit (approximately
0.6 US qt, 0.6 liter, 0.5 Imp qt).
AT OIL TEMP warning lightIf this light illuminates when the engine is running, it may indicate that the transmis- sion fluid temperature is too hot.
If the light illuminates while driving, im- mediately stop the vehicle in a safe place and let the engine idle until the warning light turns off.
If the “AT OIL TEMP” warning light flashes after the engine has started, it may indicate that the transmission control system is not working properly. Contact your nearest SUBARU dealer for service immediately.
Low tire pressure warning light (U.S.- spec. models)When the ignition switch is turned to the “ON” position, the low tire pressure warn- ing light will illuminate for approximately 2 seconds to check that the tire pressure monitoring system (TPMS) is functioning properly. If there is no problem and all tires are properly inflated, the light will turn off.
Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recom- mended by the vehicle manufacturer on the vehicle placard or tire inflation pres- sure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is significantly under- inflated. Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly under- inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is com- bined with the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists. When the mal- function indicator is illuminated, the sys- tem may not be able to detect or signal low
tire pressure as intended. TPMS malfunc- tions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning prop- erly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly.
Should the warning light illuminate steadily after blinking for approximately one min- ute, have the system inspected by your nearest SUBARU dealer as soon as possible.
The ABS warning light, Vehicle Dynamics Control warning light, and brake system warning light illuminate simultaneously if the EBD system malfunctions. For further details of the EBD system malfunction warning, refer to “Electronic Brake Force Distribution (EBD) system warning”
P178.
. The warning light illuminates when the ignition switch is turned to the “ON” position and turns off approximately 2
seconds after the engine has started.
When driving with an insufficient battery voltage, such as when the engine is jump started, the ABS warning light may illumi- nate. This is due to the low battery voltage and does not indicate a malfunction. When the battery becomes fully charged, the light will turn off.
warning light (red)This light illuminates with the parking brake applied while the ignition switch is in the “ON” position. It turns off when the parking brake is fully released.
The brake system warning light has the following functions.
This light illuminates when the brake fluid level has dropped to near the “MIN” level of the brake fluid reservoir with the ignition switch in the “ON” position and with the parking brake fully released.
If the brake system warning light should illuminate while driving (with the parking brake fully released and with the ignition switch positioned in “ON”), it could be an indication of leaking of brake fluid or worn brake pads. If this occurs, immediately stop the vehicle at the nearest safe location and check the brake fluid level. If the fluid level is below the “MIN” mark in the reservoir, do not drive the vehicle. Have the vehicle towed to the nearest SUBARU dealer for repair.
If the warning light remains on even though the parking brake is released, the brake fluid level may be low or there could be a problem with the EBD system. Park the vehicle in a safe place immediately and contact a SUBARU dealer.
The brake system warning light / will illuminate when the vacuum pressure sensor is malfunctioning or brake booster pressure is decreasing.
If the brake warning light continues to illuminate for several minutes after starting the engine, there may be a malfunction in the vacuum system. In this case, drive the vehicle carefully and have the system inspected by a SUBARU dealer.
brake lightThe light illuminates with the parking brake applied while the ignition switch is in the “ON” position. It turns off when the parking brake is fully released.
NOTE
– The indicator light turns off when the electronic parking brake is re- leased.
parking brake is frequently applied and released. However, the electronic park- ing brake system is not malfunctioning if the light turns off for a short period of time.
The electronic parking brake indicator light flashes when the electronic parking brake system is malfunctioning. If the indicator light flashes, promptly park in a safe location as soon as possible and contact your SUBARU dealer.
The electronic parking brake indicator light remains illuminated when the parking brake cannot be released even if the parking brake switch is pushed. For de- tails, refer to “Electronic parking brake”
P344.
The electronic parking brake indicator light flashes for 10 seconds and a chirp sound will be heard if the parking brake switch is operated when the parking brake cannot be applied.
The electronic parking brake indicator light flashes for 10 seconds and a chirp sound will be heard if the parking brake switch is operated too frequently. In this case, the operation of the parking brake switch is
restricted to protect the electronic parking brake system.
& Auto Vehicle Hold ON indicator light
This indicator light illuminates when the Auto Vehicle Hold is activated. For details, refer to “Auto Vehicle Hold function”
P346.
This indicator light illuminates while the vehicle is stopped by the Auto Vehicle Hold function. For details, refer to “Auto Vehicle Hold function” P346.
This light illuminates if the brake pedal is not depressed in the following conditions.
The low fuel warning light illuminates when the tank is nearly empty, at approximately
lightThe warning light illuminates if any door or the rear gate is not fully closed. This function is effective even if the ignition switch is in the “LOCK”/“OFF” or “ACC” position, or the key is removed from the ignition switch.
For some models, only the open doors are indicated by the warning lights.
Always make sure this light is not illumi- nated before you start to drive.
Engine hood open warning lightThe warning light illuminates if the engine hood is not fully closed. This function is effective even if the ignition switch is in the “LOCK”/“OFF” or “ACC” position, or the key is removed from the ignition switch.
Always make sure this light is not illumi- nated before you start to drive.
ing lightThis light blinks if the vehicle is driven with tires of differing diameters fitted on the wheels or with an excessively low air pressure in any of the tires.
& Power steering warning light
While the engine is running, this warning light illuminates when a malfunction has been detected in the electric power steer- ing system.
At this time, there will be more resis- tance when steering. However this is not a malfunction. Normal steering force will be restored after the steering wheel is not operated for a while and the power steering control system has an opportunity to cool down. However,
if the power steering is operated in a non-standard way which causes power assist limitation to occur too frequently, that may result in a malfunction of the power steering control system.
Vehicle Dynamics Con- trol warning light/Vehi- cle Dynamics Control operation indicator light! Vehicle Dynamics Control warning light
NOTE
The Vehicle Dynamics Control system is probably inoperative under any of the following conditions. Have your vehicle checked at a SUBARU dealer immedi- ately.
“ON” position.
! Vehicle Dynamics Control operation indicator light
The indicator light flashes during activation of the skid suppression function and during activation of the traction control function.
The Vehicle Dynamics Control system is probably malfunctioning under the follow- ing condition. Have your vehicle checked at a SUBARU dealer as soon as possible.
The light illuminates when the Vehicle Dynamics Control OFF switch is pressed or turned to deactivate the Vehicle Dy- namics Control system.
The Vehicle Dynamics Control system is probably malfunctioning under any of the following conditions. Have your vehicle checked at a SUBARU dealer immedi- ately.

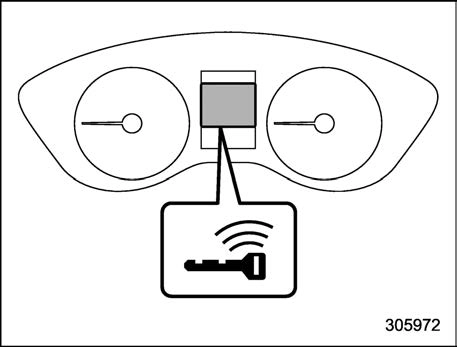

Access key warning indicator
The keyless access with push-button start system sounds a warning chime and flashes the access key warning indicator on the combination meter in order to minimize improper operations and help protect your vehicle from theft.
When the warning chime sounds and/or the warning indicator flashes, take the appropriate action.
! List of warnings
|
Inside warning chime |
Outside warning chime |
Operation indicator on push-button igni- tion switch |
Status |
Action |
|
Ding, ding ... (intermittent) |
— |
— |
The driver’s door was opened while the push-button ignition switch is “ACC” (when the select lever is in the “P” position). |
Switch the push-button ignition switch to “OFF”, or close the driver’s door. When exiting the vehicle, be sure to switch the push-button ignition switch to “OFF”. |
|
The push-button ignition switch was switched to “OFF” while the driver’s door is open. |
Close the driver’s door. |
|||
|
Ding |
Short beep (2 seconds) |
— |
Lockout warning: An attempt was made to lock all doors using the power door locking switch or access key fob while the access key fob is left inside the vehicle. For details, refer to “Key lock-in prevention function” P137. |
Take out the access key fob from the vehicle, and lock the doors. The doors cannot be locked while the access key fob is inside the vehicle. A chirp sound will be heard, and all doors will be unlocked. |
|
— |
Short beep (2 seconds) |
— |
Access key fob lock-in warning: The door lock sensor was touched while the push-button ignition switch is “OFF” and the access key fob is inside the vehicle. |
Take out the access key fob from the vehicle, and lock the doors. If the access key fob is inside the vehicle, the doors cannot be locked. |
|
— |
Beep, beep, beep, beep, beep (5 times) |
— |
Door ajar warning: The door lock sensor is touched while the ignition switch is in the “OFF” position and one of the doors including the rear gate is opened. |
Close the doors securely and lock them. If one of the doors including the rear gate is opened, the doors cannot be locked. |
|
Ding |
Long beep (60 seconds max.) |
— |
Power warning: The door lock sensor was touched while carrying the access key fob, the push- button ignition switch is in a position other than “OFF” (when the select lever is in the “P” position). |
Return the access key fob inside the vehicle, or switch the push-button ignition switch to “OFF”. If the push-button ignition switch is not switched to “OFF”, the doors cannot be locked. |
|
Ding, ding ... (7 seconds) |
— |
— |
Access key warning: The vehicle was driven while the access key fob is not inside the vehicle. |
Carry the access key fob, and drive the vehicle. |
|
Inside warning chime |
Outside warning chime |
Operation indicator on push-button igni- tion switch |
Status |
Action |
|
Ding |
— |
— |
Access key warning for engine start: The push-button ignition switch was pressed while the access key fob is not inside the vehicle. |
Carry the access key fob, and press the push-button ignition switch. |
|
Ding |
Beep, beep, beep (3 times) |
— |
Access key takeout warning: The driver exited the vehicle with the access key fob and closed the driver’s door while the push-button ignition switch is in a position other than “OFF” (when the select lever is in the “P” position). |
Switch the push-button ignition switch to “OFF”, and get out of the vehicle. |
|
Ding |
Beep, beep, beep (3 times) |
— |
Passenger access key takeout warn- ing: A fellow passenger exited the vehicle with the access key fob and closed a door other than the driver’s door while the push-button ignition switch is in a position other than “OFF”. |
Return the access key fob to inside the vehicle, or switch the push-button ignition switch to “OFF”. |
|
Long beep (continuous) |
Long beep (continuous) |
— |
Access key takeout without P position warning: The driver exited the vehicle with the access key fob and closed the driver’s door while the push-button ignition switch is in a position other than “OFF” and the select lever is in a position other than the “P” position. |
Shift the select lever to the “P” position, switch the push-button ignition switch to “OFF” and exit the vehicle. |
|
Long beep (continuous) |
— |
— |
Select lever position warning: The engine is turned off by pressing the push-button ignition switch and the select lever is in a position other than the “P” position. |
Start the engine, shift the select lever to the “P” position, switch the push-button ignition switch to “OFF” and exit the vehicle. |
|
Inside warning chime |
Outside warning chime |
Operation indicator on push-button igni- tion switch |
Status |
Action |
|
Long beep (continuous) |
— |
— |
Select lever position warning: The driver’s door was opened while the push-button ignition switch is in a position other than “OFF” and the select lever is in a position other than the “P” position. |
Shift the select lever to the “P” position, switch the push-button ignition switch to “OFF” and exit the vehicle. |
|
Ding |
— |
— |
The battery of the access key fob is low. |
Replace the battery of the access key fob. |
|
Ding |
— |
Flashes in green (15 seconds max.) |
Steering lock warning: The engine start procedure was per- formed, but the steering is still locked. |
While turning the steering wheel right and left lightly, depress the brake pedal and press the push-button ignition switch. |
|
Ding |
— |
Flashes in orange (15 seconds max.) |
System malfunction warning: A malfunction was detected in the power system or steering lock. |
Contact a SUBARU dealer immediately and have the vehicle inspected. |
& Security indicator light
This indicator light shows the status of the alarm system. It also indicates operation of
the immobilizer system.
It blinks to show the driver the operational status of the alarm system. For detailed information, refer to “Alarm system”
P138.
The security indicator light starts blinking in the following conditions.
In the event that an unauthorized key is used (for example, the key is unregistered or the ID code does not match), the power is not switched to “ON” and the security indicator light continues blinking.
If the indicator light does not blink in the above conditions, it may indicate that immobilizer system may be malfunction- ing. Contact your nearest SUBARU dealer immediately.
In the event that an unauthorized key (for example, an unauthorized duplicate) is used to start the engine, the security indicator light illuminates. For details about the immobilizer system, refer to “Immobi- lizer” P129.
Models with “keyless access with push-button start system”:
“ACC” position and the driver’s door has not been opened or closed.
Models without “keyless access with push-button start system”:
& SI-DRIVE indicator light

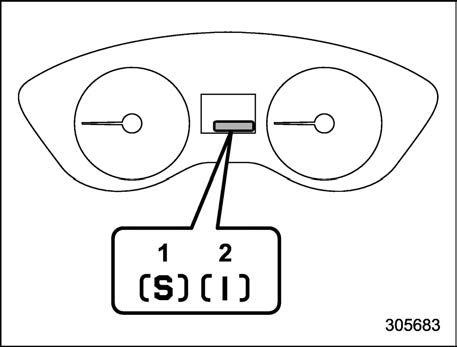

SI-DRIVE indicator light (type A)

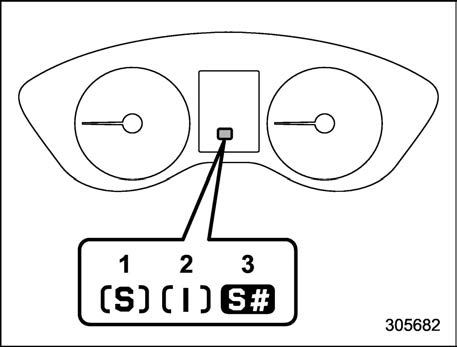

SI-DRIVE indicator light (type B)
This light indicates the current SI-DRIVE mode.
For details of SI-DRIVE mode, refer to “SI- DRIVE” P328.
Type A
Type B

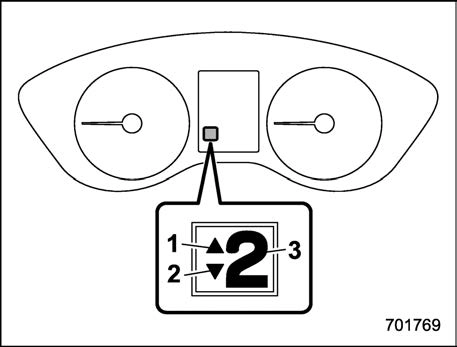

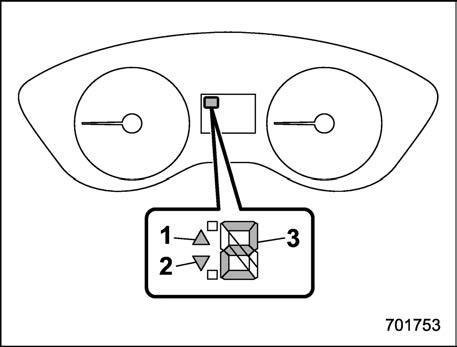

This indicator shows the position of the select lever.
For models with manual mode, when the manual mode is selected, the gear position indicator (which shows the current gear selection) and the upshift/downshift indi- cator light up. Refer to “Continuously variable transmission” P321.
For models with SI-DRIVE, the upshift/ downshift indicators are switched off while the Sport Sharp (S#) mode is selected.
lightsThese lights show the operation of the turn signal or lane change signal.
If the indicator lights do not blink or blink rapidly, the turn signal bulb may be burned out. Replace the bulb as soon as possible. Refer to “Replacing bulbs” P491.
High beam indicator lightThis light shows that the headlights are in the high beam mode.
This indicator light also illuminates when the headlight flasher is operated.
High beam assist indi- cator light (if equipped)This light illuminates when the high beam assist function is activated. For details about the high beam assist function, refer to “High beam assist function” P237.
This light illuminates when the cruise control main button is pressed to activate the cruise control function. For details, refer to “To set cruise control” P358.
If this light blinks, do not use the cruise control. In addition, if it blinks frequently, contact your SUBARU dealer for an inspection.
Cruise control set indi- cator light (if equipped)This light illuminates when vehicle speed has been set to use the cruise control function. Refer to “To set cruise control”
P358.
Automatic headlight beam leveler warning lightThis light illuminates when the automatic headlight beam leveler does not operate normally.
If this light illuminates during driving, have your vehicle inspected at your SUBARU dealer.
lightThis light illuminates if the LED headlights malfunction. Have your vehicle inspected at a SUBARU dealer as soon as possible.
This light illuminates when the Steering Responsive Headlight OFF switch is pressed to deactivate the Steering Re- sponsive Headlight. Also, the light flashes when a malfunction occurs in the Steering Responsive Headlight. Refer to “Steering Responsive Headlight (SRH)” P241.
Front fog light indicator light (if equipped)This indicator light illuminates while the front fog lights are illuminated.
Headlight indicator light (if equipped)This indicator light illuminates under the following conditions.
” position and the following conditions are fulfilled.
The light switch is turned to the “ ” or “
” position.
Auto Start Stop warning light/Auto Start Stop OFF indicator light (yel- low)The Auto Start Stop warning light will illuminate in yellow if you open the engine hood when the engine has been tempora- rily stopped by the Auto Start Stop system.
In this case, to ensure safety, the engine will not be automatically restarted, even if you release the brake pedal. Use normal operation to restart the engine.
This light will illuminate in yellow when the Auto Start Stop OFF switch is pressed to prevent the Auto Start Stop system from operating. It will turn off when the Auto Start Stop OFF switch is pressed once more to enable operation of the Auto Start Stop system.
This indicator light illuminates when the engine has been temporarily stopped by the Auto Start Stop system. It will turn off when the engine is restarted.
Activity Detected indi-cator light
When a vehicle is stopped, the indicator light illuminates when the operating con- dition of idling stop are not meet. The light will turn off when the vehicle starts driving. Refer to “Non-operational conditions”
P352.
X-MODE indicator

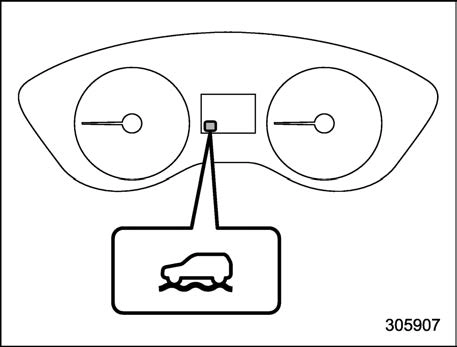

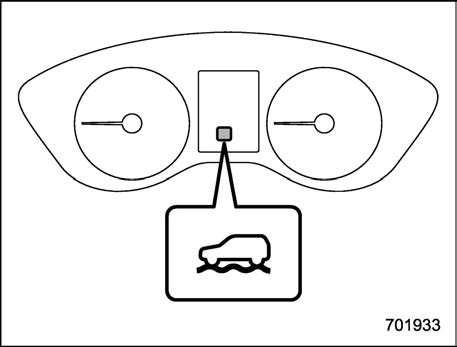

X-MODE indicator (models with 1 mode)

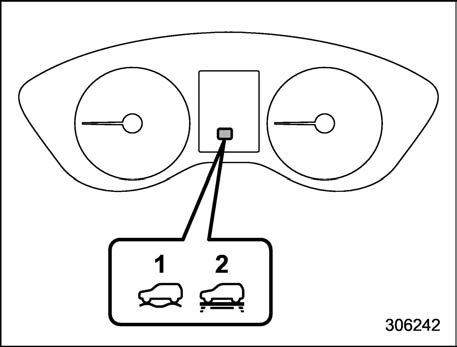

X-MODE indicator (models with 2 modes)
This indicator appears while the X-MODE is activated. It will disappear when the X- MODE is deactivated. Refer to “To acti- vate/deactivate the X-MODE” P339.
Hill descent control in- dicator light (if equipped)This indicator appears while the hill des- cent control function is in standby. It will flash while the hill descent control function is operating. It will disappear when the hill descent control function is not available. Refer to “Hill descent control function”
P341.
light (if equipped)This warning indicator appears when the BSD/RCTA is malfunctioning. In this case the BSD/RCTA warning light will be shown on the combination meter display (color LCD). When this indicator appears, have your vehicle inspected by your SUBARU dealer as soon as possible.
The indicator appears when the BSD/ RCTA OFF switch is pressed to deactivate the BSD/RCTA or when the BSD/RCTA is suspended temporarily. In this case the BSD/RCTA OFF indicator light will be shown on the combination meter display (color LCD). For details, refer to “BSD/ RCTA” P362.
RAB warning light (if equipped)This indicator illuminates if the Reverse Automatic Braking (RAB) system malfunc- tions. Refer to “Reverse Automatic Brak- ing (RAB) system” P371.
RAB OFF indicator light (if equipped)This indicator illuminates when the Re- verse Automatic Braking (RAB) system is turned OFF, or when the Reverse Auto- matic Braking (RAB) system is suspended temporarily. Refer to “Reverse Automatic Braking (RAB) system” P371.
This indicator illuminates when the Driver Monitoring System is activated. Refer to “Driver Monitoring System operation in- dicator light (green)” P390.
This warning illuminates if the Driver Monitoring System malfunctions. Have your vehicle inspected at a SUBARU dealer as soon as possible.
Driver Monitoring Sys- tem OFF indicator light (if equipped)This indicator illuminates when the Driver Monitoring System OFF switch is pressed to deactivate the Driver Monitoring Sys- tem. Refer to “Driver Monitoring System OFF indicator light” P390.
This indicator illuminates when the Driver Monitoring System is temporarily stopped. Refer to “Driver Monitoring System tem- porary stop indicator light” P390.
& Icy road surface warn- ing light (if equipped)
When the outside temperature is 378F (38C) or less, the icy road surface warning will illuminate to inform the driver that the road surface may be frozen.
Download Manual
