Grease, wax, insects, or other material on the windshield or the wiper blade results in jerky wiper operation and streaking on the glass. If you cannot remove the streaks after operating the windshield washer or if the wiper operation is jerky, clean the outer surface of the windshield (or rear window) and the wiper blades using a sponge or soft cloth with a neutral detergent or mild- abrasive cleaner. After cleaning, rinse the windshield and wiper blades with clean water. The windshield is clean if beads do not form when you rinse the windshield with water.
Raise the wiper arm off the windshield.
If you cannot eliminate the streaking even after following this method, replace the wiper blades using the following proce- dures.
Lock knob

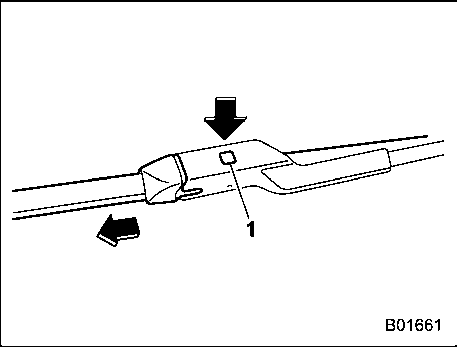

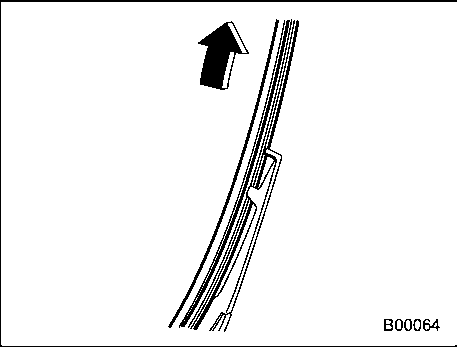

Hold the wiper blade connection by hand, push the lock knob to release the lock, and then pull out the wiper blade assembly.

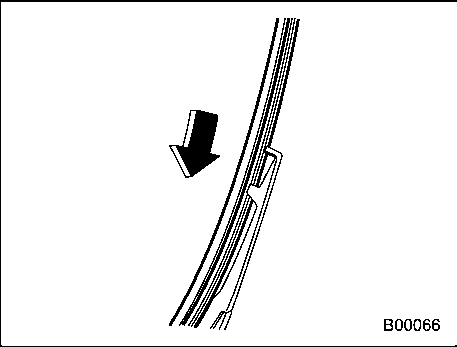

When installing the wiper blade as- sembly, align it with the wiper arm connec- tion part and then slide it in the opposite direction of removal to install. After instal- ling the wiper blade assembly, check that the connection part is locked completely.

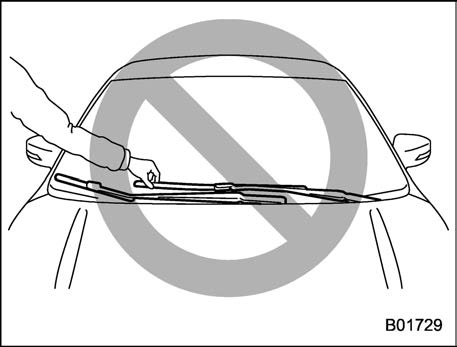

Hold the wiper arm by hand and slowly lower it in position.
Replace the wiper blade rubber according to the following procedure.
Slit

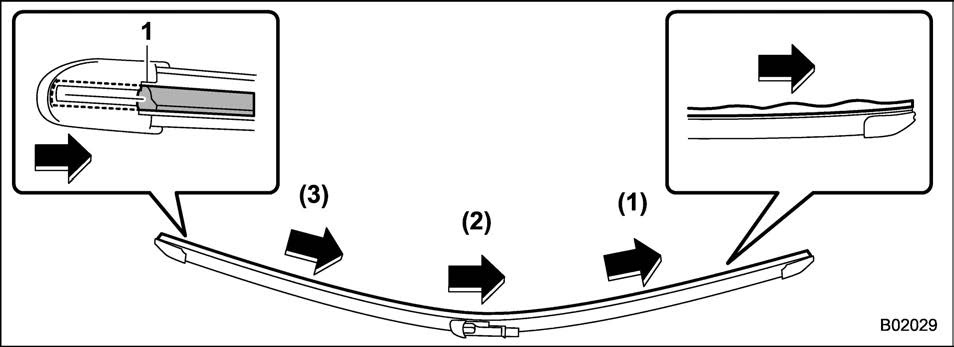

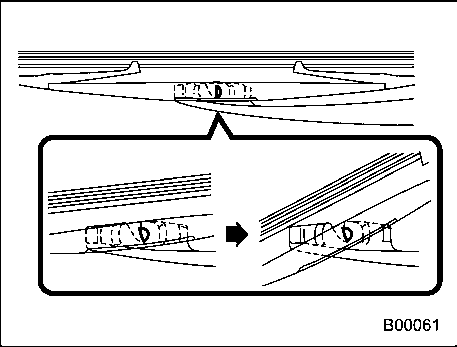

Pull the wiper blade rubber from the right side in the order of (1), (2) and (3) until the slit on the wiper blade can be seen position.

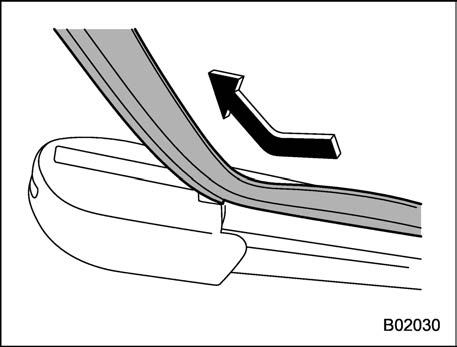

Pull the end of the wiper blade rubber through the slit to remove it.
Insert a new wiper blade rubber into the slit. Do not insert the wiper blade rubber into the wrong slit.

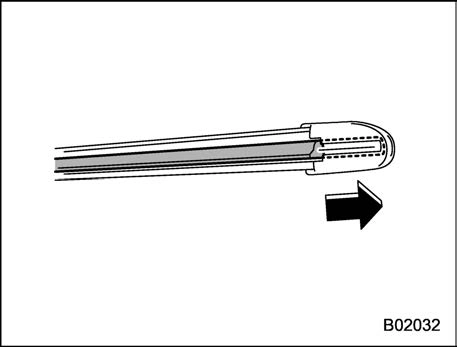

Insert the wiper blade rubber into the slit, then return to the tip of the position.
Check that the wiper blade rubber is fixed properly. If wiper blade rubbers are not attached properly, they may scratch the windshield.
Attach the wiper blade.
Rear window wiper blade as- sembly
Raise the wiper arm off the rear window.

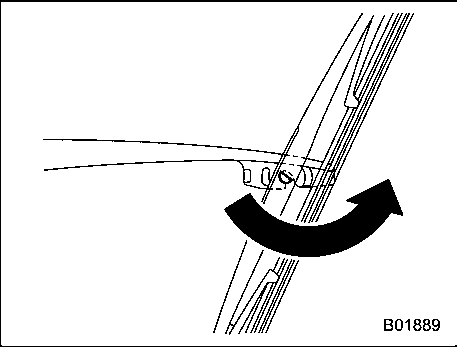

Turn the wiper blade assembly coun- terclockwise.

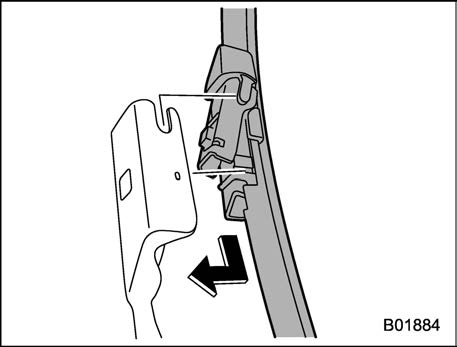

Pull the wiper blade assembly toward you to remove it from the wiper arm.
Install the wiper blade assembly to the wiper arm. Make sure that it locks in place.
Hold the wiper arm by hand and slowly lower it in position.

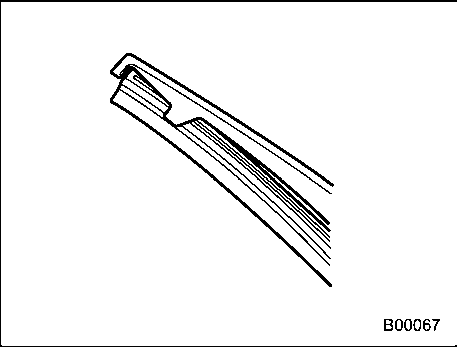

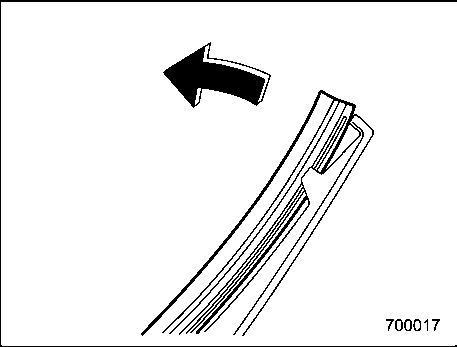

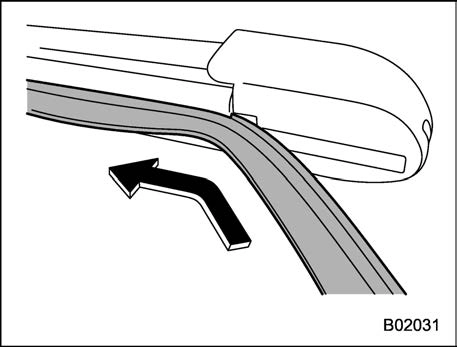

Pull out the end of the blade rubber assembly to unlock it from the plastic support.
Pull the blade rubber assembly out of the plastic support.

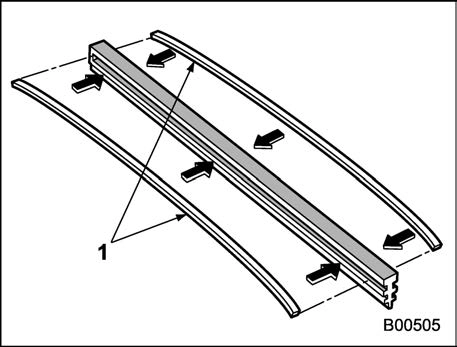

Metal spines
If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and install
them in the new blade rubber.
Align the claws of the plastic support with the grooves in the blade rubber assembly, then slide the blade rubber assembly into place.
Securely retain both ends of the rubber
488 Battery
with the stoppers on the plastic support ends. If the rubber is not retained properly, the wiper may scratch the rear window glass.
Install the wiper blade assembly to the wiper arm. Make sure that it locks in place.
Hold the wiper arm by hand and slowly lower it in position.
