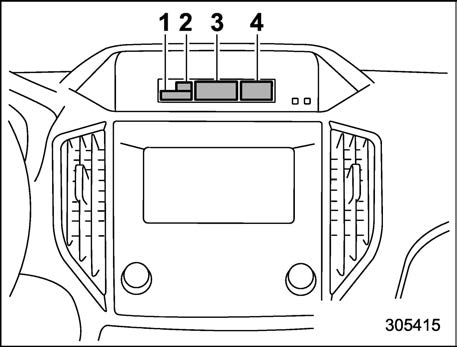

Multi-function display (black and white)
With the ignition switch in the “ACC” position, the clock appears on the display.
With the ignition switch in the “ON” posi- tion, the outside temperature indicator, driving information display and clock all appear on the display.
You can set the units for both the multi-
function display (black and white) and the combination meter at the same time. For details about setting the language and units, refer to “Type A combination meter” P167 or “Menu screens” P200.
! How to change the information dis- play

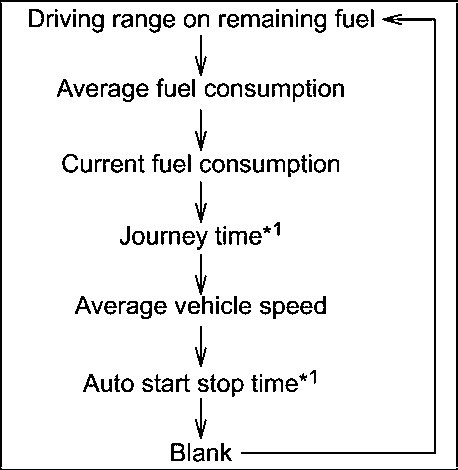

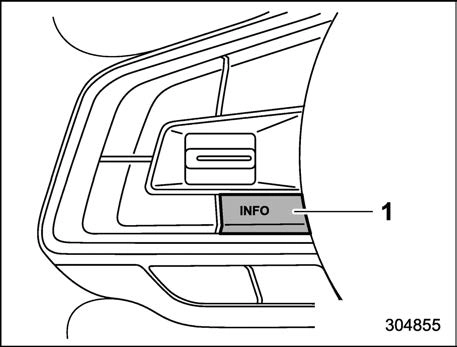

Pressing the INFO button on the steering wheel switches changes the display to the following sequence.
*1: Models without combination meter display (color LCD)
The driving range indicates the distance that can be driven taking into account the amount of fuel remaining in the tank and the average rate of fuel consumption.
If the driving range is shown as “ ”, there is only a tiny amount of fuel left in the tank.

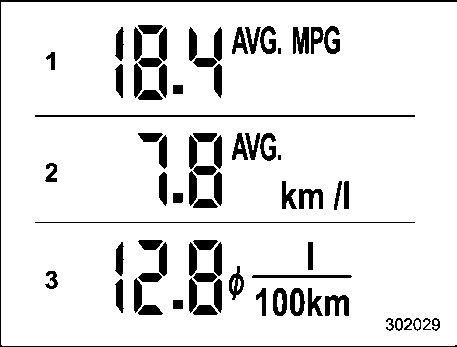

! Average fuel consumption
This display shows the average rate of fuel consumption since the trip meter was last reset.
Press the TRIP RESET switch to switch between the displays for the average fuel consumption that corresponds to the A trip meter mileage and the average fuel con- sumption that corresponds to the B trip meter mileage.
When the trip meter displays is reset, the corresponding average fuel consumption value is also reset.
! Current fuel consumption
This indication shows the rate of fuel consumption at the present moment.

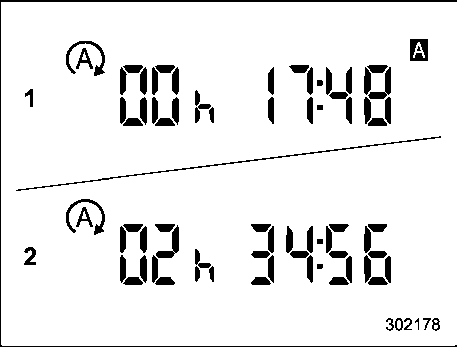

The journey time shows the time that has elapsed since the ignition switch was turned to the “ON” position.
The journey time indication flashes each
time a complete hour has elapsed. If the display is giving a reading other than the journey time, the display switches to the journey time, flashes for 5 seconds, and returns to its original reading each time a complete hour has elapsed.
! Average vehicle speed
This display shows the average vehicle speed since the trip meter was last reset. Pressing the TRIP RESET switch toggles the display between the average vehicle
speed corresponding to the A trip meter display and the average vehicle speed corresponding to the B trip meter display. When either of the trip meter displays is
reset, the corresponding average vehicle speed value is also reset.
! Auto Start Stop time (models with- out combination meter display (col- or LCD))
This display shows the total time that the engine was stopped by the Auto Start Stop system in the following ways.
Total time in conjunction with the trip meter: Displays the total time that the engine was stopped by the Auto Start Stop system, from the last time the currently displayed trip meter was reset until the current time. By pressing the TRIP RESET switch, you can toggle the display between the time the engine was stopped for trip A and the time the engine was stopped for
trip B.
Total time in conjunction with the igni- tion switch: Displays the total time that the engine was stopped by the Auto Start Stop system, from the time when the ignition switch was turned to the “ON” position to the current time.
Perform the following operation to toggle the display between the total time in conjunction with the trip meter and the total time in conjunction with the ignition switch.
Select the blank space in the menu to exit the driving information display selection.
through a tunnel)
– When starting the engine after being parked for a certain period of time
. The temperature unit cannot be changed.

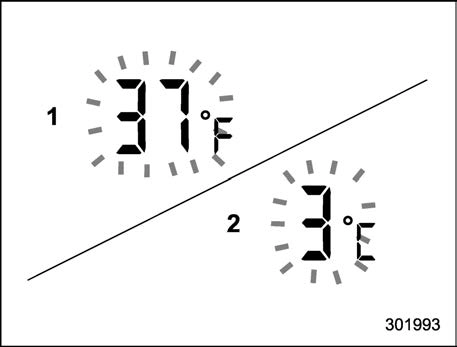

! Road surface freeze warning indi- cation
When the outside temperature drops to a certain temperature or lower, the tempera- ture indication flashes for 5 seconds to show that the road surface may be frozen.
If the display is already indicating that the outside temperature is low when the ignition switch is turned to the “ON” position, the indication does not flash.
equipped)This indicator will be shown while the X- MODE is activated. It will turn off when the X-MODE is deactivated.

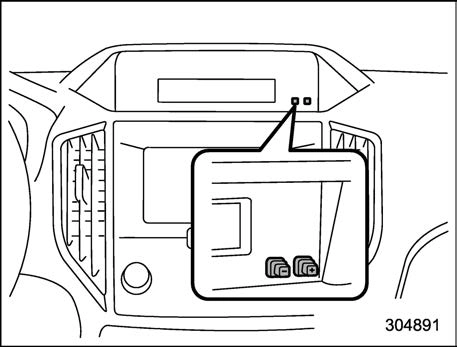

For details about clock setting, refer to “Clock” P232.
