2021 Subaru Forester Owners Manual - Manual climate control operation for front climate control panel

Manual climate control operation for front climate control panel

& Airflow mode selection

Select the airflow mode using the airflow mode selection dial (type A and C) or the airflow mode selection button (type B).

Airflow modes are as follows.

If equipped

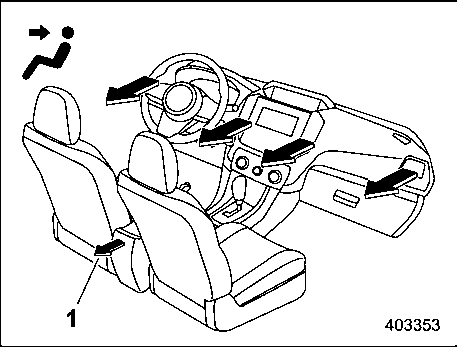

Ventilation: Instrument panel outlets

1) If equipped

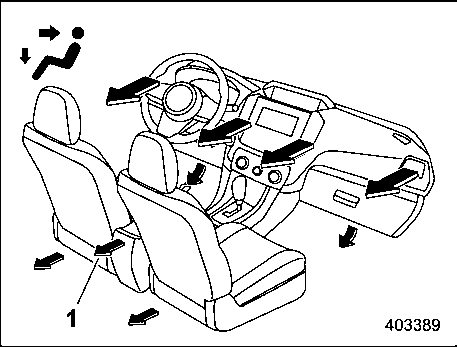

Ventilation 2 for type B and C: Instru- ment panel outlets and foot outlets

1) If equipped

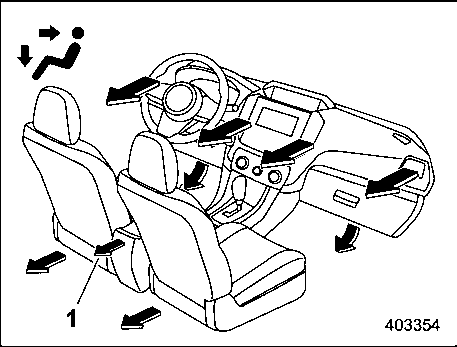

Bi-level: Instrument panel outlets and foot

272 Manual climate control operation for front climate control panel

outlets

If equipped

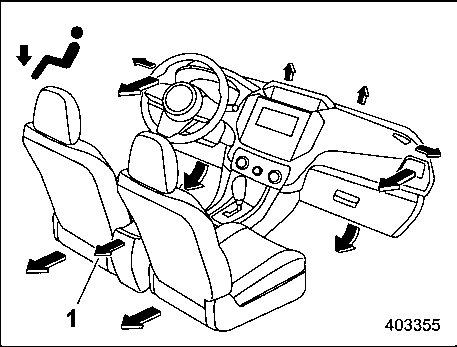

Heat: Foot outlets, both side outlets of the instrument panel and some through wind- shield defroster outlets (A small amount of air flows to the windshield and both side windows to prevent fogging.)

1) If equipped

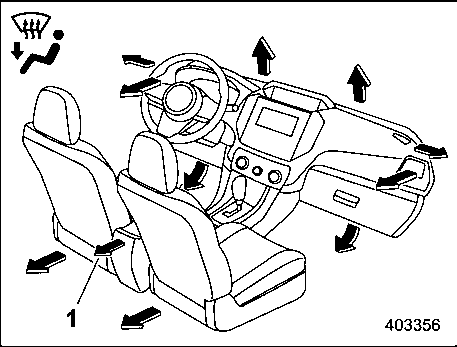

Heat-def: Windshield defroster outlets, foot outlets and both side outlets of the instrument panel (Refer to “Defrosting”

 P274.)

If equipped

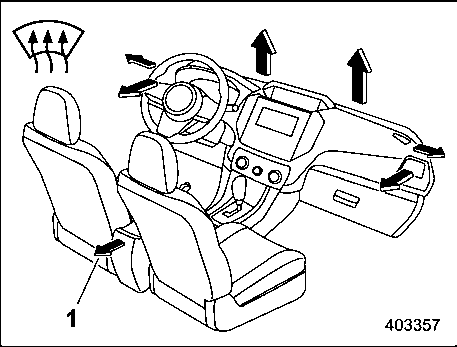

Defrost for type A: Windshield defroster outlets and both side outlets of the instru- ment panel (Refer to “Defrosting”  P274.)

For quicker cooling, press the MAX A/C button.

When the MAX A/C mode is on, the following settings will be changed auto- matically.

The air conditioner will turn on.

The temperature will be set on the lowest.

The fan speed will be set on the maximum speed.

The air inlet will be set to recirculation.

The airflow mode setting will be set to ventilation mode.

To turn off MAX A/C mode and return the previous setting, press the MAX A/C button again.

Turn the temperature control dial to set the preferred interior temperature.

! SYNC mode (type B)

When the SYNC mode is turned on, both the driver’s and front passenger’s side temperatures are synchronized using the driver’s side temperature control dial.

Press the SYNC button to turn on the SYNC mode. The SYNC button indicator will illuminate.

Press the SYNC button again or turn the front passenger’s side temperature control dial to cancel the SYNC mode. The SYNC button indicator will not illuminate. In this case, temperature control on the driver’s side and front passenger’s side is sepa- rated. The temperature will be controlled individually using the driver’s and front passenger’s temperature control dials.

Fan speed control

Select the preferred fan speed by turning the fan speed control dial.

Air conditioner control

The air conditioner operates only when the engine is running.

Press the air conditioner button while the fan is in operation to turn on the air conditioner. When the air conditioner is on, the “A/C” indicator light illuminates.

To turn off the air conditioner, press the button again.

Air inlet selection

Select the air inlet by pressing the air inlet selection button.

Recirculation:

When the indicator light on the air inlet selection button illuminates, interior air is recirculated inside the vehicle. Press the air inlet selection button to the ON position in the following cases.

When driving on a dusty road

When you want cooling perfor- mance to increase (for example, in particularly hot weather)

Outside air circulation:

When the indicator light on the air inlet selection button does not illuminate, out- side air is drawn into the passenger compartment. Press the air inlet selection button to the OFF position in the following cases.

When the road is no longer dusty

274 Defrosting

– When the interior has cooled to a comfortable temperature

When the indicator light on the air inlet selection button is flashing at engine starting, a malfunction might be occurring in the electrical system. We recommend that you contact your SUBARU dealer for inspection.

The indicator light on the air inlet selection button may flash in the fol- lowing cases. However, this does not indicate a malfunction.

After the vehicle battery has been disconnected and reconnected.

When the vehicle battery voltage is low.

To turn off the climate control system

To turn off the climate control system:

Type A: Select the “OFF” position using the fan speed control dial.

Type B and C: Press the ON/OFF button.
