Fuses and circuits

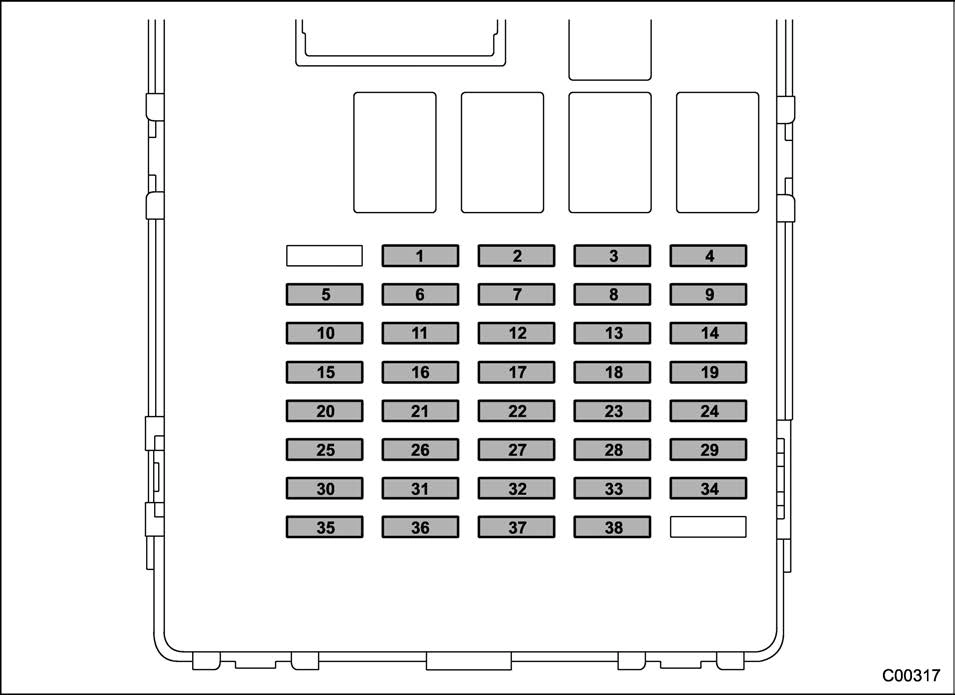

Fuse panel located in the passenger compartmentFuse panel
Fuse rating
Circuit
|
1 |
Empty |
|
|
2 |
20 A |
CIGAR |
|
3 |
7.5 A |
IG A-1 |
|
4 |
15 A |
AUDIO NAVI |
|
5 |
15 A |
IG B-2 |
|
6 |
7.5 A |
METER IG (DCDC) |
|
7 |
15 A |
12 V SOCKET |
|
8 |
15 A |
A/C IG |
|
9 |
7.5 A |
ACC |
|
10 |
7.5 A |
IG B-1 |
|
11 |
10 A |
EYE SIGHT (DCDC) |
|
12 |
Empty |
|
|
13 |
7.5 A |
IG A-3 |
|
14 |
10 A |
UNIT +B |
|
15 |
7.5 A |
METER IG |
|
16 |
7.5 A |
SRVD (DCDC) |
|
17 |
7.5 A |
MIRROR |
|
18 |
7.5 A |
LAMP IG |
|
19 |
10 A |
IG A-2 |
|
20 |
10 A |
SRS AIR BAG |
|
21 |
7.5 A |
A/C IG (DCDC) |
|
22 |
25 A |
SEAT/H STRG/H |
|
23 |
10 A |
DRL |
|
24 |
7.5 A |
A/C ACC (DCDC) |
|
25 |
7.5 A |
UNIT +B (DCDC) |
|
26 |
10 A |
BACK UP |
|
27 |
10 A |
A/C +B |
|
28 |
20 A |
TRAIL R.FOG |
|
29 |
7.5 A |
AUDIO ACC (DCDC) |
|
30 |
7.5 A |
BACK UP (DCDC) |
|
31 |
7.5 A |
SMT (DCDC) |
|
32 |
7.5 A |
ILLUMI |
|
33 |
7.5 A |
KEY SW A |
|
34 |
Empty |
|
|
35 |
7.5 A |
ILLUMI (DCDC) |
|
36 |
7.5 A |
KEY SW B |
|
37 |
7.5 A |
STOP |
|
38 |
7.5 A |
EYE SIGHT |

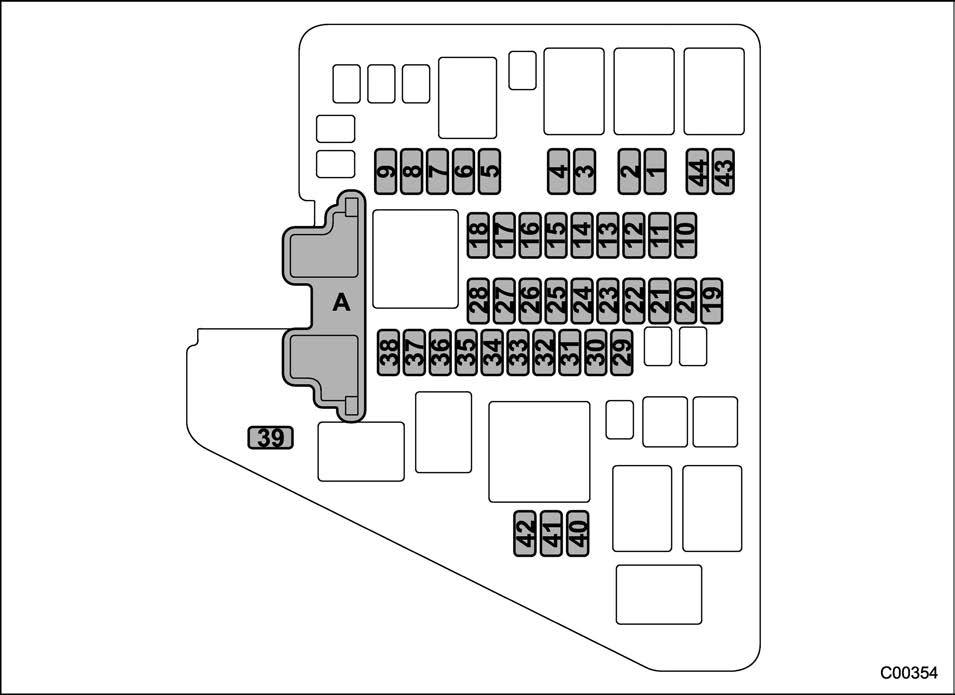

Fuse panel located in the engine compartmentFuse panel
Fuse rating
Circuit
Main fuse
7.5 A HORN 2
7.5 A HORN 1
15 A H/L LO RH
15 A H/L LO LH
10 A DCM
10 A H/L HI RH
10 A H/L HI LH
10 A TAIL
30 A JB-B
20 A FUEL
7.5 A OBD
10 A ODS
7.5 A PU B/UP
15 A HAZARD
7.5 A AUX +B
10 A MB-B
Empty
20 A D/L
10 A AVCS
20 10 A E/G2
21 7.5 A CVT SSR
Empty
Empty
20 A O2 HTR
Empty
20 A TCU 1
15 A IG COIL
28 30 A E/G1
30 A BACKUP
25 A MAIN FAN
30 A VDC SOL
10 A F. FOG
25 A R. DEF
20 A AUDIO
10 A DEICER
25 A SUB FAN
15 A BLOWER
15 A BLOWER
Empty
15 A R. WIPER
15 A F. WASH
30 A F. WIPER
Empty
Empty
