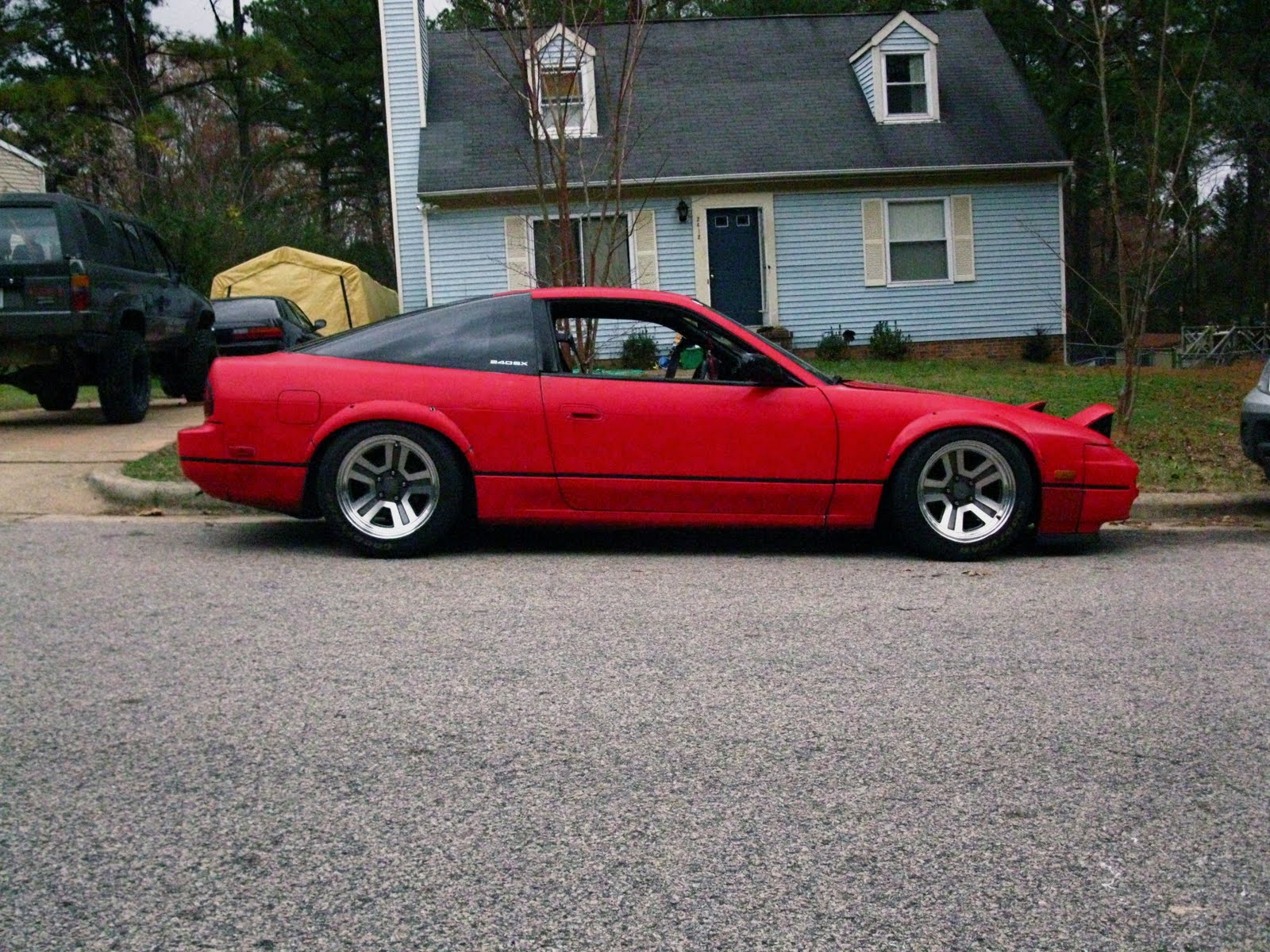

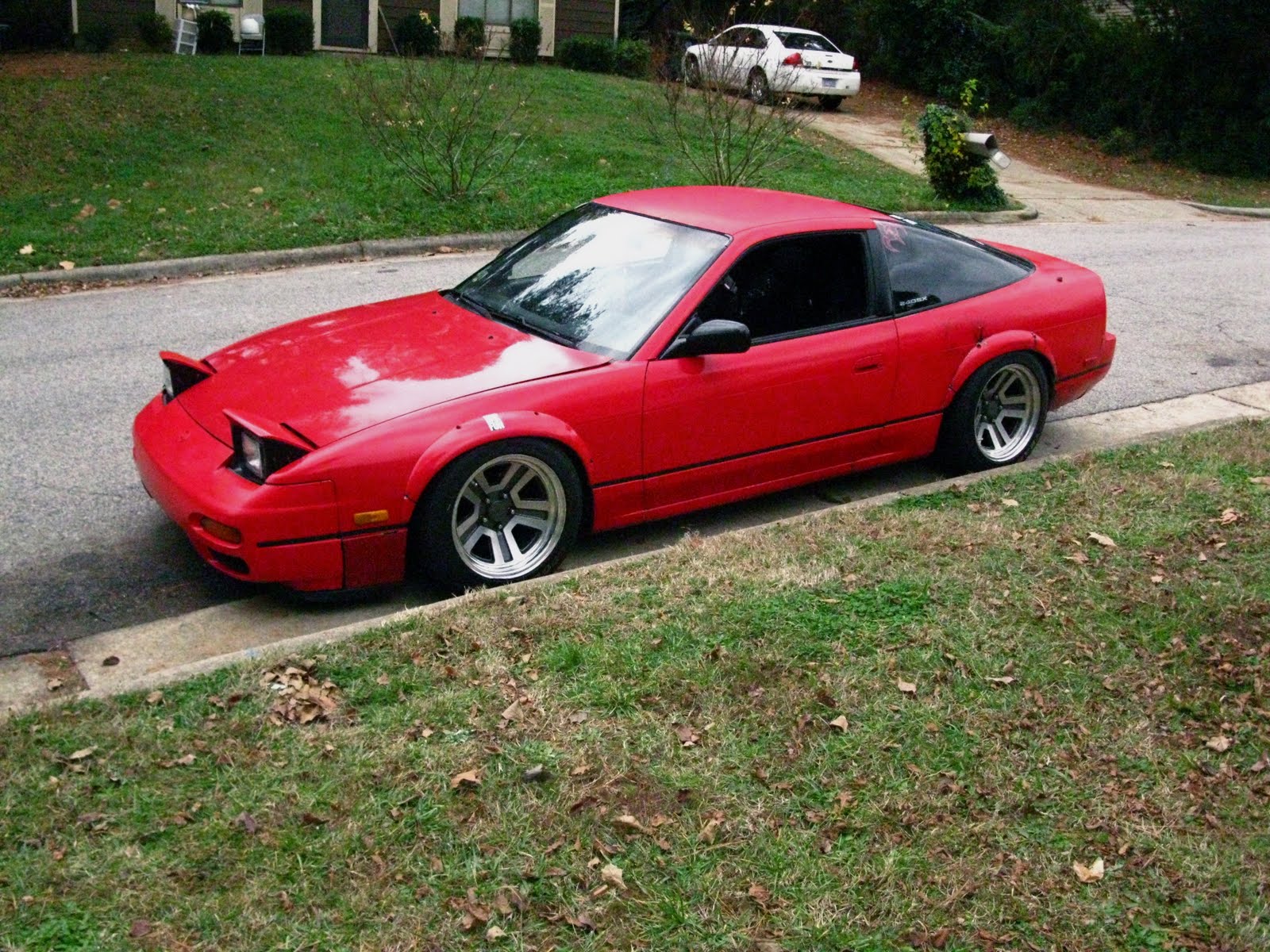

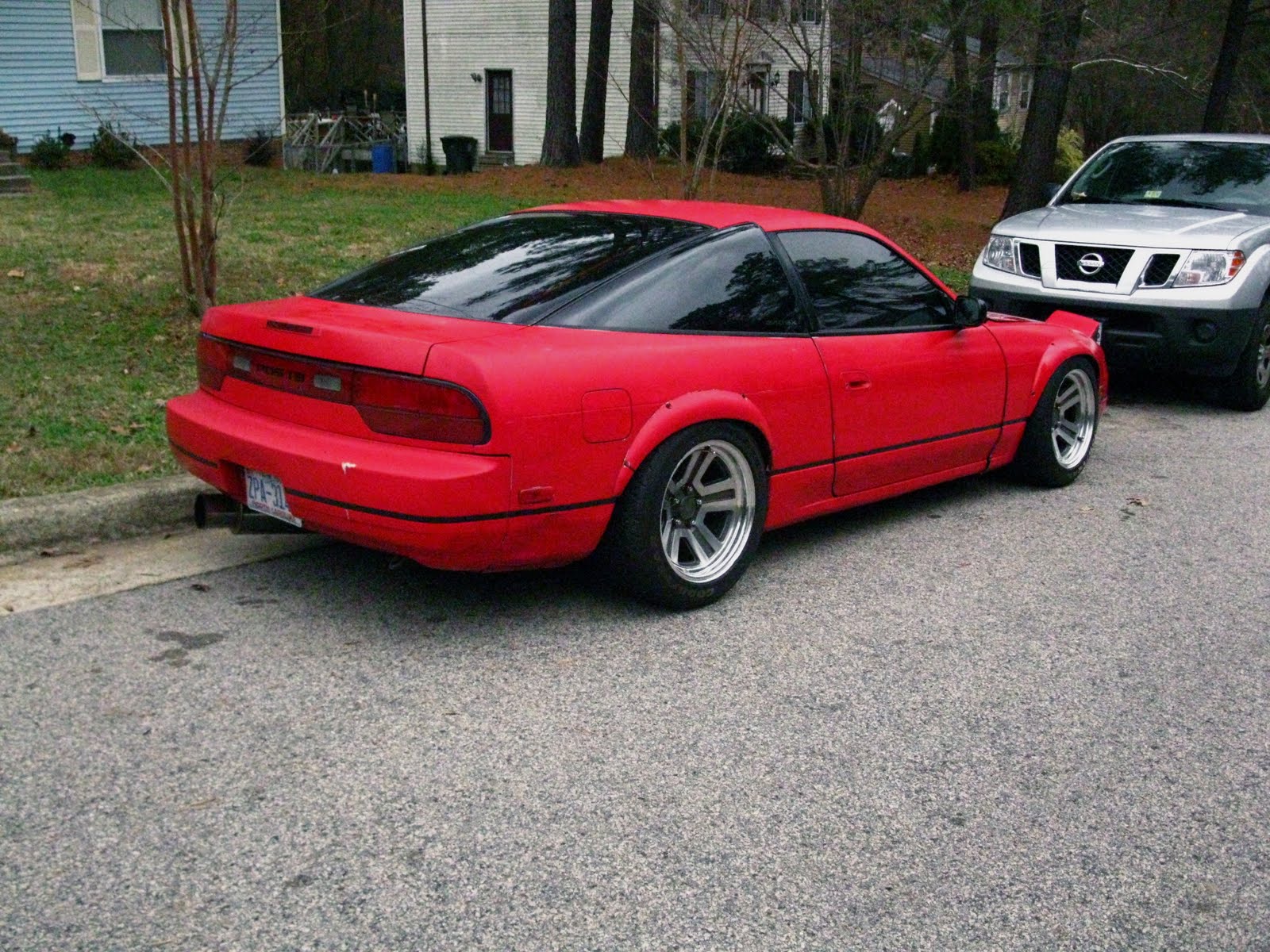

1992 Nissan S13 with Mitsubishi Starion SHP Rear
Project Specifications
| Make | Nissan |
| Model | S13 |
| Year | 1992 |
| Wheel Brand | Mitsubishi Starion SHP Rear |
| Rim Size | 16x9.0 |
| Offset | -21 mm |
| Tire Brand | Goodyear Eagle GS-C |
| Tire Size | 245/45R16 |
Description
FRONT
Spacers: 21mm (6 slip-on, 15 bolt-on)
Flares: PJ Bonifacio S13
Suspension: Megan Streets, Megan S14 inner/outer tie rods (w/ rack spacers and bump steer corec)
Camber: maxxed camber plates, -3 deg or so.
Toe: 0
Hubs: S13 hubs redrilled to 5lug
Other: tucked harness, ghetto tubs (a.k.a. hammered wheel wells for steering clearance)
REAR
Spacers: n/a
Flares: PJ Bonifacio S13
Suspension: Megan Streets, adjustable RUCAs
Camber: -2.5 deg
Toe: 0.8 deg out
Hubs: S14 5lug
ignitesoul.blogspot.com
Spacers: 21mm (6 slip-on, 15 bolt-on)
Flares: PJ Bonifacio S13
Suspension: Megan Streets, Megan S14 inner/outer tie rods (w/ rack spacers and bump steer corec)
Camber: maxxed camber plates, -3 deg or so.
Toe: 0
Hubs: S13 hubs redrilled to 5lug
Other: tucked harness, ghetto tubs (a.k.a. hammered wheel wells for steering clearance)
REAR
Spacers: n/a
Flares: PJ Bonifacio S13
Suspension: Megan Streets, adjustable RUCAs
Camber: -2.5 deg
Toe: 0.8 deg out
Hubs: S14 5lug
ignitesoul.blogspot.com
